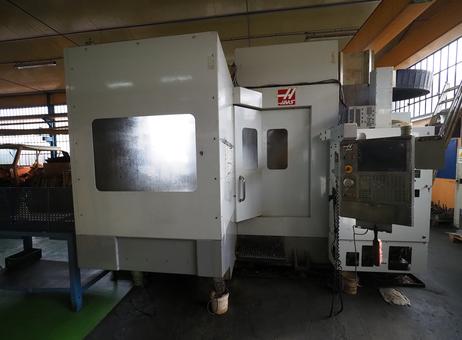

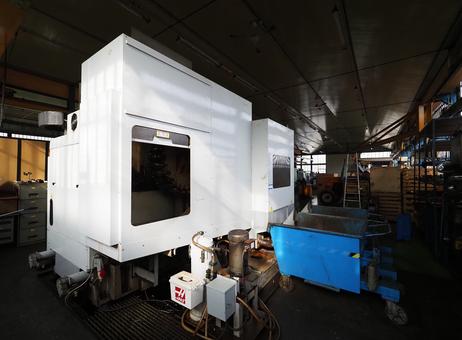

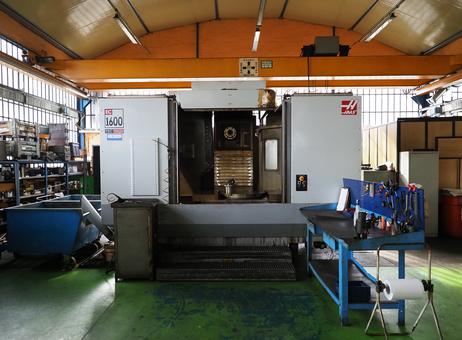

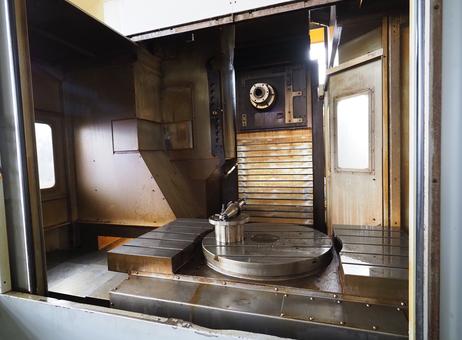

Haas EC-1600

Haas EC-1600 P240227151
Haas EC-1600 P240227151
Haas EC-1600 P240227151
Haas EC-1600 P240227151
Haas EC-1600 P240227151
Haas EC-1600 P240227151
Haas EC-1600 P240227151
Manufacturer Haas
Model EC-1600
Category Machining centers - horizontal

Here is a selection of similar machines - Haas EC-1600

Specifications

Axis X 1626 mm
Axis Y 1270 mm
Axis Z 812.8 mm
Rotary table (4th axis) no
CNC
Table length 1625.6 mm
Table width 914.4 mm
Max. part weight 4536 kg
Number of tool pockets 30
Spindle taper
Max. spindle speed 6000 rpm
Spindle motor power 22.4 kW
-------------------
Length x width x height 4876.8 × 3657.6 × 3454.4
Weight 13611.6 kg

Seller's description

Model: Haas EC-1600

Type: Horizontal Machining Center

Common Applications:
- Aerospace manufacturing
- Energy sector production
- Heavy equipment manufacturing

Advantages:
- Designed for precision and efficiency in large-part machining
- Capable of handling heavy and bulky workpieces
- Provides reliable performance and exceptional accuracy for complex machining operations

Key Technical Specifications:
- X-Axis Travel: 1,626 mm
- Y-Axis Travel: 1,270 mm
- Z-Axis Travel: 813 mm
- Spindle Taper: 50
- Spindle Speed: Up to 7,500 RPM
- Spindle Motor Power: 22.4 kW (30 HP)
- Tool Changer Capacity: 50+1 side-mount tool changer
- Table Size: 1,400 x 1,270 mm
- Max. Table Load: 4,535 kg
- Rapid Traverse Rates: 10.2 m/min (X, Y, Z-axis)

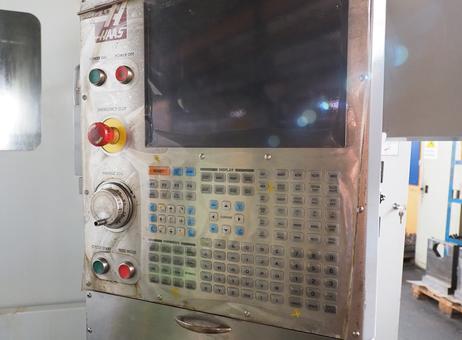

- Control System: Haas CNC control with a 15" color LCD monitor
- Electrical Requirements: 3-Phase, 380-480 VAC

Technical Data:
- Dimensions: 4,880 x 4,470 x 3,430 mm
- Weight: 20,865 kg
- Machine Enclosure: Fully enclosed for enhanced safety and coolant containment
- Coolant System: High-pressure programmable coolant nozzles for optimal chip evacuation
- Accuracy: Precision linear guides and ball screws for exceptional accuracy

Additional Features:
- Ethernet connectivity
- USB port
- High-speed machining software
- Remote monitoring capabilities

Similar machines sold on our website

Used HAAS EC-1600. Cnc Horizontal Machining Centre, w/ Full 4th Axis Rotary Table

Used HAAS EC-1600. Cnc Horizontal Machining Centre, w/ Full 4th Axis Rotary Table Sold

US USA 2005

weight 13611.6 kg
Table width 914.4 mm
Table length 1625.6 mm
Spindle taper 50

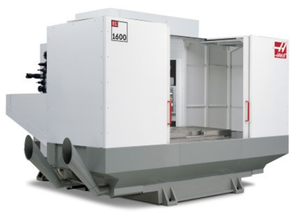

Haas EC-1600 Machining center - vertical

Haas EC-1600 Machining center - vertical Sold

US USA 2011

Axis X 1625.6 mm
Axis Z 812.8 mm
Type of CNC Haas Contro;
Table width 914.4 mm
Number of tool pockets 51
Max. spindle speed 6000 rpm
Axis Y 1016 mm
Rotary table (4th axis) no
Table length 1625.6 mm
Max. part weight 4537.2 kg
Spindle taper SMTC
Spindle motor power 22.4 kW
Haas EC-1600 Machining center - horizontal

Haas EC-1600 Machining center - horizontal Sold

US USA 2005

length 4876.8 mm
height 3454.4 mm
Axis X 1625.6 mm
Axis Z 812.8 mm
CNC Haas 32 BIT
Table width 914.4 mm
Spindle taper CT 50
Spindle motor power 22.4 kW
width 3657.6 mm
weight 13611.6 kg
Axis Y 1270 mm
Rotary table (4th axis) no
Table length 1625.6 mm
Number of tool pockets 30
Max. spindle speed 6000 rpm
Used Haas EC-1600 Horizontal machining centre

Used Haas EC-1600 Horizontal machining centre Sold

US USA

weight 13611.6 kg
Used HAAS EC-1600. Cnc Horizontal machining centre, 6,000 RPM

Used HAAS EC-1600. Cnc Horizontal machining centre, 6,000 RPM Sold

US USA 2006

Spindle taper CAT 50
Max. spindle speed 6000 rpm
Used Haas EC-1600. Horizontal Machining Centre, w/ 2 Speed Geared Head

Used Haas EC-1600. Horizontal Machining Centre, w/ 2 Speed Geared Head Sold

US USA 2011

weight 14446.5 kg
Table width 914.4 mm
Max. spindle speed 6000 rpm
Table length 1625.6 mm
Spindle taper CT50
Used Haas, Model EC-1600. Horizontal Machining Centre, w/ Haas Control

Used Haas, Model EC-1600. Horizontal Machining Centre, w/ Haas Control Sold

US USA 2011

Spindle taper CT-50
Max. spindle speed 6000 rpm

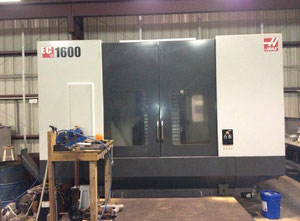

Used 2011 HAAS EC-1600 Horizontal Machining Center

Used 2011 HAAS EC-1600 Horizontal Machining Center Sold

US USA 2011

weight 13611.6 kg
Axis Y 1016 mm
Palette length 1625.6 mm
Spindle taper CAT-50
Spindle motor power 22 kW
Axis X 1625.6 mm
Axis Z 812.8 mm
Palette width 914.4 mm
Spindle rotation speed 6000 rpm
Used 2011 Haas EC-1600 Horizontal Machining Center

Used 2011 Haas EC-1600 Horizontal Machining Center Sold

US USA 2011

weight 13611.6 kg
Axis Y 1016 mm
CNC Haas
Palette width 914.4 mm
Spindle taper CAT-50
Spindle motor power 22.4 kW
Axis X 1625.6 mm
Axis Z 812.8 mm
Palette length 1625.6 mm
Max. part weight 4537.2 kg
Spindle rotation speed 10000 rpm
Sell your machines to buyers worldwide
Sell your machines to buyers worldwide

Sell your machines to buyers worldwide

Join 10,000+ companies already selling with us

Reach 500,000+ monthly visitors

Sell faster at a great price

No hidden fees, it's free

Sell your machine
or contact us
Used Haas EC-1600. Horizontal Machining Centre, w/ Programmable Coolant Nozzle

Used Haas EC-1600. Horizontal Machining Centre, w/ Programmable Coolant Nozzle Sold

US USA 2011

weight 13611.6 kg
Max. spindle speed 10000 rpm
Spindle taper CAT 50
Used Haas EC-1600 Horizontal machining centre

Used Haas EC-1600 Horizontal machining centre Sold

US USA 2005

TRAVELS: -X-AXIS: 64" -Y-AXIS: 40" -Z-AXIS: 32" TABLE: -LENGTH: 64" -WIDTH: 36" -T-SLOT WIDTH: 5/8" -T-SLOT CENTER DISTANCE: 4.92" -MAX WEIGHT ON TABLE (EVENLY DISTRIBUTED): 10000 LB SPINDLE: -MAX RATING: 30 HP -MAX SPEED: 6000 RPM -MAX TORQUE: 450 FT-LB @ 500 RPM -DRIVE SYSTEM: 2-SPEED GEARED HEAD -TAPER: CT OR BT 50 FEEDRATES: -RAPIDS ON-X: 540 IN/MIN -RAPIDS ON-Y: 540 IN/MIN -RAPIDS ON-Z: 540 IN/MIN -MAX CUTTING: 500 IN/MIN AXIS MOTORS: -MAX THRUST-X: 5600 LB -MAX THRUST-Y: 5600 LB -MAX THRUST-Z: 7500 LB TOOL CHANGER: -TYPE: SMTC -CAPACITY: 30+1 -MAX TOOL DIAMETER(ADJACENT EMPTY): 10" -MAX TOOL DIAMETER(FULL): 4" -MAX TOOL LENGTH(FROM GAGE LINE): 20 " -MAX TOOL WEIGHT: 30 LB -TOOL-TO-TOOL (AVG): 10.3 SEC -CHIP-TO-CHIP (AVG): 12.6 SEC ACCURACY: -POSITIONING(+/-): 0.0003" -REPEATABILITY(+/-): 0.0002" GENERAL: AIR REQUIRED 9 SCFM, 100 PSI COOLANT CAPACITY: 95 GAL POWER (OPTIONS MAY INCREASE REQUIREMENT) 195-260 VAC/100 A 354-488 VAC/50 A 195-260 VAC/100 A 354-488 VAC/50 A MACHINE WEIGHT: 30000 LB EQUIPPED WITH -16 MEG -COORDINATE ROTATION AND SCALING -WORK AND TOOL PROBE -SPINDLE ORIENT -QUICK CODE -ENCLOSURE -FULL 4TH -THROUGH SPINDLE COOLANT -PROGRAMMABLE COOLANT -KEY SWITCH -AUXILIARY FILTER

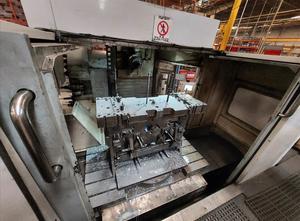

Haas Ec-1600 4-Axis Horizontal Machining Center

Haas Ec-1600 4-Axis Horizontal Machining Center Sold

MX Mexico 2005

<u>Standard Specifications</u> X-Axis Travel: 64" Y-Axis Travel: 50" Z-Axis Travel: 32" Spindle Centerline to Table: 11.97" Spindle Motor: 30 hp Max. Spindle Speed: 7500 RPM Max. Torque: 340 ft/lbf @ 700 RPM Table Size: 64" x 36" T-Slot Width: 0.626" to 0.630" T-Slot Center Distance: 4.92" Number of T-Slots: 7 Table Weight Capacity: 10000 lbs Max. Tool Diameter (Full): 4" Max. Tool Diameter (Empty Adjacent Pockets): 10" Max. Tool Length (From Gage Line): 20" Max. Tool Weight: 30 lbs Tool-to-Tool Time: 8 sec Chip-to-Chip Time: 12.6 sec EQUIPPED WITH: Haas CNC Control 4th-Axis Rotary Table

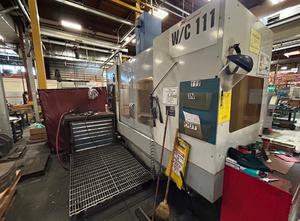

HAAS EC-1600

HAAS EC-1600 Sold

US USA 2007

Travels: X-Axis 64" Y-Axis 50" Z-Axis 32" Table: Length 64" Width 36" T-Slot width 5/8" T-Slot center distance 4.92" Max. weight on table (evenly distributed) 10,000 lb Spindle: Max. Rating 30 HP Max. Speed 6000 RPM Max. Torque 450 ft-lb @5,000 RPM Drive system 2-speed geared head Taper 50 4th Axis Max. Rating 5.0 HP Table 64"x32" Platter diameter 30" Max. weight on platter 10,000 lb Rotational torque (continuous) 2000 ft-lb Backlash 30 arc-sec Gear ratio 500:1 Brake torque 4000 ft-lb Min resolution 5 deg Feedrates: Rapids on X,Y & Z 540 in/min Max. cutting 500 in/min Axis Motors: Max. Thrust X & Y 5600 lb Max. Thrust Z 7500 lb Tool Changer: Type SMTC Capacity 50+1 Max Tool Diameter (adjacent empty) 10" Max Tool Diameter (full) 4" Max Tool Diameter (from gage line) 20" Max Tool Weight 30 lb Tool-to-Tool (avg) 10.3 sec Chip-to-Chip (avg) 12.6 sec General: Air required 9 scfm, 100 psi Coolant capacity 95 gal

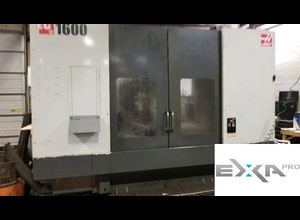

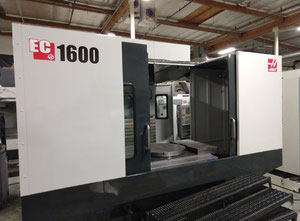

Haas EC-1600 Machining center - horizontal

Haas EC-1600 Machining center - horizontal Sold

US USA 2011

weight 13611.6 kg
Axis Y 1016 mm
Rotary table (4th axis) no
Table length 1625.6 mm
Max. part weight 4537.2 kg
Spindle taper 50
Spindle motor power 22.4 kW
Axis X 1625.6 mm
Axis Z 812.8 mm
CNC Haas
Table width 914.4 mm
Number of tool pockets 51
Max. spindle speed 6000 rpm
Used Haas, Model EC-1600. Cnc Vertical machining centre

Used Haas, Model EC-1600. Cnc Vertical machining centre Sold

US USA 2006

length 3606.8 mm
height 2921 mm
Spindle taper CAT 50
width 4343.4 mm
weight 18148.8 kg
Max. spindle speed 6000 rpm

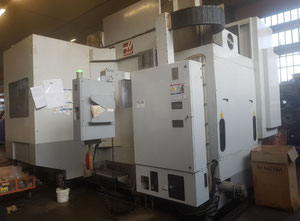

Haas EC-1600 Machining center - horizontal

Haas EC-1600 Machining center - horizontal Sold

IT Italy 2008

length 3099 mm
height 3708 mm
Axis X 1626 mm
Axis Z 813 mm
CNC HAAS
Number of tool pockets 30
Max. spindle speed 6000 rpm
width 4343 mm
weight 4539 kg
Axis Y 1270 mm
Rotary table (4th axis) yes
Table length 1626 mm
Spindle taper BT50
Spindle motor power 24 kW

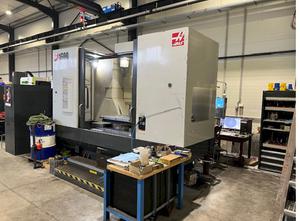

HAAS EC-1600 Machining center - 5 axis

HAAS EC-1600 Machining center - 5 axis Good value Sold

CZ Czech Republic 2012

weight 14300 kg
Axis Y 1270 mm
Type Horizontal
Table length 1626 mm
Max. part weight 4539 kg
Spindle taper BT 50
Axis X 1625 mm
Axis Z 813 mm
CNC Haas
Table width 914 mm
Number of tool pockets 50
Max. spindle speed 6000 rpm

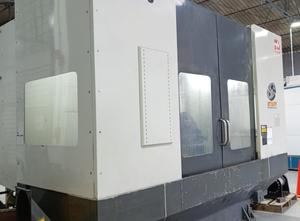

HAAS EC-1600 Horizontal machining center

HAAS EC-1600 Horizontal machining center Sold

DE Germany 2008

Axis X 1626 mm
Axis Z 814 mm
CNC HAAS
Table width 814 mm
Number of tool pockets 31
Axis Y 1270 mm
Rotary table (4th axis) yes
Table length 1626 mm
Max. part weight 4536 kg
Spindle taper SK 50
HAAS EC-1600 Machining center - horizontal

HAAS EC-1600 Machining center - horizontal Sold

PE Peru 2013

Rotary table (4th axis) no
Spindle taper
CNC

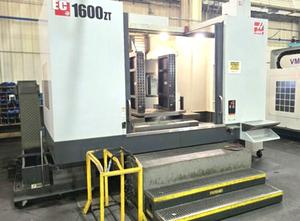

Haas EC-1600ZT Horizontal CNC Machining Center

Haas EC-1600ZT Horizontal CNC Machining Center Sold

US USA 2017

Rotary table (4th axis) no
Max. part weight 4.53721 kg
Max. spindle speed 75 rpm
CNC
Spindle taper

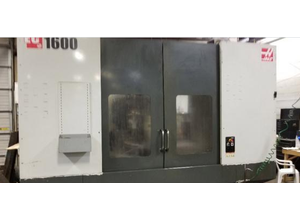

Haas EC-1600 Machining center - vertical

Haas EC-1600 Machining center - vertical Sold

HR Croatia 2008

length 3900 mm
height 3150 mm
Axis X 1626 mm
Axis Z 813 mm
Type of CNC Haas M15.x
Table width 914 mm
Number of tool pockets 30
Max. spindle speed 10000 rpm
width 3850 mm
weight 14000 kg
Axis Y 1270 mm
Rotary table (4th axis) no
Table length 1626 mm
Max. part weight 4536 kg
Spindle taper CT50
Spindle motor power 22.4 kW

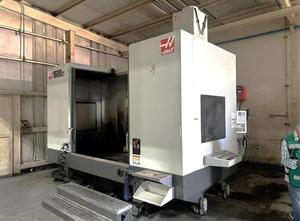

Haas EC-1600ZT Machine-tool

Haas EC-1600ZT Machine-tool Sold

US USA 2019

length 4876.8 mm
width 4216.4 mm
weight 15880.21779 kg
Working height 1016 mm
Engine Power 22.37136 kW
Working length 1625.6 mm
height 3454.4 mm
Working width 1270 mm
Spindle Speed 7500 rpm

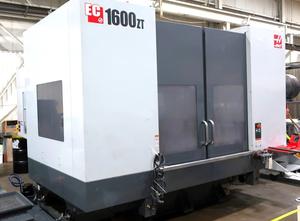

HAAS EC-1600ZT Horizontal Machining Center
