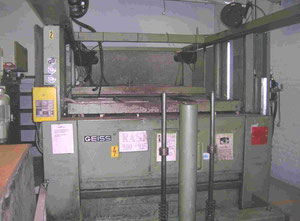

Geiss DU 2000 x 1000 T2

Size: mm 1940 x 940 Depth: mm 600

Format x Size: 2000 x 1000 mm Depth/Double: 600 mm 1 Universal forming machine GEISS type DU 2000 x 1000 T 2 max. sheet size 2000 x 1000 mm max. forming area 1940 x 940 mm max. depth of draw 600 mm with double heating Equipment: - Microprocessor panel with 9 memory places - Upper heater TQS-quartz elements, single regulation with economic circuit - Bottom heater Cr Ni-elements regulated in sections - adjustable top clamping frame - 4 cooling fans - plug assist

Machine completely overhauled with new wiring, cylinders sealed Format x Size: 2000 x 1500 mm Depth/Double: 600 mm 1 Universal forming machine GEISS type DU 2000 x 1500 T 2 max. sheet size 2000 x 1500 mm max. forming area 1940 x 1440 mm max. depth of draw 600 mm with double heating - max. electrical power consumption 102 kW - max. air consumption ca. 1800 Nl/cycle - 3 x 380 V - vacuum pump 100 m³/h - vacuum tank ca. 700 Ltr. Equipment: - Microprocessor panel with 10 memory places - Upper heater TQS-quartz elements, single regulation with economic circuit to save energy in back position possibility to store 9 sets/programs on the CPU - Bottom heater Cr Ni-elements regulated in sections - adjustable top clamping frame - 4 cooling fans - plug assist - parallel upper clamping frame - foil sagging control by photo cell - pre blow and mould release automatic Could be modernized with a NEW SIEMENS S7 from GEISS

Format x Size: 1940 x 940mm Depth/Double: 600mm

Taille de moulage : mm 1940 x 940 Profondeur : mm 600

Moule : mm 1940 x 940 Profondeur : mm 600

Moule : mm 1940 x 940 Profondeur : mm 600
