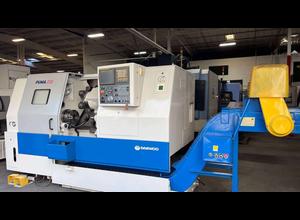

Daewoo PUMA 230MC

Manufacturer: Daewoo
Model: PUMA 230MC
Length: 2997.0 mm
Width: 1500.0 mm
Height: 1740.0 mm
Weight: 4140.0 kg
Turning Length: 492.0 mm
Turning Diameter: 290.0 mm
Diameter Above the Bed: 550.0 mm
Diameter Above Transversing Slide: 390.0 mm
Length Between Centers: 450.0 mm
X-axis Travel: 205.0 mm
Z-axis Travel: 580.0 mm
Max Workpiece Weight: 370.0 kg
Spindle Bore: 76.0 mm
Number of Turrets: 1
Number of Tools on Turret: 12
Number of Rotating Tools: 12
Turning Speed: 4500 RPM
Spindle Motor Power: 15.0 kW

Common Application:
The Daewoo PUMA 230MC is primarily used in precision machining applications, particularly in the manufacturing of complex components for industries such as automotive, aerospace, and general engineering. Its capabilities make it suitable for both small batch production and high-volume manufacturing.

Advantages:
- High precision and accuracy in machining due to advanced spindle technology.
- Versatile tooling options with a turret that accommodates multiple tools, enhancing productivity.
- Compact design allows for efficient use of floor space in industrial settings.
- Robust construction ensures durability and reliability under heavy workloads.
- High spindle speed enables faster machining cycles, reducing overall production time.
- Capable of handling a wide range of workpiece sizes and weights, making it adaptable to various manufacturing needs.
