| Manufacturer | SORALUCE |
|---|---|
| Model | SP-8.000 |
| Year | 2008 |
| Location | Germany
|

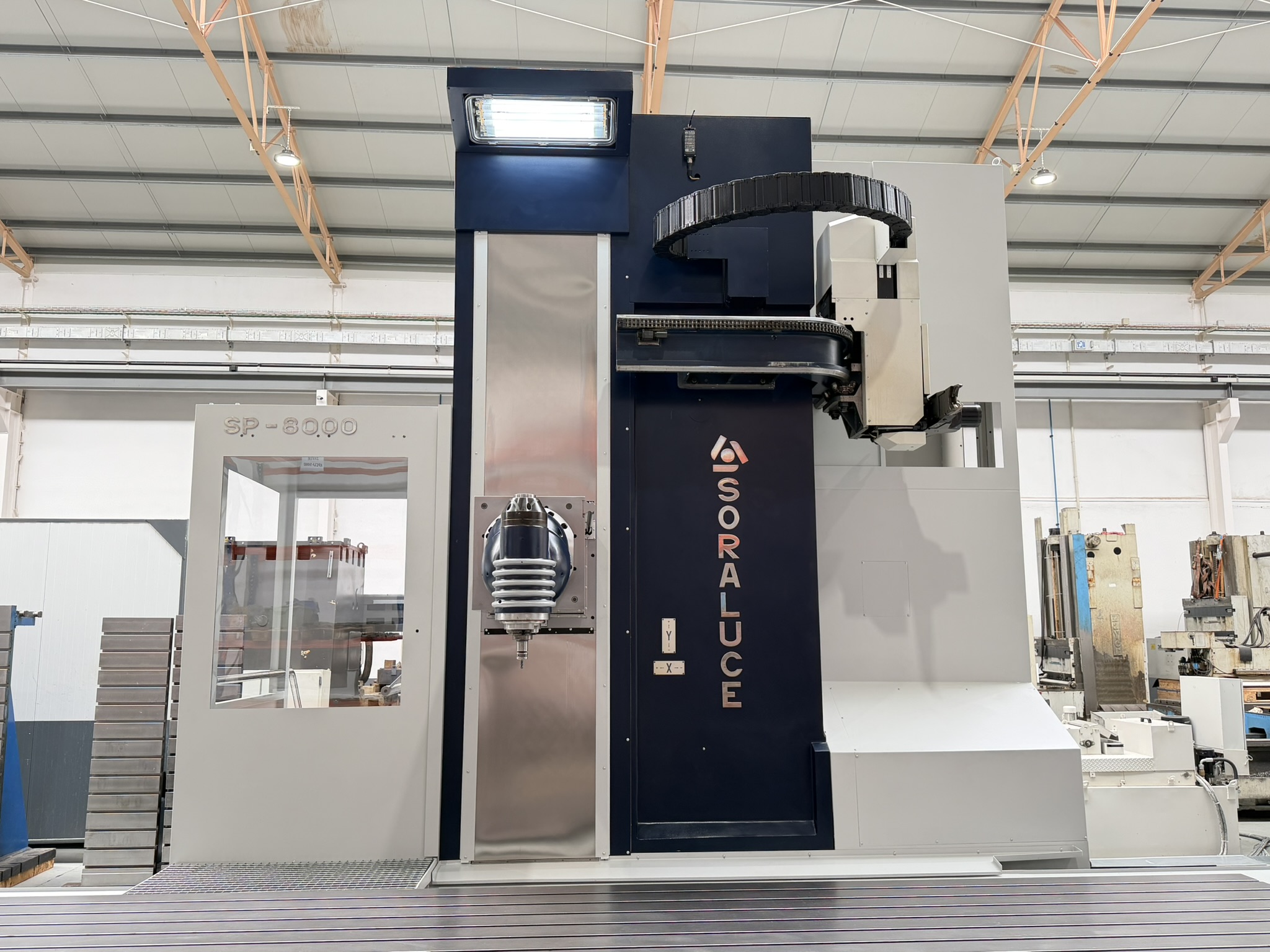

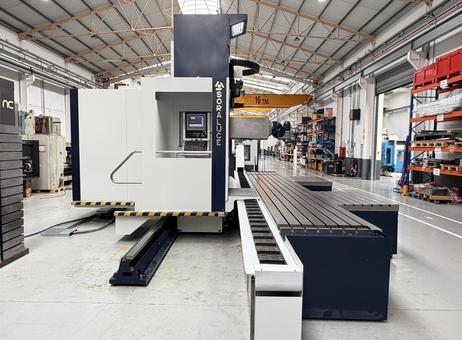

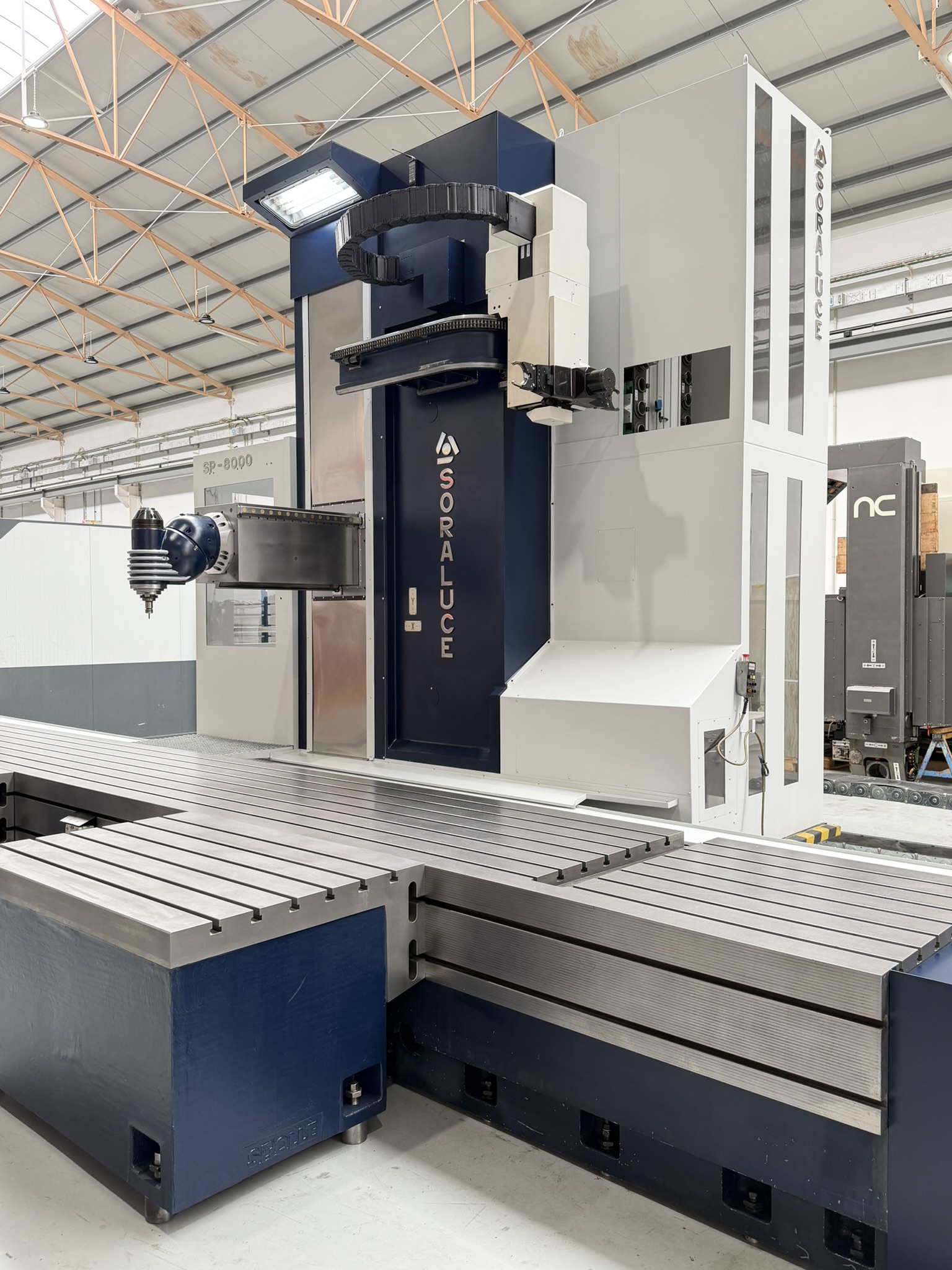

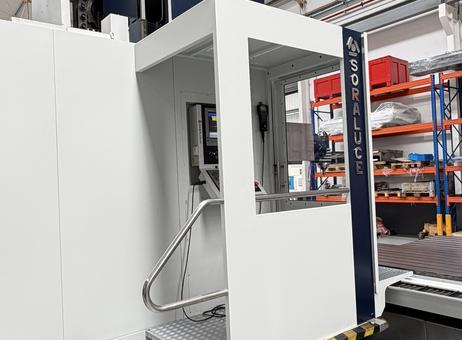

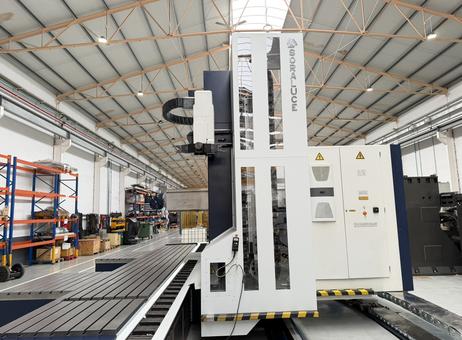

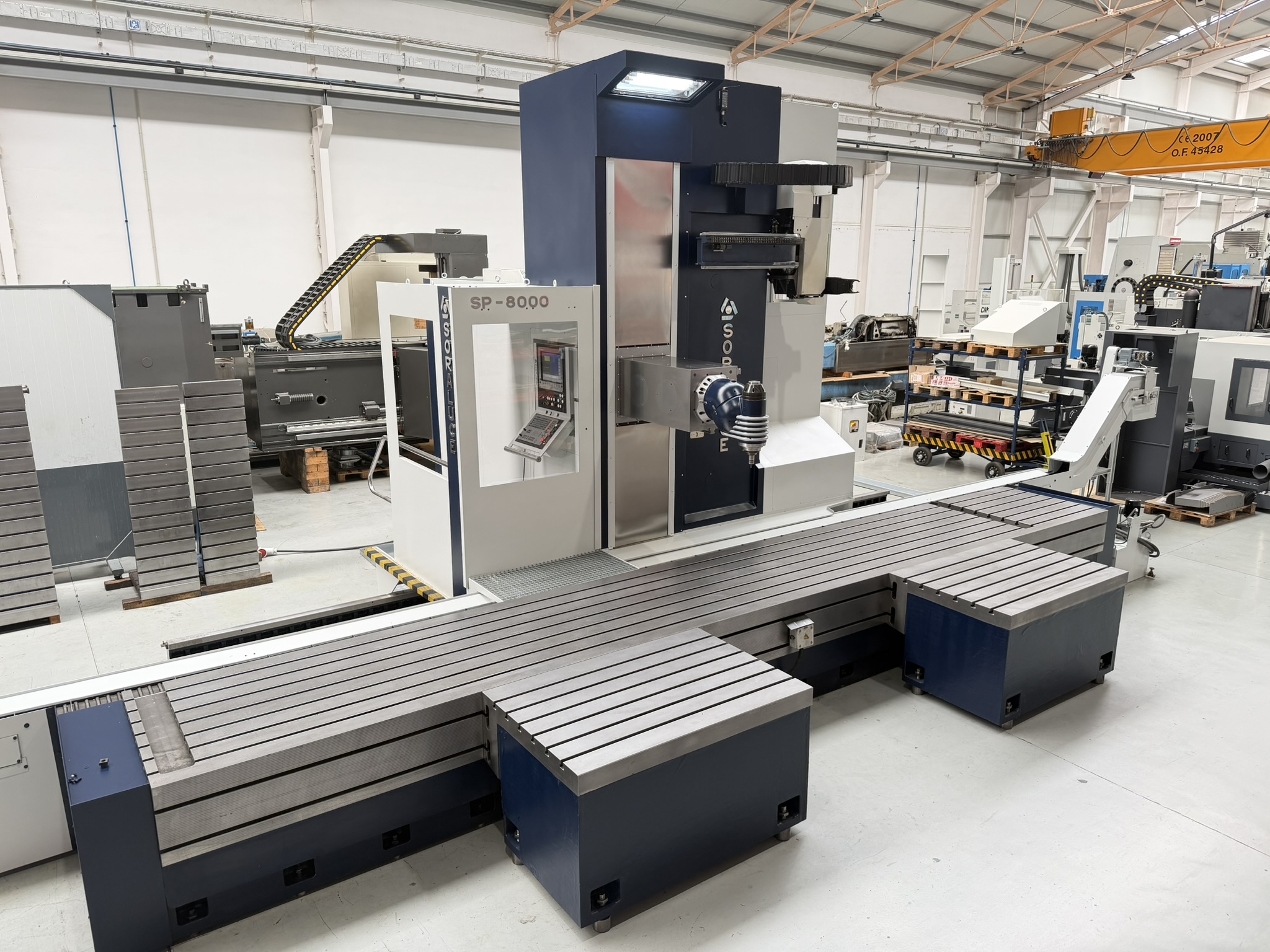

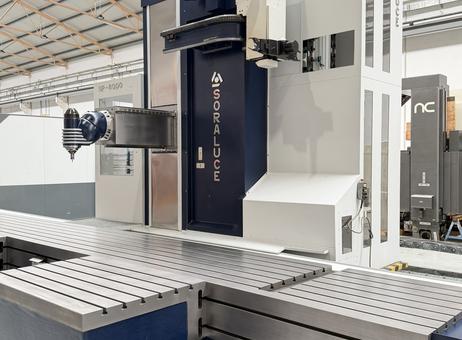

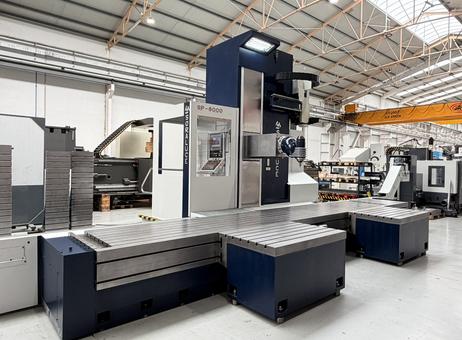

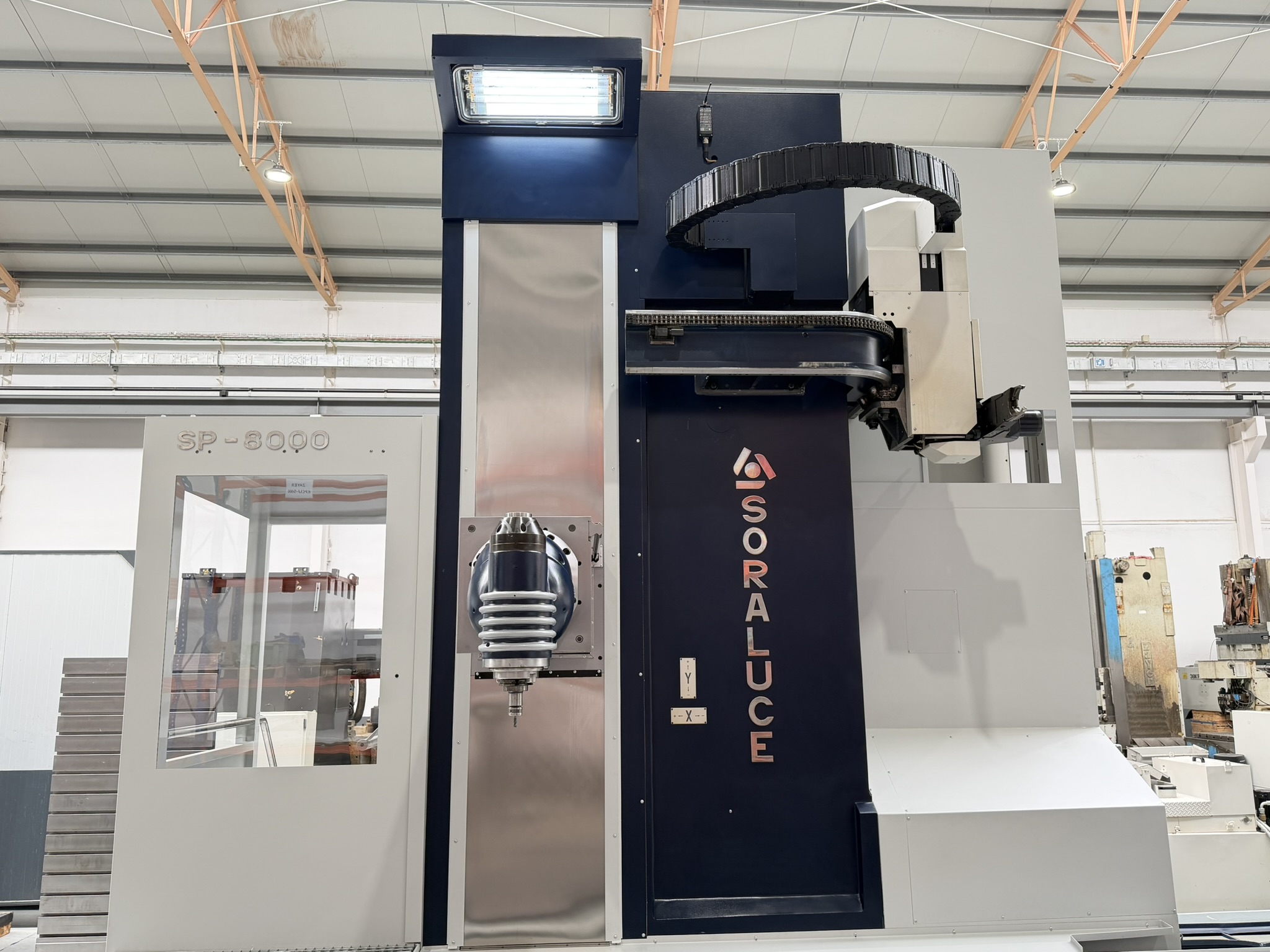

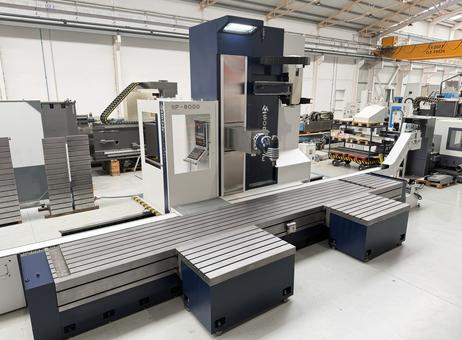

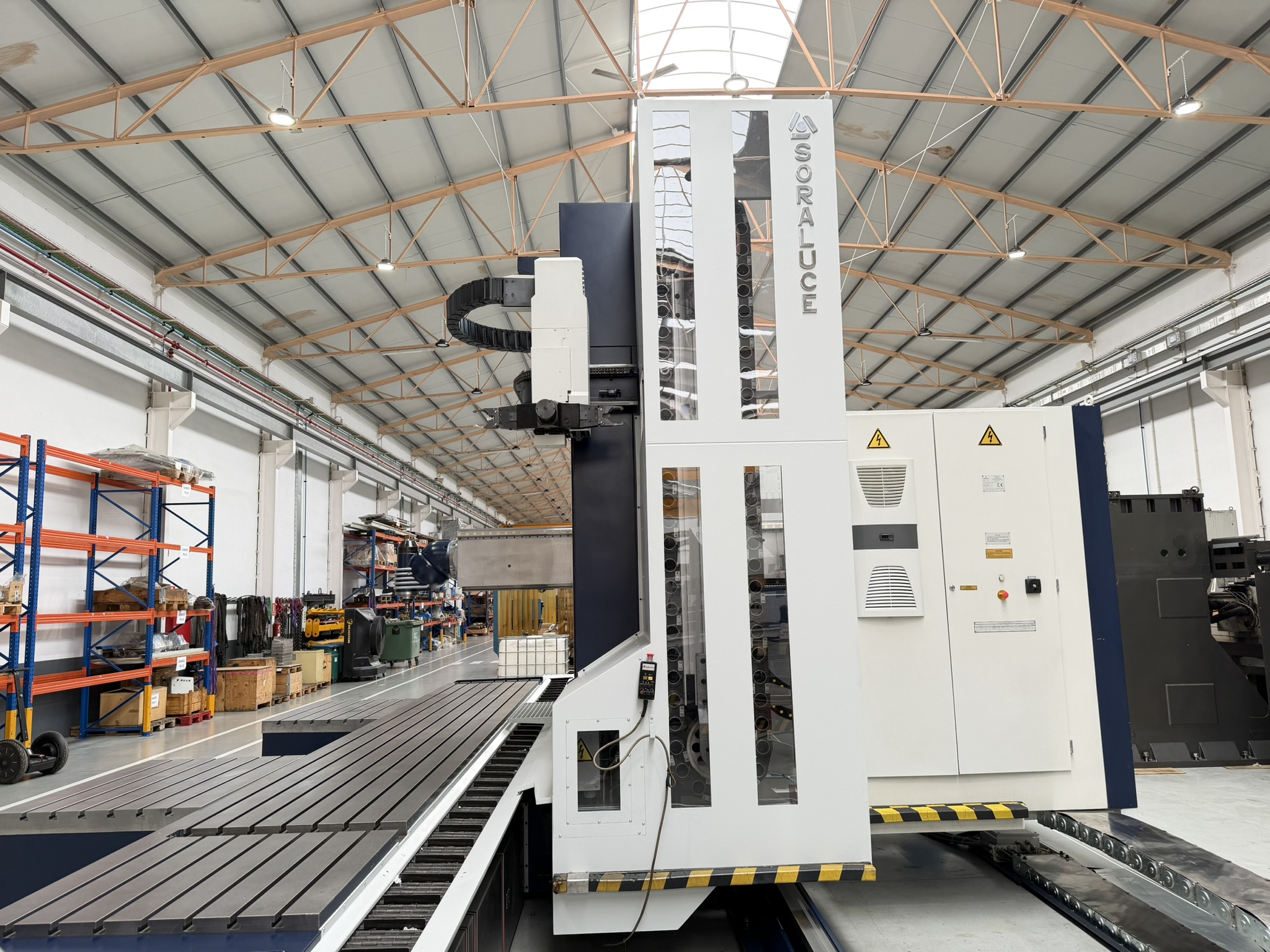

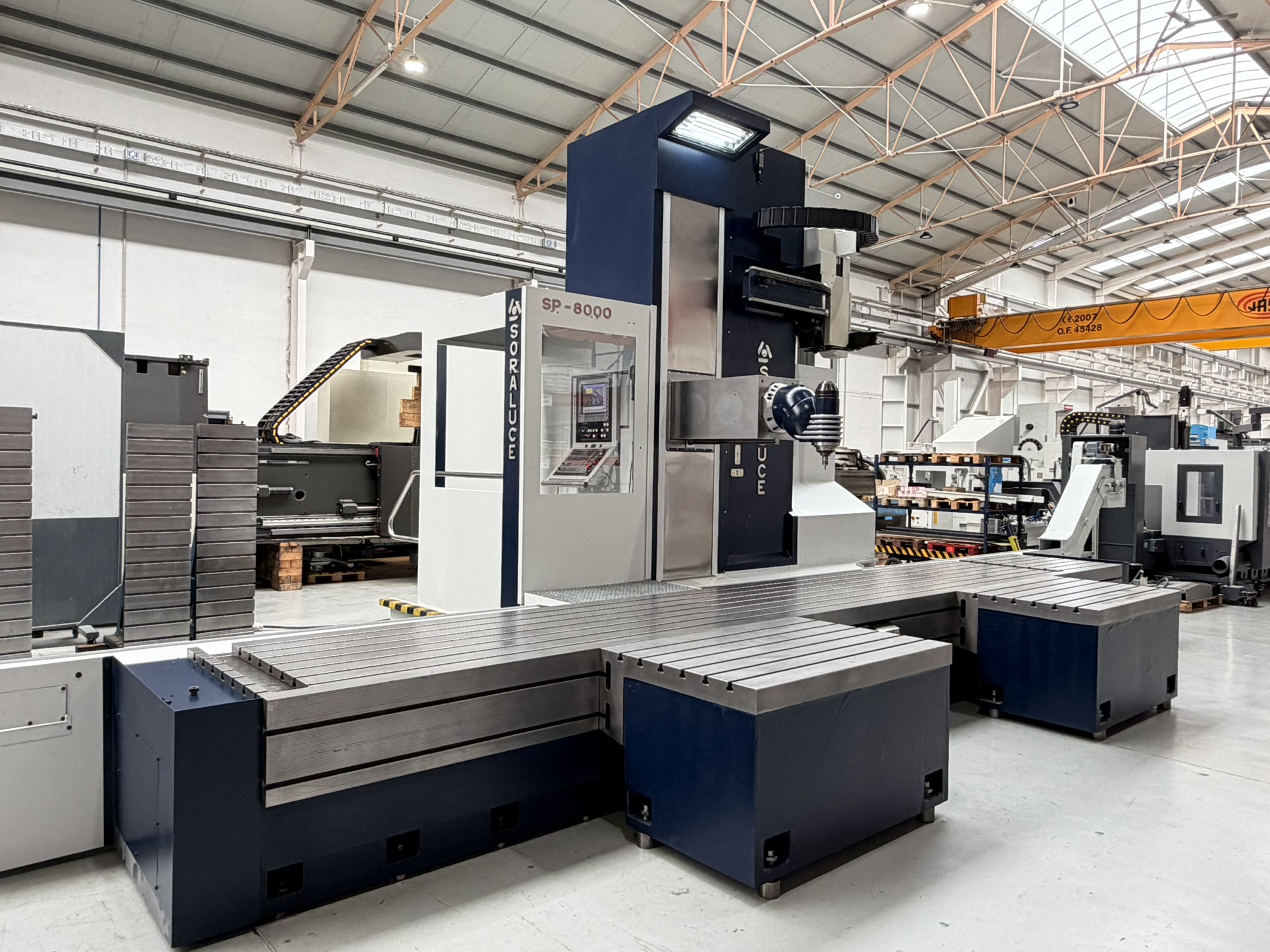

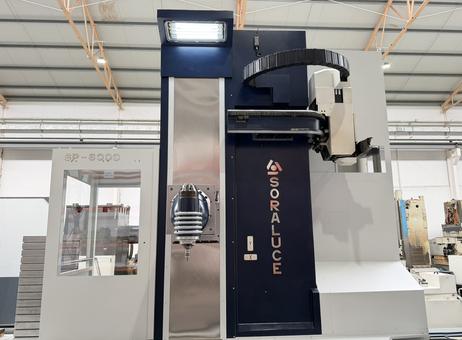

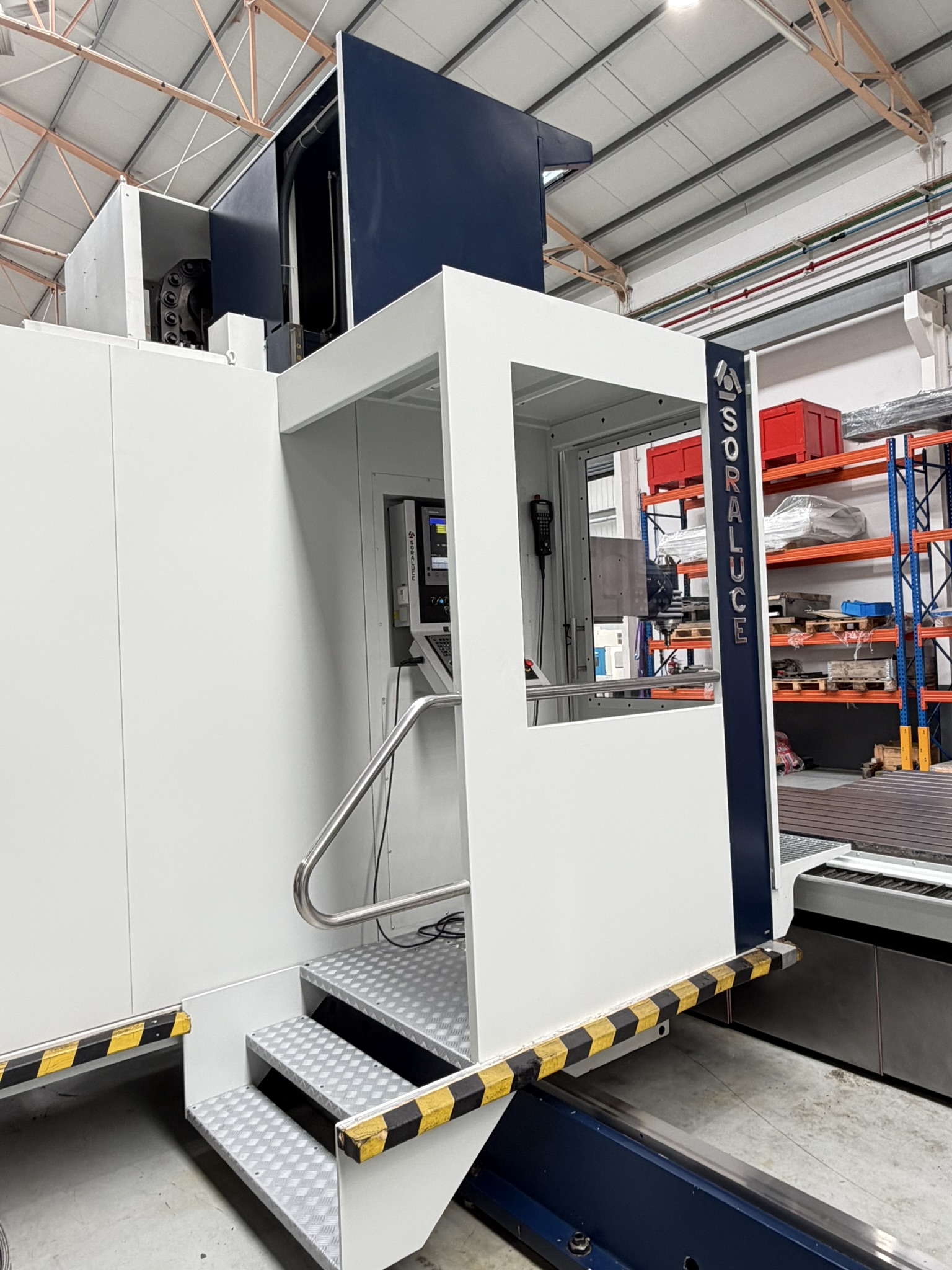

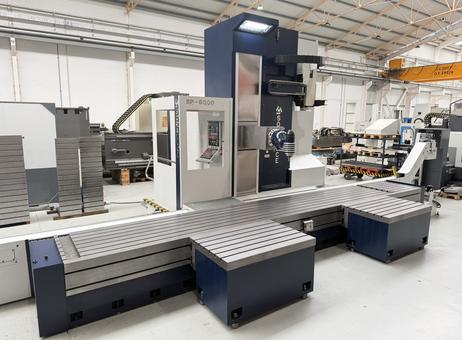

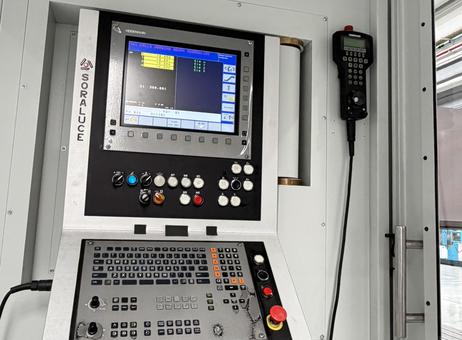

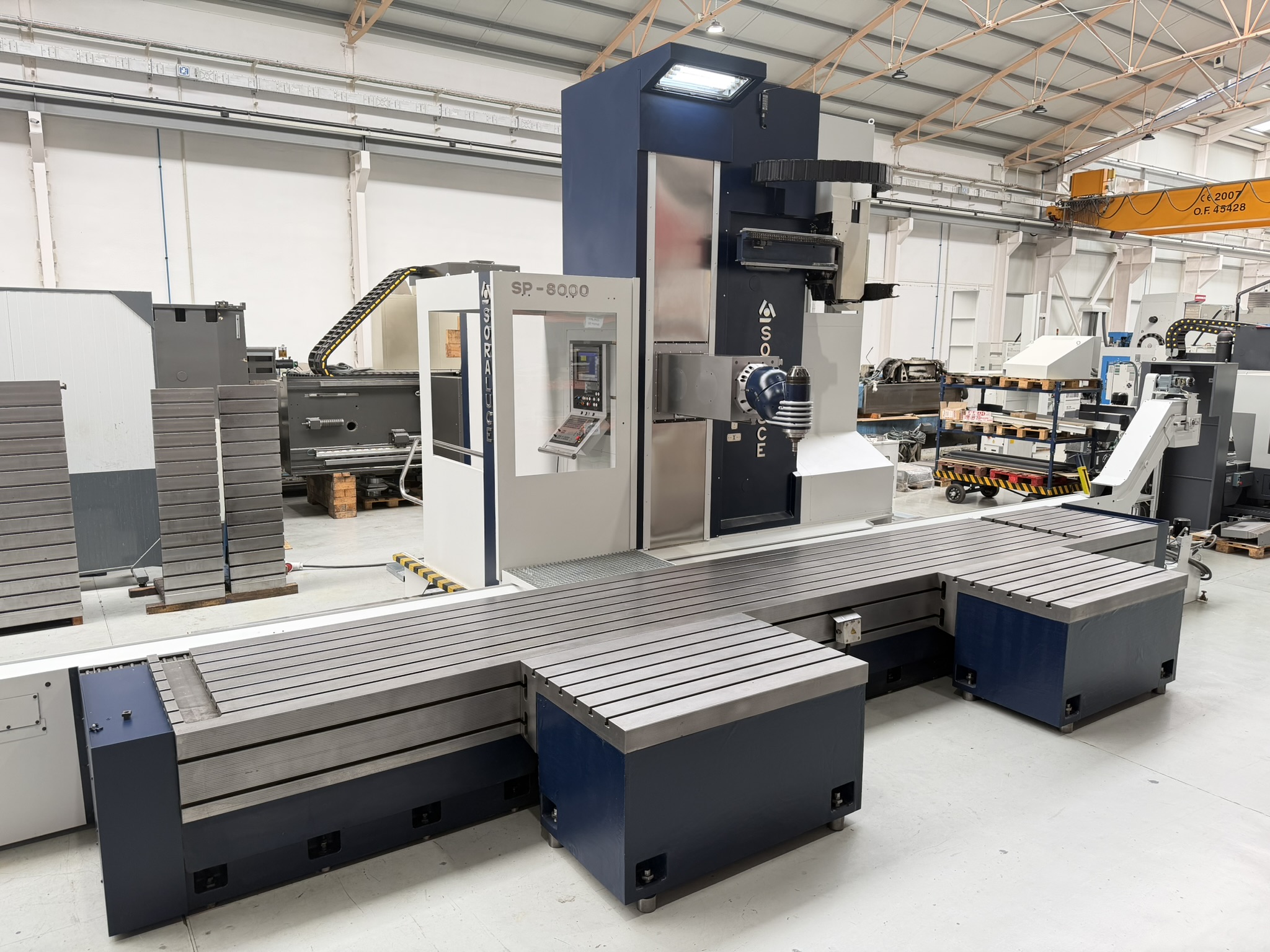

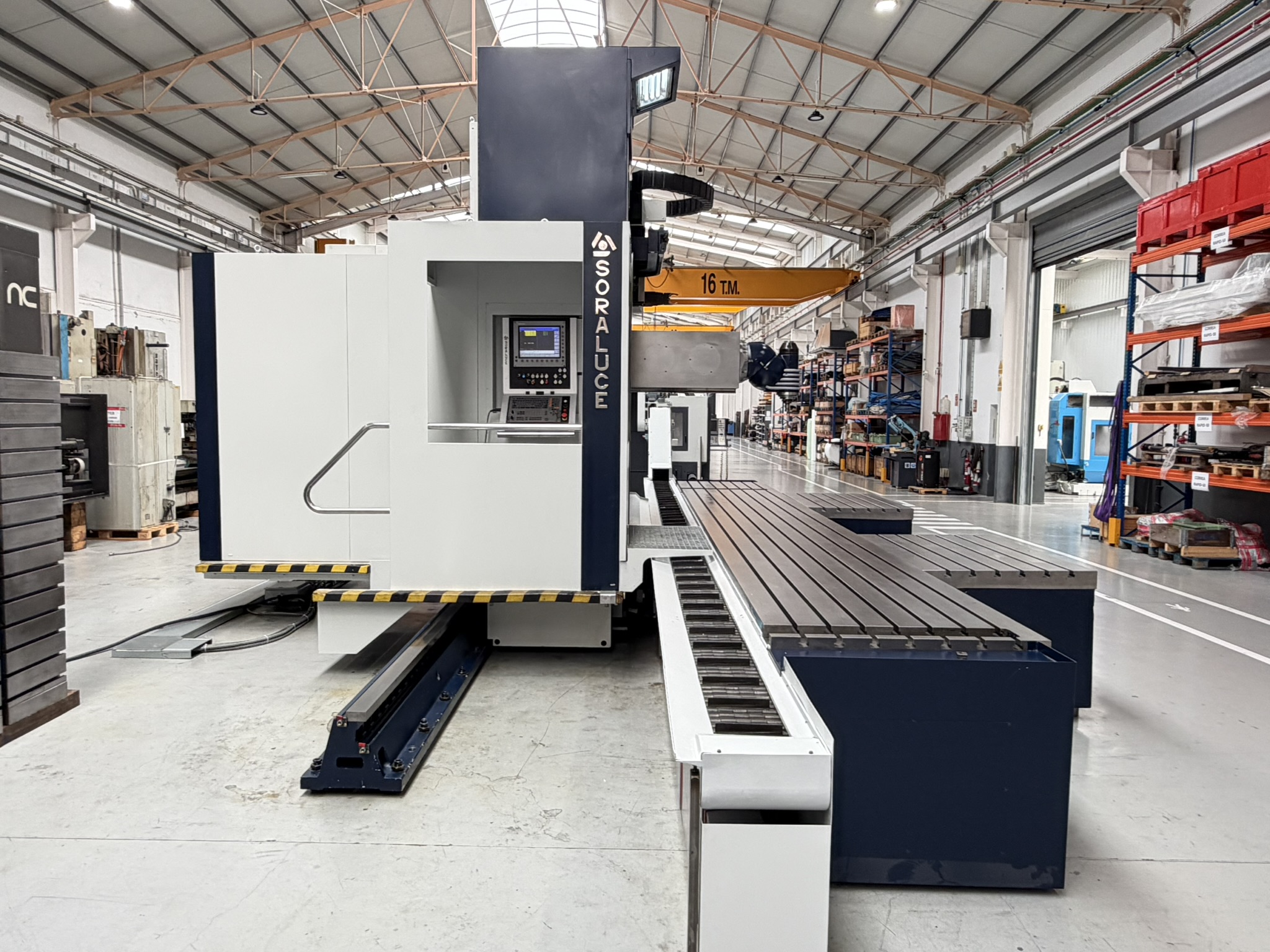

SORALUCE SP-8.000 CNC universal milling machine, manufactured in 2008. The machine has a travelling column, a long horizontal T-slot table and an automatic swivelling milling head. The visible configuration includes an operator enclosure with a CNC control panel and a cable carrier above the head assembly.

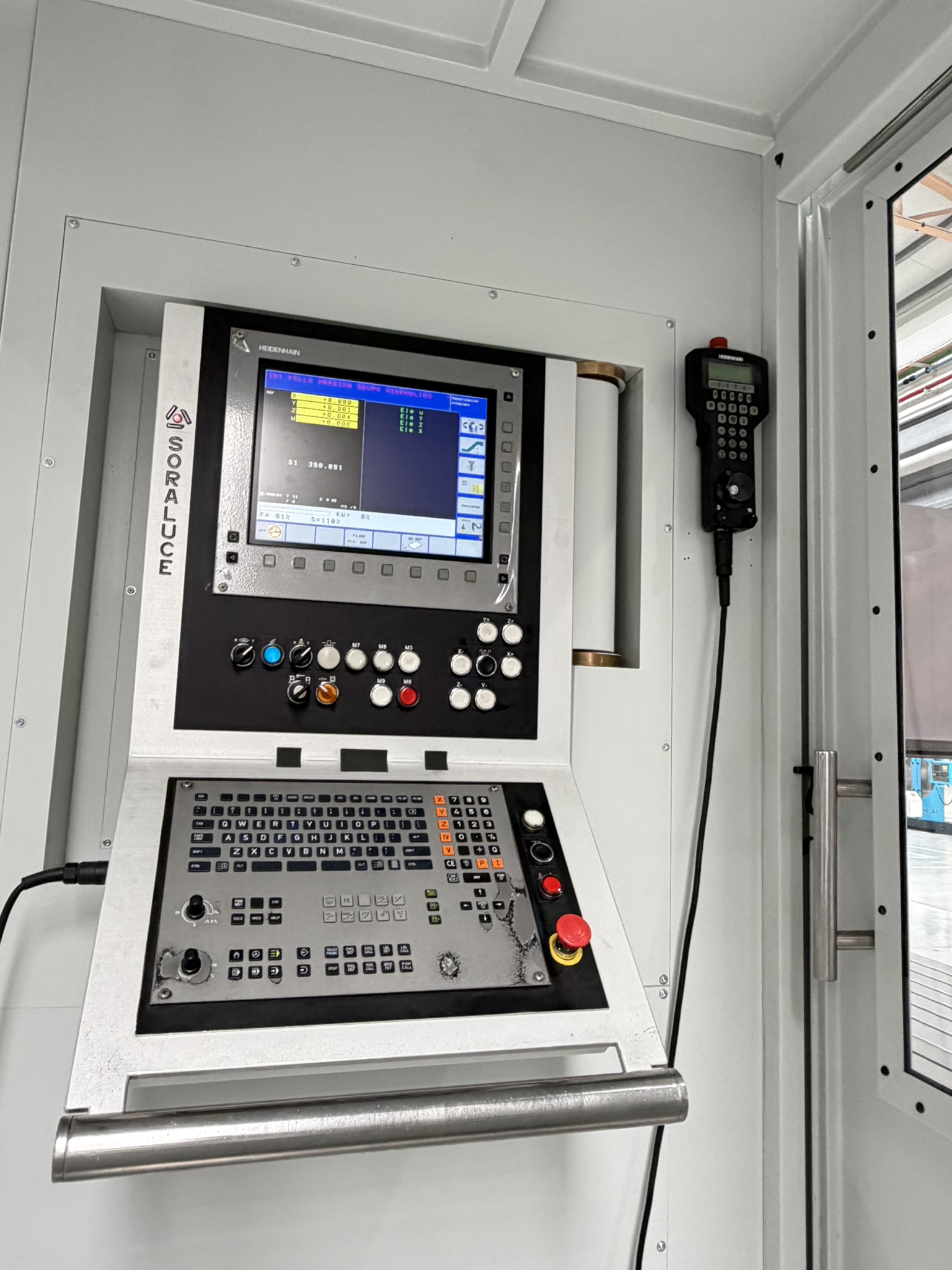

Control system: HEIDENHAIN iTNC 530. The machine provides X-axis travel of 6,500 mm, Y-axis travel of 1,500 mm and Z-axis travel of 2,000 mm. Rapid traverse is 25,000 mm/min. The table measures 10,000 × 1,100 mm, with a listed maximum permissible load of 2,500 kg/m².

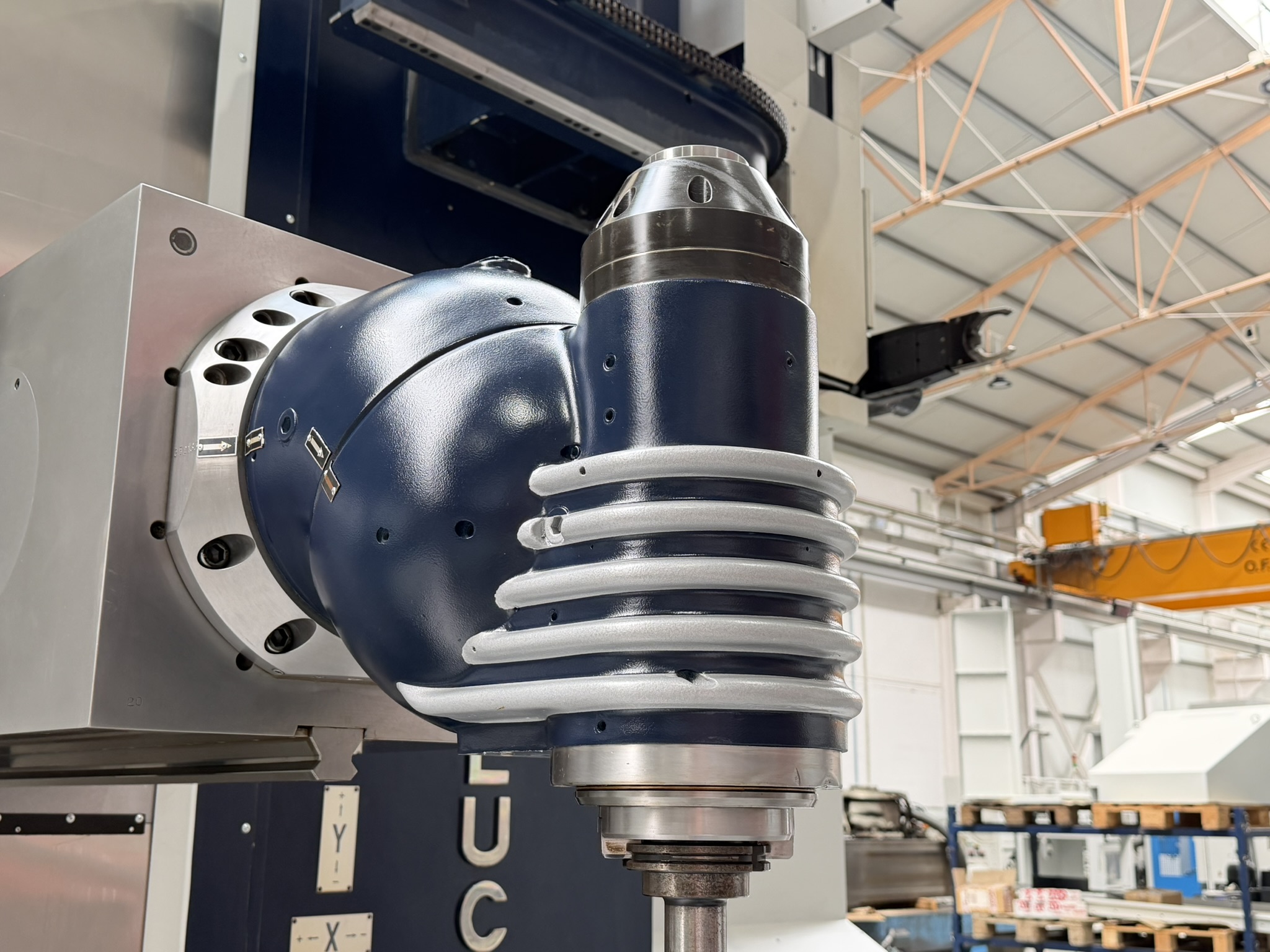

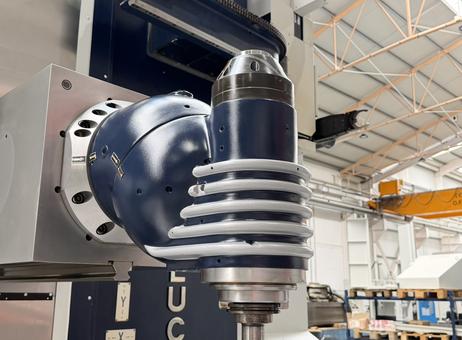

The spindle has an ISO 50 DIN 69871 taper and two speed ranges, with speeds from 20 to 4,000 rpm. Main motor power is 30 kW. The included automatic swivelling head has 2.5° / 2.5° movement.
The automatic tool changer has 60 positions. Listed tool limits are 125 mm diameter with adjacent positions occupied, 250 mm with adjacent positions free, 400 mm maximum length and 20 kg maximum weight. Included equipment comprises 20-bar internal coolant, a chip conveyor, a Heidenhain HR-410 portable handwheel, a paper filter with additional tank and an operator platform. The motor drives are Siemens Digital. Total power is 63 kVA.
Overall machine dimensions are 11,275 × 4,840 × 4,130 mm, and the listed machine weight is 34,400 kg. Visible surfaces appear clean and assembled, with no obvious major damage; this is an external visual assessment only.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
SORALUCE
Model SP-8.000
Added to product range 2008
CNC HEIDENHAIN iTNC 530
Table
Table size 10.000 x 1.100 mm
Maximum permissible load on table 2.500 kg/m²
Travel
Longitudinal travel (X axis) 6.500 mm
Transverse travel (Y axis) 1.500 mm
Vertical crossbeam travel (Z axis) 2.000 mm
Rapid traverse 25.000 mm/min
Head
Automatic swivelling head 2,5º / 2,5º INCLUDED
Taper ISO 50 DIN 69871
Spindle speeds 20 – 4.000 rpm
Speed ranges 2
Main motor power 30 kW
Automatic tool changer (ATC)
ATC positions 60
Maximum tool diameter without free adjacent positions 125 mm.
Maximum tool diameter with free adjacent positions 250 mm.
Maximum tool length 400 mm.
Maximum tool weight 20 kg
Additional equipment
Internal coolant 20 BAR INCLUDED
Chip conveyor INCLUDED
Portable handwheel Heidenhain HR-410
Paper filter, additional tank INCLUDED
Operator platform INCLUDED
Motor drives SIEMENS DIGITAL
Other
Total power 63 kVA
Machine weight 34.400 kg.
Machine dimensions (L x W x H) 11.275 x 4.840 x 4.130 mm.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
