Contact us to receive an offer.
| Manufacturer | Soraluce |
|---|---|
| Model | FP8000 |
| Year | |
| Location | United Kingdom
|

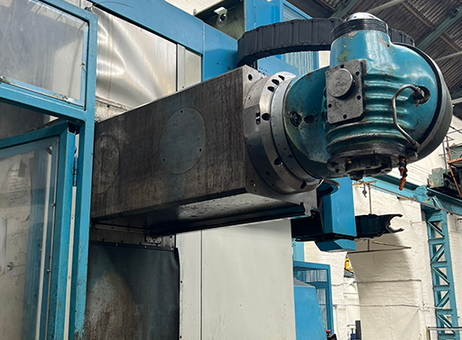

This Soraluce FP8000 travelling column, floor-type CNC milling machine is designed for heavy-duty milling operations. It features a large working envelope with axis travels of 8,000 mm (X axis), 2,000 mm (Y axis), and 1,200 mm (Z axis). The machine is equipped with an automatic indexing orthogonal milling head capable of 2.5 x 2.5 degree indexing, utilizing ISO-50 taper tools. The spindle motor delivers 30 kW of power with two speed ranges: 11.4 to 230 RPM and 923 to 3,000 RPM. The tool taper for both the spindle and the automatic tool changer (ATC) is BT-50, with the ATC featuring a 60-station chain-type magazine for efficient tool management.
The milling machine has a robust construction with a machine length of 14,000 mm, width of 6,500 mm, height of 5,250 mm, and a weight of 25,000 kg. It includes stepless adjustable slide feeds with cutting feed rates ranging from 5 to 5,000 mm/min and rapid feed rates up to 15,000 mm/min on all axes.

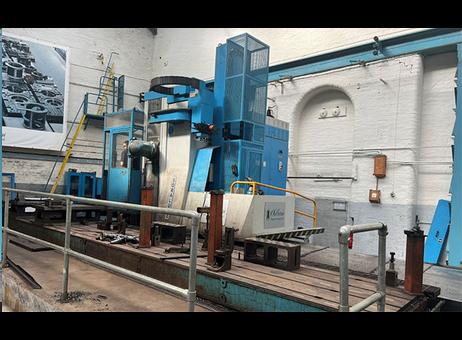

The machine bed is equipped with T-slots and clamping fixtures, suitable for securing various workpieces. A protective cage is installed on the column and spindle head assembly, enhancing operational safety. Additionally, safety railings surround the machine bed area, and yellow and black hazard stripes are present on machine edges to highlight safety zones.

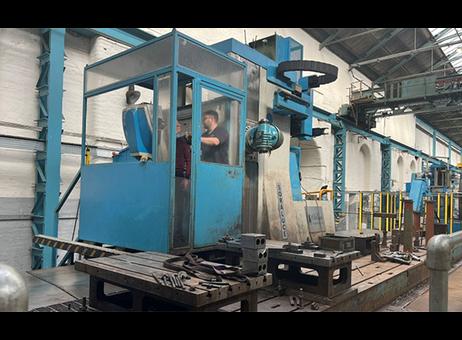

The operator cabin features glass windows, providing visibility and a controlled environment for machine operation. The machine shows signs of industrial use, including wear, dirt, some rust, and oxidation on metal surfaces, but appears structurally intact. Branding from Soraluce and Orllati Engineering Ltd is visible on the machine.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Travelling Column, Floor Type CNC Milling Machine with Automatic Indexing Orthogonal Milling Head & 60 Station ATC
Axis Travel Longitudinal - X
8,000 MM
Axis Travel Vertical - Y
2,000 MM
Axis Travel Ram - Z
1,200 MM
MAIN SPINDLE POWER
Spindle Motor Power
30.0 KW
MILLING HEAD
2.5 x 2.5 DEG
Head Type
AUTOMATIC ORTHOGONAL
Indexing Angles
ISO-50
Head Spindle Speed – 2 Ranges
11.4 ~ 230 & 923 ~ 3,000 RPM
Tool Taper
BT-50
SLIDE FEEDS
Number of Feeds
STEPLESS ADJUSTABLE
Cutting Feedrates
5 ~ 5,000 MM/MIN
Rapid Feeds (X / Y / Z)
15,000 MM/MIN
AUTOMATIC TOOL CHANGER
Number of Stations
60 STATION CHAIN TYPE MAGAZINE
Tool Taper
BT-50
POWER SUPPLY
Electric Power Consumption - Voltage
415V / 50HZ / 3PH
MACHINE
Length - L ~ R
14,500 MM
Width - F ~ B
6,500 MM
Height
5,250 MM
Weight
25,000 KGS
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 18 |
| Last activity | Oct. 22, 2026 |
Travelling Column, Floor Type CNC Milling Machine with Automatic Indexing Orthogonal Milling Head & 60 Station ATC
Axis Travel Longitudinal - X
8,000 MM
Axis Travel Vertical - Y
2,000 MM
Axis Travel Ram - Z
1,200 MM
MAIN SPINDLE POWER
Spindle Motor Power
30.0 KW
MILLING HEAD
2.5 x 2.5 DEG
Head Type
AUTOMATIC ORTHOGONAL
Indexing Angles
ISO-50
Head Spindle Speed – 2 Ranges
11.4 ~ 230 & 923 ~ 3,000 RPM
Tool Taper
BT-50
SLIDE FEEDS
Number of Feeds
STEPLESS ADJUSTABLE
Cutting Feedrates
5 ~ 5,000 MM/MIN
Rapid Feeds (X / Y / Z)
15,000 MM/MIN
AUTOMATIC TOOL CHANGER
Number of Stations
60 STATION CHAIN TYPE MAGAZINE
Tool Taper
BT-50
POWER SUPPLY
Electric Power Consumption - Voltage
415V / 50HZ / 3PH
MACHINE
Length - L ~ R
14,500 MM
Width - F ~ B
6,500 MM
Height
5,250 MM
Weight
25,000 KGS
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This Soraluce FP8000 travelling column, floor-type CNC milling machine is designed for heavy-duty milling operations. It features a large working envelope with axis travels of 8,000 mm (X axis), 2,000 mm (Y axis), and 1,200 mm (Z axis). The machine is equipped with an automatic indexing orthogonal milling head capable of 2.5 x 2.5 degree indexing, utilizing ISO-50 taper tools. The spindle motor delivers 30 kW of power with two speed ranges: 11.4 to 230 RPM and 923 to 3,000 RPM. The tool taper for both the spindle and the automatic tool changer (ATC) is BT-50, with the ATC featuring a 60-station chain-type magazine for efficient tool management.
The milling machine has a robust construction with a machine length of 14,000 mm, width of 6,500 mm, height of 5,250 mm, and a weight of 25,000 kg. It includes stepless adjustable slide feeds with cutting feed rates ranging from 5 to 5,000 mm/min and rapid feed rates up to 15,000 mm/min on all axes.
The machine bed is equipped with T-slots and clamping fixtures, suitable for securing various workpieces. A protective cage is installed on the column and spindle head assembly, enhancing operational safety. Additionally, safety railings surround the machine bed area, and yellow and black hazard stripes are present on machine edges to highlight safety zones.
The operator cabin features glass windows, providing visibility and a controlled environment for machine operation. The machine shows signs of industrial use, including wear, dirt, some rust, and oxidation on metal surfaces, but appears structurally intact. Branding from Soraluce and Orllati Engineering Ltd is visible on the machine.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
