| Manufacturer | SMEC |
|---|---|
| Model | NS 2000BL CNC Turning Center |
| Year | 2024 |
| Location | USA
|

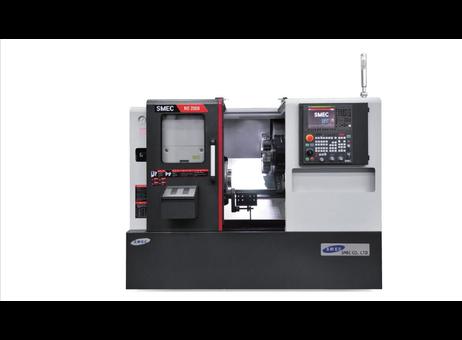

This listing features a SMEC NS 2000BL CNC Turning Center, a Swiss-type lathe designed for precision machining. Manufactured in 2024, this machine is equipped with a Fanuc 0i-TF PLUS CNC control system, offering advanced programming capabilities including a 512 KB memory and storage for up to 400 part programs. The lathe supports rigid tapping, tool life management, tool measurement compensation, and spindle orientation functions, enhancing operational efficiency and precision.
The machine includes an 8-inch 3-jaw hydraulic chuck and a 10-station turret, allowing for versatile tooling options. It has a spindle speed of up to 4500 rpm with an A2-6 spindle taper, and a spindle bore diameter of 3 inches accommodating bar stock up to 2.67 inches in diameter. The maximum turning length is 19.33 inches, with a maximum turning diameter of 12.20 inches. The swing over bed measures 22.24 inches, and the swing over cross slide is 15.55 inches, providing ample capacity for various turning operations.
The lathe features a programmable tailstock and an auto parts catcher, facilitating automated and efficient production cycles. The machine's travel distances include 6.88 inches on the X-axis and 22.83 inches on the Z-axis, with rapid traverse rates of 1,147 inches per minute for both axes.
Additional functionalities include an oil skimmer, a bar feeder interface, a side discharge chip conveyor, and a 145 PSI coolant pump with a coolant tank, all contributing to smooth operation and maintenance. The control panel includes a 10.4-inch color TFT LCD screen, memory card interface, USB port, Ethernet port, and RS232 interface for flexible connectivity.
The machine is housed within a safety enclosure door with a window, ensuring operator safety while allowing visibility of the machining process. Included accessories are one set of hard jaws and three sets of soft jaws. The SMEC NS 2000BL is presented in clean condition, suitable for high-precision turning applications in various industries.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
lathes
smec
Fanuc 0i-TF PLUS CNC Control
8" 3-Jaw Hydraulic Chuck
4,500 rpm A2-6 Spindle
19.33" Max Turning Length
12.20" Max Turning Diameter
22.24" Swing Over Bed
15.55" Swing Over Cross Slide
3" Spindle Bore
2.67" Bar Capacity
10 Station Turret
Tool Pre-Setter
Auto Parts Catcher
6.88" X-Axis Travels
22.83" Z-Axis Travels
1,147 ipm X / Z Rapids
Programmable Tailstock
Memory Card Interface / USB Port / Ethernet Port / RS232 Interface
512 KB Memory / 400 Part Program Storage
Tool Life Management
Tool Measurement Compensation
Spindle Orientation
Offset Guard Function
Rigid Tapping
Automated ZRN Function
10.4” Color TFT LCD Screen
Oil Skimmer
Bar Feeder Interface
Chip Conveyor - Side Discharge
145 PSI Coolant Pump and Coolant Tank
3 Color Tower Light
1 Set of Hard Jaws / 3 Sets of Soft Jaws
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2021 |
| Offers online | 181 |
| Last activity | Oct. 24, 2026 |
