| Manufacturer | ŠKODA Plzeň |
|---|---|
| Model | W 200 H + NR |
| Year | 1983 |
| Location | Czech Republic
|

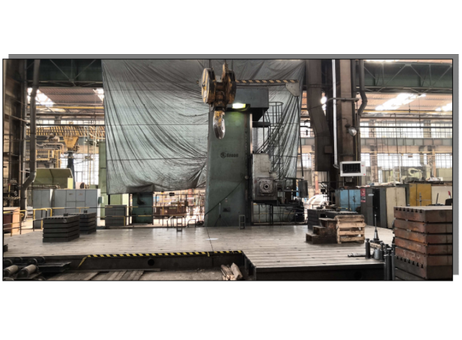

This ŠKODA Plzeň W 200 H + NR is a robust floor-type boring machine manufactured in 1983, designed for heavy-duty industrial applications. It features a large T-slotted worktable measuring 4000 mm in length and 3550 mm in width, suitable for securing sizable workpieces. The machine's base plate is substantial, with dimensions of 12,800 x 5,665 mm, providing a stable foundation for precision operations.
The machine offers extensive travel capabilities with the X axis spanning 6000 mm, the Y axis 3000 mm, and the Z axis 1500 mm. The vertical headrest travel on the stand is 3150 mm, and the stand itself travels 6000 mm along the bed, allowing for versatile positioning of the workpiece relative to the spindle.
Equipped with a spindle diameter of 200 mm, the spindle taper is M 120, supporting a maximum spindle speed of 630 rpm. The spindle motor delivers a powerful 77 kW, ensuring sufficient power for demanding machining tasks. The spindle drilling depth reaches up to 2000 mm, with the largest quill extension at 1600 mm. Feed rates vary depending on operation, with drilling speeds ranging from 0.63 to 2500 mm/min and milling speeds from 0.63 to 4000 mm/min.
Threading capabilities include metric threads from 0.5 to 12 mm and Whitworth threads from 1 to 28 threads per inch.

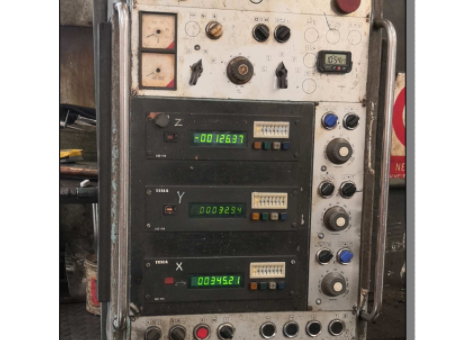

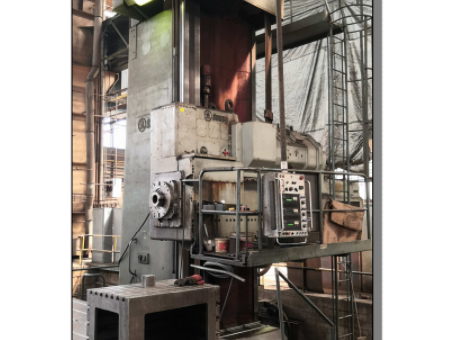

The machine is equipped with a control panel mounted on an arm extending from the vertical column, featuring multiple rotary knobs, push buttons, and digital readouts for the X, Y, and Z axes, facilitating precise control and monitoring during operation. There is a ladder or stair access on the right side of the column for operator convenience. Safety markings in yellow and black are present on the edges of the worktable, enhancing workplace safety.
An overhead hoist or lifting mechanism is attached to the top of the machine column, aiding in handling heavy components. The machine shows signs of use consistent with an industrial workshop environment but no visible major damage or missing parts, indicating it has been maintained for operational readiness.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Working spindle diameter 200 mm
Spindle taper M 120
Maximum spindle drilling depth 2,000 mm
Largest quill extension 1,600 mm
Spindle speed in the range 0.8 - 630 min-1
Displacements in the range: drilling 0.63 - 2,500 mm / min
milling 0.63 - 4,000 mm / min
Power consumption of the spindle electric motor 77 kW
Threads: metric 0.5 - 12 mm
Whitworth 1 - 28 threads / 1 "
VERTICAL HEADREST TRAVEL ON STAND 3 150 mm
TRAVEL OF THE STAND ON THE BED 6,000 mm
BASE PLATE DIMENSIONS 12,800 x 5,665 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – large company |
| Active since | 2021 |
| Offers online | 5 |
| Last activity | Oct. 28, 2026 |
