| Manufacturer | SIMPAC |
|---|---|
| Model | MCL2 - 300 |
| Year | 2019 |
| Location | Poland
|

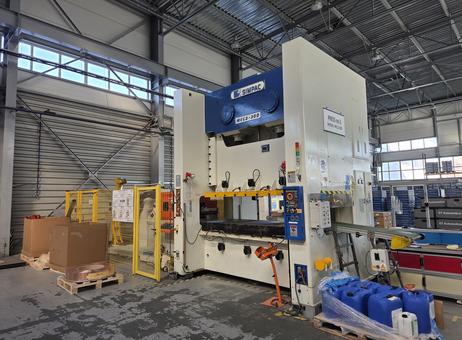

This industrial mechanical press is a two-crank model featuring a rigid frame structure, designed and manufactured by SIMPAC INC. in South Korea in 2019. It is equipped with a 3-in-1 feeding line, model TAE IN TECH TNCL-5042, which includes an uncoiler for material handling. The press delivers a substantial force of 300 tons, suitable for heavy-duty pressing operations.
Key operational specifications include a maximum pressure point (R.T.P.) occurring 6.0 mm before the bottom dead center, and a slide stroke of 250 mm. The operating speed ranges from 22 to 45 strokes per minute, with smooth speed adjustment facilitated by an inverter. This allows for flexible production rates depending on the application requirements.
The machine accommodates a maximum die height of 650 mm and offers a slide adjustment range of 120 mm, providing versatility for different tooling setups. The work table measures 2650 mm by 1100 mm with a thickness of 200 mm, while the slide dimensions are 2350 mm by 1000 mm, offering ample space for various press operations.
The press operates with an air pressure supply of 5 bar and is powered by a 37 kW motor. Overall machine dimensions are 3600 mm in length, 2800 mm in width, and 4650 mm in height, with a total machine weight of approximately 50,000 kg. The complete line, including the feeding system, has an approximate total weight of 56 tons and requires a power supply in the range of 55 to 60 kW.
This robust mechanical press line is designed for industrial-scale production environments, combining high force capacity with precise control over stroke speed and slide adjustment, suitable for a variety of metal forming applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Two-crank mechanical press with a rigid frame structure.
Prod. SIMPAC INC. South Korea - 2019.
3 in 1 feeding line TAE IN TECH TNCL-5042 with uncoiler.
Force 300 tons.
Maximum pressure point (R.T.P.) 6.0 mm before the bottom dead center.
Slide stroke 250 mm.
Operating speed 22 - 45 strokes/minute. (smooth adjustment with inverter)
Max. die height 650 mm.
Slide adjustment 120 mm.
Work table 2650 x 1100 mm x thickness 200 mm.
Slide 2350 x 1000 mm.
Air pressure 5 bar.
Dimensions (L x W x H) 3600 x 2800 x 4650 mm.
Machine weight 50,000 kg.
Motor power 37 kW.
Total line weight approx. 56 tons.
Total line power requirement approx. 55-60 kW.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Is this SIMPAC MCL2-300 still available?
This SIMPAC MCL2-300 press is still available.
Is this SIMPAC MCL2-300 under power?
This SIMPAC MCL2-300 press is under power.
Can this SIMPAC MCL2-300 be inspected while running?
This SIMPAC MCL2-300 press can be inspected while running.
Does this feeder system include de-coiling?
This feeder system includes de-coiling.
Does this feeder system include a straightener?
This feeder system includes a straightener.
Is this equipment complete?
This equipment is complete.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
