| Manufacturer | SIGMA |
|---|---|
| Model | MISSION 5 |
| Year | 1997 |
| Location | Italy
|
Machine overview

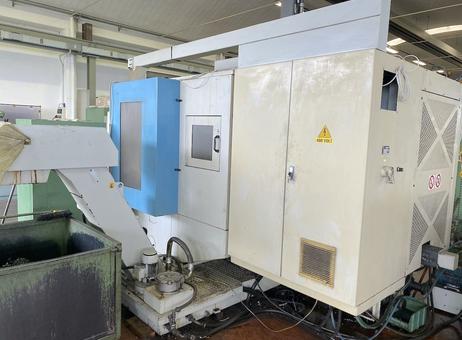

This listing is for a SIGMA MISSION 5 vertical machining center (work center) manufactured in 1997. The machine offers a substantial working envelope with longitudinal (X) travel of 1250 mm, transversal (Y) travel of 600 mm and vertical (Z) travel of 685 mm. Axis support is specified as X and Y on recirculating ball guides and the Z axis on a prismatic Turcite slide.
CNC and spindle

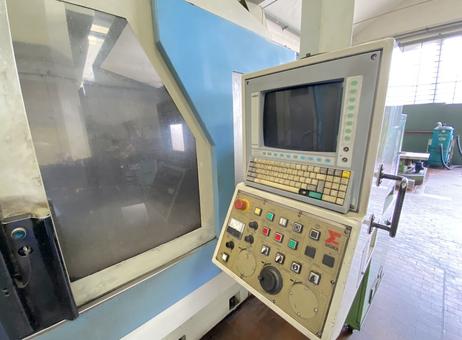

The controller is listed as a SELCA 3040 CNC. The spindle specification is given as 11.5/16.5 kW with a rotational range of 40–8000 rpm and a torque rating of 235 Nm. The spindle accepts ISO40 toolholders (Morse taper sleeve ISO40).
Feeds and table

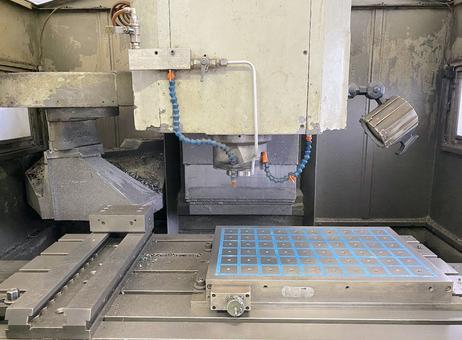

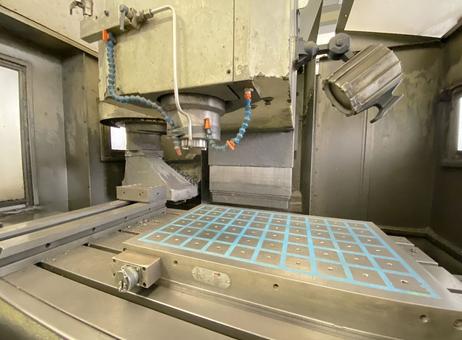

Rapid traverse rates are specified at 24 m/min for X and Y and 15 m/min for Z. The worktable measures 1400 x 650 mm and is equipped with T-slots described as 5x18x125. The automatic tool changer (ATC) has 21 stations. ATC limits are listed as a maximum tool diameter of 80 mm, maximum tool length of 300 mm and maximum tool weight of 6 kg; tool holder standard is ISO40 DIN69871.
Additional data

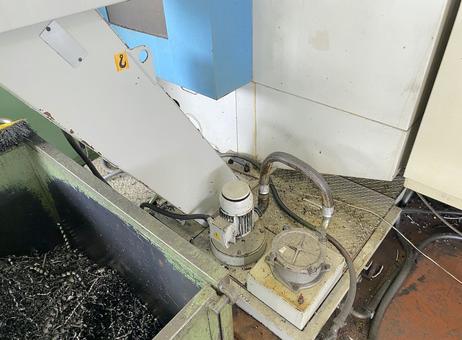

Motor power is shown as 25 HP. Total machine weight is listed at 8000 kg. Overall machine dimensions are given as 2860 + 1260 (evacuator) x 4400 x 3155 mm. The machine is noted to include internal spindle coolant (high pressure) and a chip evacuator.
Note and recommendation
All technical data above is taken from the provided product information. Due to the nature and complexity of used equipment, information may be incomplete or contain inaccuracies and does not constitute a contractual guarantee. It is recommended to inspect the machine in person and request confirmation of specifications before purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Category
Work Center
Type
vertical
Brand
SIGMA
Model
MISSION 5
Capacity
1250x600x685 mm49.21x23.62x26.97 in
Year of Manufacture
1997
Technical Specifications
Convert to Metric/Imperial
WORKING AREA
Longitudinal (X)
1250 mm49.21 in
Vertical (Z)
685 mm26.97 in
Transversal (Y)
600 mm23.62 in
Axis Support
X AND Y AXES ON RECIRCULATING BALL GUIDES, Z AXIS PRISMATIC TURCITE SLIDE
CNC
CNC
SELCA 3040
SPINDLE
Spindle Power
11.5/16.5 Kw
Rotation Speed
40-8000 Rpm
Torque
235 Nm
Morse Taper Sleeve
ISO40
FEEDS
Rapid X
24 m/min944.88 ipm
Rapid Y
24 m/min944.88 ipm
Rapid Z
15 m/min590.55 ipm
TABLE
Dimension (LxWxH)
1400x650 mm55.12x25.59 in
Number of T-slots
5x18x125
ATC
Stations
21
Max Tool Diameter
80 mm3.15 in
Max Tool Length
300 mm11.81 in
Max Tool Weight
6 Kg
Tool Holder
ISO40 DIN69871
EXTRA
Motor Power
25 HP
Total Machine Weight
8000 Kg
Machine Dimensions
2860+1260(evacuator) x 4400x 3155 mm112.60+49.61(evacuator) x 173.23x 124.21 in
High Pressure
internal spindle coolant
Chip Evacuator
Yes
