| Manufacturer | Siemens |
|---|---|
| Model | 500 kA |
| Year | 2009 |
| Location | Bulgaria
|

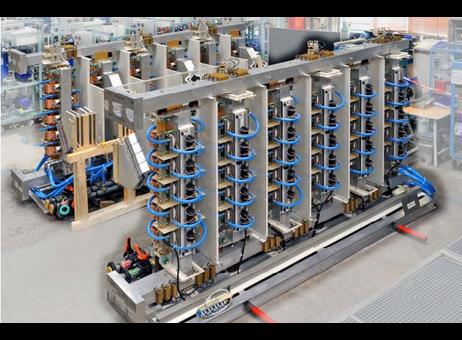

This Siemens zinc electrolysis rectifier group, model 500 kA, manufactured in 2009, is a comprehensive electrical assembly designed for industrial applications. The system includes a 500 kA transformer, two rectifiers rated at DC 100 kA and 125 V each, four DC switches, a cooling group, and a control cubicle. The overall rectifier control is managed by a Simatic S7-300 PLC featuring a CPU317-2DP as the central processing unit.
The rectifier group has a rated power of 2x 16.78 MVA with OFAF cooling and is designed according to DIN EN 60076 standards, ensuring constant performance across all steps. The rated voltage ratio includes two TFKJ 7341 transformers with high voltage (HV) ratings of 6,000 V ± 5% across 5 steps and low voltage (LV) ratings of 238 V / 238 V. Additionally, it features two LFAJ 7031 interphase reactors at LV rated at 92 V.
Voltage and current specifications for the HV and LV windings are detailed, with HV currents ranging from approximately 1,538 A to 1,700 A and LV current at 28,783 A. The interphase reactor at LV supports 2x 92 V and 50,000 A.

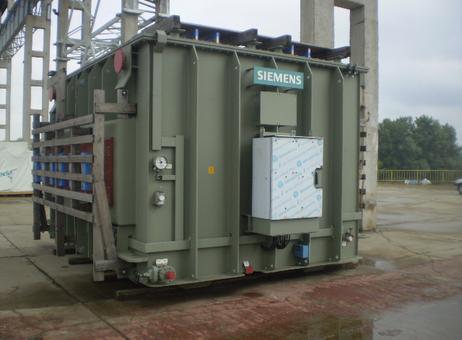

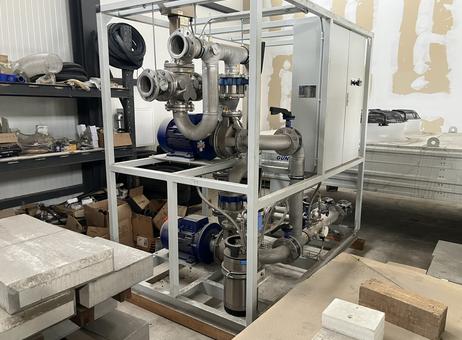

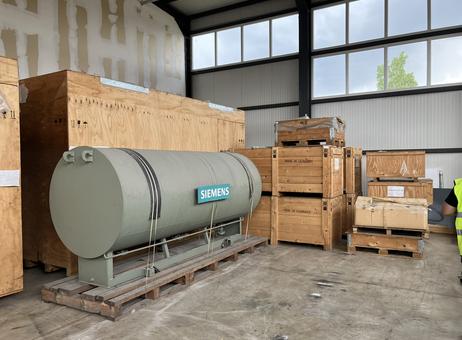

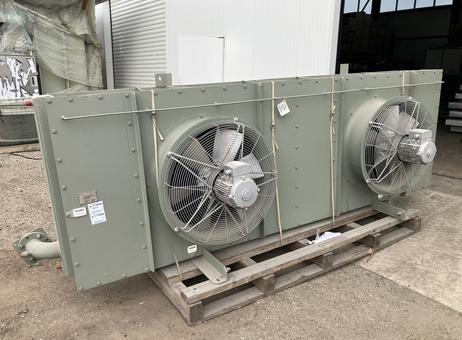

The equipment is mounted on a metal base frame with visible wiring and connectors, indicating a robust industrial design. The transformer and electrical enclosures are painted green, with control boxes and pressure gauges installed. The presence of a large cylindrical tank labeled Siemens and industrial pump assemblies with stainless steel piping and electric motors further support the system's comprehensive setup. A cooling or ventilation unit with two large fans is included, secured on a wooden pallet.
The machinery appears clean, well-maintained, and intact, stored both indoors and outdoors on concrete surfaces and pallets, suggesting careful handling and preservation. Wooden crates labeled "Made in Germany" accompany the equipment, reflecting its origin. This rectifier group is suitable for buyers seeking a high-capacity, Siemens-manufactured zinc electrolysis system with detailed electrical and mechanical components included.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Zinc electrolysis rectifier group supplied by Siemens consisting of :
1. Transformer 500 kA
2. Two rectifiers DC100 kA, 125 V
3. Four DC – switches
4. Cooling group
5. Control cubicled
6. Overall rectifier control is carried out with a Simatic S7-300 PLC, with a CPU317-2DP, as
central unit
2.1 Rated power
2x 16.78 MVA with OFAF – cooling
2.2 Power definition
Interpretation after to DIN EN 60076
The performance is constant on all steps.
2.3 Rated voltage ratio
2x TFKJ 7341:
HV 6 000 V ± 5% ± 2 steps, at 5 steps
LV 238 V / 238 V
2x LFAJ 7031:
Interphase reactor at LV = 92 V
2.4 Voltage and currents HV/LV by 2x 16.78 MVA
Winding
Pos.
Voltage [V]
Current [A]
HV
1
3
5
6 300
6 000
5 700
1 538
1 615
1 700
LV
---
238
28 783
Interphase reactor at LV
---
2x 92 V
50 000
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What is the rated power of this Siemens rectifier?
This Siemens zinc electrolysis rectifier has a rated power of 2x 16.78 MVA.
What type of cooling system does the machine have?
This equipment features a cooling system with OFAF.
What is the capacity of the rectifiers included?
This rectifier includes two rectifiers with a capacity of DC 100 kA and 125 V.
How many DC switches are included with this Siemens rectifier?
This Siemens rectifier is equipped with four DC switches.
What type of PLC is used in this equipment?
This equipment includes a control cubicle managed by a Simatic S7-300 PLC with a CPU317-2DP.
What is the production capacity of this rectifier group?
This rectifier group is designed for a production line with a capacity of 46,000 tons of zinc per year.
What are the rated voltage ratios for this Siemens rectifier?
This Siemens rectifier has a rated voltage ratio of 6,000 V ± 5% for high voltage and 238 V for low voltage.
What is the low voltage of the interphase reactor included?
This equipment includes an interphase reactor with a low voltage of 92 V.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
