| Manufacturer | SIEMENS |
|---|---|
| Model | 1FT6041-4AK71-4EH0-Z |
| Year | 2004 |
| Location | Germany
|

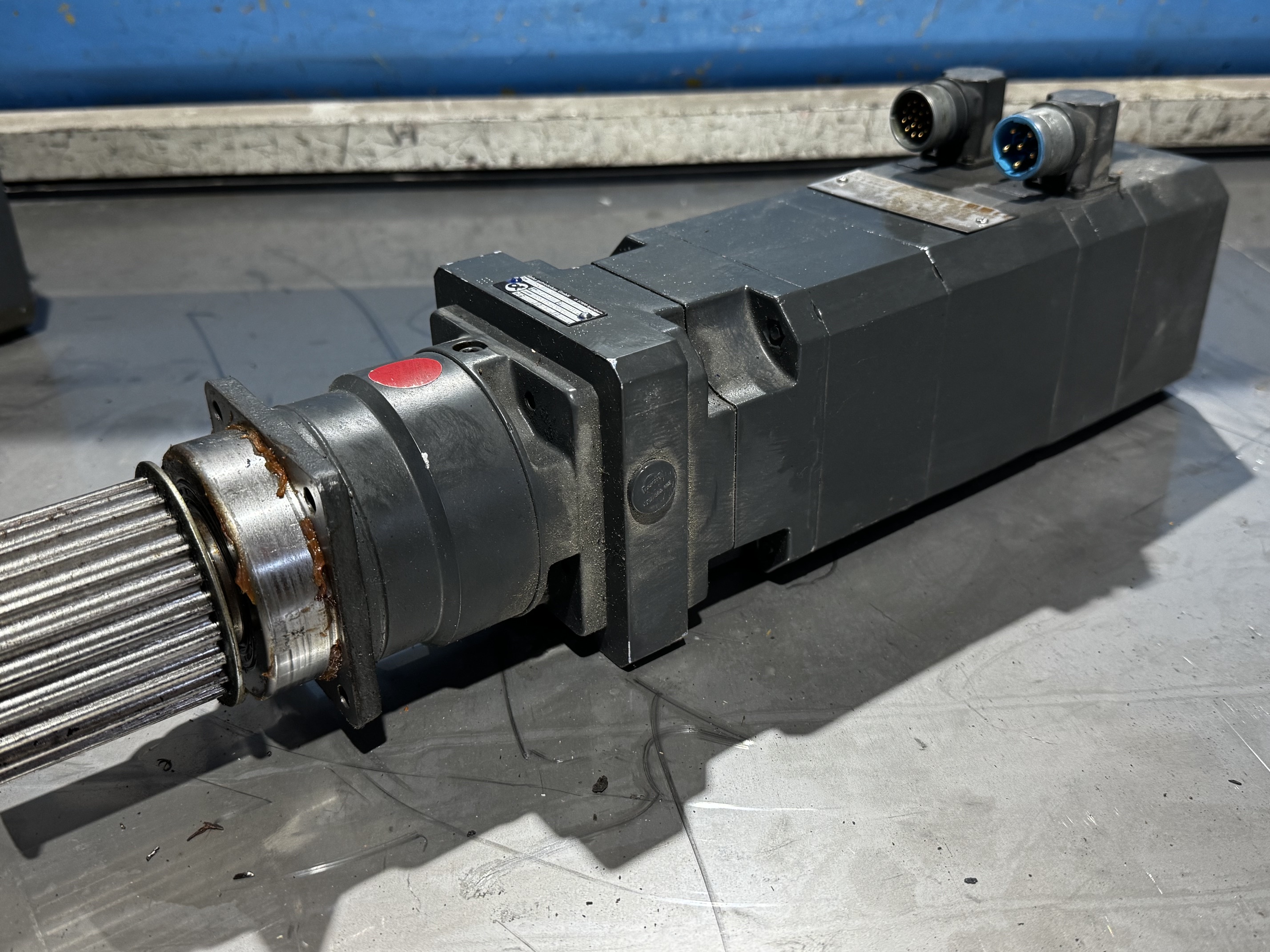

Siemens SIMOTICS S 1FT6 three-phase synchronous servo motor, model 1FT6041-4AK71-4EH0-Z. The motor is listed as manufactured in Germany in 2004 and is offered in as-is, where-is condition.
The brushless permanent-magnet motor has a rated torque of 1.4 Nm and a stall torque of 2.15 Nm at a 60 K temperature rise or 2.6 Nm at a 100 K temperature rise. Its rated and maximum speeds are both 6,000 rpm. The stated stall current is 2.6 A at a 60 K temperature rise and 3.0 A at a 100 K temperature rise. Rated voltage is 324 V with a star connection.
Mechanical and protection details include a 48 mm shaft height, IM B5 flange mounting, and IP64 degree of protection. The motor has Class F insulation and natural self-cooling via the housing.
An integrated EBD 0.4BA holding brake is specified. Its operating voltage is 24 V DC, and its power consumption is 17.6 W. The encoder is an absolute multiturn type F01 with an EnDat interface. The stated encoder resolution is 2,048 pulses per revolution, with sine/cosine 1 Vpp. An integrated KTY 84 sensor monitors winding temperature.
The stated compliance information includes CE marking, cURus, and EN 60034. No further condition or operational status is specified; the motor is sold as-is, where-is.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: Siemens AG
Product family: SIMOTICS S / 1FT6
Model: 1FT6041-4AK71-4EH0-Z
Year of manufacture: 2004
Country of manufacture: Germany
Technical condition: As-is, where-is
Motor type: Brushless permanent-magnet synchronous servo motor
Rated torque: 1.4 Nm
Stall torque: 2.15 Nm at 60 K temperature rise; 2.6 Nm at 100 K temperature rise
Rated speed: 6,000 rpm
Maximum speed: 6,000 rpm
Stall current: 2.6 A at 60 K; 3.0 A at 100 K
Rated voltage: 324 V, star connection
Shaft height: 48 mm
Mounting arrangement: IM B5 flange mounting
Degree of protection: IP64
Insulation class: Class F
Cooling: Natural self-cooling via the housing
Integrated brake: EBD 0.4BA holding brake
Brake operating voltage: 24 V DC
Brake power consumption: 17.6 W
Encoder: Absolute multiturn encoder, type F01, with EnDat interface
Encoder resolution: 2,048 pulses per revolution, sine/cosine 1 Vpp
Temperature sensor: Integrated KTY 84 winding temperature sensor
Compliance: CE marking, cURus, EN 60034
