51,000 €
Make an offerContact us to receive an offer.
| ------------------- | |
| worked hours | |
| hours under power | |
| state | new |
| At local norms | --------- |
| status | packed |
| Last availability date | 21/05/2026 |

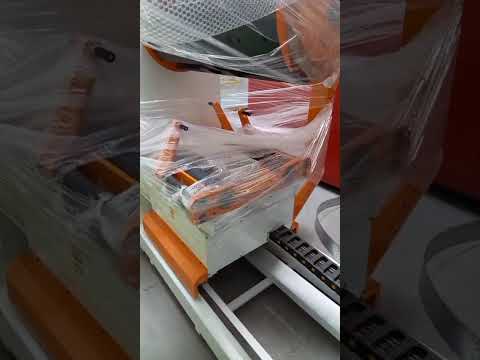

The SHANGHAI YINGXIN WORLD MACHINERY TNCF4-1000 is a complete unwinding unit designed for coil feeding applications. Manufactured in 2025, this machine is suitable for processing material thicknesses ranging from 0.5 to 4.5 mm and widths from 70 to 1000 mm. It includes a coil loading trolley to facilitate the handling of coils weighing up to 7000 kg, with coil outer diameters between 900 and 1500 mm and inner diameters from 470 to 530 mm.
The unit features a robust decoiler constructed with a steel welded structure and equipped with hydraulic expansion for secure coil holding. It also has two side limit arms with adjustment wheels and a hydraulic coil loading trolley to assist in coil positioning. The spindle expansion range is from 450 to 530 mm, and the coil loading capacity and coil outer diameter can be customized.
A motorized rubber pinch roll with tracking and follow-up functions ensures smooth material feeding. The spindle is driven by an AC motor with an inverter and disc brake for precise control. The straightener feeder is driven by a Siemens servo motor and includes manual adjustment for the straightening roller gap, aided by a ruler for accuracy. It is equipped with two feeding rollers and seven straightening rollers made of GCr15 material, providing feeding precision of 0.15 mm, which can improve to 0.05 mm when using a stamping die with a positioning pin.
The machine incorporates advanced features such as a coil end detection device and a bending arm device for strip insertion. The electric control system uses high-quality low voltage components from Schneider and includes a Siemens Smart 7" LCD touch screen HMI for user-friendly operation. The central control panel comes with remote control handles, an emergency stop button, and a counter function. The system supports both automatic and manual working modes, allowing operators to set feeding length, speed, and steps through the HMI. Additionally, the unit includes a monitoring system with alarms to enhance operational safety.
Overall, the machine appears to be in clean and good physical condition, making it a reliable choice for coil feeding and unwinding tasks in industrial settings.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
TNCF4-600/1000 COIL FEEDING MACHINE
For thickness 0,5 - 4,5 mm
width 70-1000 mm
with coil loading trolley,
hydraulic expansion,
coil weight maximum 7000 KG
coil OD 900-1500 mm,
ID 470-530 mm
feeding speed 1- 22 m / min
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
What type of machine is the SHANGHAI YINGXIN WORLD MACHINERY TNCF4-1000?
This SHANGHAI YINGXIN WORLD MACHINERY TNCF4-1000 is a coil feeding machine.
When was this equipment manufactured?
This equipment was manufactured in 2025.
What type of machine is this SHANGHAI YINGXIN WORLD MACHINERY TNCF4-1000?
This SHANGHAI YINGXIN WORLD MACHINERY TNCF4-1000 is a coil feeding machine.
What year was the machine manufactured?
The machine was manufactured in the year 2025.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
