| Manufacturer | Shandong Lingong Construction Machinery Co., Ltd |
|---|---|
| Model | L958H |
| Year | 2024 |
| Location | Poland
|
The SDLG L958H is a medium-sized front-end loader manufactured by Shandong Lingong Construction Machinery Co., Ltd, designed for high performance and reliability in demanding industrial and mining environments. This model measures 8280 mm in length, 3024 mm in width, and 3410 mm in height, with a working weight of 17,130 kg. It features a long wheelbase of 3300 mm, contributing to its stability and maneuverability on rough terrain.
Equipped with a large front bucket, the L958H has a standard bucket capacity of 3.2 m³, with options ranging from 2.7 to 4.5 m³ available upon request. The loader offers a lifting capacity of 5400 kg, a maximum unloading height of 3100 mm, and an unloading distance of 1120 mm. It delivers a maximum pulling force of 160 kN and a breakout force of 175 kN, making it suitable for heavy-duty tasks.
The engine powering the L958H is the WD10G220E21, an in-line, water-cooled, direct injection engine rated at 162 kW with a displacement of 9726 ml and a maximum torque of 860 Nm. This engine complies with the GB 20891-2007 (China, stage II) emission standard and offers a minimum fuel consumption of 215 g/kWh. The transmission system includes a hydraulic transformer with electronic-hydraulic control, providing 4 forward and 4 reverse gears.
The hydraulic system uses servo control, enabling a full working cycle time of 10 seconds. Braking is handled by air disc service brakes with hydraulic assistance, and a pneumatic disc parking brake. The fuel tank capacity is 300 liters.

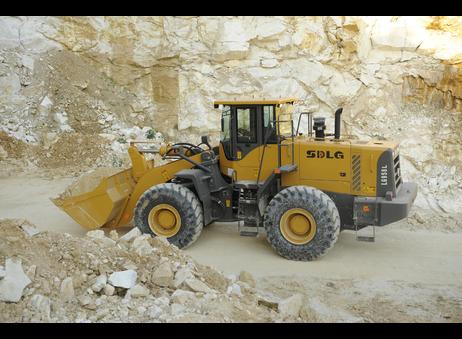

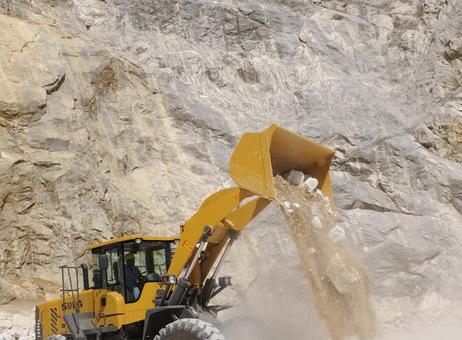

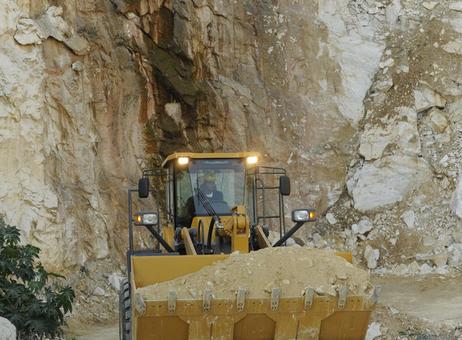

The machine is equipped with large tires featuring deep treads suitable for rough terrain, enhancing its off-road capability. The cabin includes windows and access steps for operator convenience and safety. An exhaust pipe and engine compartment are located at the rear. Observations confirm the machine is clean and appears in good condition, with no visible damage. It has been seen operating with the front bucket carrying loads of dirt and rocks, and the operator is visible inside the cabin wearing a safety helmet. The tires show signs of use but no visible damage. Overall, the SDLG L958H front-end loader combines rugged construction with energy efficiency, making it a reliable choice for heavy-duty material handling and loading tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
SDLG L958H is a medium-sized front-end loader manufactured by SDLG (Shandong Lingong Construction Machinery Co., Ltd.), offering high performance, reliability and comfort. Let's review the main features and advantages of this machine.
Main features of SDLG L958H
Model: L958H
Type: medium-sized front-end loader, with front unloading and wheel drive
Dimensions and weight:
Length x Width x Height: 8280 x 3024 x 3410 mm
Wheelbase: 3300 mm
Maximum unloading height: 3100 mm
Unloading distance: 1120 mm
Working weight: 17,130 kg
Working parameters:
Lifting capacity: 5400 kg
Bucket capacity: 3.2 m³ (2.7-4.5 m³ on request)
Maximum pulling force: 160 kN
Maximum breakout force: 175 kN
Engine:
Model: WD10G220E21
Type: In-line, water-cooled, direct injection
Rated power: 162 kW
Speed: 2200 rpm
Displacement capacity: 9726 ml
Maximum torque: 860 Nm
Emission standard: GB 20891-2007 (China, stage II)
Minimum fuel consumption: 215 g/kWh
Transmission:
Type: Hydraulic transformer with electronic-hydraulic transmission.
Gears: 4 forward, 4 reverse
Hydraulic system:
Type: Hydraulic servo control
Full working cycle time: 10,0 s
Braking system:
Type of service brakes: Air, disc, hydraulically assisted
Parking brake type: Pneumatic, disc
Fuel tank capacity: 300 l
Product description
The SDLG L958H is a long wheelbase front-end loader that combines energy efficiency with high performance. Rugged construction and reliable components make it ideal for use in harsh industrial and mining environments.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Factory – large company |
| Active since | 2024 |
| Offers online | 6 |
| Last activity | July 7, 2025 |
SDLG L958H is a medium-sized front-end loader manufactured by SDLG (Shandong Lingong Construction Machinery Co., Ltd.), offering high performance, reliability and comfort. Let's review the main features and advantages of this machine.
Main features of SDLG L958H
Model: L958H
Type: medium-sized front-end loader, with front unloading and wheel drive
Dimensions and weight:
Length x Width x Height: 8280 x 3024 x 3410 mm
Wheelbase: 3300 mm
Maximum unloading height: 3100 mm
Unloading distance: 1120 mm
Working weight: 17,130 kg
Working parameters:
Lifting capacity: 5400 kg
Bucket capacity: 3.2 m³ (2.7-4.5 m³ on request)
Maximum pulling force: 160 kN
Maximum breakout force: 175 kN
Engine:
Model: WD10G220E21
Type: In-line, water-cooled, direct injection
Rated power: 162 kW
Speed: 2200 rpm
Displacement capacity: 9726 ml
Maximum torque: 860 Nm
Emission standard: GB 20891-2007 (China, stage II)
Minimum fuel consumption: 215 g/kWh
Transmission:
Type: Hydraulic transformer with electronic-hydraulic transmission.
Gears: 4 forward, 4 reverse
Hydraulic system:
Type: Hydraulic servo control
Full working cycle time: 10,0 s
Braking system:
Type of service brakes: Air, disc, hydraulically assisted
Parking brake type: Pneumatic, disc
Fuel tank capacity: 300 l
Product description
The SDLG L958H is a long wheelbase front-end loader that combines energy efficiency with high performance. Rugged construction and reliable components make it ideal for use in harsh industrial and mining environments.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The SDLG L958H is a medium-sized front-end loader manufactured by Shandong Lingong Construction Machinery Co., Ltd, designed for high performance and reliability in demanding industrial and mining environments. This model measures 8280 mm in length, 3024 mm in width, and 3410 mm in height, with a working weight of 17,130 kg. It features a long wheelbase of 3300 mm, contributing to its stability and maneuverability on rough terrain.
Equipped with a large front bucket, the L958H has a standard bucket capacity of 3.2 m³, with options ranging from 2.7 to 4.5 m³ available upon request. The loader offers a lifting capacity of 5400 kg, a maximum unloading height of 3100 mm, and an unloading distance of 1120 mm. It delivers a maximum pulling force of 160 kN and a breakout force of 175 kN, making it suitable for heavy-duty tasks.
The engine powering the L958H is the WD10G220E21, an in-line, water-cooled, direct injection engine rated at 162 kW with a displacement of 9726 ml and a maximum torque of 860 Nm. This engine complies with the GB 20891-2007 (China, stage II) emission standard and offers a minimum fuel consumption of 215 g/kWh. The transmission system includes a hydraulic transformer with electronic-hydraulic control, providing 4 forward and 4 reverse gears.
The hydraulic system uses servo control, enabling a full working cycle time of 10 seconds. Braking is handled by air disc service brakes with hydraulic assistance, and a pneumatic disc parking brake. The fuel tank capacity is 300 liters.
The machine is equipped with large tires featuring deep treads suitable for rough terrain, enhancing its off-road capability. The cabin includes windows and access steps for operator convenience and safety. An exhaust pipe and engine compartment are located at the rear. Observations confirm the machine is clean and appears in good condition, with no visible damage. It has been seen operating with the front bucket carrying loads of dirt and rocks, and the operator is visible inside the cabin wearing a safety helmet. The tires show signs of use but no visible damage. Overall, the SDLG L958H front-end loader combines rugged construction with energy efficiency, making it a reliable choice for heavy-duty material handling and loading tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Factory – large company |
| Active since | 2024 |
| Offers online | 6 |
| Last activity | July 7, 2025 |
