| Manufacturer | SGL Technik |
|---|---|
| Model | RS- 7-2-5515.1 (Graphite, 8 m²) |
| Year | 1998 |
| Location | Netherlands
|

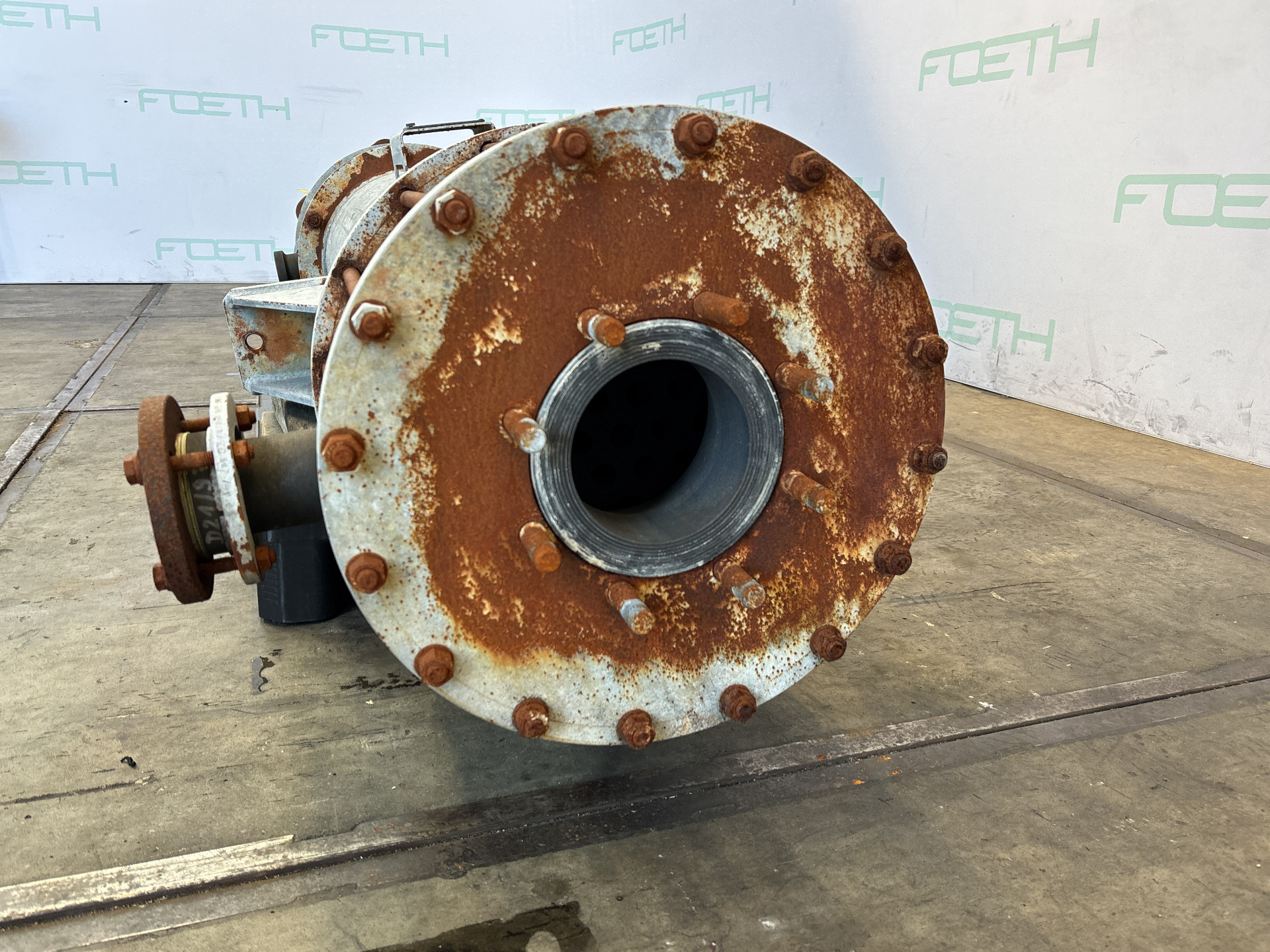

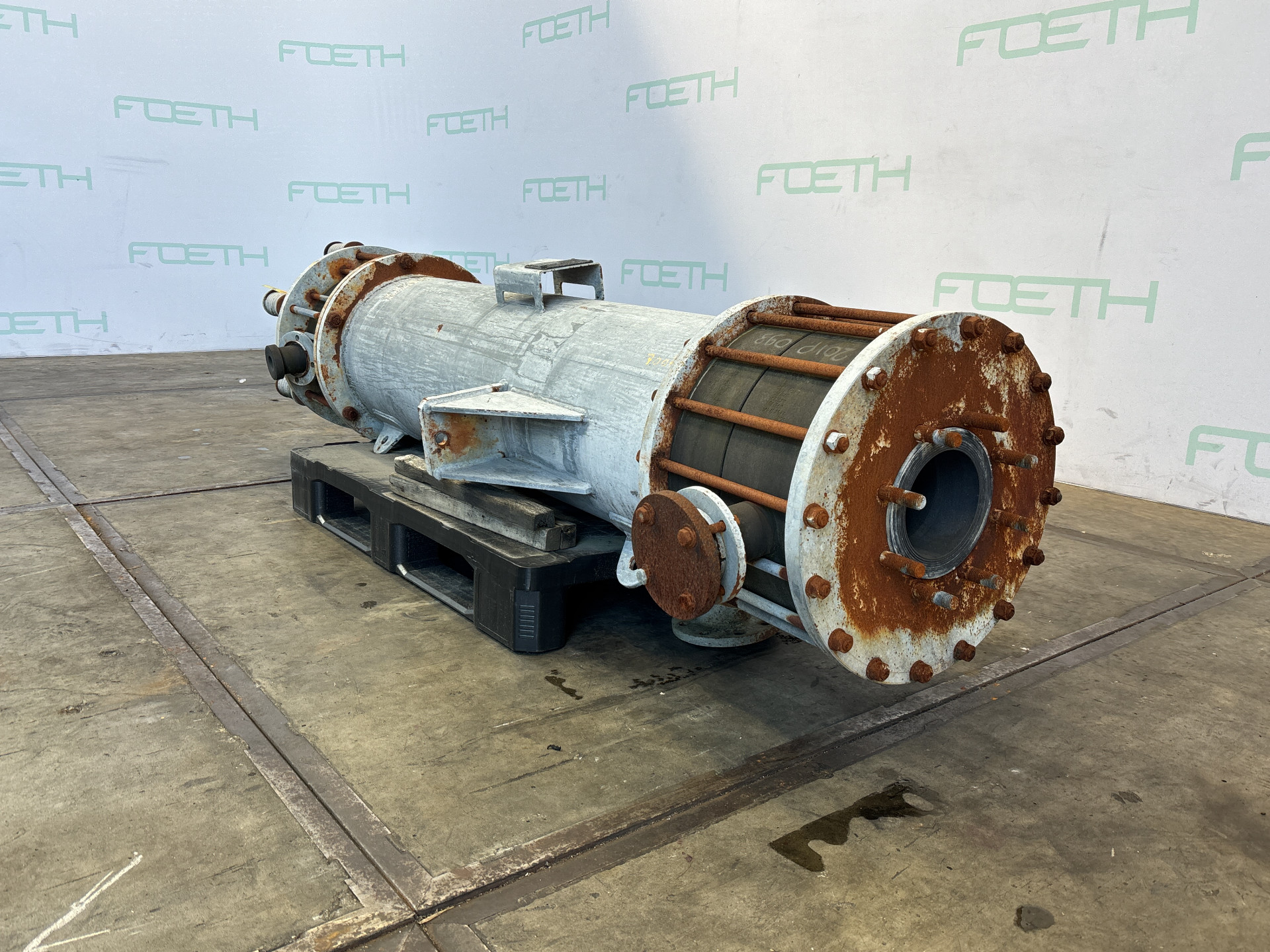

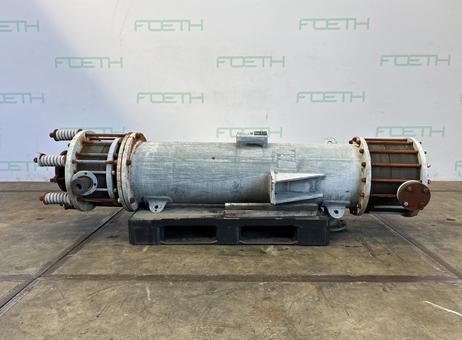

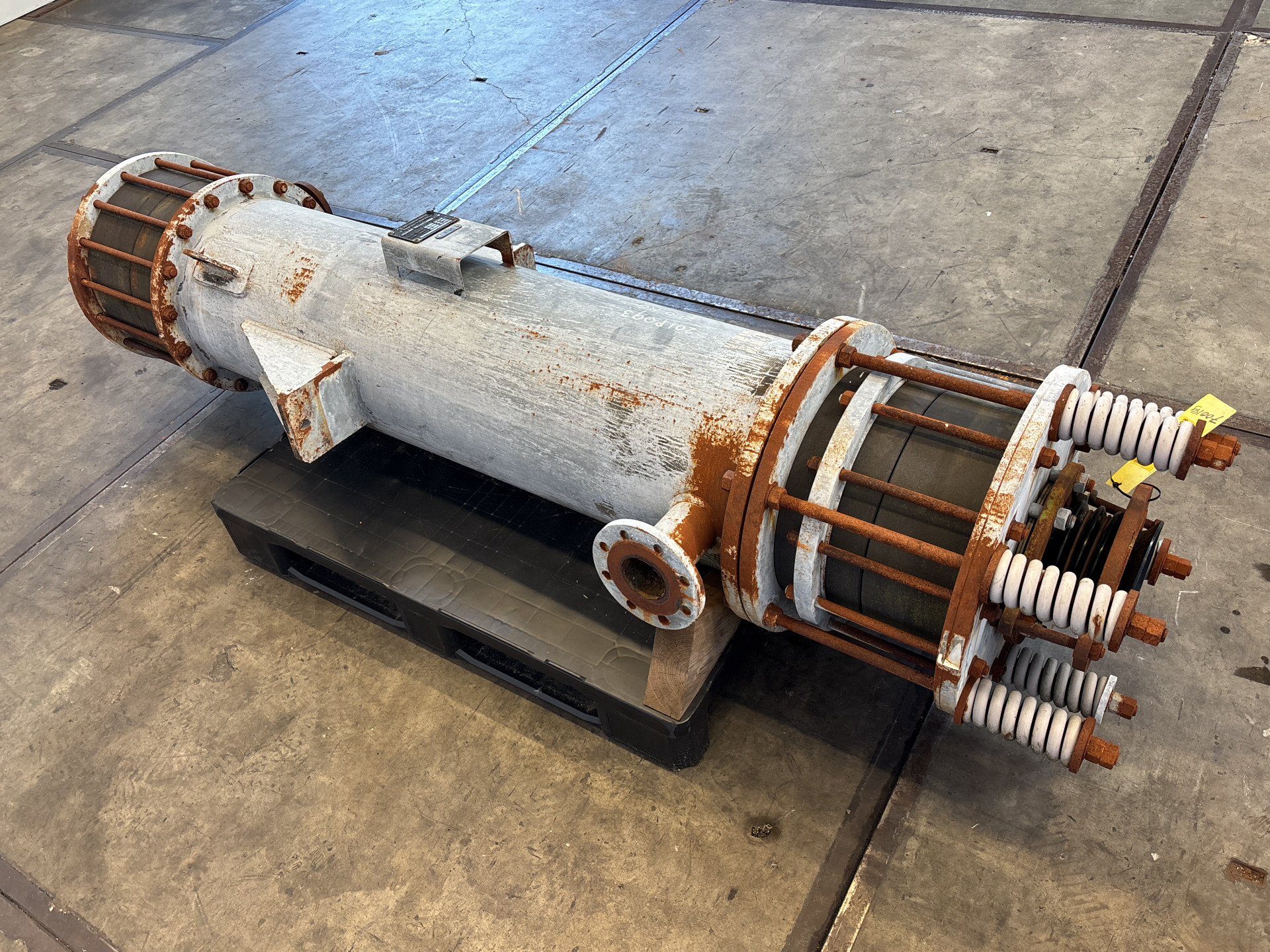

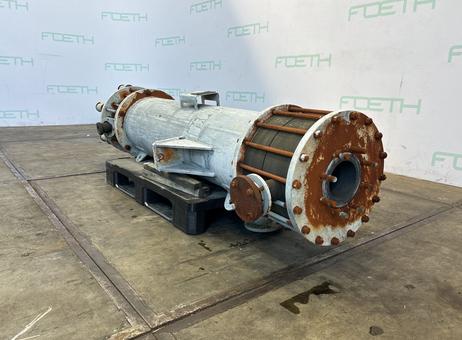

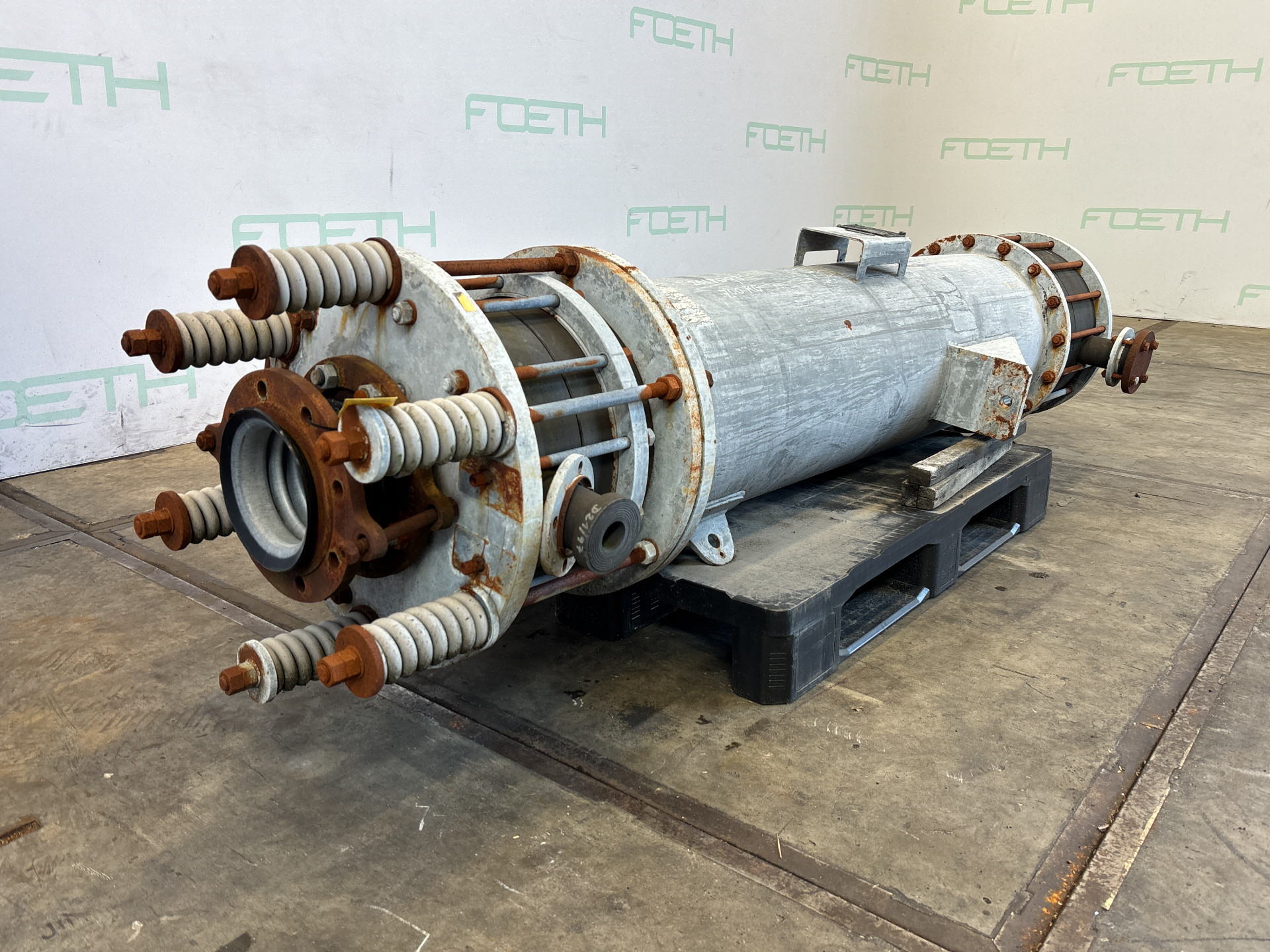

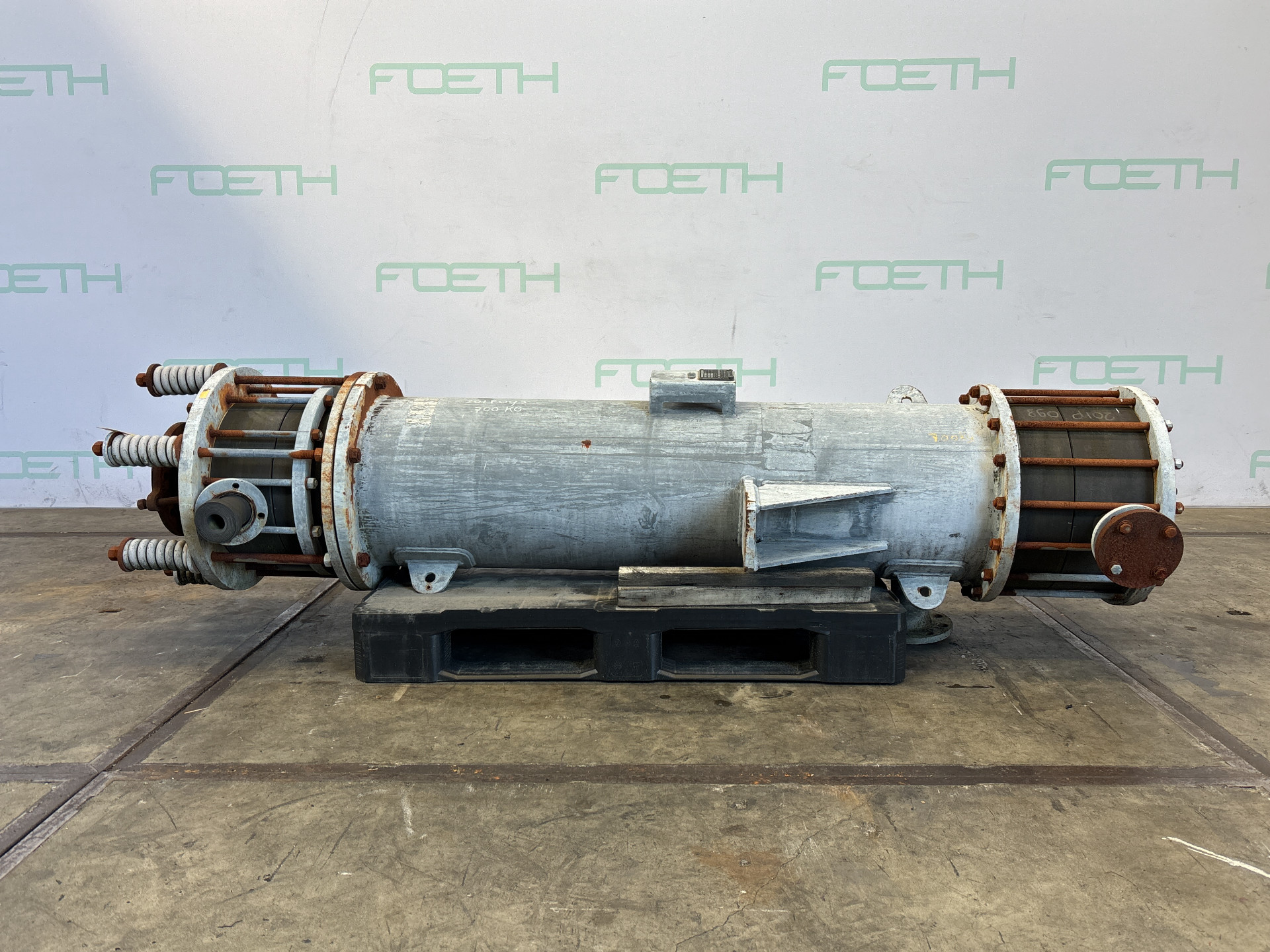

SGL Technik RS- 7-2-5515.1 graphite shell-and-tube heat exchanger with a stated heat-transfer surface of 8 m². The unit is described as a vertical exchanger, with graphite tubes made from Diabon-NS1 G20-3-170 and a mild-steel shell. Its maximum temperature is 170 °C. The listed overall dimensions are 700 mm long, 700 mm wide and 2,200 mm high, and the stated weight is 600 kg.
The supplied technical details identify the tube side and shell side as separate parts of the exchanger and list TÜV as the notified body. The shell material is specified as mild steel, while graphite is specified for the tubes. This equipment is intended for heat-transfer service; the provided information does not state a particular process, application, or operating medium.
The model designation includes graphite construction and an 8 m² surface area. This description retains the information supplied for the machine without assuming operating condition or performance beyond the stated specifications. No test status, refurbishment, warranty, or current working condition has been provided. The year of manufacture is not included here because it is not confirmed in the structured specifications. Buyers can use the stated material, temperature limit, footprint and overall height to assess whether the exchanger suits their installation and process requirements. Please note that further operating details, including pressure ratings and connection arrangements, are not included in this summary.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.

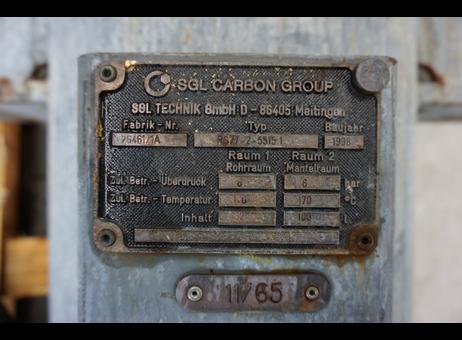

General
SKU: 201P093

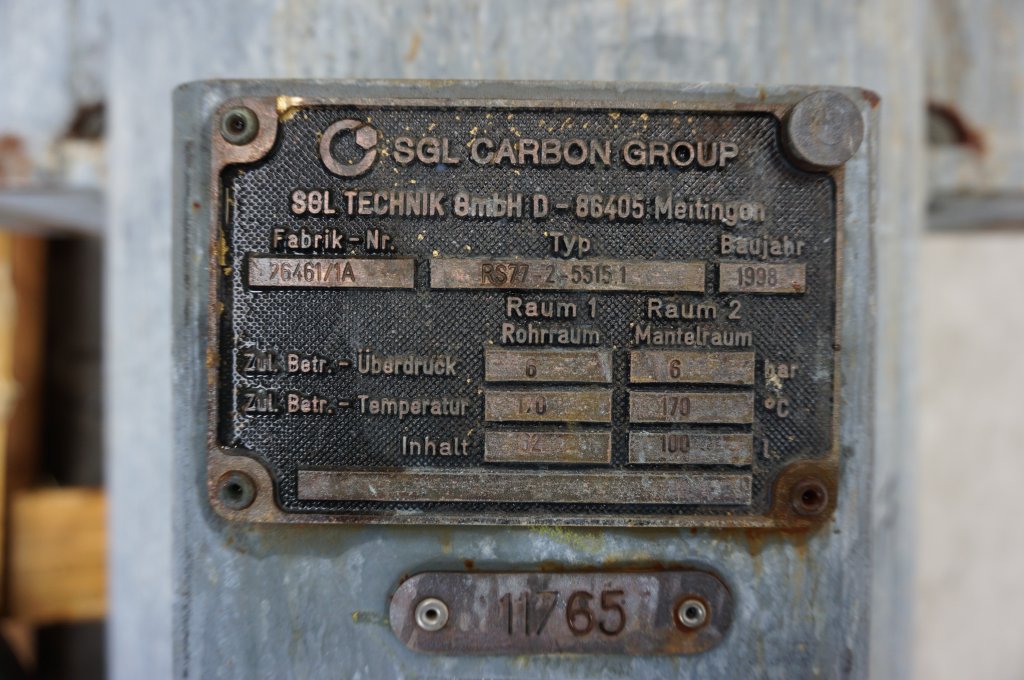

Make: SGL Technik Gmbh Meitingen (DE)
Type: RS-77-2-5515.1
No.: 76461/1A
Year of construction: 1998
Location: Barneveld
Material

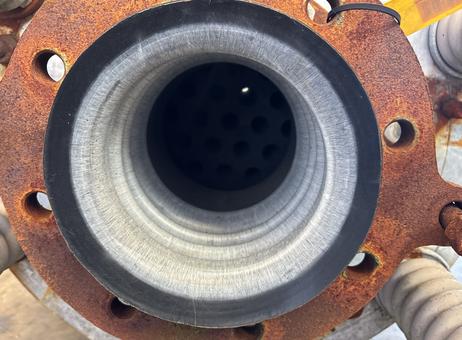

Tube material: Graphite Diabon-NS1 G20-3-170
Pressure
Working pressure shell: 6 Bar
Working pressure tubes: 6 Bar
Main Features
Shell (Material): Mild steel
Tube (Material): Graphite
Surface: 8 m2
Specified Features - Shell and tube heat exchanger
Heat exchanger: ✓
Vertical: ✓
Notified body: TÜV
Heating surface: 8 m²
Tube capacity: 62 l

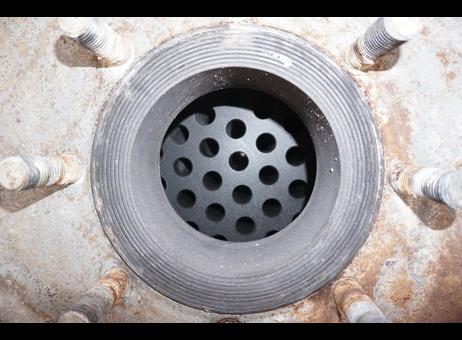

Number of tubes:: 55
Tube diameter: 37 mm
Tube length: 1.500 mm
Wall thickness tubes: 5 mm
Max. temperature: 170°C
Shell capacity: 100 l
Shell diameter: 460 mm
Shell length: 1.380 mm
Wall thickness shell: 6 mm
Max. temperature: 170°C
Shell connections: (2x) DN80, DN40

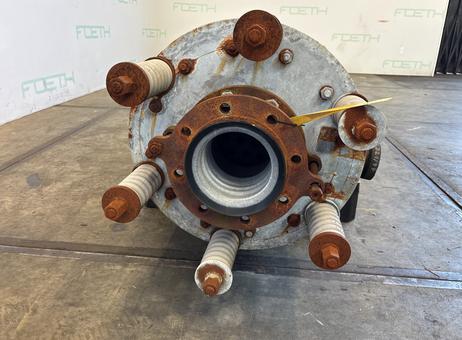

Cover connections: (2x) DN150
Material: Mild steel
General
Floorspace: 0,7 x 0,7 m
Total height: 2.2 m
Weight: 600 kg
