Contact us to receive an offer.
| Manufacturer | Sfere Emballage |
|---|---|
| Model | TL50.40SM |
| Year | |
| Location | Italy
|
The Sfere Emballage TL50.40SM is a semiautomatic intermittent motion overwrapper machine equipped with an integrated heat shrinking tunnel, designed to bundle products securely using shrinkable film. This model is recognized for its high productivity, reliability, and precision in bundling, making it suitable for various sectors including pharmaceutical, chemical, cosmetics, food, dietary supplements, medical devices, and general manufacturing.

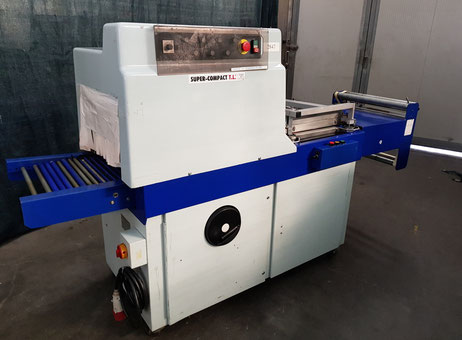

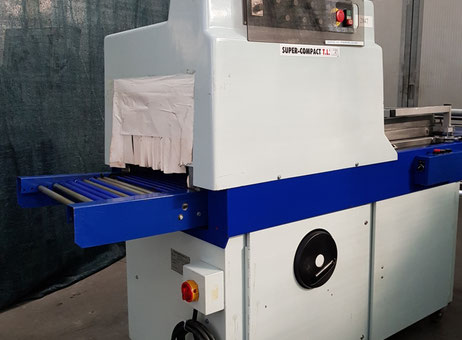

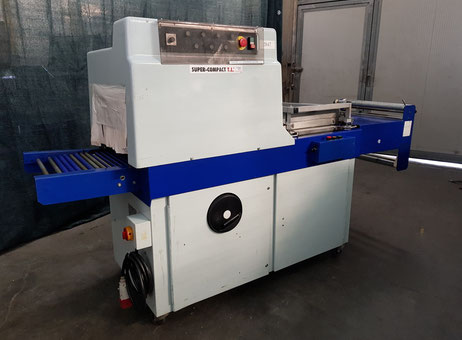

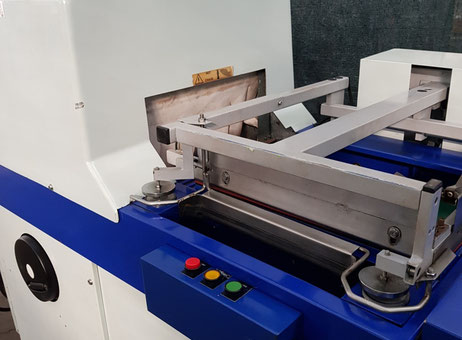

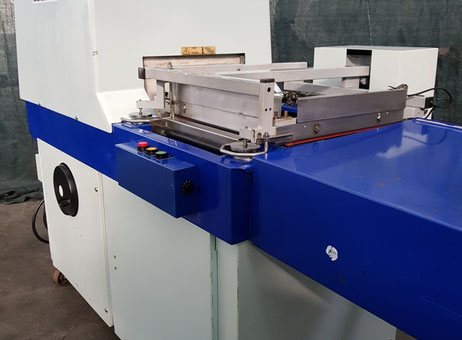

Constructed with painted steel, the machine features a white and blue painted metal body. It includes blue conveyor rollers on the product infeed side, facilitating smooth product feeding. The control panel, located on the right side, is equipped with multiple control buttons including red, yellow, and green buttons, as well as an emergency stop button and an on/off switch positioned on the top panel for operational safety and convenience. A large black handwheel is mounted on the side of the machine, likely for manual adjustments.

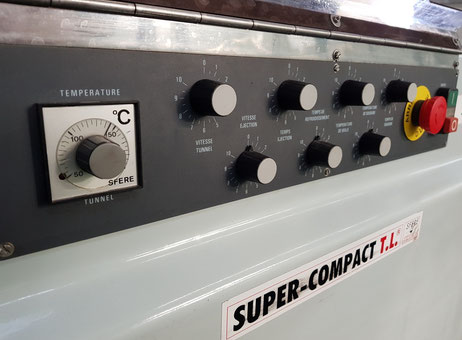

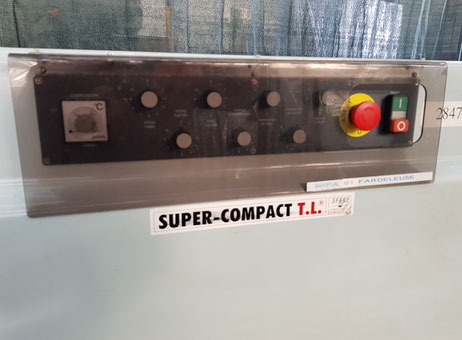

The TL50.40SM is designed for vertical stacking and shrink-wrapping of products with quick size changeovers suitable for various blister sizes. It incorporates a PLC control system and operates with a low noise level. The electrical control cabinet is centrally located and features controls and gauges arranged for maximum ease of use, with key controls protected by a transparent lockable cover.

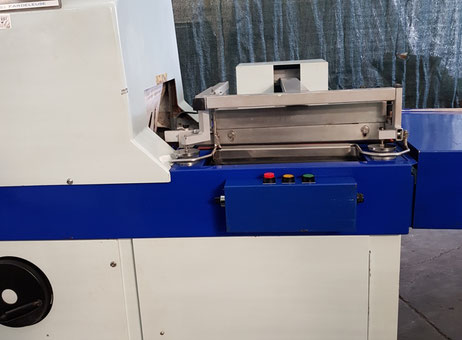

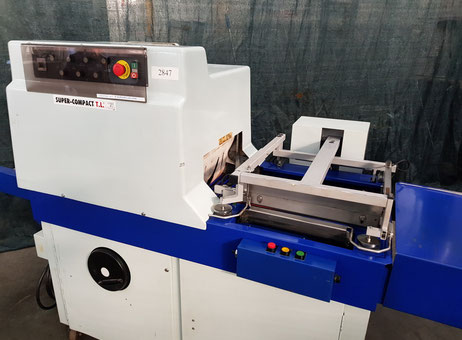

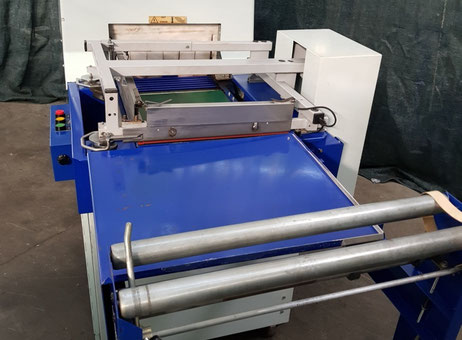

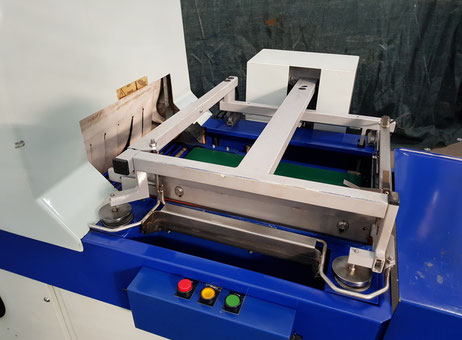

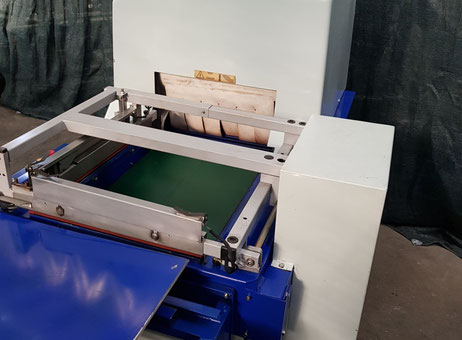

The machine includes an automatic mechanical descent welding frame with permanently heated welding bars measuring 490 x 390 mm, ensuring consistent sealing quality. The welding area features a metal sealing frame that is adjustable to accommodate different product sizes. The shrink tunnel is equipped with strong, balanced ventilation to optimize thermal air transfer, effectively reducing film temperature and heat exposure time, which helps in energy saving and better film retraction.
Height adjustment is available for the entire ejection plane and tunnel conveyor to match the load size, preventing product falls and enhancing shrink quality. The machine supports packaging materials such as PVC, polyolefin, polyethylene, and polypropylene. It accommodates products up to 680 mm in length, 220 mm in height, and weighing between 0.25 to 10 kg. The maximum film roll diameter supported is 600 mm.
With overall dimensions of 2480 mm in length, 1000 mm in width, and 1450 mm in height, and a net weight of 360 kg, the TL50.40SM operates on 400 volts, 50 Hz frequency, drawing 10 amps of current. The machine's surface appears clean and well-maintained, indicating good condition. A power cable is attached to the lower left side of the machine for electrical connection.
This overwrapper is a robust and efficient solution for industries requiring reliable shrink-wrapping capabilities with easy operation and quick format changes.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
DESCRIPTION:
Semiautomatic intermittent motion overwrapper machine and tunnel, suitable to bundle the product using shrinkable film, which guarantees high productivity, reliability, accuracy in bundling and easy use. Its original functioning criterion, along with its simple manufacturing concepts, are particularly appreciated by its users. The unit adopts the most up-to-date manufacturing technologies.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:
The unit is a semiautomatic machine for vertical stacking and shrinkwrapping of products. The time for size change to other blister sizes is very short. PLC equipped and with low noise level. The controls and gages of the electrical control cabinet are centrally located and arranged for maximum operating convenience. The most important controls are protected by a transparent lockable cover on the panel. Painted steel construction, infeed product guides with belts. Equipped with tunnel for the heat shrinking of the film. Automatic mechanical descent of the welding frame. Permanently heated welding device. Variable speed tape. Strong and balanced ventilation that facilitates the thermal transfer of air from the film, which has the practical effect of restricting all the films to a lower temperature with a shorter heat exposure time. Height adjustment of the entire ejection plane and of the tunnel conveyor, depending on the size of the load: no fall, better retraction and energy saving.
TECHNICAL DATA
Length mm 2480
Width mm 1000
Height mm 1450
Net weight Kg 360
Current A 10
Frequency Hz 50
Voltage Volt 400
PRODUCTION CHARACTERISTICS
Packaging material PVC, polyolefin, polyethylene, polypropylene
Max product length 680 mm
Max product height 220 mm
Product weight 0.25-10 kg
Max roll diameter 600 mm
Welding arm dimensions 490 x 390 mm
Demonstration video of operation:
https://www.youtube.com/watch?time_continue=69&v=-YDEVh4SJKs
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What type of machine is this SFERE EMBALLAGE TL50.40SM?
This SFERE EMBALLAGE TL50.40SM is a used L-bar shrink wrapping machine.
Does this machine have a tunnel?
This machine is equipped with a tunnel.
What is the reference number for this SFERE EMBALLAGE TL50.40SM?
This SFERE EMBALLAGE TL50.40SM has a reference number of FAR-55.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
