Contact us to receive an offer.
| Manufacturer | SEPHASCAN |
|---|---|
| Model | BLISTERSCAN |
| Year | 2006 |
| Location | Italy
|
The SEPHASCAN BLISTERSCAN, manufactured in 2006, is an advanced leak tester designed for non-destructive testing of blister packs. It precisely tests each individual blister cavity to identify leaks or weak seals by measuring the deflection of the aluminum foil covering each cavity before and after applying a vacuum to the test chamber. This deflection results from the pressure difference between the inside of the cavity and the vacuum outside. A properly sealed cavity maintains consistent foil deflection throughout the vacuum period, while a leaking cavity shows little or no deflection. The detection system scans the cover surface of each cavity to measure these changes, allowing for accurate leak identification.

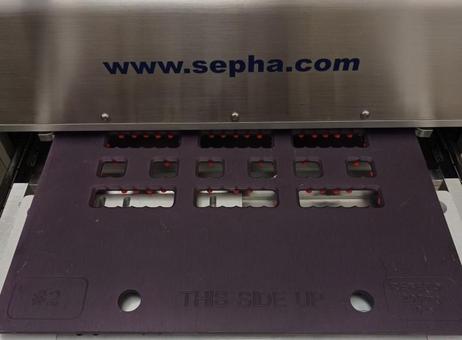

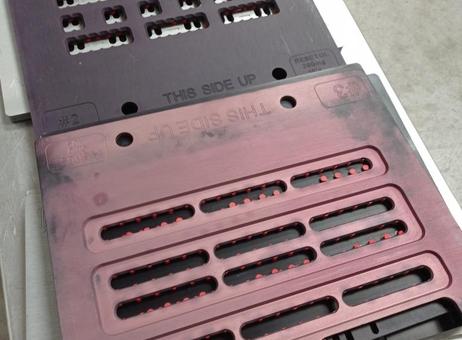

Intended for use in laboratory and production environments, this unit is suitable for various sectors including pharmaceutical, chemical, cosmetics, food, dietary supplements, medical devices, and manufacturing. The BLISTERSCAN features a comprehensive tape width of up to 320 mm and offers a sensitivity of up to 5 microns within a volume of 700 mm³. It supports five different format sizes, with installed formats measuring 380 x 295 mm (superior) and 420 x 215 mm (inferior).

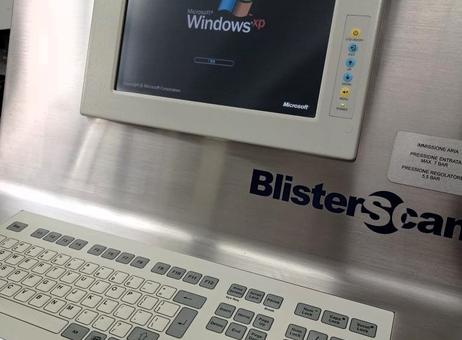

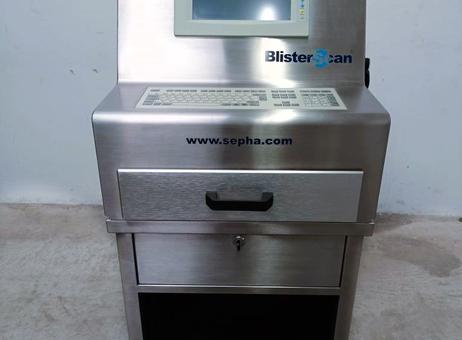

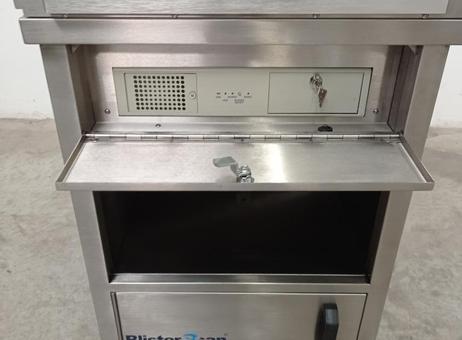

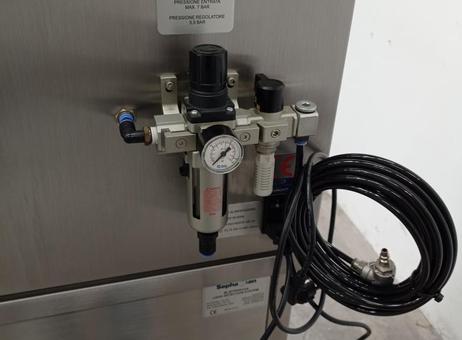

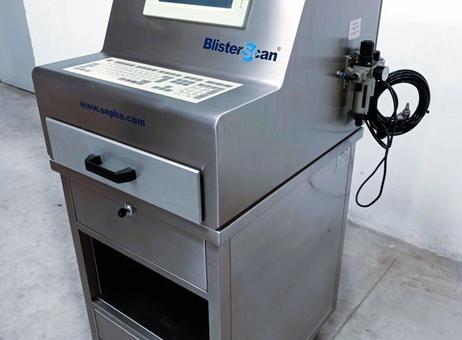

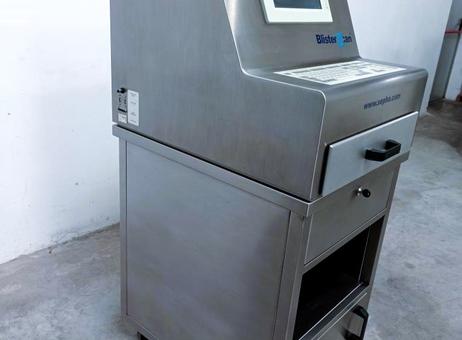

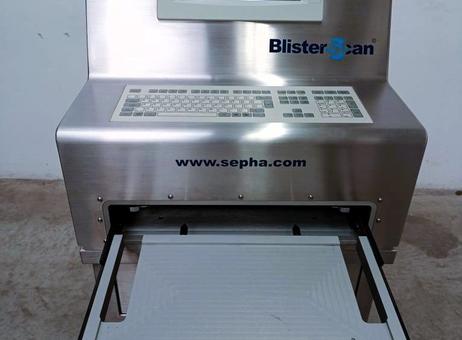

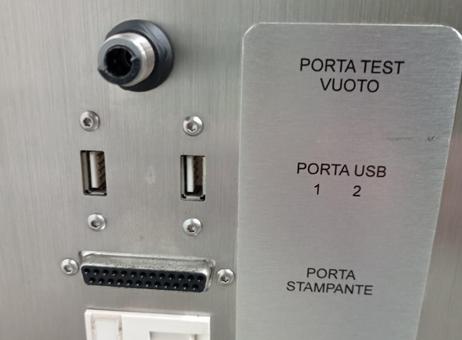

The machine is housed in a stainless steel frame and includes an integrated monitor with control buttons on the right side, a full keyboard with a numeric keypad located below the monitor, and two drawers—one with a black handle and another with a lock and knob. A mounted pneumatic component with attached tubing is located on the right side of the machine. The unit features an LCD touchscreen display, parallel printer port, floppy-CDROM drive, and double USB ports to facilitate operation and data management.
Technical specifications include dimensions of 800 x 750 x 1580 mm and a weight of 190 kg. It operates on a voltage of 220 volts. Product changeover time is less than 20 seconds, helping to reduce downtime and waste. Two units of this model are available.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
DESCRIPTION:
The BlisterScan is a leak tester for non-destructive testing. Test each blister cavity and identify which individual cavities have leaks or weak seals. It is intended for use in laboratory and production environments.
SECTORS OF USE:
Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing.
MAIN FEATURES:
A measurement of the deflection of the aluminum foil covering each cavity of the blister is taken before and after applying a vacuum to the test chamber. This deflection is caused by the difference between the pressure inside the cavity and the vacuum outside. In the case of a good cavity, the aluminum foil has the deflection that will be maintained throughout the period of constant vacuum. In the event of a leak the cover sheet has little or no deflection. The deflection and its changes are measured by a detection system that scans the cover surface of each blister cavity. The unit automatically stores data, saves downtime and eliminates waste. Product changeover time less than 20 seconds. Comprehensive tape up to 320 mm. LCD display with touch screen, parallel printer port, floppy-CDROM drive and double USB port. Sensitivity up to 5 microns in a volume of 700 mm3. 5 format sizes available.
Year of construction: 2006
2 units available.
TECHNICAL DATA
Dimensions mm 800 x 750 x 1580
Weight kg 190
Installed fomat mm Superior 380 x 295, Inferior 420 x 215
Voltage Volt 220
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
