| Manufacturer | SCULFORT |
|---|---|
| Model | FABRICAP 650 |
| Year | 1962 |
| Location | France
|
The SCULFORT FABRICAP 650 is a heavy-duty industrial lathe designed for large-scale machining tasks. It features a substantial distance between centers of 6,000 mm, allowing it to accommodate very long workpieces. The lathe offers a maximum swing over the bed of 1,400 mm and a maximum swing over the transversing slide (saddle) of 1,000 mm. Additionally, it supports a maximum swing diameter in the gap of 1,750 mm, providing versatility for various turning operations.
This machine is capable of handling a maximum workpiece weight of 12,000 kg when turning between centers. The spindle bore measures 120 mm, and the spindle speed ranges from 1.5 to 150 rpm, suitable for heavy machining at low speeds. The lathe is equipped with a 4-jaw chuck, which facilitates secure and precise clamping of irregularly shaped workpieces.

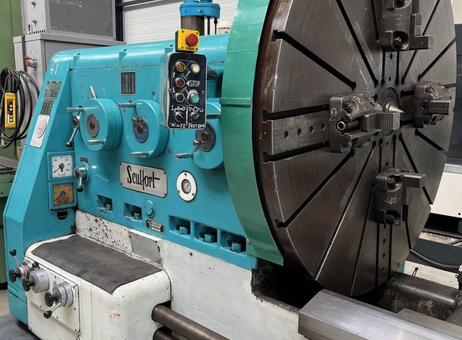

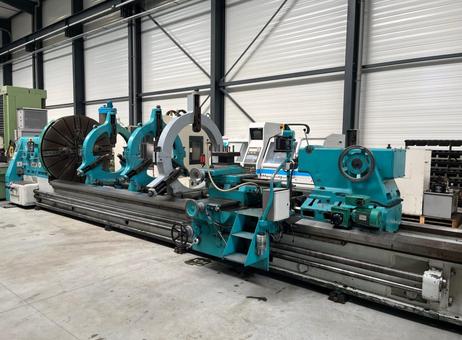

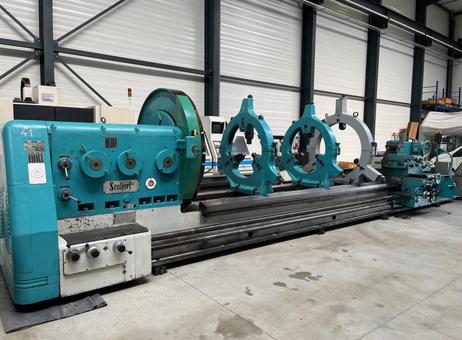

Included with the lathe are multiple steady rests mounted on the bed, which enhance support for long or flexible workpieces during machining. The presence of three steady rests allows for better stability and reduced vibration. The headstock is fitted with a large 4-jaw chuck, capable of handling substantial workpieces.
The machine is equipped with hard ways and a digital readout (DRO), improving accuracy and ease of operation. Rapid traverse functionality is also included, allowing faster positioning of the carriage.

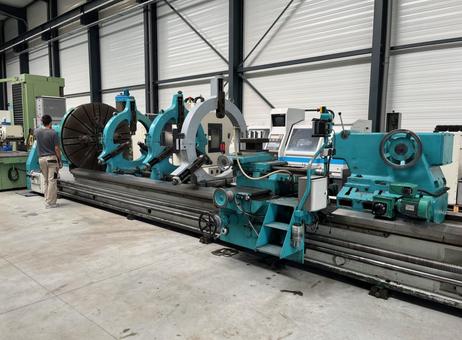

Visually, the lathe appears clean and well-maintained with some signs of use, indicating it has been cared for. A person standing next to the lathe in the images provides a clear sense of the machine's large size and robust construction, suitable for demanding industrial applications.
Manufactured in 1962, the SCULFORT FABRICAP 650 remains a powerful and reliable option for heavy-duty turning tasks requiring large capacity and precision.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Distance between centres: 6,000 mm
Swing over bed: 1,400 mm
Max turn diameter over saddle: 1,000 mm
Max swing in gap: 1,750 mm
Tail-stock quill diameter: 200 mm
Tail-stock quill stroke: 400 mm
Tailstock taper: M 100
Spindle bore: 120 mm
Spindle speeds: 1.5 – 150 RPM
Max load between centres without steadies: 12,000 kg
Max load between centres at 3 RPM: 20,000 kg
Max load on chuck at 3 RPM: 5,000 kg
Equipped with:
- 1,700 mm 4 jaw chuck
- 2 off 3 point steadies diameter 300 to 600 mm
- 3 point steady diameter 600 to 1,000 mm
- Hard Ways
- DRO
- Rapid traverse
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
