Contact us to receive an offer.
| Manufacturer | SCM |
|---|---|
| Model | M3 300/120 |
| Year | |
| Location | Poland
|
This SCM M3 300/120 multi-blade saw is a robust industrial machine designed for precise cutting operations. Manufactured in Italy, it features a solid metal body with a red and white paint finish, reflecting its durable construction. The machine measures 1550 mm in length, 1650 mm in width, and 1600 mm in height, with a total weight of 1800 kg.
Key technical specifications include a blade diameter of 350 mm, a cutting height of 120 mm, and a working width of 300 mm. It is powered by a 30 kW engine, offering substantial cutting power suitable for various materials. The table width is 750 mm, and the minimum element length that can be processed is 600 mm. The saw includes a spindle diameter of 50 mm and a sleeve diameter of 70 mm, with the sleeve equipped with spacers to accommodate different cutting requirements.
The machine is equipped with adjustable feed on the gear motor and features three rows of anti-kickback latches for enhanced safety during operation. It also offers the possibility of mounting a board shoe and includes automatic central lubrication to ensure smooth functioning of moving parts. Four upper pressure rollers help maintain material stability while cutting.

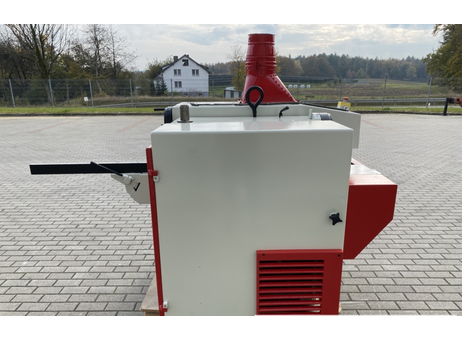

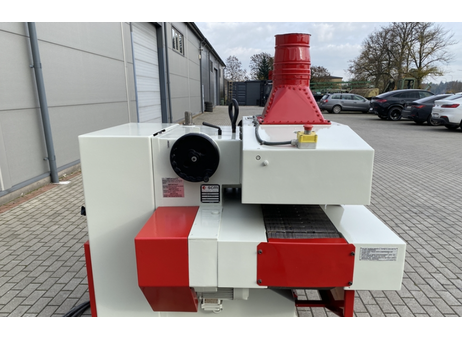

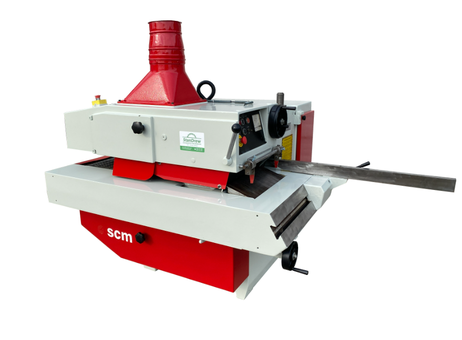

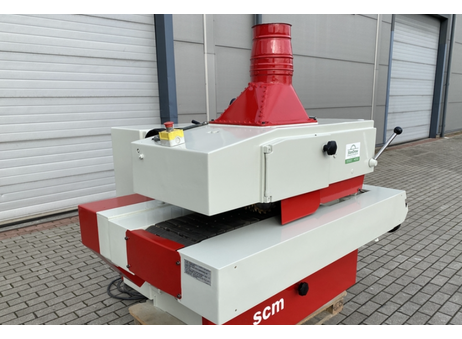

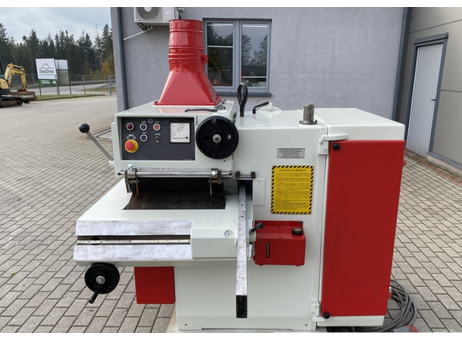

From the images, the saw includes a large red dust extraction hood mounted on top, designed to manage sawdust effectively. A conveyor belt table facilitates smooth feeding of materials into the saw, complemented by metal guide bars and rails extending from the machine to assist in material handling. The control panel, located on the right side, features various buttons and dials, including an emergency stop button for safety. Adjustment wheels and levers are present for fine-tuning height and angle settings. Additionally, red protective covers are installed on the conveyor belt area, and a yellow safety instruction label is affixed to the side panel.
Overall, this SCM multi-blade saw combines powerful performance with practical safety and operational features, making it suitable for demanding woodworking or industrial cutting tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
- user manual, DTR
- made in Italy
TECHNICAL PARAMETERS:
track width 300 mm
cutting height 120 mm
maximum disc diameter 350 mm
engine power 30 kW
table width 750 mm
min. element length 600 mm
adjustable feed on the gear motor
three rows of anti-kickback latches
possibility of putting on a board - shoe
spindle diameter 50 mm
sleeve diameter 70 mm
sleeve equipped with spacers
automatic central lubrication
four upper pressure rollers
nozzle diameter 200 mm
machine dimensions (length/width/height) 155 / 165 / 160 cm
Libra 1800 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2015 |
| Offers online | 123 |
| Last activity | Oct. 22, 2026 |
- user manual, DTR
- made in Italy
TECHNICAL PARAMETERS:
track width 300 mm
cutting height 120 mm
maximum disc diameter 350 mm
engine power 30 kW
table width 750 mm
min. element length 600 mm
adjustable feed on the gear motor
three rows of anti-kickback latches
possibility of putting on a board - shoe
spindle diameter 50 mm
sleeve diameter 70 mm
sleeve equipped with spacers
automatic central lubrication
four upper pressure rollers
nozzle diameter 200 mm
machine dimensions (length/width/height) 155 / 165 / 160 cm
Libra 1800 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This SCM M3 300/120 multi-blade saw is a robust industrial machine designed for precise cutting operations. Manufactured in Italy, it features a solid metal body with a red and white paint finish, reflecting its durable construction. The machine measures 1550 mm in length, 1650 mm in width, and 1600 mm in height, with a total weight of 1800 kg.
Key technical specifications include a blade diameter of 350 mm, a cutting height of 120 mm, and a working width of 300 mm. It is powered by a 30 kW engine, offering substantial cutting power suitable for various materials. The table width is 750 mm, and the minimum element length that can be processed is 600 mm. The saw includes a spindle diameter of 50 mm and a sleeve diameter of 70 mm, with the sleeve equipped with spacers to accommodate different cutting requirements.
The machine is equipped with adjustable feed on the gear motor and features three rows of anti-kickback latches for enhanced safety during operation. It also offers the possibility of mounting a board shoe and includes automatic central lubrication to ensure smooth functioning of moving parts. Four upper pressure rollers help maintain material stability while cutting.
From the images, the saw includes a large red dust extraction hood mounted on top, designed to manage sawdust effectively. A conveyor belt table facilitates smooth feeding of materials into the saw, complemented by metal guide bars and rails extending from the machine to assist in material handling. The control panel, located on the right side, features various buttons and dials, including an emergency stop button for safety. Adjustment wheels and levers are present for fine-tuning height and angle settings. Additionally, red protective covers are installed on the conveyor belt area, and a yellow safety instruction label is affixed to the side panel.
Overall, this SCM multi-blade saw combines powerful performance with practical safety and operational features, making it suitable for demanding woodworking or industrial cutting tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2015 |
| Offers online | 123 |
| Last activity | Oct. 22, 2026 |
