| Manufacturer | Schrader |
|---|---|
| Model | 100 bar |
| Year | 1996 |
| Location | Netherlands
|

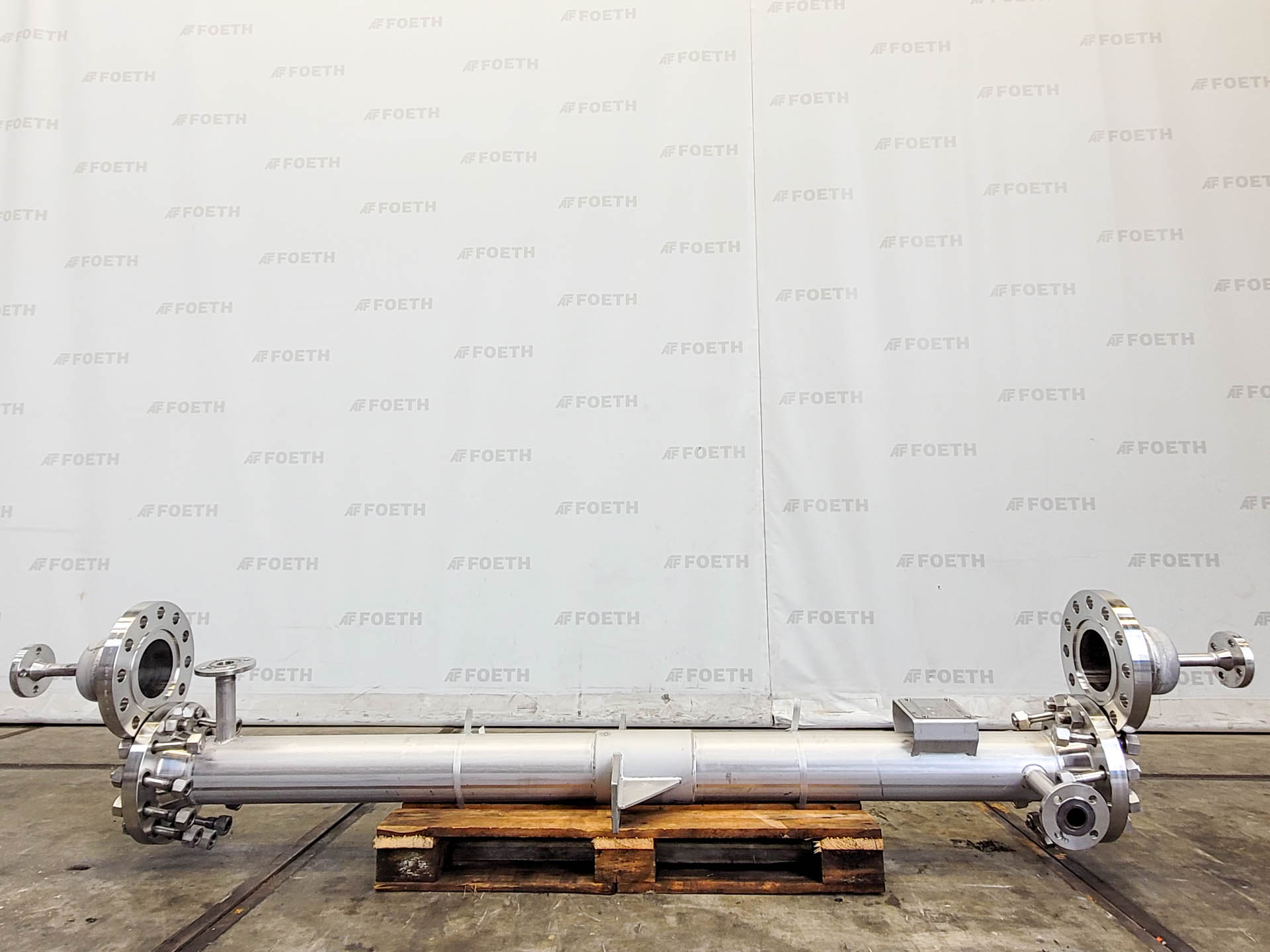

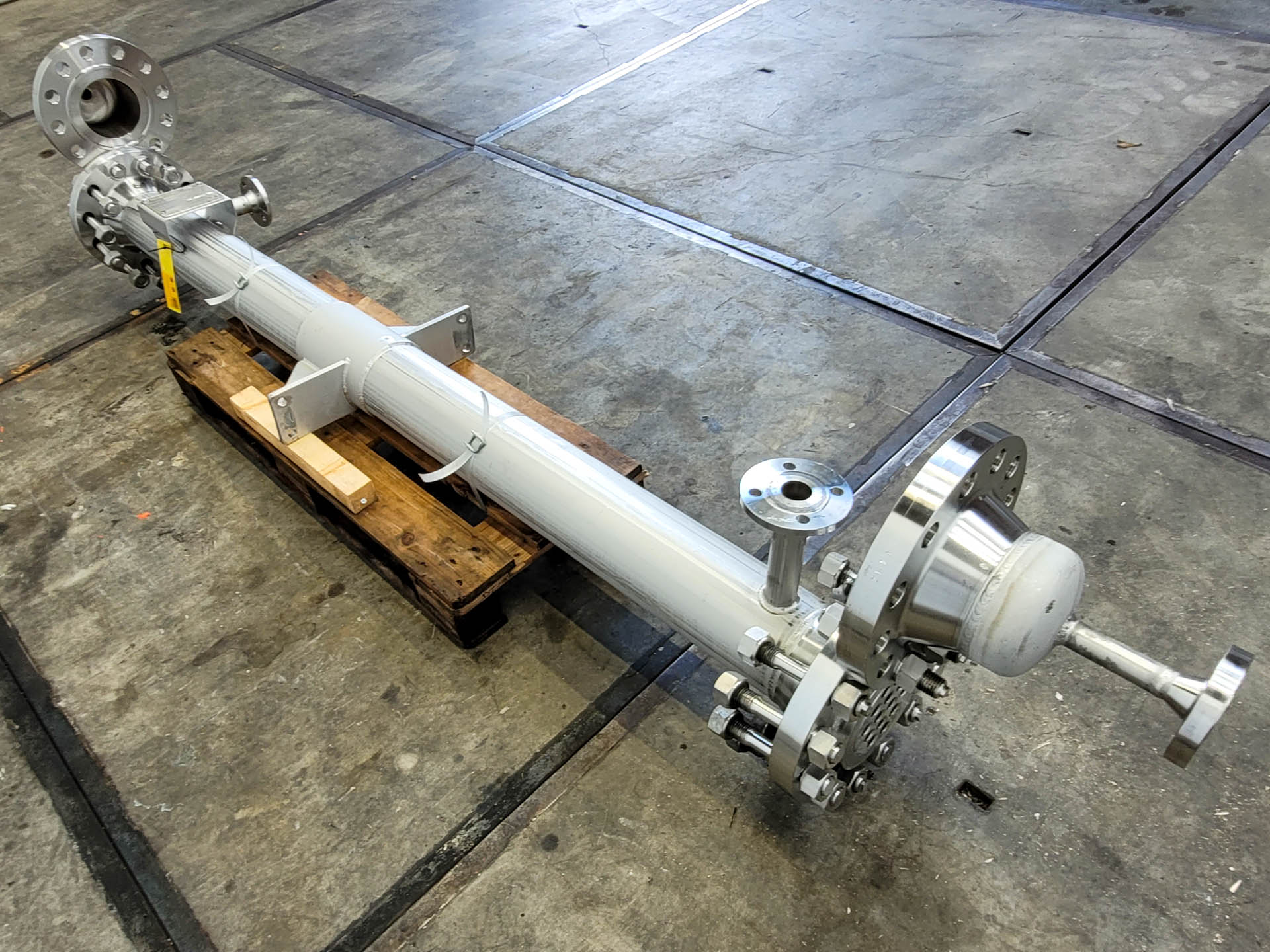

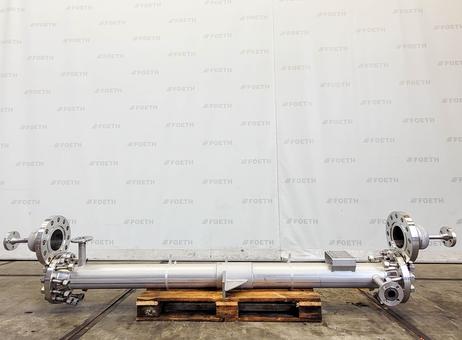

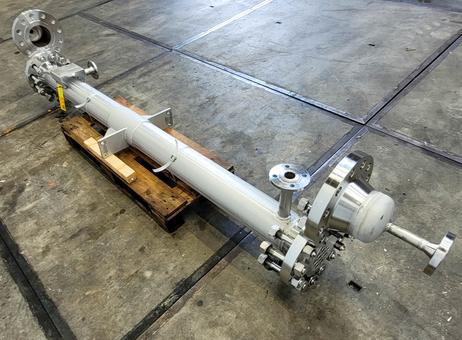

Schrader vertical shell-and-tube heat exchanger, type W 513. The manufacturer is listed as Schrader Apparatebau GmbH, and the model is listed as 100 bar. The exchanger is described as having a stainless-steel shell and stainless-steel tubes. Vacuum operation is indicated as possible for the shell and tube side. The current specification also identifies TÜV as the notified body.
The listed overall dimensions are 500 mm long, 500 mm wide and 3,300 mm high. The stated weight is 300 kg, and the maximum temperature is 140 °C. These dimensions and weight may be useful when assessing installation space, handling and transport requirements.
The equipment is described as a vertical heat exchanger. Its shell-and-tube construction provides separate shell and tube sides for the process media. Stainless steel is specified for both the shell and the tubes. The listing indicates that vacuum is possible on both sides, making this information relevant when considering the intended process and operating setup. The stated maximum temperature is 140 °C.
No condition, testing, service history or operational status is specified. Please refer to the available listing information when assessing suitability for a particular process. No accessories or additional components are specified.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
General
SKU: 338T909
Location: Barneveld

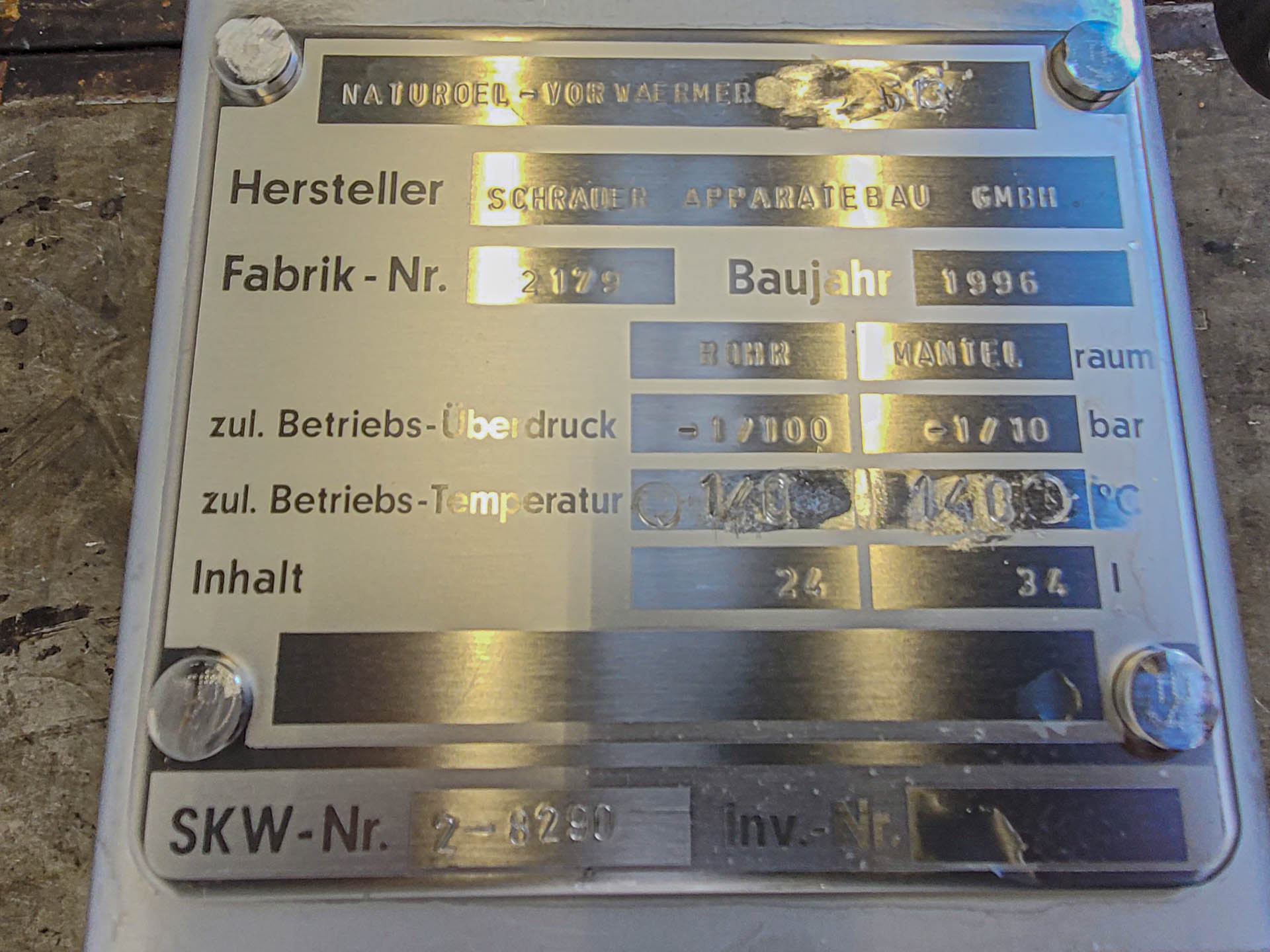

Make: Schrader apparatebau GMBH
Type: W 513
Pressure
Vacuum possible: ✓
Working pressure shell: 10 Bar
Vacuum possible shell: ✓
Working pressure tubes: 100 Bar
Tubular vacuum possible: ✓
Main Features
Shell (Material): Stainless steel
Tube (Material): Stainless steel
Surface: 2.75 m2
Specified Features - Shell and tube heat exchanger
Heat exchanger: ✓
Vertical: ✓
Notified body: TUV
Heating surface: 2,75 m²
Tube capacity: 24 Ltr.

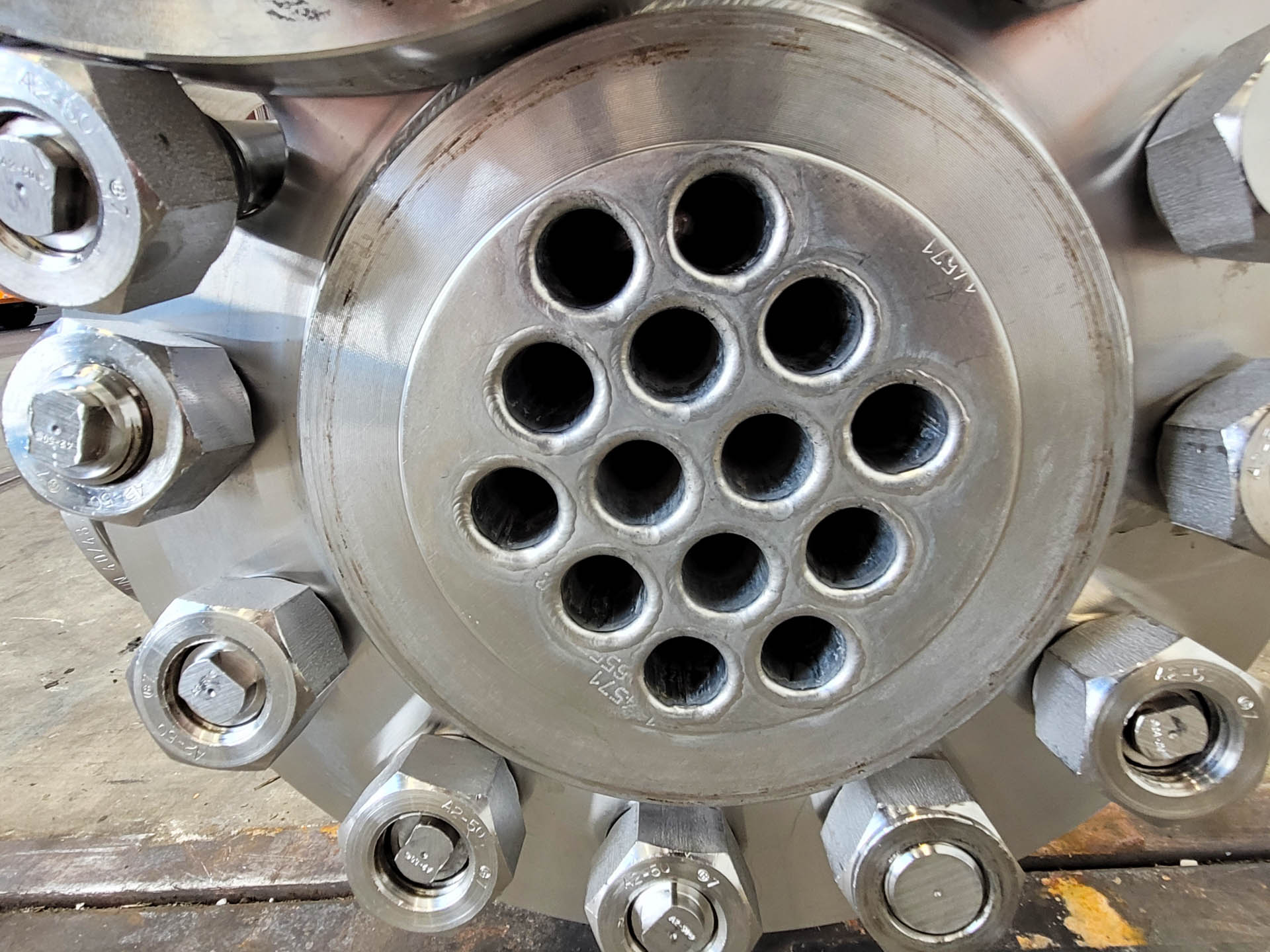

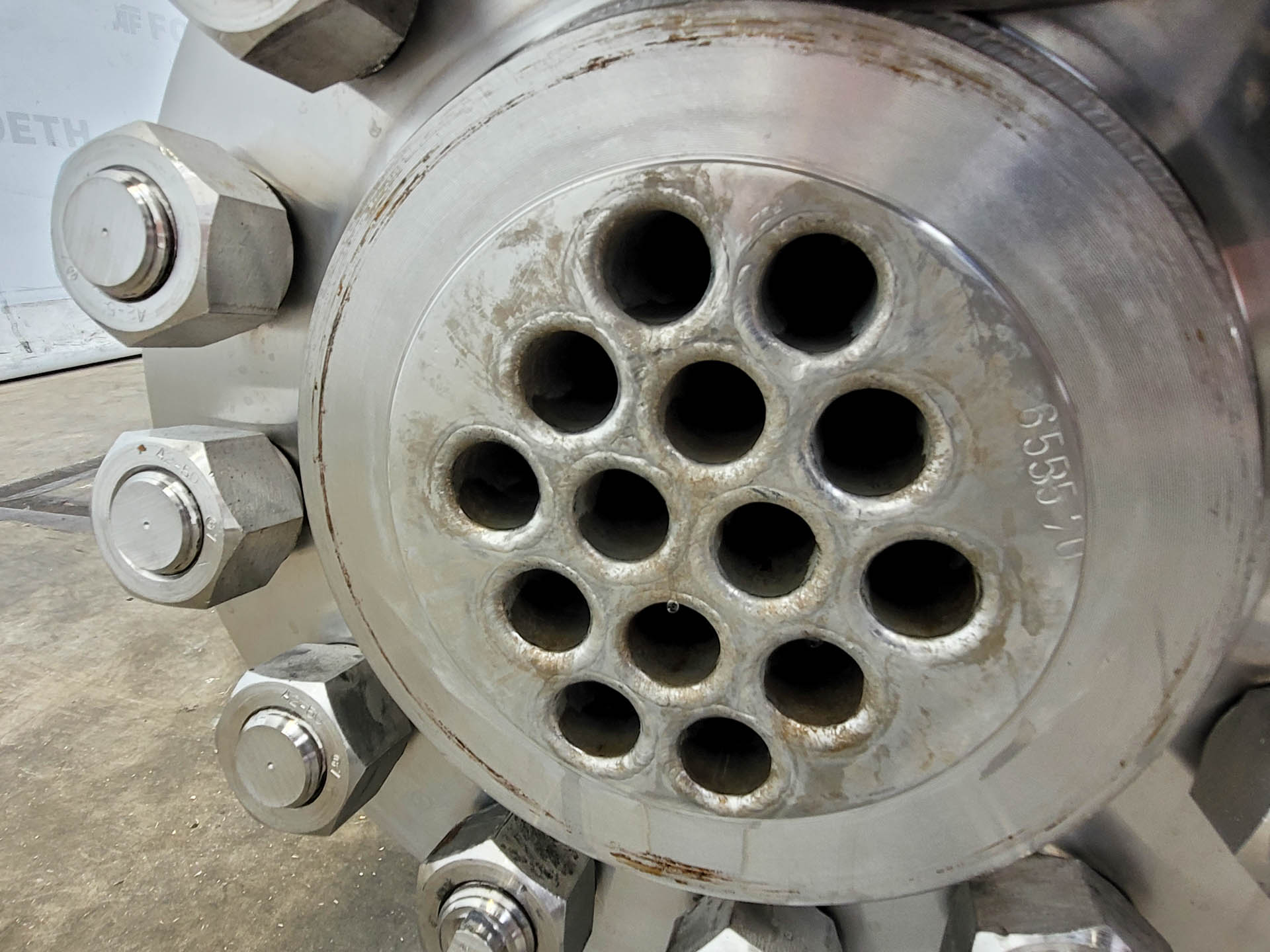

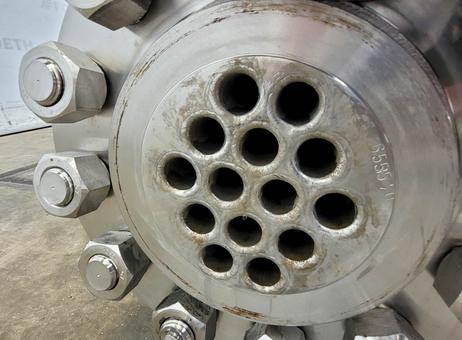

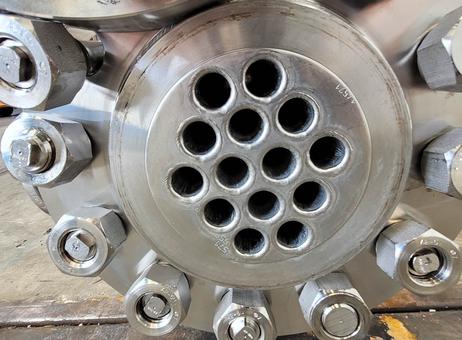

Number of tubes:: 14
Tube diameter: 25 mm
Tube length: 2500 mm
Wall thickness tubes: 1,6 mm
Max. temperature: 140 °C
Shell capacity: 34 Ltr.
Shell diameter: 168 mm
Shell length: 2500 mm
Wall thickness shell: 4 mm
Max. temperature: 140 °C

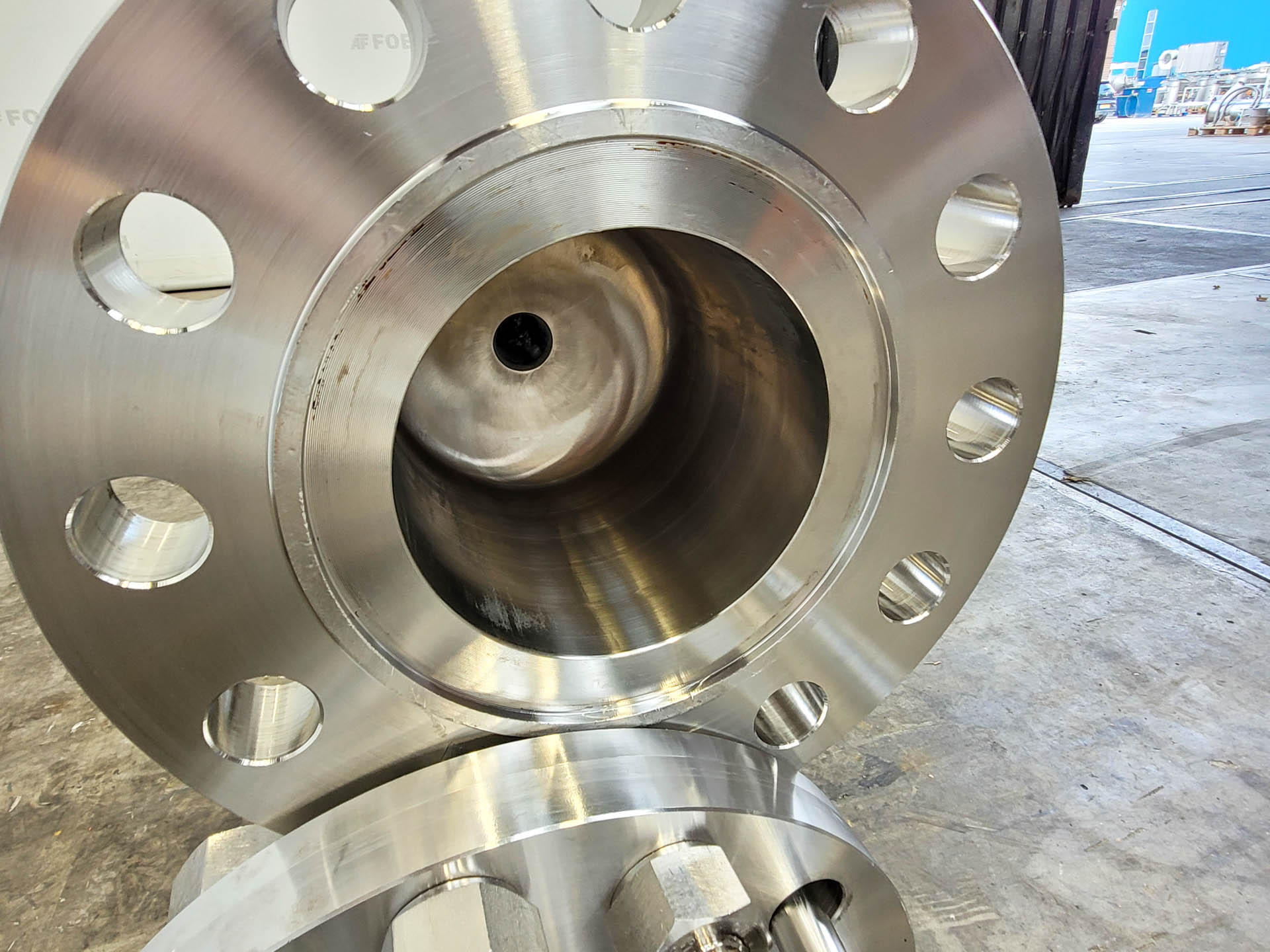

Shell connections: DN 40 (2x)
Cover connections: DN 25 (2x)
Material: Stainless steel
General

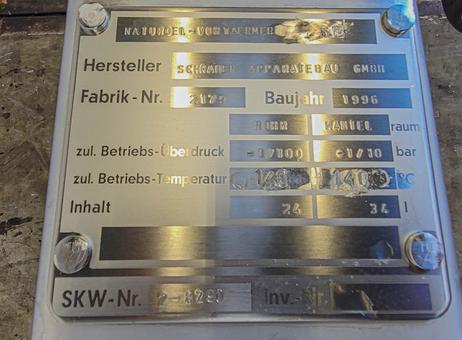

No.: 2179
Year of construction: 1996
Floorspace: 0,5x0,5 m
Total height: 3,3 m
Weight: 300 kg
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
