| Manufacturer | SCHMID |
|---|---|
| Model | SE 371 |
| Year | 2019 |
| Location | Germany
|

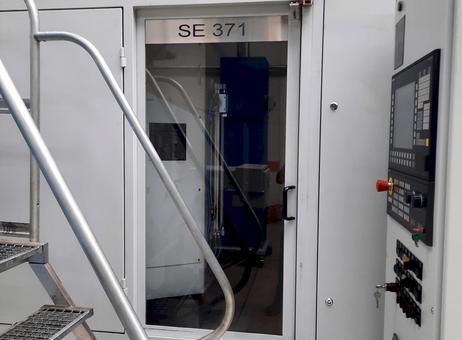

This 5-axis SCHMID SE 371 horizontal machining centre was manufactured in 2019. It features a Siemens Sinumerik 840 D SL control system, a shuttle table, and a 30-position tool changer with HSK-A63 tool holders. Additional highlights include a chip conveyor by Knoll and a recooling system by Lahntechnik. A great opportunity to buy this SCHMID SE 371 horizontal machining centre. Contact us for further details regarding this horizontal machining centre.
Machine weight: 10000 kg
CNC: Siemens Sinumerik 840 D SL
Spindle speed range: 50 - 10000 rpm
Tool taper: HSK-A63
Number of axis: 5
X-Axis Movement: 715 mm
X-Axis Rapid Traverse: 50000 mm/min
Y-Axis Movement: 400 mm
Y-Axis Rapid Traverse: 50000 mm/min
Z-Axis Movement: 500 mm
Z-Axis Rapid Traverse: 50000 mm/min
Number of turrets: 1
Number of index: 30
Max weight: 8 kg
Max tool diameter: 80 mm/ 125 mm with free secondary positions
Max tool length: 245 mm
Chip conveyor: Yes
Shuttle table
2x NC rotary swivelling unit
Chip conveyor Knoll 600K-1/II 2019
Filter system
Recooling system Lahntechnik KOF1803-100 2020
Hydraulic unit
Switch and control cabinets
Rotary table rotation axes NC/hydr. clamping : 360 x n° degrees
Rotary table diameter : 284 mm,
Swivelling range: -22/+95°
Traverse range x - y - z : 715 - 400 - 500 mm
Three-phase main drive : 20/26 kw at s1 100% / s6 40% ed
Key performance data working spindle kw / s1 / s6 : 0. 5/0. 7 10/14 20/26 20/26
Spindle speeds approx. 1/min : 50 1,000 1,850 10,000
Torque approx. Nm s1/s6 : 100/135 100/135 100/135 24/31
Acceleration x - y - z : 4-6-9 m/sec2
Tool change time : approx. 2. 5 sec.
Horizontal swivelling range nc/hydr. Clamping : - 22° / + 95° degrees
Centre distance of the rotary axes / chuck : 430 mm
Digital inverter system
Space requirement incl. Operation : approx. 3. 5 x 5 m2
Machine still under power
