| Manufacturer | SCHMID |
|---|---|
| Model | SE 368 |
| Year | 2019 |
| Location | Germany
|

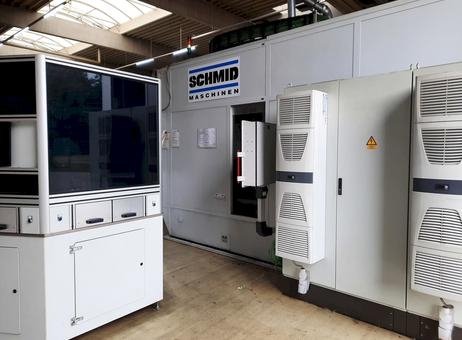

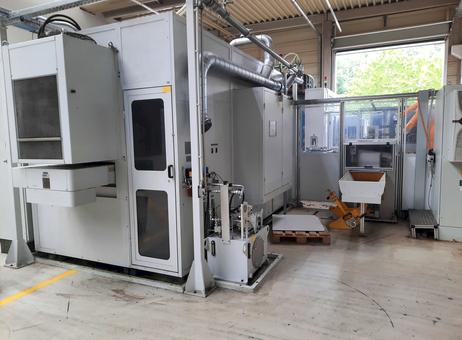

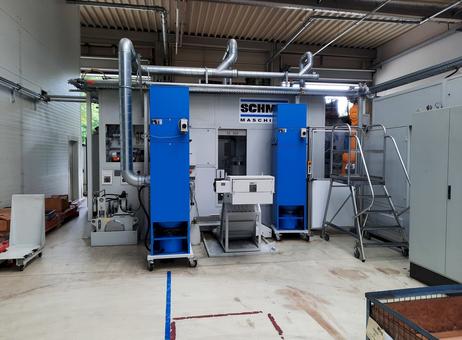

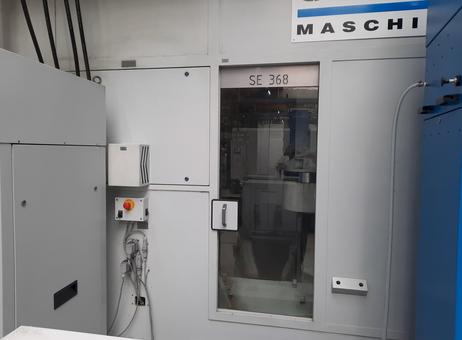

This 5-axis SCHMID SE 368 horizontal machining center was manufactured in 2019. It features a Siemens Sinumerik 840 D SL control, rapid traverse rates of 75/40/90 m/min in X/Y/Z, and a shuttle table. Equipped with dual NC rotary swivelling units, a 30-fold tool changer, and HSK-A63 tool holder. Max speed is 10,000 rpm. Includes a chip conveyor and recooling system. A great opportunity to buy this SCHMID SE 368 horizontal machining center. Contact us for further details regarding this horizontal machining center.
Machine weight: 21000 kg
CNC: Siemens Sinumerik 840 D SL
Number of spindles: 2
Spindle speed range: 50 - 24000 rpm
Tool taper: HSK-A63
X-Axis Movement: 400 mm
X-Axis Rapid Traverse: 75 m/min
Y-Axis Movement: 450 mm
Y-Axis Rapid Traverse: 40 m/min
Z-Axis Movement: 550 mm
Z-Axis Rapid Traverse: 90 m/min
Max tool diameter: 75 mm
Double spindle
Shuttle table
2x 2 NC rotary swivelling units
Switch cabinet system
Chip conveyor Knoll 600K-1 2019
Hydraulic unit
Filter system
Recooling system Lahntechnik KOF1803-100 2020
Number of tool magazine positions: 2x 30
Rotary table (NC / hydraulic clamping) : n x 360o, vertical axis,
Ibag three-phase main drive : s1-100% 40 kw / s6-40% 52 kw
Key performance data working spindle kw s1 : 3 12 29 40 40
Spindle speeds approx. 1/min : 1,000 5,000 10,000 20,000 24,000
Torque approx. Nm : 27 27 27 19 17
Tool diameter with free neighbouring positions : 125 mm
Swivelling table (nc / hydraulic indexing) : vertical axis, 0° - 180°, max. Rotation angle in connection with 5th axis : +/- 150°
Rotary table diameter : 400 mm, rotary table (horizontal axes u1-u2/ v1-v2), rotary table (nc / hydraulic clamping) : n x 360o, vertical axis, rotary table diameter : 330 mm
Pallet clamping : 2 zero point clamping modules/ table
Position measuring systems : absolute position measuring systems
Position tolerance x - y - z : 0. 008 mm (vdi/dgq 3441)
Machine still under power
