Contact us to receive an offer.
| Manufacturer | Schlichter |
|---|---|
| Model | SCV 400 Pro / SCT 400 U |
| Year | 2020 |
| Location | Germany
|
This Schlichter SCV 400 Pro / SCT 400 U packaging machine, manufactured in 2020, is designed for precision and versatility in industrial packaging applications. It features a cross-sealing stamp that is closed via a servo motor and can be infinitely adjusted in height, allowing for tailored packaging solutions. The infeed conveyor width is also infinitely adjustable using a hand crank, facilitating straightforward and precise product width adjustments.
The machine is equipped with a modern, user-friendly touchscreen interface for entering parameters, enhancing ease of operation. It utilizes photoelectric control for feed length, enabling it to package products of varying lengths consecutively without manual intervention. Both longitudinal and transverse sealing elements are continuously heated and can be easily controlled via the touchscreen to ensure optimal packaging quality.
Product dimensions accommodated by the machine include lengths starting from 50 mm with no maximum limit on continuous length, widths ranging from 45 mm up to 400 mm, and heights from 1 mm to 220 mm. Note that it is not possible to combine all maximum dimensions simultaneously, and usable width depends on product height.
Special features include a durable double seam on the transverse seal, long-lasting sealing tools that minimize wear, and Delta Control technology. The side sealer automatically moves upward when the machine stops, and both the cross-sealing stamp and side sealer can be adjusted independently in height. The machine supports quick changeovers between different products and includes belt approach for small products to close the stamp transition during transport (requiring 6 bar compressed air).
For product detection, vertical and horizontal laser photocells are employed, including a laser safety photocell on the cross-sealer. The machine is constructed robustly for durability and includes all motors controlled by frequency converters. It operates with an automatic film feeder and is compatible with polyolefin and polyethylene fine shrink films, using semi-tubular or flat film with an optional folding frame.

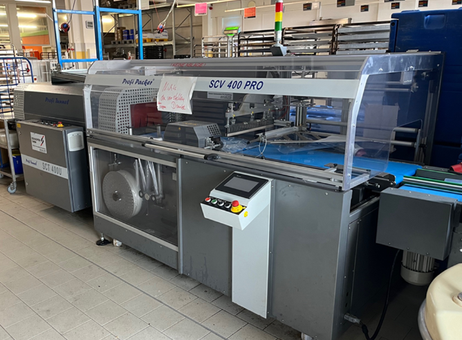

The machine includes an integrated conveyor belt system and a control panel with touchscreen and buttons, all protected by a clear cover. It appears clean and in good condition with no visible damage. Output capacity is approximately 60 cycles per minute, though this value is non-binding.
Optional spare parts available include silicone square profiles, timing belts, and self-adhesive Teflon tapes. Film rolls in various formats can also be included.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The cross-sealing stamp of the packaging machine is closed via a servo motor and is infinitely adjustable in height. The width of the infeed conveyor is infinitely adjustable via a hand crank, allowing for perfect, simple, and straightforward adjustment of the product width. The parameters are entered via a modern, user-friendly touchscreen.
The feed length is photoelectrically controlled, enabling the packaging of different product lengths consecutively.
The machine is technically designed for very tight, perfect sealing of the products, ensuring optimal packaging results every time.
The machine operates with an automatic film feeder and can be used at different transport speeds.
Longitudinal and transverse sealing are continuously heated and easily controlled via the touchscreen.
Product dimensions:* Length: min. 50 mm, max. continuous
Width: min. 45 mm, max. 400 mm
Height: min. 1 mm, max. 220 mm
* It is not possible to combine all maximum dimensions!
The usable width depends on the product height!
Special features of the machine:
- Extremely fine and durable double seam on the transverse seal.
- Long service life of the sealing tools, therefore very low wear.
- Delta Control
- The side sealer automatically moves upwards when the machine stops.
- The cross-sealing stamp and side sealer are independently height-adjustable!
- Easy and quick changeover between different products.
- Belt approach for small products to close the stamp transition during transport (requires 6 bar compressed air).
- Vertical and horizontal laser photocells for optimal product scanning.
- Laser safety photocell on the cross-sealer.
- Very simple and easy-to-understand operation.
- Technically sophisticated, very robust, and durable machine construction.
- Motorized stamp closing via servo motor.
- All motors controlled by frequency converters.
- Photocells for product detection: vertical and horizontal laser photocells.
- Film material: Polyolefin fine shrink film, polyethylene fine shrink film (depending on the sealing tools used).
- Film type: Semi-tubular film / flat film with optional folding frame!
- Output per minute:* up to approx. 60 cycles
* The output specification is approximate (non-binding value)
Spare parts – can be included:
Silicone square profile 15 x 20 mm – 550 mm for SCV 400 PRO series
Timing belt, 26 mm wide for SCV series – 2 pieces
Self-adhesive Teflon tape (80 mm wide / 0.13 mm thick / 2 m long)
Self-adhesive Teflon tape (14 mm wide / 0.13 mm thick / 30 m long)
Films – can be included:
Small format: 250 mm / 250 mm – 2 rolls
Medium format: 350 mm / 350 mm – 6 rolls
Large format: 550 mm / 550 mm – 2 rolls
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
