Contact us to receive an offer.
| Manufacturer | SCHLEUNIGER |
|---|---|
| Model | WireTwister 3300 AD |
| Year | |
| Location | Poland
|

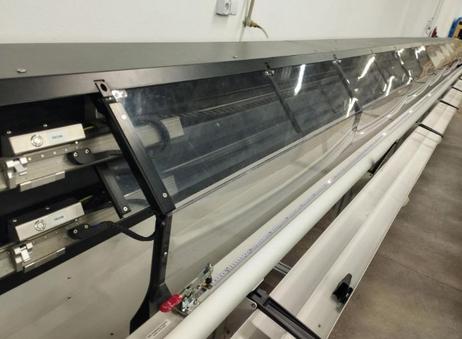

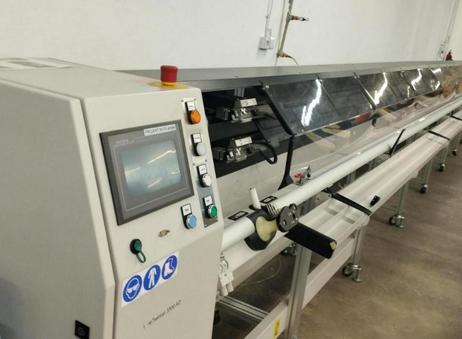

The SCHLEUNIGER WireTwister 3300 AD is a specialized double-head cable twisting machine designed for producing twisted pairs of wires. This machine measures 10,000 mm in length, 750 mm in width, and 1360 mm in height, with a weight of approximately 570 kg. It features a control panel located on the left side, equipped with a touchscreen display, multiple buttons, switches, and an emergency stop button for safety. The machine is enclosed along its length by a transparent protective cover, which can be partially opened to access internal components.

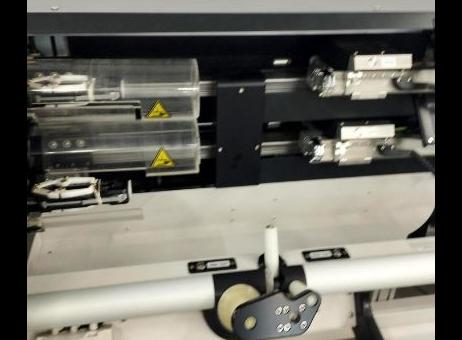

Visible mechanical components include rollers, clamps, and a white cylindrical rod used in the twisting process. These components are protected by transparent plastic covers and marked with yellow warning labels indicating caution near moving parts. A measuring scale is attached along the length of the machine near the rod, aiding in precise adjustments.
The SCHLEUNIGER WireTwister 3300 AD is designed for efficient cable harness production. The operator can load untwisted wires into the clamps of the driver and twisting head from a single position. After pulling the wires to a programmed position, the twisting head twists the wires with programmable tension control. The holders then automatically eject the twisted strand into an integrated storage channel, and the carrier returns to its starting position.
This machine includes a controller with an integrated twist correction algorithm and can handle BVR (PVC) insulated wire. It supports wire cross-sections ranging from 0.13 to 3 mm², with a maximum cable length of 8800 mm and a minimum of 600 mm. The twisting speed ranges from 800 to 2000 rpm, allowing for twist lengths between 5 and 50 mm. The maximum number of wires twisted simultaneously is two. The controller has a memory capacity of up to 1000 programs. The machine operates on a power supply of 230 V at 50/60 Hz, consuming less than 2 kW, and requires an air pressure of 0.5 to 0.8 MPa.
Overall, the SCHLEUNIGER WireTwister 3300 AD combines advanced technical solutions with user-friendly operation and safety features, making it suitable for efficient and precise cable twisting applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The SCHLEUNIGER WireTwister 3300 AD double-head cable twisting machine , manufactured in 2016 in China, is intended for the production of the so-called twisted pairs. The machine is characterized by the use of high-quality components and advanced technical solutions that guarantee unrivaled production efficiency. The SCHLEUNIGER WireTwister 3300 AD
cable harness production machine is completely new and originally packed - never used. The photos and video are for illustration purposes only, they show the second, same machine currently in use. The SCHLEUNIGER cable twisting machine is very simple and convenient to use. The operator, remaining in one position, loads the appropriate ends of the untwisted wires into the clamps of the driver and twisting head. After precisely pulling the wire to the programmed position, the wires are twisted with programmable tension control by the twisting head. Finally, the holders automatically eject the strand into the integrated storage channel and the carrier returns to its starting position.
- controller with integrated twist correction algorithm
- wire type: BVR (PVC) insulated wire
- maximum cable length: 8800 mm
- minimum cable length: 600 mm
- twisting speed: 800-2000 rpm
- wire cross-section: 0.13- 3 mm2
- maximum number of wires: 2
- twist length: 5-50 mm
- twist pitch deviation: <30 ± 2 mm; 30-50 ± 4 mm
- controller memory capacity: up to 1000 programs
- air pressure: 0.5-0.8 MPa
- power: <2 kW
- power supply: 230 V; 50/60 Hz
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
