Contact us to receive an offer.
| Manufacturer | SCHIESS |
|---|---|
| Model | RFH 30 |
| Year | 1982 |
| Location | Sweden
|

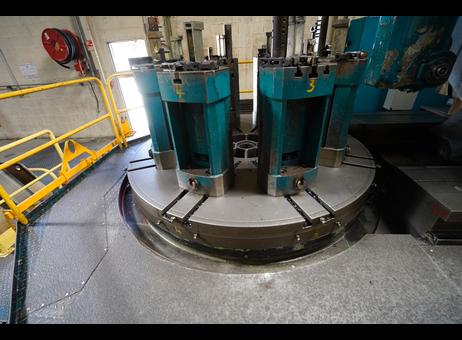

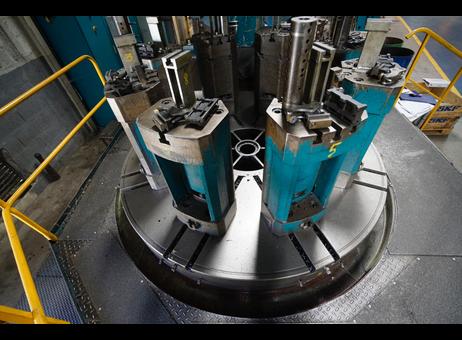

The SCHIESS RFH 30 is a large industrial gear hobbing CNC machine designed for precision gear manufacturing. It features a maximum wheel gear diameter capacity of 3,150 mm and can handle internal gears with a minimum diameter of 630 mm. The machine offers a maximum vertical stroke of 1,200 mm and is equipped with a rotary table measuring 2,200 mm in diameter, capable of supporting up to 30 tons of load. The table speed ranges from 0.03 to 2.4 rpm, allowing for controlled rotation during the gear hobbing process.
This model is powered by a 45 kW milling motor, delivering a maximum milling speed of 200 rpm. The distance from the milling spindle center to the table can be adjusted between 550 mm and 1,750 mm, providing versatility for various gear sizes. The machine's column travel along the X-axis is 1,350 mm, while the milling carriage has a vertical travel (Z-axis) of 1,200 mm. It comes equipped with six milling discs to facilitate efficient gear cutting.

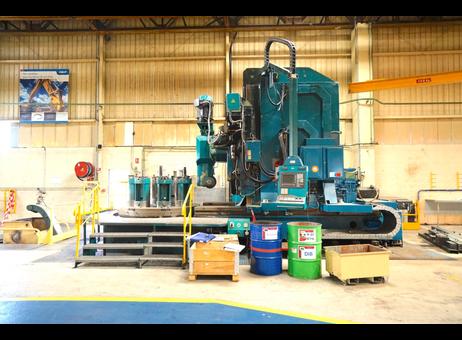

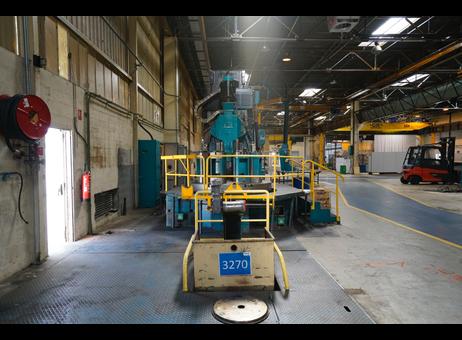

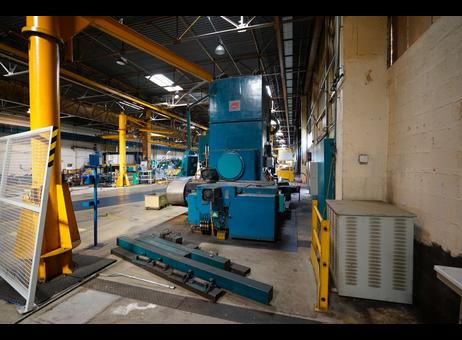

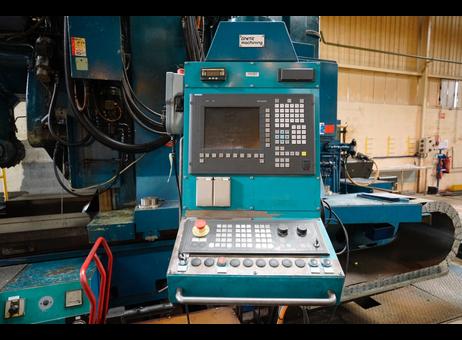

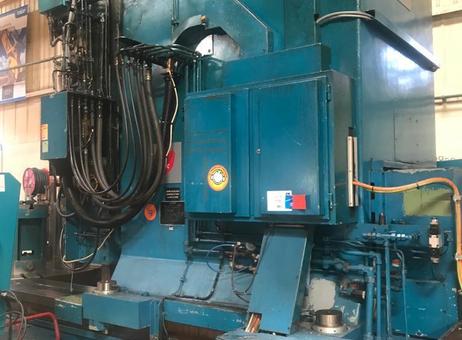

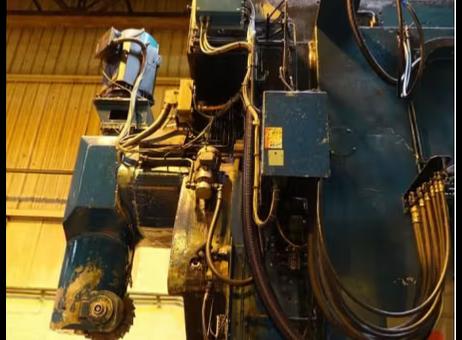

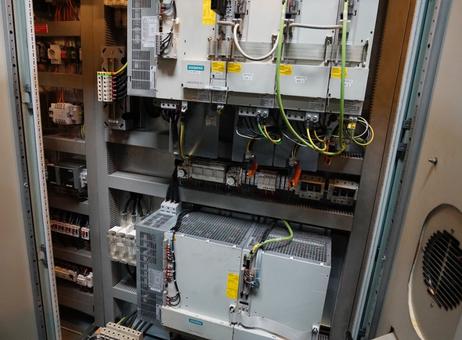

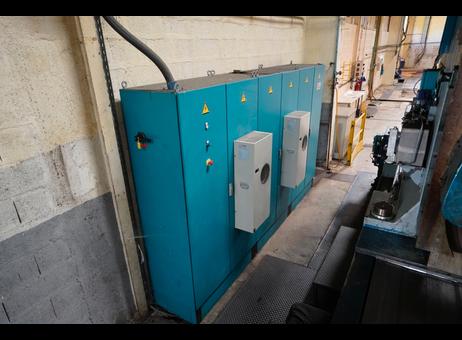

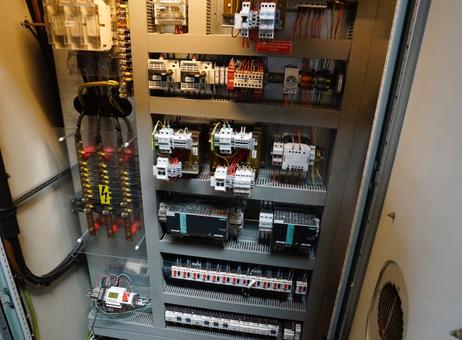

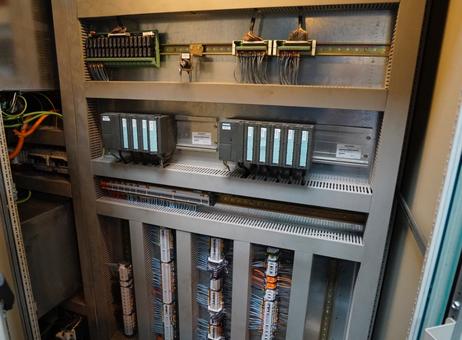

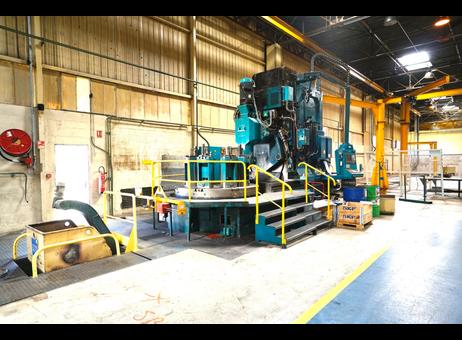

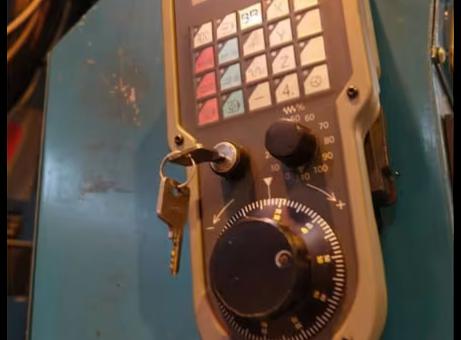

Originally built in 1982, this unit was updated with a new Siemens 840 D CNC control system in 2005, reflecting its CNC capabilities. The machine is painted in teal blue and includes a control panel with display and buttons located on the right side for operational control. The rotary table area is accessible via yellow safety railings and stairs, enhancing operator safety. Electrical and hydraulic components are mounted on the back and side of the machine.

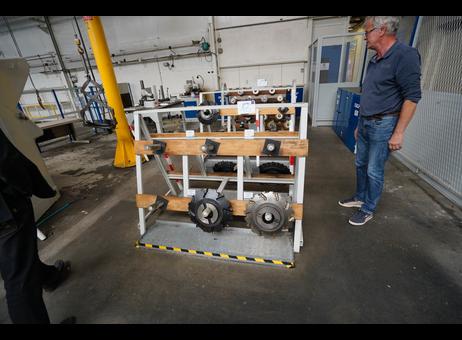

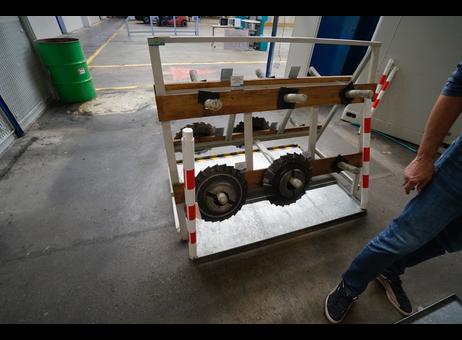

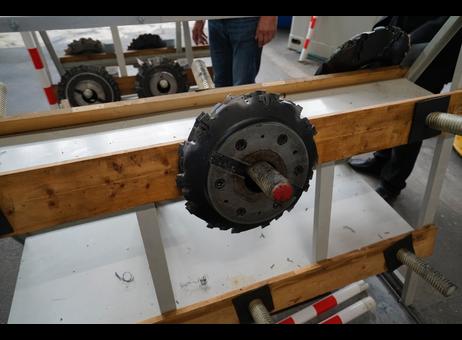

Additional visible features include a rack holding two large gear hobbing cutters or hob tools, stored on a wooden and metal frame. The machine and its surrounding area appear clean and well-maintained, with no visible damage. Various barrels, wooden boxes, metal rails, and parts are positioned near the machine, likely for storage or operational support.
This robust CNC gear hobbing machine is suitable for manufacturing a wide range of gears, with a minimum number of teeth of 15 and a maximum of 750, making it a versatile choice for industrial gear production.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Max gear diameter 3.150 mm
Min Internal gear diameter 630 mm
Max vertical stroke 1.200 mm
Table diameter 2.200 mm
Min number of teeth 15
Max number of teeth 750
Table load 30 ton
Table speed 0,03 - 2,4 rpm
Milling motor 45 kW
Max milling speed 200 rpm
Max distance milling spindle centre to table 1.750 mm
Min distance milling spindle centre to table 550 mm
Column travel, X 1.350 mm
Milling carriage vertical travel, Z 1.200 mm
With 6 milling discs.
Built 1982, New CNC SIEMENS 840 D 2005.
Sold as new original CNC machine 1987.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
