Contact us to receive an offer.
| Manufacturer | Schaublin |
|---|---|
| Model | 135 |
| Year | |
| Location | Netherlands
|
| Category | Lathes - Other lathes |
| Max. turning length | 630 mm |
| Max. turning diameter | 315 mm |
| CNC | No |
| Type of CNC | |
| Max. diameter above the bed | mm |
| Diameter above transversing slide | mm |
| Faceplate diameter | mm |
| Max workpiece weight | kg |
| Spindle bore | 14 mm |
| Turning speed | 3000 rpm |
| Spindle motor power | kW |
| Length x width x height | - × - × - |
| Weight | kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | Schaublin 150A |
| Last availability date | 20/10/2026 |
| Product id | P260813013 |
| Language |
Струг Schaublin 135
Soustruh Schaublin 135
Schaublin 135 Drejebænk
Schaublin 135 Drehmaschine
Τόρνος Schaublin 135
Schaublin 135 Lathe
Torno Schaublin 135
Tour Schaublin 135
Tokarski stroj Schaublin 135
Schaublin 135 Esztergagép
Tornio Schaublin 135
Schaublin 135 Tekinimo staklės
Schaublin 135 Draaibank
Tokarka Schaublin 135
Torno Schaublin 135
Strung Schaublin 135
Schaublin 135 Токарный станок
Strug Schaublin 135
Schaublin 135 Svarv
Torna Schaublin 135
|

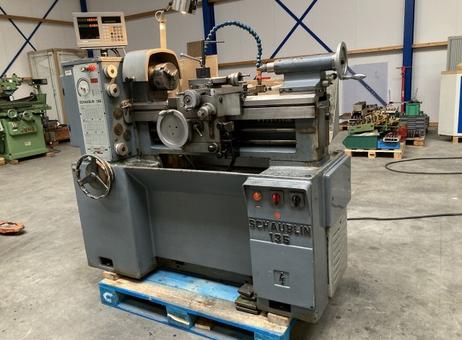

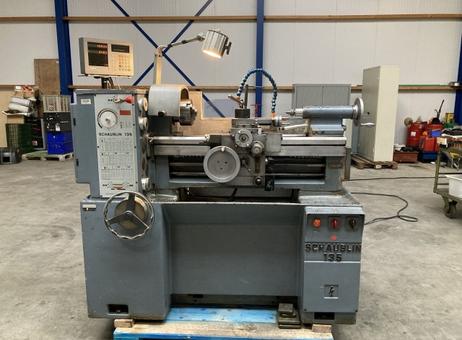

Schaublin 135 conventional engine lathe. Manufacturer/model: Schaublin 135. Control: conventional (non-CNC). Key capacity notes: maximum turning diameter 315 mm; distance between centers / maximum turning length 630 mm; spindle bore 14 mm; spindle speed range listed as 55 to 3000 rpm. Spindle nose / chuck mounting listed as Camlock D1-4" and W25 collet spindle mounting is specified.

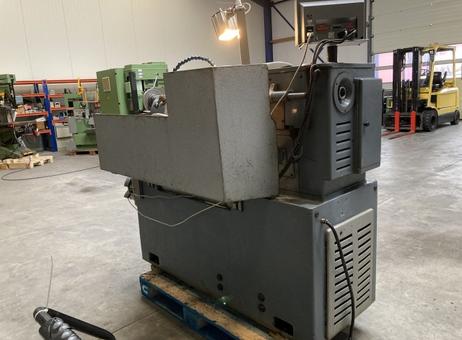

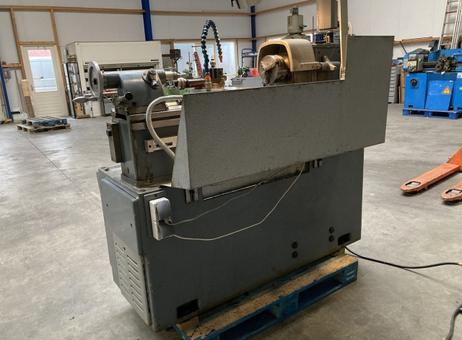

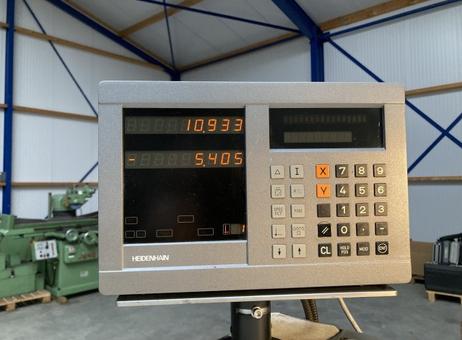

Accessories and tooling included or listed: 3-jaw chuck (mounted) and a 4-jaw chuck are listed among the extras; W25 collet set; Tripan toolholder; Heidenhain 2-axis DRO mounted on a vertical pole; machine lamp/adjustable lamp; coolant system components including a flexible coolant hose with nozzle; long metal chip/splash guard attached to the bed. Electrical items noted: external junction/plug box and electrical cables routed along the machine; power cable exiting at the lower rear; vented/ventilation grilles on the cabinet.

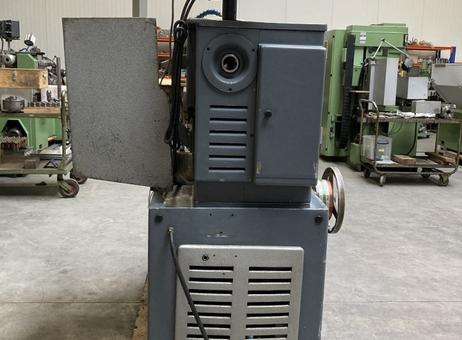

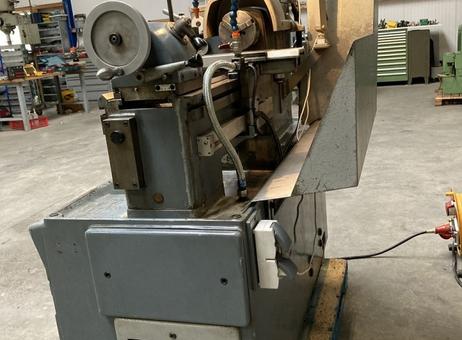

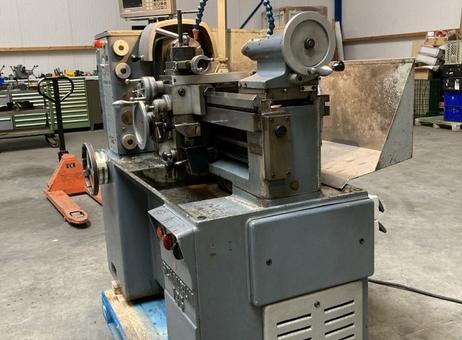

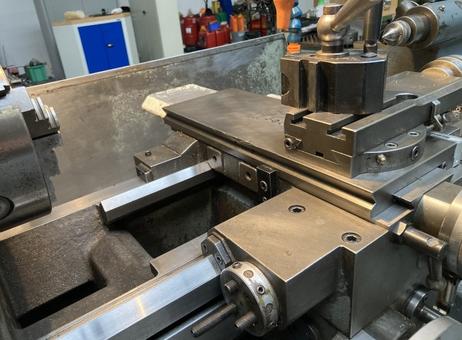

Machine components observed/specified: headstock with cover/guard, carriage with handwheels and control levers, cross-slide handwheel, tailstock with handwheel and spindle, chuck mounted on the spindle, chip guard on the operator side, and rear cabinet panels with ventilation.

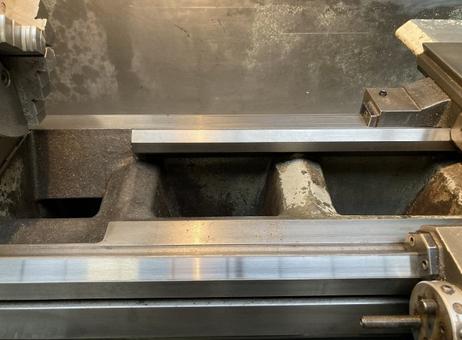

Condition and remarks: there are signs of use and workshop wear — chipped paint, surface wear on cabinet edges, oil/grease and typical machining residue on the bed and base, minor dents, and some surface rust reported on the underside of the chip guard. The machine is mounted on a wooden pallet for transport.
If you require further details (spindle motor power, exact collet/ chuck sizes beyond those listed, operational status, or additional close-up photos), request them from the seller or arrange an inspection.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Schaublin 135
Draaibank
Specificatie
Fabrikant Schaublin
Type 135
Bj. onb.
Besturing conv.
Draaidiameter 315 mm
Afstand tussen de centers 630 mm
Hoofdspil
Toerental 55 tot 3000 omw/min
Opname Camlock D1-4"
Spantangopname Schaublin W25
Extra's
Drie / Vierklauw
Spantangset W25
Tripan gereedschaphouder
Heidenhain DRO ( 2-assen)
Machinelamp
Koelolie inst.
Enz.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
