Contact us to receive an offer.
| Manufacturer | SAUDA |
|---|---|
| Model | X6330 |
| Year | 2022 |
| Location | Spain
|
This SAUDA X6330 universal milling machine, manufactured in 2022, is designed for versatile machining tasks with a horizontal table and an adjustable head. The machine's overall dimensions are 1800 mm in length, 1780 mm in width, and 2350 mm in height, with a net weight of 1500 kg. It features a working area measuring 305 mm by 1370 mm, supported by a maximum table load capacity of 350 kg.
The machine offers precise manual and power feed movements, including a manual longitudinal travel of 785 mm, a power feed longitudinal travel of 720 mm, a manual transverse travel of 435 mm, and a vertical travel of 500 mm. The spindle utilizes an NT40 taper and has a shaft diameter of 105 mm. It operates with 16 spindle speed steps, ranging from a minimum of 66 rpm up to a maximum speed of 4540 rpm, allowing for a wide range of machining operations. Spindle feed rates vary, supporting different cutting requirements.
The table is equipped with three T-slots, each 16 mm wide, spaced at 65 mm intervals, facilitating secure workpiece mounting. The electrical system runs on 380V, 50Hz, 3-phase power.

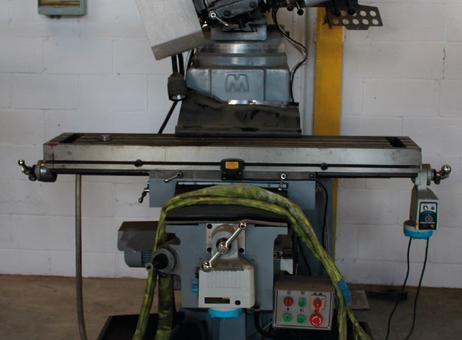

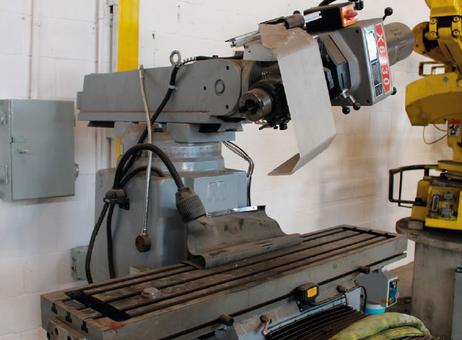

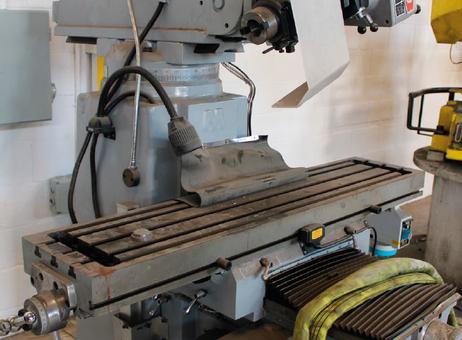

From the images, the machine includes a control panel with buttons and switches positioned on the front right side, as well as handwheels and control knobs for manual table adjustments. A flexible lamp is attached near the base to illuminate the work area. A green and yellow lifting sling is draped over the table and base, which may assist in handling or transport. The machine appears to be in good physical condition overall, though some minor surface rust is present on the table T-slots. Maintenance instructions, including an oil slot weekly maintenance diagram, are visible on the label panel.
This milling machine is suitable for a range of industrial applications requiring precise and adjustable machining capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Brand: SAUDA
Model: X6330
Serial number: 01220718022
Year of manufacture: 2022
Working area 305*1370
Longitudinal travel - manual (mm) 785
Fixed longitudinal travel - power feed (mm)
power (mm)
720
Manual transverse travel (mm) 435
Vertical travel (mm) 500
Spindle taper NT40
Spindle speed 16 (steps)
Spindle feed (mm) 0.076/0.003" 0.038/0.0015" 0.203/0.008" 0.203/0.008"
Spindle shaft diameter (mm) 105
Minimum speed (r/min) 66, 110, 175, 175, 270, 550, 930, 1460, 2270
Max. speed (r/min) 132, 220, 350, 540, 1100, 1860, 2920, 4540
Slot No. X Width (mm) 3*16
T-slot interval (mm) 65
Voltage (v) 380V/50Hz/3-Phase
Maximum table load (kg) 350
Net weight (kg) 1500
Dimensions (mm) 1800x1780x2350
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2021 |
| Offers online | 31 |
| Last activity | Oct. 26, 2026 |
Brand: SAUDA
Model: X6330
Serial number: 01220718022
Year of manufacture: 2022
Working area 305*1370
Longitudinal travel - manual (mm) 785
Fixed longitudinal travel - power feed (mm)
power (mm)
720
Manual transverse travel (mm) 435
Vertical travel (mm) 500
Spindle taper NT40
Spindle speed 16 (steps)
Spindle feed (mm) 0.076/0.003" 0.038/0.0015" 0.203/0.008" 0.203/0.008"
Spindle shaft diameter (mm) 105
Minimum speed (r/min) 66, 110, 175, 175, 270, 550, 930, 1460, 2270
Max. speed (r/min) 132, 220, 350, 540, 1100, 1860, 2920, 4540
Slot No. X Width (mm) 3*16
T-slot interval (mm) 65
Voltage (v) 380V/50Hz/3-Phase
Maximum table load (kg) 350
Net weight (kg) 1500
Dimensions (mm) 1800x1780x2350
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This SAUDA X6330 universal milling machine, manufactured in 2022, is designed for versatile machining tasks with a horizontal table and an adjustable head. The machine's overall dimensions are 1800 mm in length, 1780 mm in width, and 2350 mm in height, with a net weight of 1500 kg. It features a working area measuring 305 mm by 1370 mm, supported by a maximum table load capacity of 350 kg.
The machine offers precise manual and power feed movements, including a manual longitudinal travel of 785 mm, a power feed longitudinal travel of 720 mm, a manual transverse travel of 435 mm, and a vertical travel of 500 mm. The spindle utilizes an NT40 taper and has a shaft diameter of 105 mm. It operates with 16 spindle speed steps, ranging from a minimum of 66 rpm up to a maximum speed of 4540 rpm, allowing for a wide range of machining operations. Spindle feed rates vary, supporting different cutting requirements.
The table is equipped with three T-slots, each 16 mm wide, spaced at 65 mm intervals, facilitating secure workpiece mounting. The electrical system runs on 380V, 50Hz, 3-phase power.
From the images, the machine includes a control panel with buttons and switches positioned on the front right side, as well as handwheels and control knobs for manual table adjustments. A flexible lamp is attached near the base to illuminate the work area. A green and yellow lifting sling is draped over the table and base, which may assist in handling or transport. The machine appears to be in good physical condition overall, though some minor surface rust is present on the table T-slots. Maintenance instructions, including an oil slot weekly maintenance diagram, are visible on the label panel.
This milling machine is suitable for a range of industrial applications requiring precise and adjustable machining capabilities.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
