Contact us to receive an offer.
| Manufacturer | San Rocco |
|---|---|
| Model | MEC 3 |
| Year | 2000 |
| Location | Italy
|
Manufacturer: San Rocco
Model: MEC 3
Product type: Borers - table type boring machines CNC
Overview
This San Rocco MEC 3 is a table-type boring/milling machine with a large 920 x 920 mm table and a wide range of feed and spindle settings intended for heavy-duty machining. The specification below lists the machine’s main table, spindle, power and weight data to help evaluate suitability for workshop use.
Table
- Table dimensions: 920 x 920 mm
- Longitudinal stroke with tailstock: 920 mm; without tailstock: 1100 mm
- Normal transverse stroke: 920 mm; Transverse stroke B4: 1500 mm
- Continuously variable automatic longitudinal and transverse feed rates: 10 ÷ 1000 mm/min
- Longitudinal and transverse rapid traverse: 2000 mm/min
- Automatic table rotation with continuous adjustment: 0.02 to 1.8 rpm; Rapid table rotation: 3 rpm
- Maximum table load: 1,500 kg
Spindle and feeds
- Boring diameter: 76 mm; Milling diameter: 130 mm
- Spindle mounting diameter for milling: 152.35 mm
- Horizontal stroke of the boring spindle: 620 mm
- Rotational force: 12 N
- Speed range: 11–1100 rpm
- Continuously variable horizontal spindle feed rates: 2 to 1,000 mm/min; horizontal feed rapid traverse: 2,000 mm/min
- Spindle axis height above table: minimum 0 mm, maximum 920 mm
- Continuously variable automatic vertical feed rates of the spindle head: 10 to 1000 mm/min; vertical rapid traverse: 2000 mm/min
- Maximum distance between milling spindle and tailstock: 1850 mm
Power and weight
- Spindle drive motor (4-pole): 10 HP
- Feed drive motor (4-pole): 4 HP
- Net weight with motor and hydraulic power unit (Standard): 6500 kg; with B4: 7700 kg
Accessories and notes

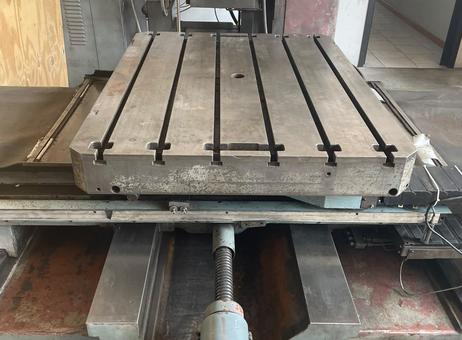

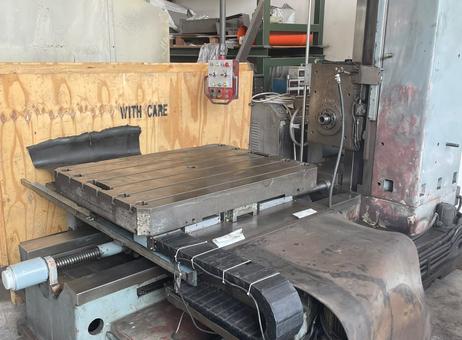

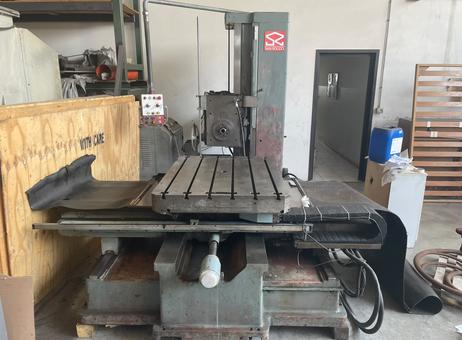

The machine includes the accessories shown in the photo. Please contact us for further information or to request additional technical details, documentation or inspection arrangements.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: San Rocco
Model: MEC 3
Table:
Table dimensions: 920 x 920 mm
Longitudinal stroke with tailstock: 920 mm
Longitudinal stroke without tailstock: 1100 mm
Normal transverse stroke: 920 mm
Transverse stroke B4: 1500 mm
Continuously variable automatic longitudinal and transverse feed rates: 10 ÷ 1000 mm/min
Longitudinal and transverse rapid traverse: 2000 mm/min
Automatic table rotation with continuous adjustment: 0.02 to 1.8 rpm
Rapid table rotation: 3 rpm
Maximum table load: 1,500 kg
Spindle
Boring diameter: 76 mm
Milling diameter: 130 mm
Spindle mounting diameter for milling: 152.35 mm
Horizontal stroke of the boring spindle: 620 mm
Rotational force: 12 N
Speed range: 11–1100 rpm
Continuously variable horizontal spindle feed rates: 2 to 1,000 mm/min
Horizontal feed rates with spindle rapid traverse: 2,000 mm/min
Minimum spindle axis height above the table: 0 mm
Maximum spindle axis height above the table: 920 mm
Continuously variable automatic vertical feed rates of the spindle head: 10 to 1000 mm/min
Vertical rapid traverse: 2000 mm/min
Maximum distance between milling spindle and tailstock: 1850 mm
Power
Spindle drive motor (4-pole): 10 HP
Feed drive motor (4-pole): 4 HP
Weight
Net weight with motor and hydraulic power unit (Standard): 6500 kg
Net weight with motor and hydraulic power unit (B4): 7700 kg
The machine includes the accessories shown in the photo.
Please contact us for any further information.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
