| Manufacturer | SAN ROCCO |
|---|---|
| Model | FMC 110 S |
| Year | 1996 |
| Location | Italy
|
The SAN ROCCO FMC 110 S is a robust CNC horizontal boring machine designed for heavy-duty machining tasks. Manufactured in 1996, this model features a CNC HEIDENHAIN TNC 426 control system, providing precise and programmable operation. The machine offers substantial travel capacities with 1600 mm longitudinal (X-axis), 2100 mm cross (Y-axis), and 1600 mm vertical (Z-axis) movements, allowing for versatile machining of large workpieces.
The worktable measures 1100 mm in length and 1300 mm in width, equipped with T-slots to facilitate secure mounting of workpieces. It supports a maximum workpiece weight of up to 5000 kg, making it suitable for heavy and large components. The machine's spindle is powered by a 25 kW motor, capable of reaching speeds up to 3500 rpm, with multiple speed steps (10, 265, 1000, and 3500 rpm) to accommodate various machining requirements.
The spindle features a quill diameter of 110 mm and a quill travel of 600 mm, with an ISO 50 taper (DIN 69871/A) for tool attachment. The continuous rotary table ("B" axis) enhances the machine's flexibility for complex machining operations.

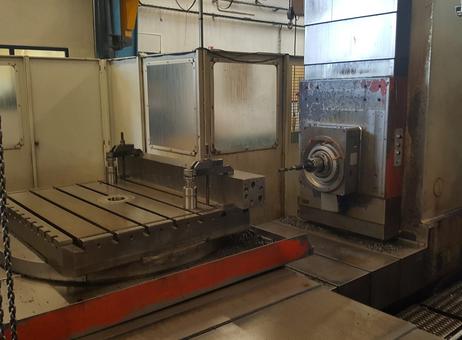

Visually, the machine includes a large metal worktable with T-slots and a vertical spindle fitted with a drill bit. Protective metal panels surround the working area to enhance safety during operation. The machine shows signs of use, including some surface discoloration and the presence of metal shavings, indicative of prior machining activity. These factors should be considered when evaluating the machine for purchase.
Overall, the SAN ROCCO FMC 110 S is a capable CNC horizontal boring machine suitable for demanding industrial applications requiring precision and heavy machining capacity.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC borer SAN ROCCO type FMC 110 S
CNC HEIDENHAIN TNC 426
Cross travel 2100 mm
Longitudinal travel 1600 mm
Vertical travel 1600 mm
Quill travel 600 mm
Taper ISO 50 (DIN 69871/A)
Quill diameter 110 mm
Spindle drive 25 kW
Spindle speed 10 ÷ 265 ÷ 1000 ÷ 3500 rpm
Table dimension 1100 x 1300 mm
Max allowable weight 5000 Kg
Manufacture year 1996
T-Type horizontal borer machine
Continuous rotary table (“B” axis)
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
What type of machine is this SAN ROCCO FMC 110 S?
This SAN ROCCO FMC 110 S is a CNC borer.
When was this CNC borer manufactured?
This CNC borer was manufactured in 1996.
What is the identification code for this CNC borer?
This CNC borer is identified with the code 5788.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
