| Manufacturer | Salvagnini |
|---|---|
| Model | L1 XE -30 |
| Year | 2009 |
| Location | Italy
|

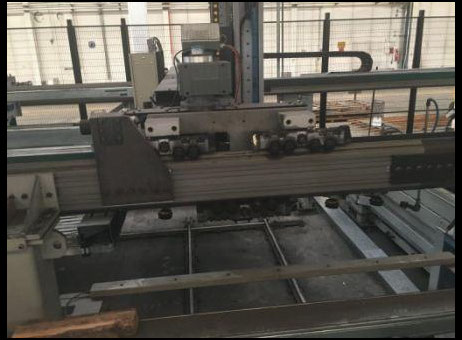

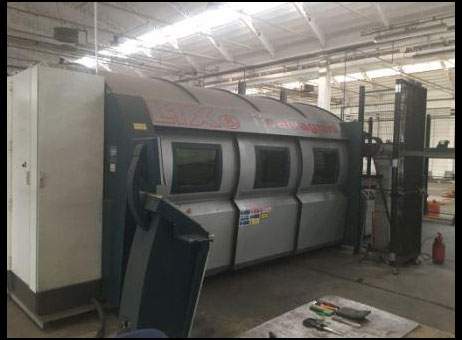

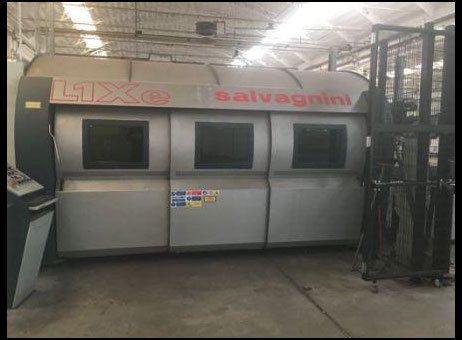

The Salvagnini L1 XE -30 is a fiber laser cutting machine designed for industrial use, manufactured in 2009. It features a working area with a travel range of 3048 mm along the X-axis, 1524 mm along the Y-axis, and 150 mm along the Z-axis, allowing it to accommodate large metal sheets. The machine can handle metal sheets up to 3048 mm in length and 1524 mm in width, with a maximum weight capacity of 750 kg.
This laser cutter is equipped with a 2000 W fiber laser, suitable for cutting various metals, including mild steel up to 18 mm thick, stainless steel up to 6 mm, and aluminum up to 5 mm in thickness. The machine provides fast movement speeds, with rapid traverse rates of 90 m/min on the X-axis, 75 m/min on the Y-axis, and 30 m/min on the Z-axis, and a combined XY axis speed of 120 m/min. It also supports a maximum XY axis acceleration of 1.5 g, contributing to efficient and precise cutting operations.
The CNC control system used is the SALVAGNINI Sys Con, which facilitates precise control and automation of cutting processes. The machine operates on a voltage range of 400-460 V at 50-60 Hz and requires a work pressure of 21.7 bar.

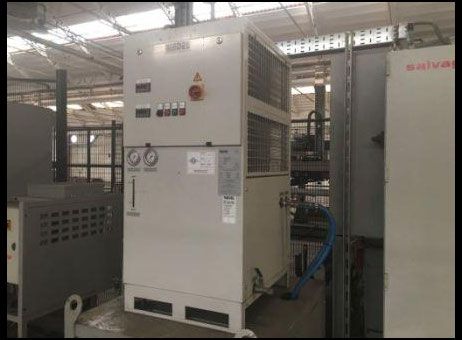

Additional features include an automatic discharge load connection and a suction filter system with filter cartridges that incorporate air backwash, enhancing operational cleanliness and maintenance. Cooling is managed by a RIEDEL cooling module, model PC63.02KE-S1.

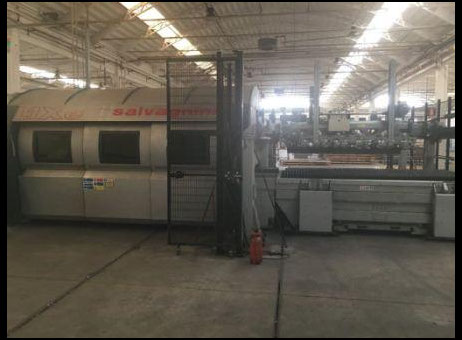

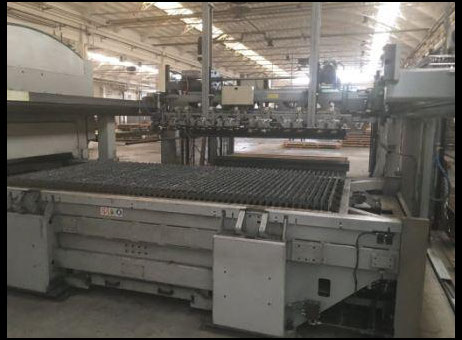

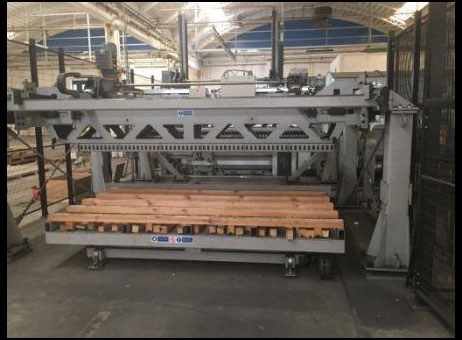

The machine is housed within a protective enclosure and includes a ventilation system to ensure safe operation. A conveyor or loading area is positioned to the right side of the main machine body, facilitating material handling. The equipment appears to be well-maintained and clean, situated in a warehouse environment. A fire extinguisher is located near the machine, supporting workplace safety protocols.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Working area
X axis 3048 mm
Y axis 1524 mm
Z axis 150 mm
Operational features
Max. Sheet weight 750Kg
Fast speed X-Y-Z 90-75-30 mmin
Fast speed XY 120 mmin
Max XY axis acceleration 1.5 g
Automatic discharge load connection
Max. Length of the slab 3048 mm
Max. Width of the slab 1524 mm
Maximum weight 750 mm
Max thickness
18 mm mild steel
6 mm stainless steel
5 mm aluminum
Output laser power
2000 W
Fiber laser model
CNC
SALVAGNINI Sys Con
Suction filter
Filter cartridges with backwash of air
RIEDEL cooling mod.PC63.02KE-S1
Voltage
400-460 V 50-60Hz
Work pressure
21.7 Bar
Visible in Function
Excellent condition
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2016 |
| Offers online | 31 |
| Last activity | Oct. 26, 2026 |
Working area
X axis 3048 mm
Y axis 1524 mm
Z axis 150 mm
Operational features
Max. Sheet weight 750Kg
Fast speed X-Y-Z 90-75-30 mmin
Fast speed XY 120 mmin
Max XY axis acceleration 1.5 g
Automatic discharge load connection
Max. Length of the slab 3048 mm
Max. Width of the slab 1524 mm
Maximum weight 750 mm
Max thickness
18 mm mild steel
6 mm stainless steel
5 mm aluminum
Output laser power
2000 W
Fiber laser model
CNC
SALVAGNINI Sys Con
Suction filter
Filter cartridges with backwash of air
RIEDEL cooling mod.PC63.02KE-S1
Voltage
400-460 V 50-60Hz
Work pressure
21.7 Bar
Visible in Function
Excellent condition
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The Salvagnini L1 XE -30 is a fiber laser cutting machine designed for industrial use, manufactured in 2009. It features a working area with a travel range of 3048 mm along the X-axis, 1524 mm along the Y-axis, and 150 mm along the Z-axis, allowing it to accommodate large metal sheets. The machine can handle metal sheets up to 3048 mm in length and 1524 mm in width, with a maximum weight capacity of 750 kg.
This laser cutter is equipped with a 2000 W fiber laser, suitable for cutting various metals, including mild steel up to 18 mm thick, stainless steel up to 6 mm, and aluminum up to 5 mm in thickness. The machine provides fast movement speeds, with rapid traverse rates of 90 m/min on the X-axis, 75 m/min on the Y-axis, and 30 m/min on the Z-axis, and a combined XY axis speed of 120 m/min. It also supports a maximum XY axis acceleration of 1.5 g, contributing to efficient and precise cutting operations.
The CNC control system used is the SALVAGNINI Sys Con, which facilitates precise control and automation of cutting processes. The machine operates on a voltage range of 400-460 V at 50-60 Hz and requires a work pressure of 21.7 bar.
Additional features include an automatic discharge load connection and a suction filter system with filter cartridges that incorporate air backwash, enhancing operational cleanliness and maintenance. Cooling is managed by a RIEDEL cooling module, model PC63.02KE-S1.
The machine is housed within a protective enclosure and includes a ventilation system to ensure safe operation. A conveyor or loading area is positioned to the right side of the main machine body, facilitating material handling. The equipment appears to be well-maintained and clean, situated in a warehouse environment. A fire extinguisher is located near the machine, supporting workplace safety protocols.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
