Contact us to receive an offer.
| Manufacturer | Safan |
|---|---|
| Model | SMK-L-25-1250 -TS1 |
| Year | 1998 |
| Location | Poland
|

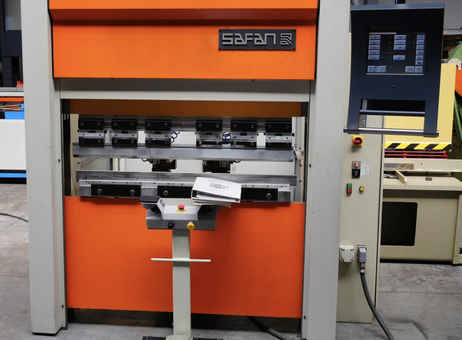

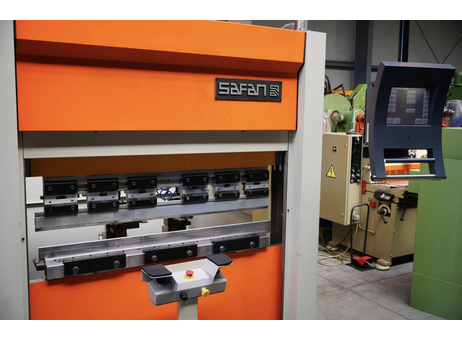

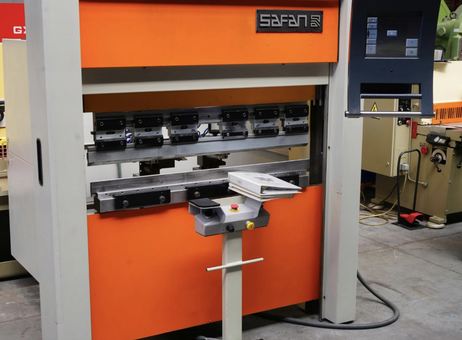

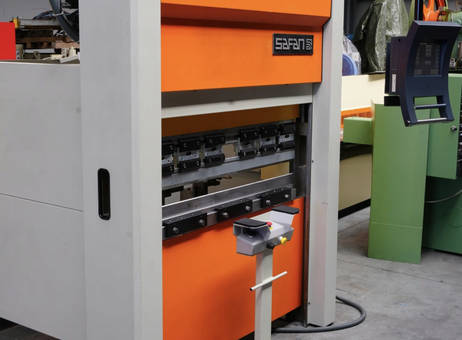

This Safan SMK-L-25-1250 -TS1 is a CNC servo-electric press brake designed for precision sheet metal bending. Manufactured in 1998, it features a robust 25-ton pressing capacity and a bending length of 1250 mm, suitable for a variety of industrial applications. The machine dimensions are 1900 mm in length, 1800 mm in width, and 2050 mm in height, with a total weight of 2250 kg. It is equipped with a 6 kW drive motor.
The press brake includes a CNC TS1 control system with a touchscreen display mounted on the right side, offering a user interface in Polish with 2D simulation capabilities. It controls four axes (Y1, Y2, X, and R, the latter being a pneumatic axis) and provides 10-point table deflection compensation for enhanced bending accuracy.
The working area features a vertical stroke of 115 mm and a distance between uprights of 1250 mm. The machine is fitted with Amada system tooling, including a V8 mm die and an H105 mm punch, both mounted and ready for use.

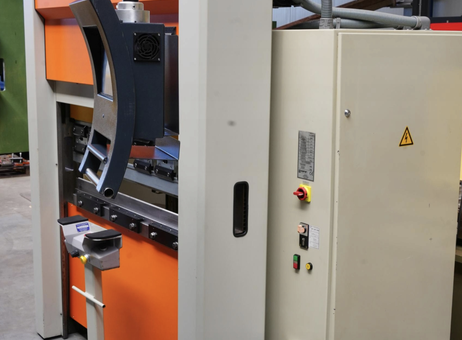

A foot pedal control unit with an emergency stop button is positioned in front of the machine for operational convenience and safety. The machine frame and bending tools appear clean and well-maintained, with no visible damage or significant wear, indicating careful handling. Electrical components, including the cabinet with warning labels and power switch, are intact and show no visible damage.
Overall, this Safan press brake offers a combination of reliable mechanical performance and modern CNC control, suitable for precise bending tasks in metal fabrication environments. Full documentation in Polish, including occupational health and safety instructions, is available.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Safan Holland servo-electric press brake type SMK-L-25-1250 -TS1, year 1998.
Touch screen - Windows, color, graphics, menu in Polish.
Bending length: 1250 mm; Stroke: 115 mm; Between columns: 1250 mm; Pressure: 25 t
CNC TS1 control - 2D simulation, Polish language - controlled axes Y1; Y2; X; R (pneumatic axis)
-10 point table deflection compensation.
Tools: Amada system - set of tools, V8 mm die + H105 mm punch.
Drive; 6 kW; dimensions: 1900x1800x2050 mm, weight 2250 kg.
Full DTR documentation, also in Polish, Occupational Health and Safety instructions in Polish.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2012 |
| Offers online | 63 |
| Last activity | Oct. 16, 2026 |
Safan Holland servo-electric press brake type SMK-L-25-1250 -TS1, year 1998.
Touch screen - Windows, color, graphics, menu in Polish.
Bending length: 1250 mm; Stroke: 115 mm; Between columns: 1250 mm; Pressure: 25 t
CNC TS1 control - 2D simulation, Polish language - controlled axes Y1; Y2; X; R (pneumatic axis)
-10 point table deflection compensation.
Tools: Amada system - set of tools, V8 mm die + H105 mm punch.
Drive; 6 kW; dimensions: 1900x1800x2050 mm, weight 2250 kg.
Full DTR documentation, also in Polish, Occupational Health and Safety instructions in Polish.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
This Safan SMK-L-25-1250 -TS1 is a CNC servo-electric press brake designed for precision sheet metal bending. Manufactured in 1998, it features a robust 25-ton pressing capacity and a bending length of 1250 mm, suitable for a variety of industrial applications. The machine dimensions are 1900 mm in length, 1800 mm in width, and 2050 mm in height, with a total weight of 2250 kg. It is equipped with a 6 kW drive motor.
The press brake includes a CNC TS1 control system with a touchscreen display mounted on the right side, offering a user interface in Polish with 2D simulation capabilities. It controls four axes (Y1, Y2, X, and R, the latter being a pneumatic axis) and provides 10-point table deflection compensation for enhanced bending accuracy.
The working area features a vertical stroke of 115 mm and a distance between uprights of 1250 mm. The machine is fitted with Amada system tooling, including a V8 mm die and an H105 mm punch, both mounted and ready for use.
A foot pedal control unit with an emergency stop button is positioned in front of the machine for operational convenience and safety. The machine frame and bending tools appear clean and well-maintained, with no visible damage or significant wear, indicating careful handling. Electrical components, including the cabinet with warning labels and power switch, are intact and show no visible damage.
Overall, this Safan press brake offers a combination of reliable mechanical performance and modern CNC control, suitable for precise bending tasks in metal fabrication environments. Full documentation in Polish, including occupational health and safety instructions, is available.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
