Contact us to receive an offer.
| Manufacturer | Sachman |
|---|---|
| Model | T COLUMN |
| Year | |
| Location | Italy
|
This Sachman T COLUMN vertical machining center is equipped with a CNC Heidenhain TNC 426 digital control system, designed for precision and versatility in complex machining tasks. The machine offers substantial travel capabilities with a longitudinal X-axis travel of 3500 mm, a transversal Y-axis travel of 1600 mm, and a vertical Z-axis travel of 2000 mm, accommodating large workpieces and enabling multi-axis machining operations.
The machining center features a rotary translation table measuring 1600 x 2000 mm, equipped with T-slots (22H8 with a central slot 22H7) for secure workpiece mounting. This robust table supports a maximum load of 15,000 kg, allowing for heavy-duty machining applications.
The KOSMO 5000 automatic two-rotative head provides a maximum spindle speed of 5000 rpm, with a continuous power output of 28 kW. It utilizes a DIN 69871-A50 tool cone and DIN 69872-28 (50) tie rods, facilitating compatibility with a variety of tooling options. The machine's axes deliver nominal continuous torque of 70 Nm on both X and Y axes and 27 Nm on the Z axis, with rapid traverse speeds of up to 18 m/min across all axes.
The tool changer accommodates 60 tool positions, supporting tools with a maximum diameter of 125 mm, or up to 240 mm when adjacent positions are free, enhancing operational efficiency and flexibility.
Constructed with a maximum machine weight of 27,000 kg and a total installed power capacity of 48 kW, this machining center is built for heavy industrial use.

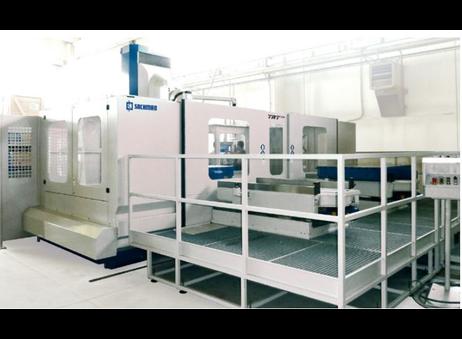

The machine features an enclosed design with white and blue color scheme, including protective railing around an elevated platform for operator safety. Large windows in the enclosure provide clear visibility into the machining area. The control panel with screen and buttons is attached to the machine for convenient operation. The spindle head is articulated, allowing for multi-axis machining capabilities, and is equipped with protective covers and coolant or air nozzles. The table is fitted with T-slots and a central round fixture point to secure workpieces or fixtures effectively.
Overall, the machine appears clean and well-maintained, with no visible signs of damage or wear, indicating careful upkeep.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
CNC Heidenhain Tnc 426 digital
TRAVELS:
X axis longitudinal travel: 3.500 mm
Y axis transversal travel: 1.600 mm
Z axis vertical travel: 2.000 mm
ROTARY TRANSLATION TABLE:
Dimension: 1.600 x 2.000 mm
T-slots: 22H8 (central slot 22H7)
Maximum loadable weight: 15.000 kg
KOSMO 5000 AUTOMATIC TWO-ROTATIVE HEAD:
Continuous power: kW 28
KOSMO head spindle speed: 5.000 rpm
Tool cone: DIN 69871-A50
Tie rod: DIN 69872-28 (50)
AXES (DIGITAL):
Nominal continuous torque (X axis = 3,500): Nm 70
Nominal continuous torque (Y axis): Nm 70
Nominal continuous torque (Z axis): Nm 27
Rapid speed (X, Y, Z axis): m/min 18
TOOL CHANGER:
Tool places: N° 60
Max tool diameter: 125 mm
Max tool diameter with free adjacent places: 240 mm
GENERAL:
Max machine weight: 27.000 kg
Max installed power: KW 48
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
