Contact us to receive an offer.
| Manufacturer | SACHMAN |
|---|---|
| Model | RP3 |
| Year | |
| Location | Italy
|
| Category | Milling - CNC bed type milling machines |
| Type | vertical |
| X Axis | 1800 mm |
| Y Axis | 815 mm |
| Z Axis | 802 mm |
| CNC type | HEIDENHAIN TNC 155 |
| Max. spindle speed | 4000 rpm |
| Table length | 2000 mm |
| Table width | 730 mm |
| Max load on table | 3000 kg |
| Spindle taper | ISO 50 |
| Spindle motor power | 11 kW |
| Overhauled | no |
| Weight | 8000 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | yes |
| status | visible |
| Datasheet | Sachman RP3 |
| Last availability date | 24/10/2026 |
| Product id | P210916064 |
| Language |
SACHMAN RP3
Frézka cnc stolní SACHMAN RP3
SACHMAN RP3
SACHMAN RP3 CNC Fräsmaschine
SACHMAN RP3
SACHMAN RP3 cnc bed type milling machine
Fresadora cnc de bancada fija SACHMAN RP3
Fraiseuse cnc à banc fixe SACHMAN RP3
SACHMAN RP3
SACHMAN RP3
Fresatrice cnc a banco fisso SACHMAN RP3
SACHMAN RP3
SACHMAN RP3
Frezarka CNC łożowa SACHMAN RP3
SACHMAN RP3
SACHMAN RP3
SACHMAN RP3 Станок с фрезерной станиной с ЧПУ
SACHMAN RP3
SACHMAN RP3
Cnc dikey freze makinesi SACHMAN RP3
|
This SACHMAN RP3 vertical CNC milling machine is designed for precision machining with a robust build and substantial work capacity. The machine features a large worktable measuring 2000 mm in length and 730 mm in width, equipped with T-slots to secure workpieces efficiently. The table can support a maximum load of 3000 kg, allowing it to handle heavy and sizable components. The machine's travel strokes are 1800 mm on the X-axis, 815 mm on the Y-axis, and 802 mm on the Z-axis, providing ample range for diverse milling operations.

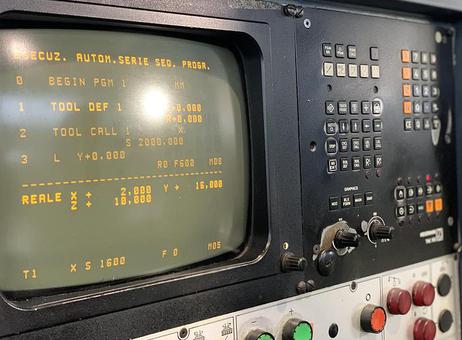

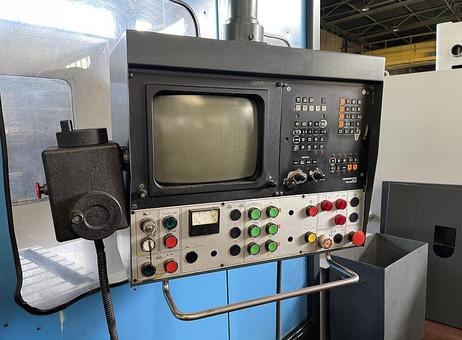

Powered by an 11 kW spindle motor, the RP3 is capable of handling demanding milling tasks. The spindle attachment uses an ISO 50 tool holder, suitable for a variety of tooling options. Control of the machine is facilitated by a HEIDENHAIN TNC 155 CNC system, which includes a CRT screen, numerous buttons, rotary knobs, and a handwheel control mounted to the left of the control panel, offering precise and flexible operation.

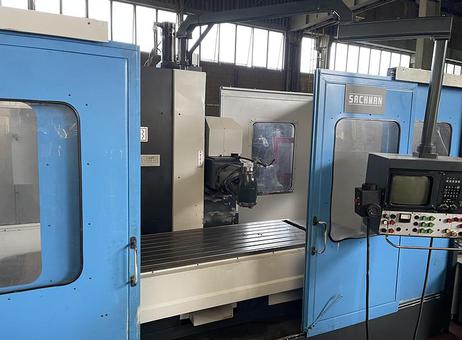

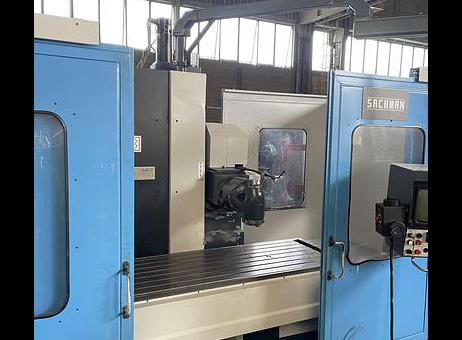

The machine's structure is painted blue and features sliding doors that provide access to the work area while maintaining safety during operation. The spindle head is mounted on a vertical Z-axis column, and the machine weighs approximately 8000 kg, indicating a sturdy and stable construction.

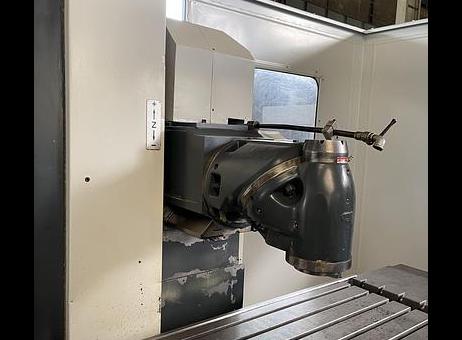

Visual inspection shows the machine is clean and well-maintained with no visible external damage, although some minor surface wear and paint chipping are noted on the spindle head base. The control panel shows signs of age but appears functional. A manual bi-rotary head is included as an accessory, enhancing the machine's versatility.
Overall, the SACHMAN RP3 vertical CNC milling machine offers a combination of substantial working dimensions, strong motor power, and a reliable CNC control system, making it suitable for a wide range of milling applications in industrial settings.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Fixed bench milling machine Cnc SACHMAN mod. RP3, used in excellent condition, available for immediate delivery Unless Sold.
Producer SACHMAN
Template RP3
Condition Excellent
Table mm. 2000 x 730
Stroke X mm. 1800
Stroke Y mm. 815
Stroke Z mm. 802
Tool attachment ISO 50
Motor power Kw 8.8 / 11
CNC HEIDENHAIN TNC 155
CE conformity Yup
Accessories Manual bi-rotary head
Load allowed on the table Kg. 3000
Weight kg. 8000
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2019 |
| Offers online | 102 |
| Last activity | Oct. 29, 2026 |
Fixed bench milling machine Cnc SACHMAN mod. RP3, used in excellent condition, available for immediate delivery Unless Sold.
Producer SACHMAN
Template RP3
Condition Excellent
Table mm. 2000 x 730
Stroke X mm. 1800
Stroke Y mm. 815
Stroke Z mm. 802
Tool attachment ISO 50
Motor power Kw 8.8 / 11
CNC HEIDENHAIN TNC 155
CE conformity Yup
Accessories Manual bi-rotary head
Load allowed on the table Kg. 3000
Weight kg. 8000
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
