| Manufacturer | SACHMAN |
|---|---|
| Model | MP212HS |
| Year | 2007 |
| Location | Italy
|
This SACHMAN MP212HS travelling column milling machine, manufactured in 2007, is designed for heavy-duty machining with substantial working dimensions and capabilities. The machine measures 14,500 mm in length, 11,000 mm in width, and 5,013 mm in height, with a total weight of 69,000 kg. It features a travelling column design with a large worktable measuring 2,000 mm by 1,600 mm, equipped with eight T-slots for secure mounting of workpieces. The table has a maximum load capacity of 35 kg and offers a translation travel of 1,500 mm.
The machine provides generous machining envelopes with longitudinal (X-axis) travel of 6,000 mm, vertical (Y-axis) travel of 2,000 mm, and transverse RAM (Z-axis) travel of 1,400 mm. The RAM section measures 500 mm by 500 mm. The spindle motor delivers 37 kW of power with a maximum spindle speed of 5,000 rpm and a torque of 1,195 Nm. The spindle uses an ISO50 cone and supports various speeds and power ratings depending on the duty cycle.
The machine is equipped with an 80-station automatic tool changer (ATC), supporting tools up to 125 mm in diameter, or 250 mm with free adjacent seats, with a maximum tool length of 600 mm and maximum tool weight of 35 kg. Tool attachment is via ISO50, with both horizontal and vertical positioning.

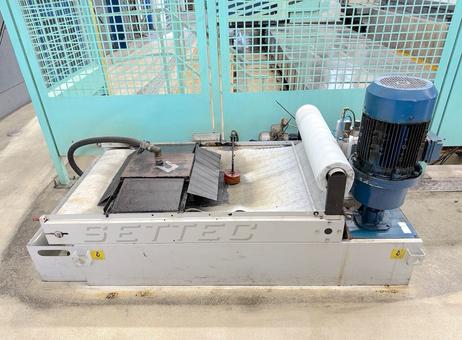

Additional features include a high-pressure coolant system operating at 40 bar and 50 l/min, a filtering system with 1,320 liters capacity using paper filters, and a Renishaw MP60 probe for precise piece measurement. The machine has a chip conveyor and a smoke extractor for efficient operation and cleanliness.
The spindle head type is KOSMO3, with precise axis control including A and C axes with 0.02° resolution. The machine's total installed power is 100 kW.

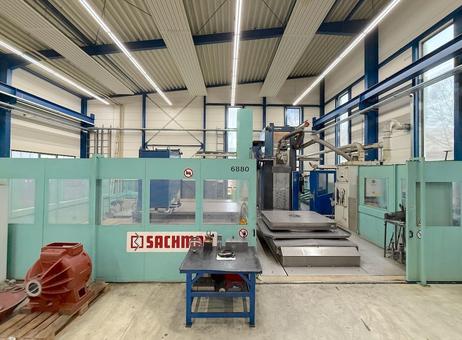

The machine is housed within a protective enclosure and appears clean and well-maintained. A small workbench with tools and equipment is positioned nearby, indicating a prepared working environment. Overall, this travelling column milling machine offers robust construction and extensive capabilities suitable for demanding milling applications.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Longitudinal (X) 6000 mm
Vertical (Y) 2000 mm
Transverse RAM (Z) 1400 mm
Table (V) 1500 mm
SPINDLE
RAM Section 500x500 mm
Spindle power (S1/S6/S4) 37/46/56 Kw
Rotation speed 5-5000 RPM
Couple (S1) 1195 Nm
Cone ISO50
ADVANCEMENTS
Quick X 30 m/min
Quick Y 30 m/min
Quick Z 30 m/min
Quick B 3 RPM
ATC
Stations 80
Max tool diameter 125 mm
Max diameter with free adjacent seats 250 mm
Max. tool length 600 mm
Max. tool weight 35 kg
Tool attachment ISO50
Position horizontal/vertical
ANCHORING PLAN
Size (LxWxH) 4000x200x300 mm
Number of T-slots 8
TABLE
Surface 2000x1600 mm
Translation 1500 mm
Resolution (B-axis) 0.001 °
Flow rate 15,000 kg
Rotation speed 3 Rpm or °/min
HEAD CHANGE PICK-UP STATION
Positions 3
HEAD
Type KOSMO3
Spindle cone ISO50- DIN69871
Axis A 0.02 °
C-axis 0.02 °
Max torque 1195 Nm
Maximum speed 5000 rpm
Maximum power 37 kW
Refrigerant CTS 40Bar
HEAD
Type Spindle extension ø165x600mm
Spindle cone ISO50- DIN69871
Max torque 1195 Nm
Maximum speed 2000 rpm
Refrigerant External
EXTRA
Total installed power 100 kW
Total machine weight 69,000 kg
Machine dimensions 14500x11000x5013 mm
High pressure 40 Bar - 50 l/min
Filtering system 1320Lt with paper filter
Piece Probe Renishaw MP60
Fairing complete perimeter
Chip conveyor Yes
Smoke extractor Yes
