| Manufacturer | RUIAN HAOYU MACHINERY (China) |
|---|---|
| Model | TB1600 |
| Year | 2022 |
| Location | Belarus
|
The RUIAN HAOYU MACHINERY TB1600 is an industrial adhesive application line designed for processing BOPP and PE films, suitable for manufacturing adhesive tapes, self-adhesive tapes, and protective films. Manufactured in 2022, this machine features an effective width of 1600 mm and a maximum roller width of 1650 mm. It operates at speeds ranging from 100 to 140 meters per minute depending on the material, with a maximum speed capability of up to 220 meters per minute.
The machine includes several integrated units: an unwinding unit, unwinding traction unit, adhesive application unit, drying oven, cooling unit, and winding unit. The heating system is electric, with a heating power of 185 kW and an operating power of 130 kW, capable of reaching oven temperatures up to 120 °C with a tolerance of ±2 °C. It supports a maximum unwinding and winding diameter of 600 mm each, and maintains edge accuracy within 1.0 mm and an application uniformity with a wet layer thickness of no more than 0.003 mm.
The cooling and traction module includes a water-cooled, hard chrome-plated cooling roller with a diameter of 450 mm and a Teflon-coated anti-adhesive roller of 150 mm diameter. Drive and tension controls are managed via geared motors, inverters, and PLC systems, featuring fine adjustment valves and ultra-low friction cylinders.
The winding unit is designed with two stations, effective winding width of 1600 mm, pneumatic shafts mounted on safety chucks, and motor drives controlled by frequency inverters and PLC. The frame construction incorporates cast iron and profile metal components.
The machine measures 30,000 mm in length, 3,700 mm in width, and 4,300 mm in height, with an approximate weight of 16,000 kg. It operates on a power supply of 380 V, 50 Hz, three phases.

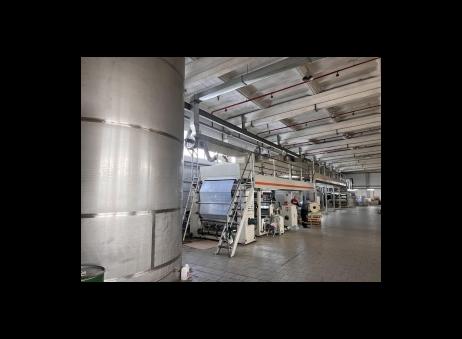

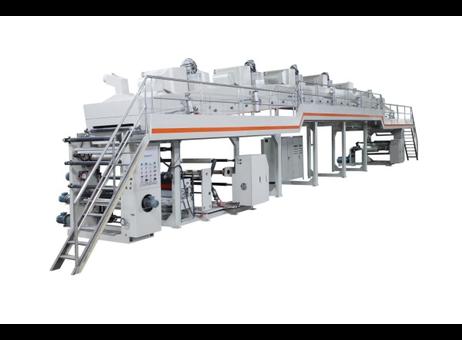

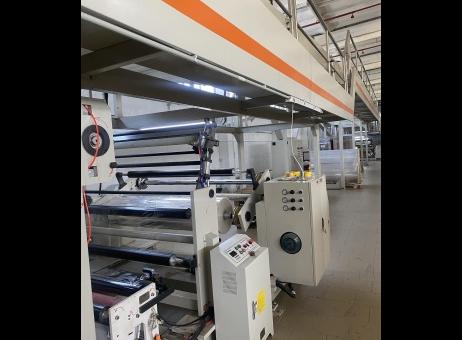

Visually, the machine is large and industrial, housed in a spacious factory environment with a tiled floor and high ceiling. It features multiple rollers along its length, metal staircases at both ends for upper-level access, and visible control panels with buttons and switches. The machine and its surroundings appear clean and well-maintained, and the equipment shows no visible signs of damage or wear.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
TB1600 — Adhesive Application Line for BOPP and PE Film (for the production of adhesive tapes, self-adhesive tapes, and protective films)
Product Type: TB-1600 Adhesive Application Machine for BOPP and PE Film (Protective Film)
Heating Method: Electric
Speed: Operating 100–140 m/min; depending on material
Included Units
• Unwinding Unit
• Unwinding Traction Unit
• Adhesive Application Unit
• Drying Oven
• Cooling Unit
• Winding Unit
Power Voltage: 380 V, 50 Hz, 3 phases
1) Effective Width: 1600 mm
2) Roller/Roller Width: 1650 mm
3) Machine Speed (Max.): 220 m/min
4) Operating Speed: 100–140 m/min (depending on material)
5) Max. Unwinding Diameter: Ø600 mm
6) Max. Winding diameter: Ø600 mm
7) Heating method: Electric (heating power 185 kW; operating power 130 kW)
8) Oven temperature: Up to 120 °C ±2 °C
9) Edge accuracy: Edge tolerance ≤ 1.0 mm
10) Application uniformity: Wet layer ≤ 0.003 mm
11) Machine weight: Approx. 16 tons
Cooling/traction module
1) Cooling roller Ø450 mm, hard chrome plated, polished, with a water-cooled rotating joint.
2) Drive: Geared motor, inverter control via PLC.
3) Tension control between application and traction: Floating swing arm, ultra-low friction cylinder, fine adjustment valve.
4) Anti-adhesive roller Ø150 mm, Teflon-coated, driven by the traction motor.
5) Frame: Profile metal
Winding unit
1) Design: Two-station
2) Effective winding width: 1600 mm
3) Max. winding diameter: Ø600 mm
4) Shafts: 2 3” pneumatic shafts, mounted on safety chucks
5) Drive: motors with frequency inverters, PLC control.
6) Reverse-type pressure roller: on guides (Taiwan), pneumatic balancing.
7) Frame: cast iron, profile
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
