Contact us to receive an offer.
| Manufacturer | Ruian |
|---|---|
| Model | 260 |
| Year | 2019 |
| Location | Serbia
|
COMPLETE BLISTER PACKAGING LINE – Blister Machine + Cartoner + Shrink Wrapper
Ruian Yidu Machinery (China), 2019 – incl. 6 format sets
Location: Belgrade, Serbia
Availability: Available
Sale: Complete line only
Price: On request
Dismantling and loading: by seller
Last service: end of 2025
Previously used for: [TO CONFIRM – dietary supplements]
------------------------------------------------------------

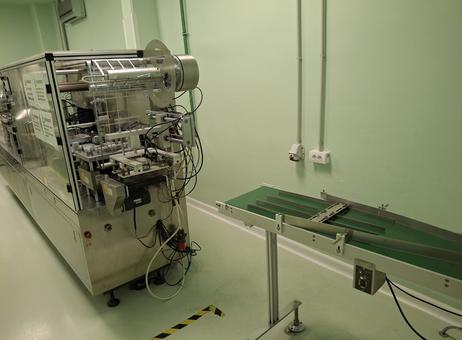

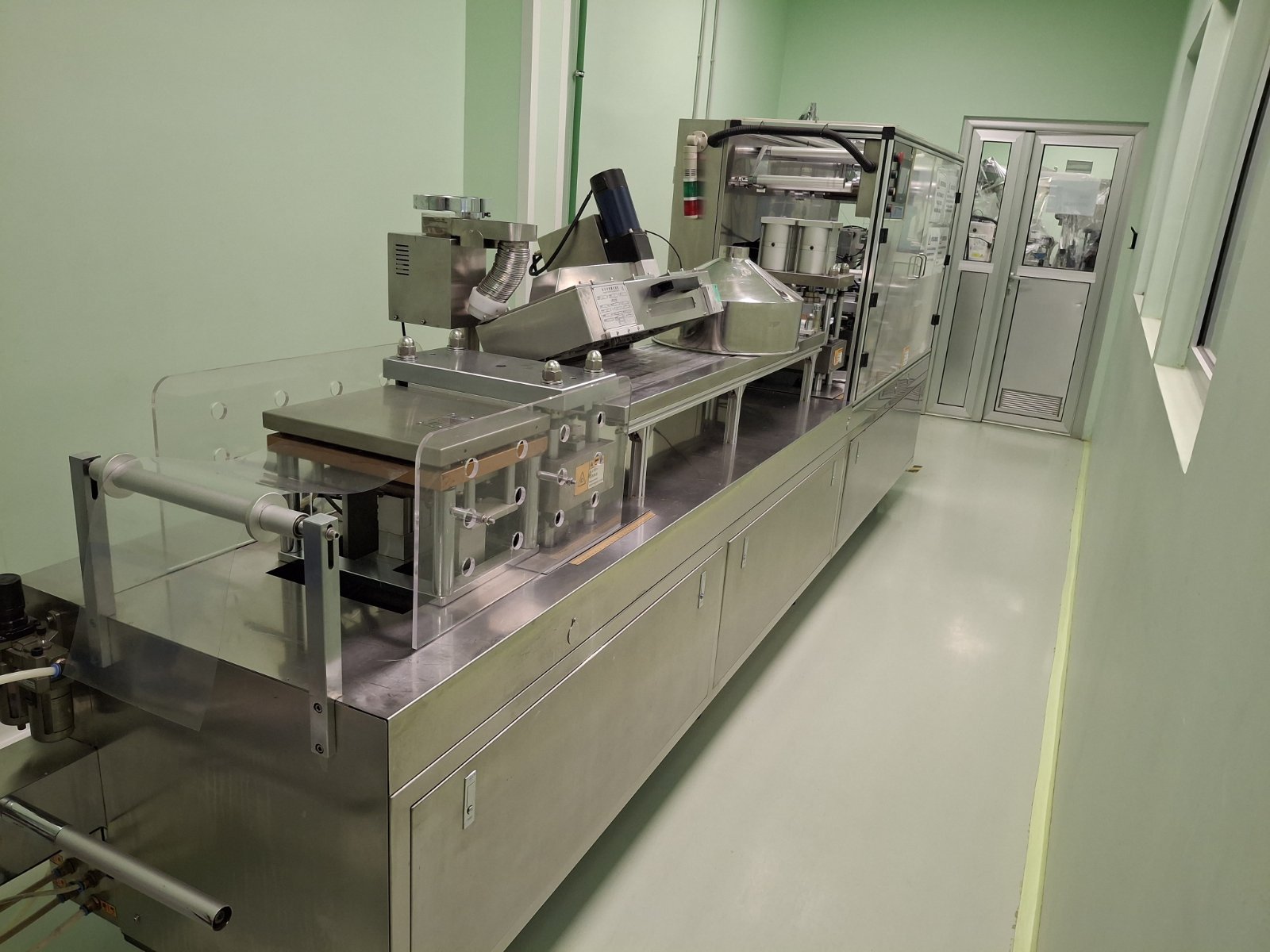

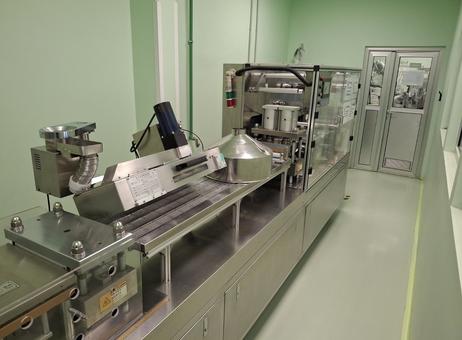

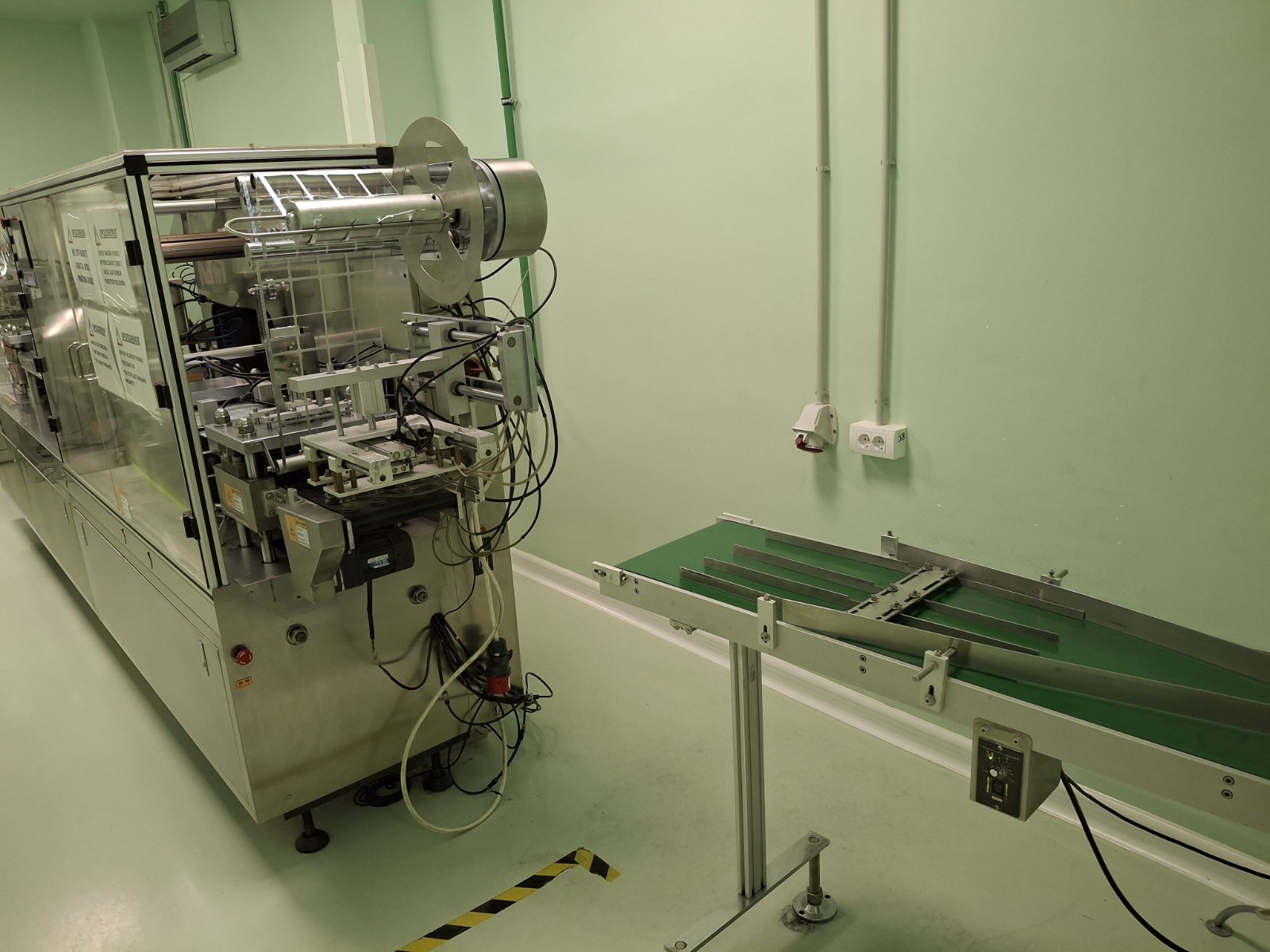

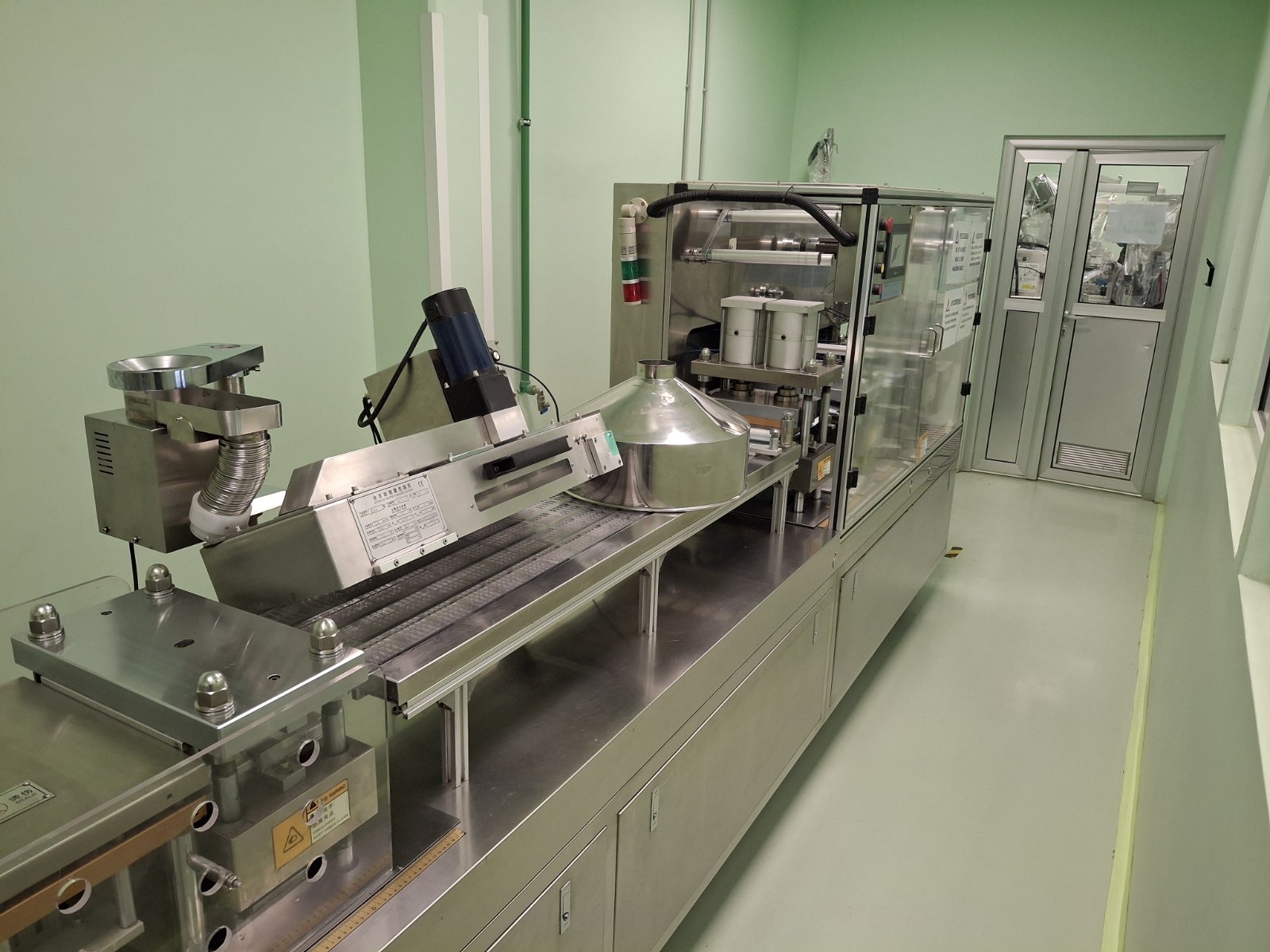

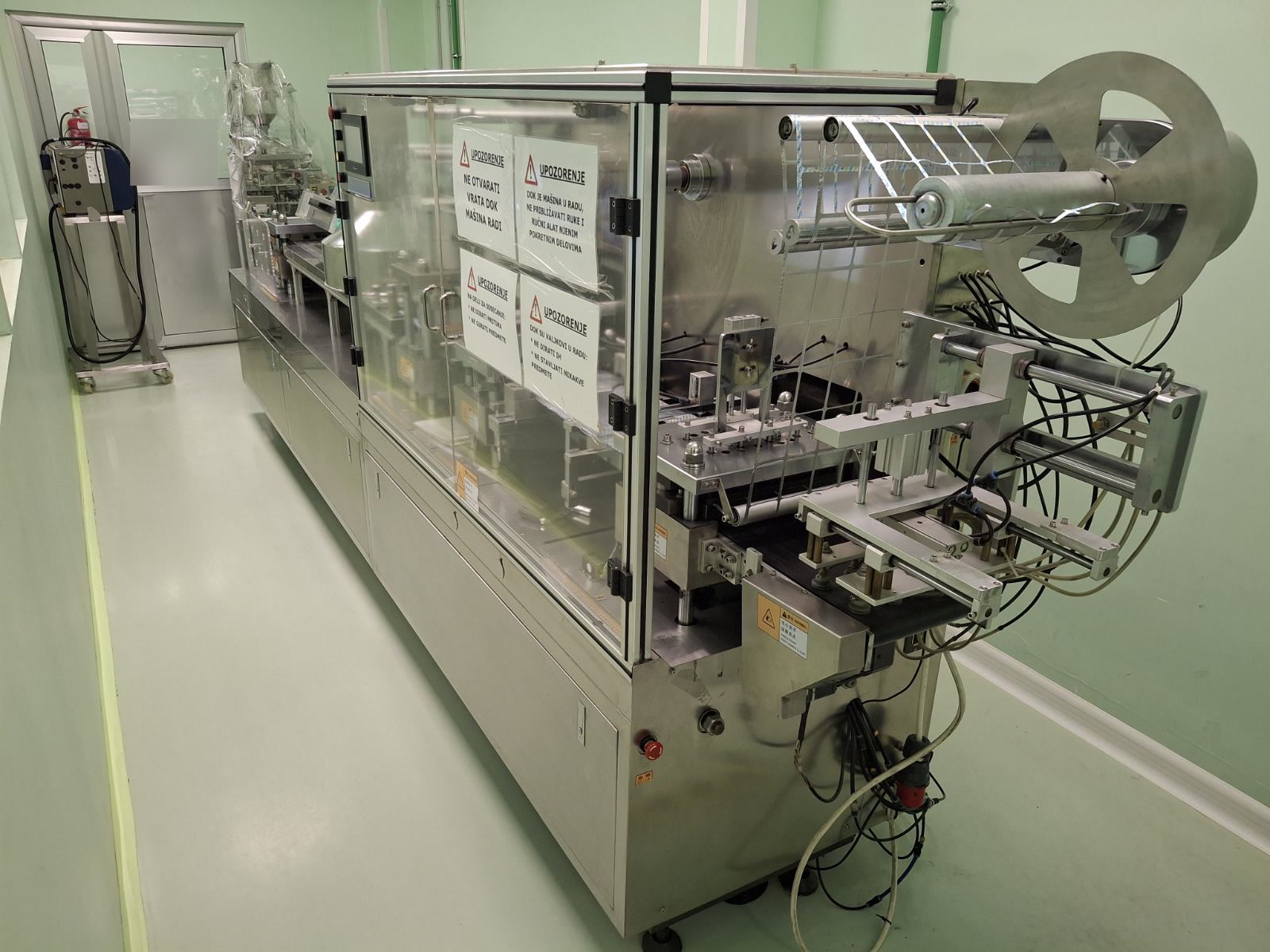

1) AUTOMATIC BLISTER PACKAGING MACHINE
------------------------------------------------------------
Manufacturer: Ruian Yidu Machinery
Model: 260 | Serial No.: 167 | Year: 2019 | CE marked
Material: PVC/Alu (thermoforming)
Punching frequency: up to 21 cycles/min
Max. pulling length: 230 mm
Max. forming depth: 20 mm
Feeder: combined system – vibratory feed with distribution brushes
Batch coding: embossing
Vision inspection camera: installed, currently NOT functional
(manufacturer quoted replacement at approx. USD 6,000)
Power supply: 380 V / 50 Hz, 3-phase, total power 12 kW
Compressed air: 0.5–0.8 MPa, approx. 1 m3/min
Cooling water: 0.2 MPa, approx. 0.3 m3 (tap or recirculating water)
Dimensions (L x W x H): 5300 x 800 x 1900 mm
Weight: 2200 kg
Documentation: operating manual with pneumatic and electrical diagrams
Format sets included (6):
1. Hard gelatin capsules size 0 – blister 60 x 73 mm, 10 cavities
2. Round soft gels – blister 97 x 68 mm, 20 cavities
3. Round soft gels (Round 2) – blister 97 x 68 mm, 20 cavities
4. Round product dia. 13 mm – blister 125 x 70 mm, 15 cavities + batch field
5. Softgel Oval 10 – blister 84 x 108 mm, 15 cavities
6. Hard gelatin capsules size 00 – blister 84 x 108 mm, 15 cavities
------------------------------------------------------------

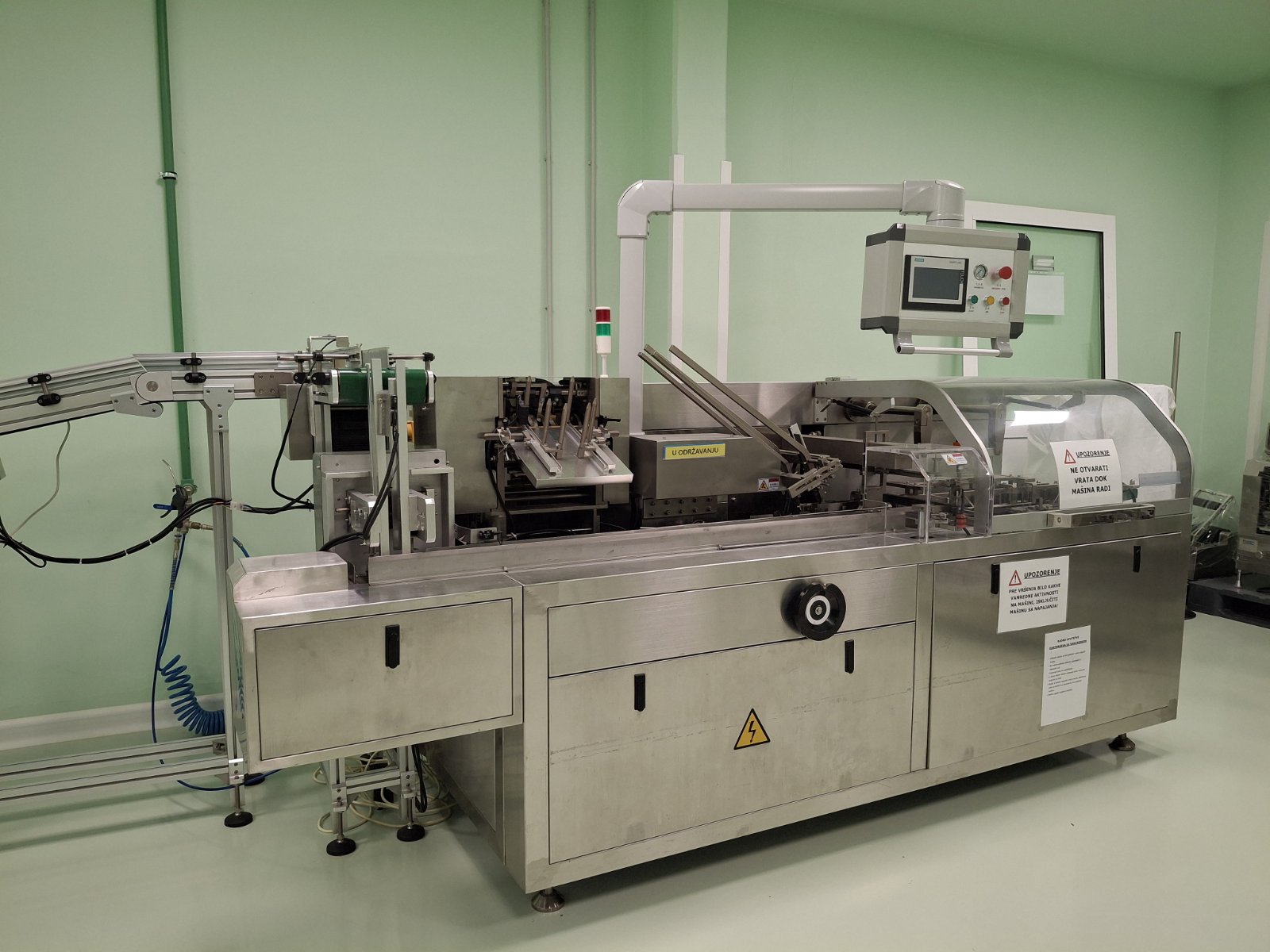

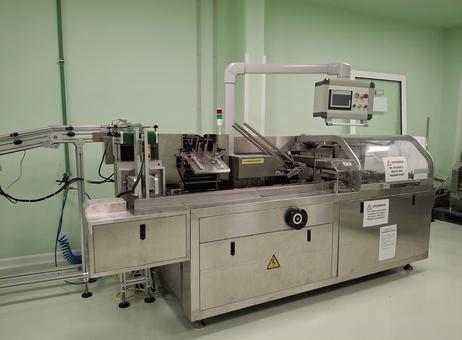

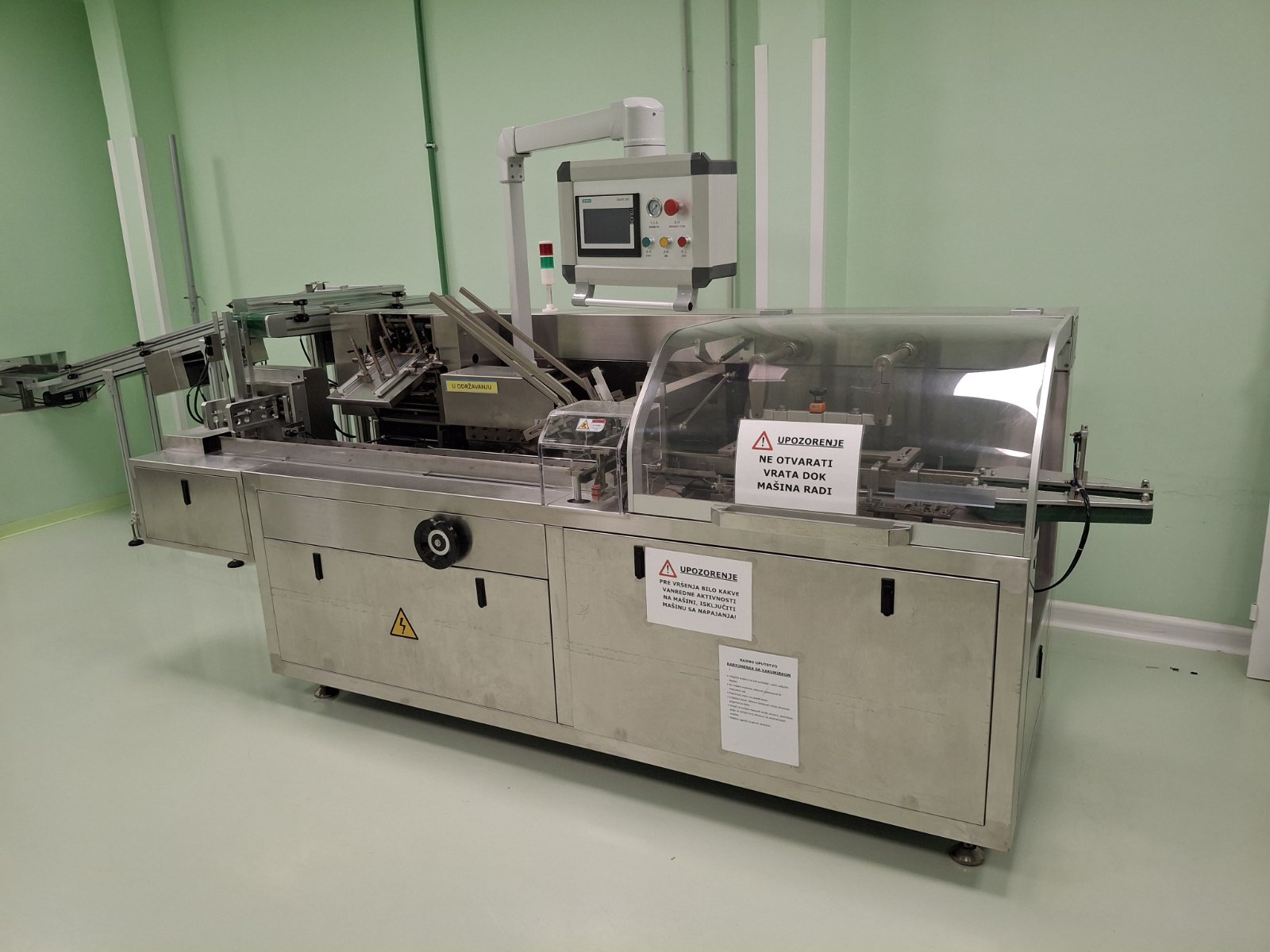

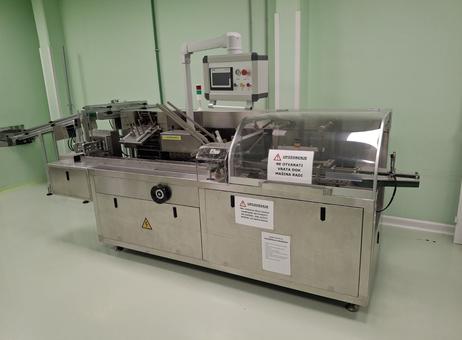

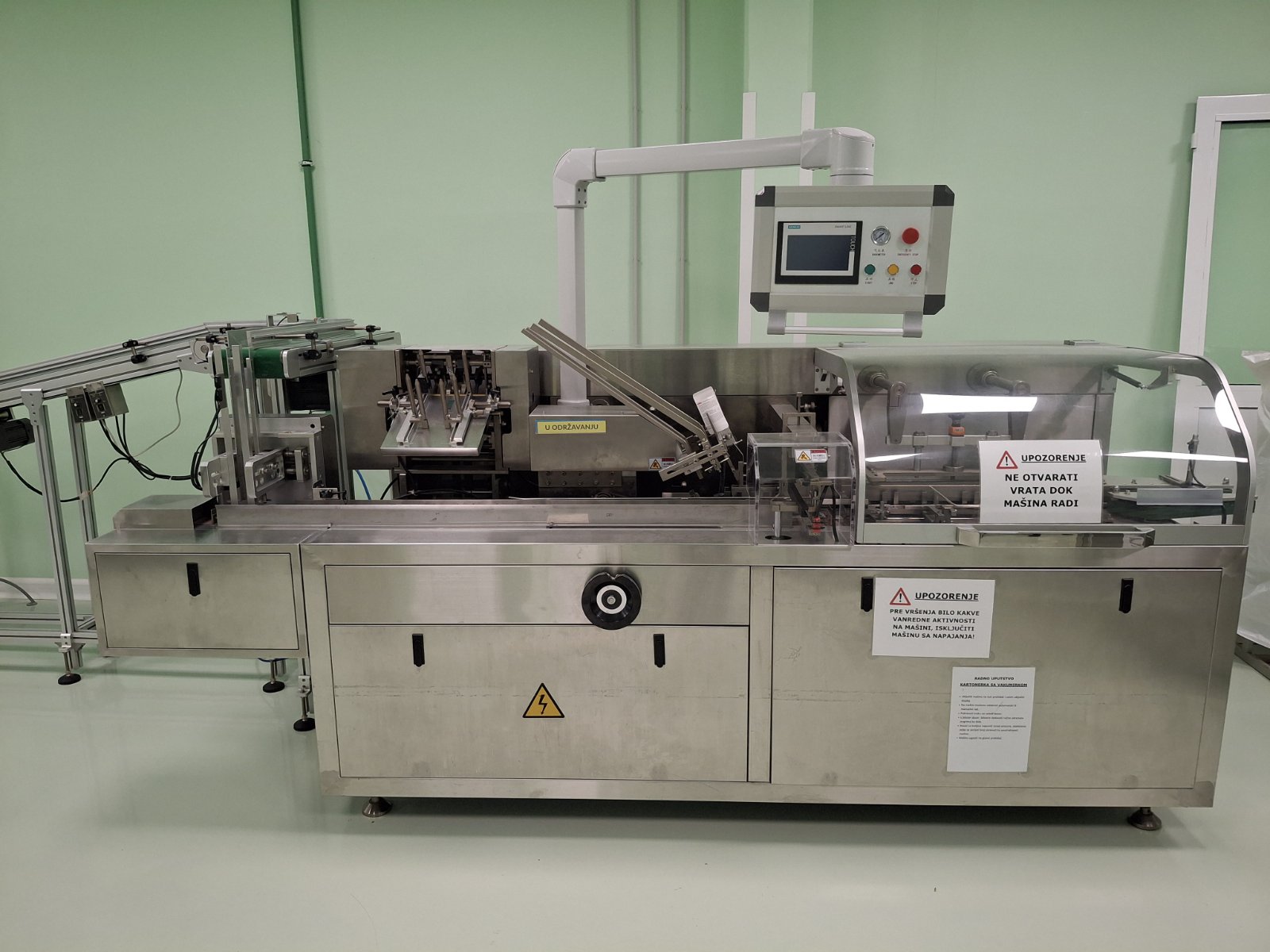

2) AUTOMATIC CARTONING MACHINE
------------------------------------------------------------
Manufacturer: Ruian Yidu Machinery
Product code: 225 | Year: 2019
CE marking: none
Speed: 30–100 cartons/min
Carton size range (L x W x H): (65–180) x (30–85) x (15–50) mm
Carton board: 250–350 g/m2
Leaflet: 60–70 g/m2, unfolded size (80–250) x (90–170) mm, 1–4 folds
Batch coding: embossing
Main motor: 0.75 kW | Power supply: 380 V / 50 Hz, 3-phase
Compressed air: min. 0.6 MPa, 120–160 L/min
Dimensions (L x W x H): 3100 x 1100 x 1800 mm
Weight: 1400 kg
Documentation: operating and setup manual

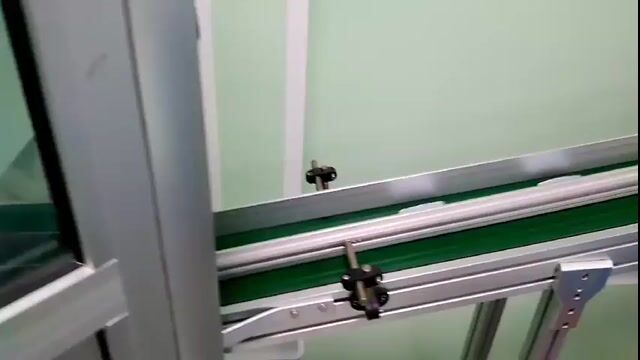

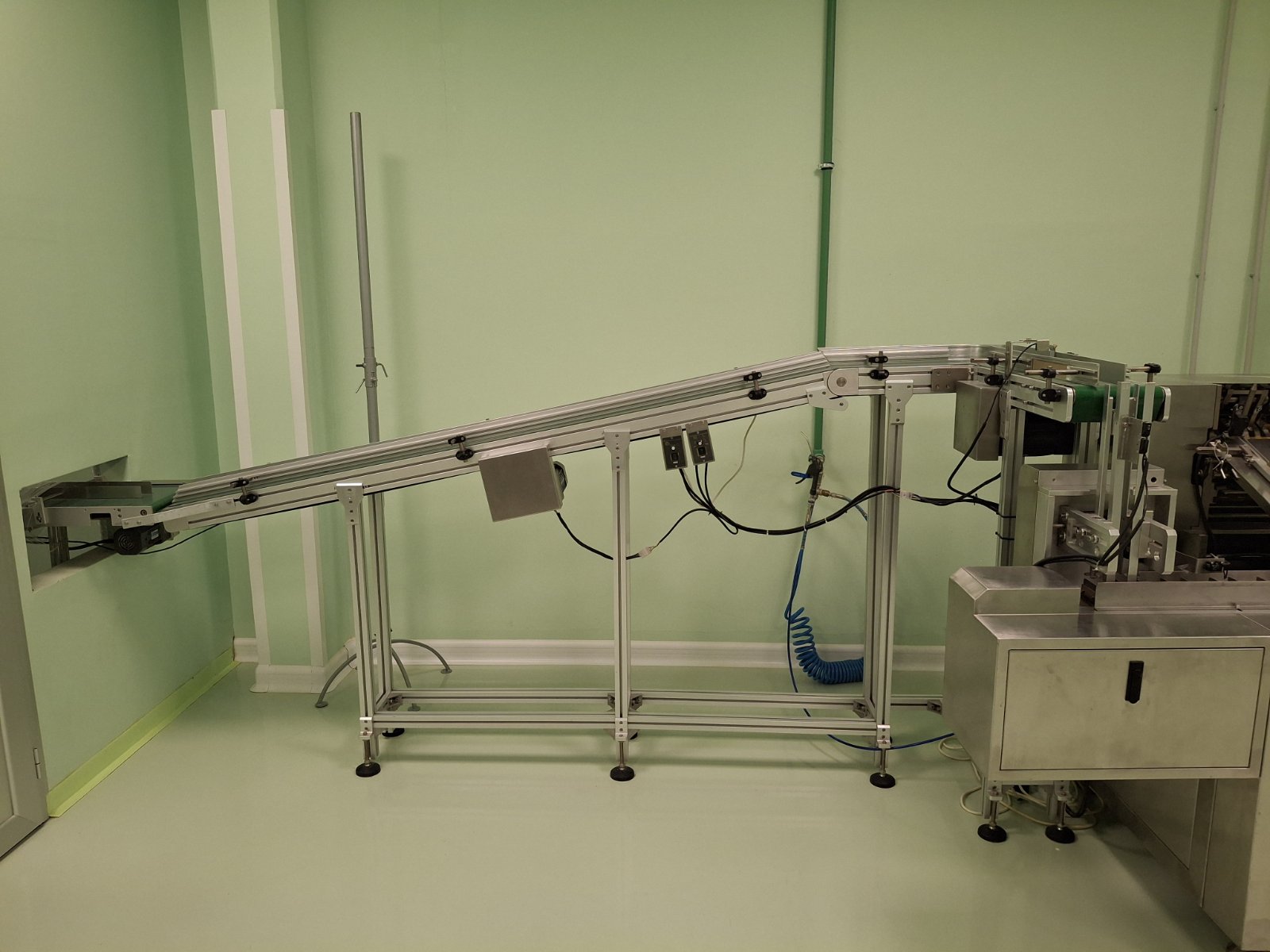

Infeed conveyor from blister machine: [TO CONFIRM – included]
------------------------------------------------------------
3) AUTOMATIC SHRINK WRAPPING MACHINE WITH HEAT TUNNEL
------------------------------------------------------------
Manufacturer: Ruian Yidu Machinery
Model: LC-500A | Year: 2019
CE marking: [TO CONFIRM]
Max. package size: 300 x 200 x 150 mm
Speed: 10–25 packages/min
Film: PE shrink film, 0.03–0.1 mm thickness, 350 mm width
Film roll: outer dia. max. 300 mm, core dia. min. 70 mm
Installed power: 8.5 kW | Power supply: 380 V / 50 Hz
Compressed air: 0.5 MPa
Dimensions (L x W x H): 2850 x 1800 x 1470 mm
Weight: 300 kg | Construction: stainless steel
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
