| Manufacturer | ROSA ERMANDO |
|---|---|
| Model | SILVER LINE 16.10 CN |
| Year | 2005 |
| Location | Italy
|
The ROSA ERMANDO SILVER LINE 16.10 CN is a large surface grinding machine manufactured in 2005. It features a flat work table measuring 1700 mm in length and 600 mm in width, with a race length of 2000 mm. The machine is designed for grinding workpieces with a maximum weight of 2700 kg. The grinding area allows for a maximum grinding length of 1850 mm, width of 1050 mm, and thickness up to 700 mm. The distance between the spindle axis and the table surface is 925 mm, enabling the accommodation of various workpiece sizes.
The machine is equipped with a powerful spindle motor rated at 15/20 kW, driving a grinding wheel with a maximum diameter of 450 mm, a thickness of 100 mm, and a bore diameter of 203 mm. The spindle can reach speeds up to 1450 rpm. The translation speed of the table ranges from 1 to 40 meters per minute, allowing for precise and efficient grinding operations.
This surface grinder includes a magnetic plane with a surface area of 1500 x 800 mm, which assists in securely holding workpieces during the grinding process. The CNC control system is a Siemens Sinumerik 840Di, providing advanced programming and operation capabilities.
Additional features include an automatic diamond cutter to maintain the grinding wheel's condition. The machine has CE certification, ensuring compliance with European safety standards. Overall dimensions are 7000 mm in length, 3300 mm in width, and 3000 mm in height, with a total weight of 13,800 kg.

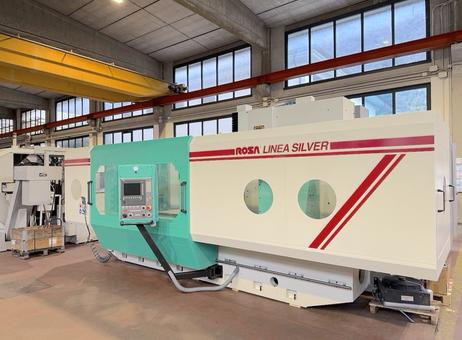

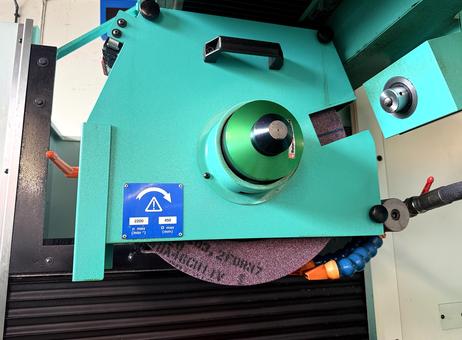

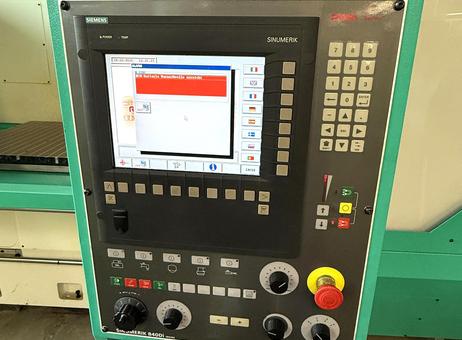

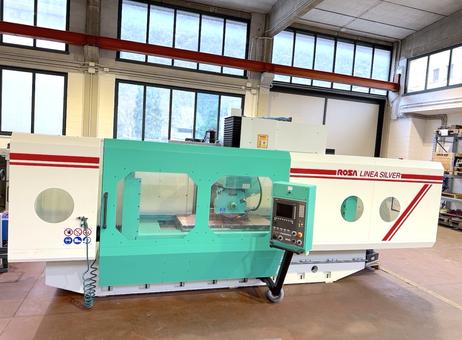

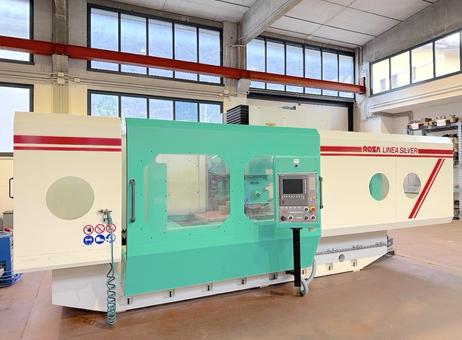

The machine presents a turquoise and white color scheme and includes a control panel with a Siemens Sinumerik display and various buttons and knobs located on the front right side. The work table is flat with slots for mounting workpieces and shows some wear marks but is generally clean. A magnetic vice or fixture is mounted on the table. The grinding head assembly includes coolant lines and adjustment handles, and the grinding wheel and its protective guard are in good condition. The protective cover surrounding the work area is painted turquoise. The control panel appears clean and functional, although the display currently shows an alarm message in German.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Longitudinal (X) 2000 mm
Vertical (Z) 700 mm
Transverse ram (Y) 950 mm
Max. grinding length 1850 mm
Max. grinding width 1050 mm
Max grinding thickness 700 mm
Distance between spindle axis and table surface 925 mm
TABLE
Surface 1700x600 mm
Race 2000 mm
Translation speed 1-40 m/min
Flow rate 2700 kg
MAGNETIC PLANE
Surface 1500x800 mm
CNC
CNC Siemens Sinumerik 840Di
GRINDER SPINDLE
Spindle power 15/20 Kw
Rotation speed 1450 rpm
Grinding wheel band thickness 100 mm
Maximum grinding wheel diameter 450 mm
Hole diameter 203 mm
EXTRA
Total machine weight 13,800 kg
Machine dimensions 7000x3300x3000 mm
Automatic diamond cutter Yes
CE Certification Yes
