| Manufacturer | Röders TEC |
|---|---|
| Model | RHP 500 |
| Year | 2006 |
| Location | Germany
|

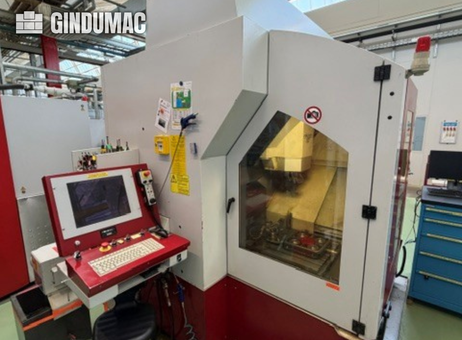

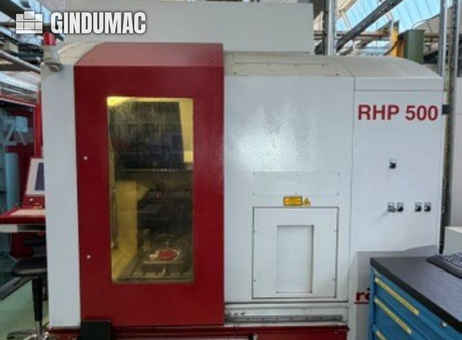

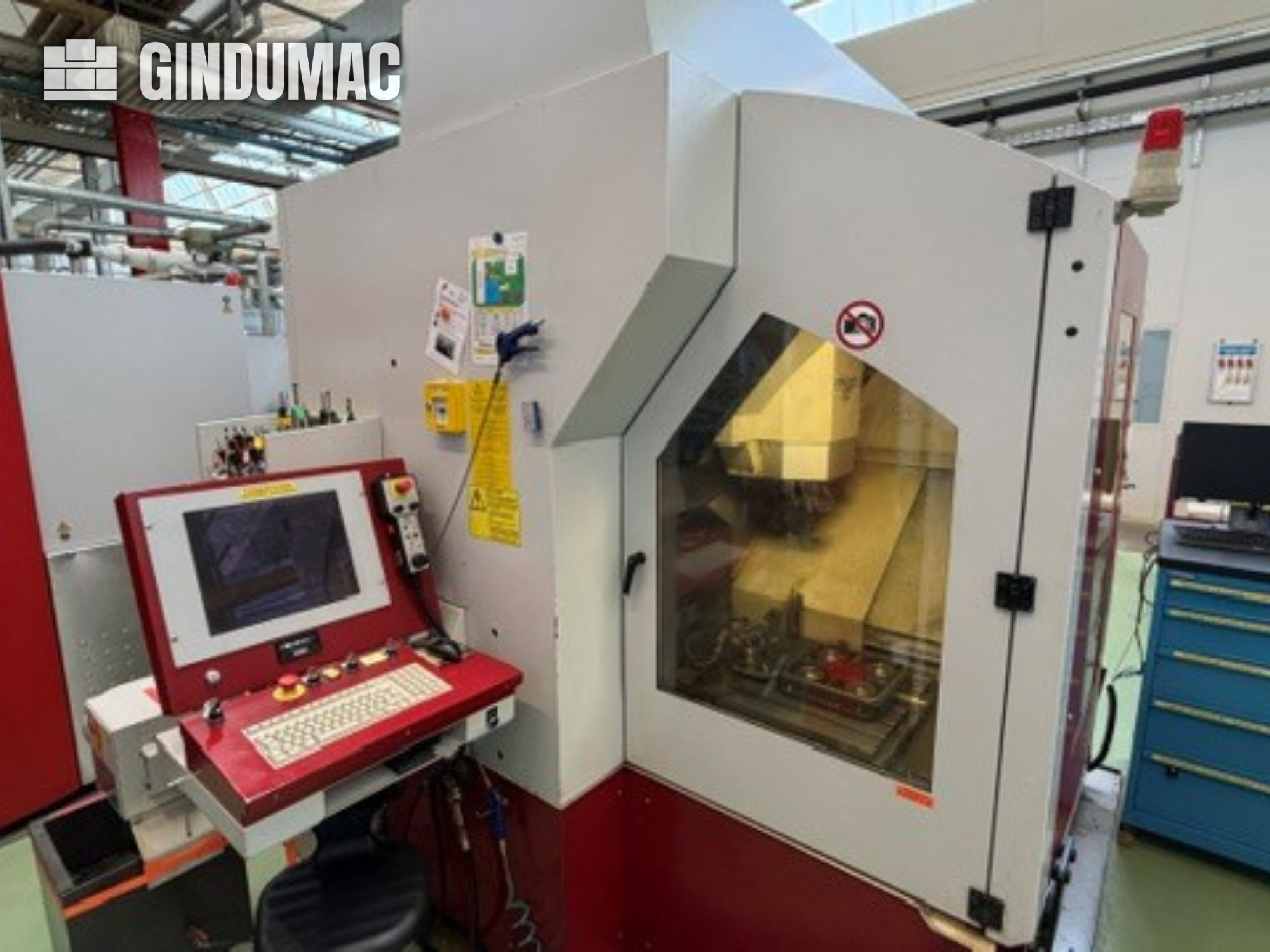

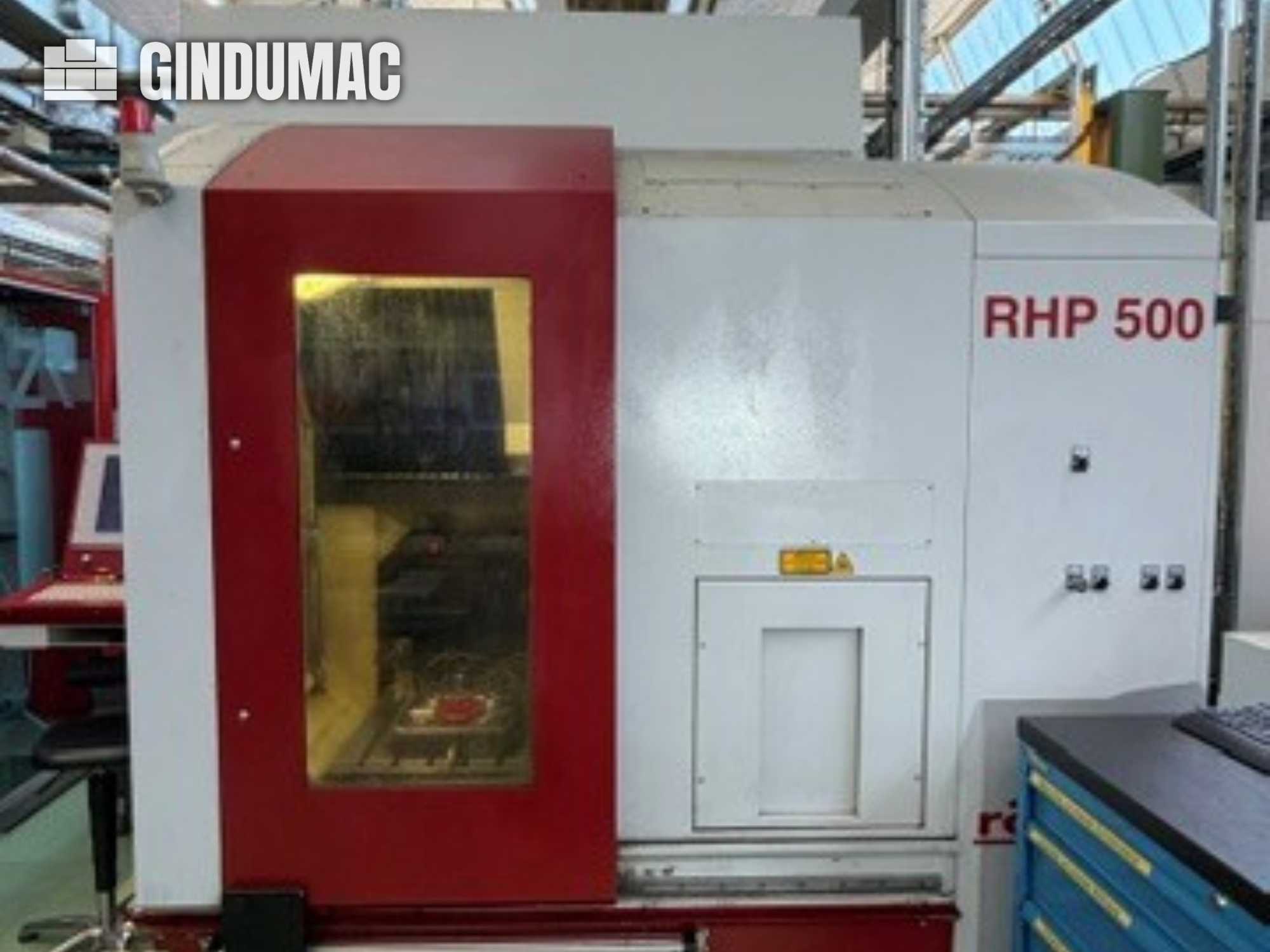

Röders TEC RHP 500 three-axis vertical machining centre, manufactured in 2006. The enclosed machine has light grey and red exterior panels, a red sliding access door with a large viewing window, and an operator console with display, keyboard, buttons and hand controls. The machine is equipped with hydrostatic X, Y and Z axes and a coordinate grinding package. Axis travel is 500 mm in X, 450 mm in Y and 300 mm in Z. The spindle speed is up to 42,000 rpm, with an HSK 40 taper, and the tool magazine has 42 pockets.

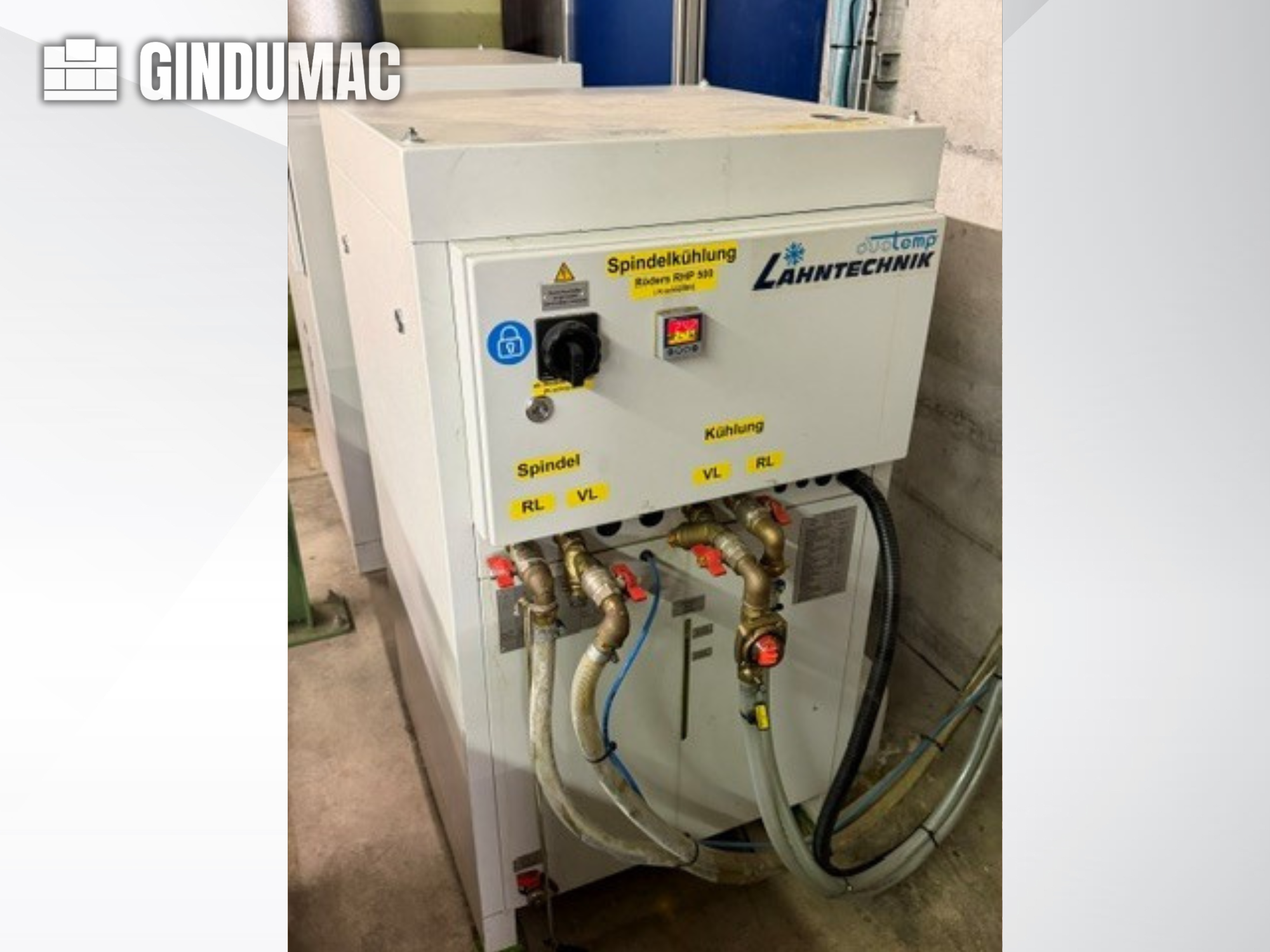

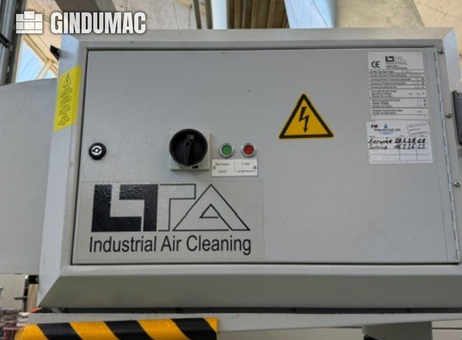

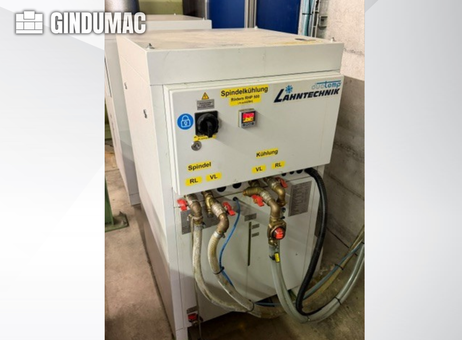

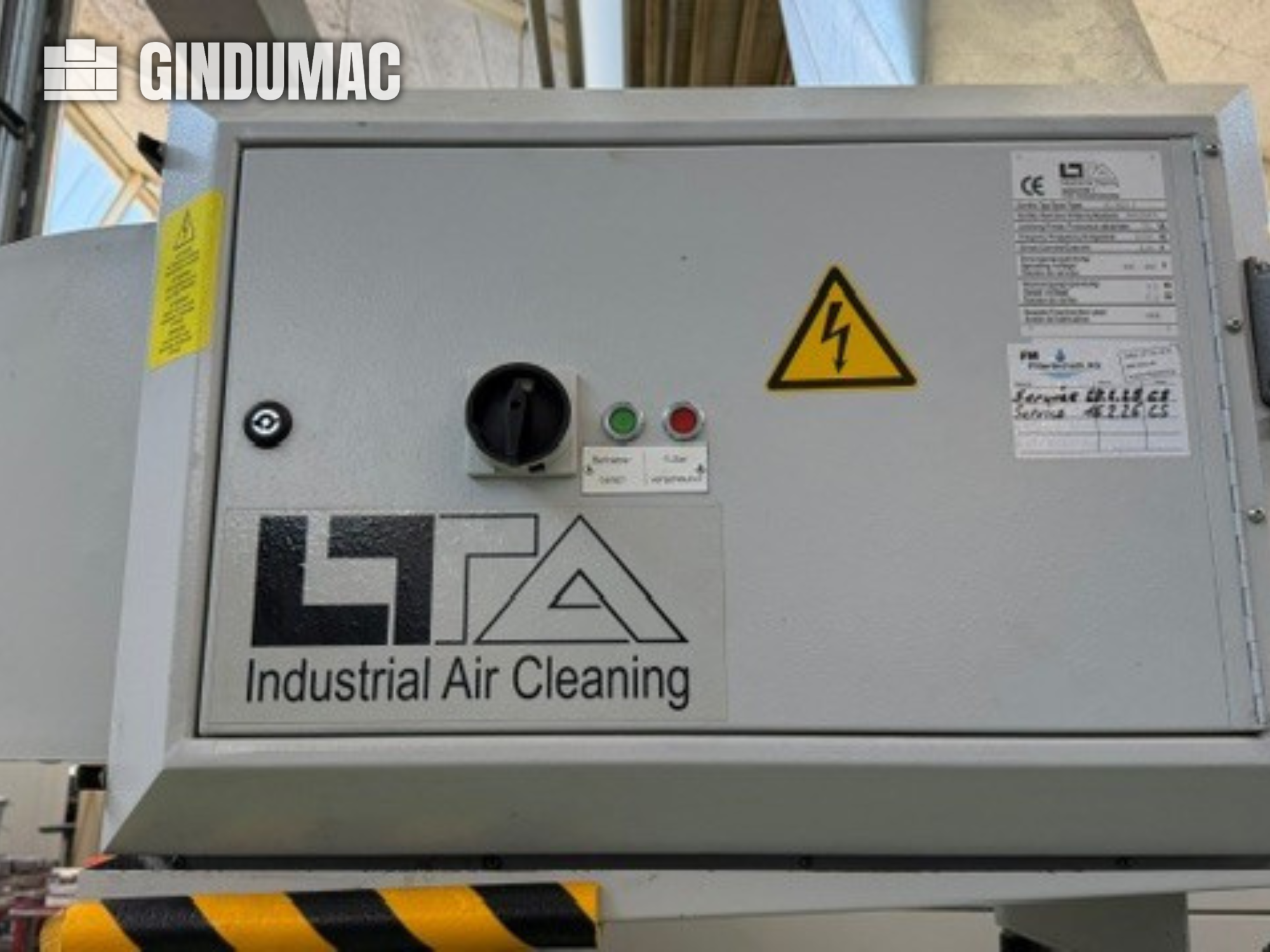

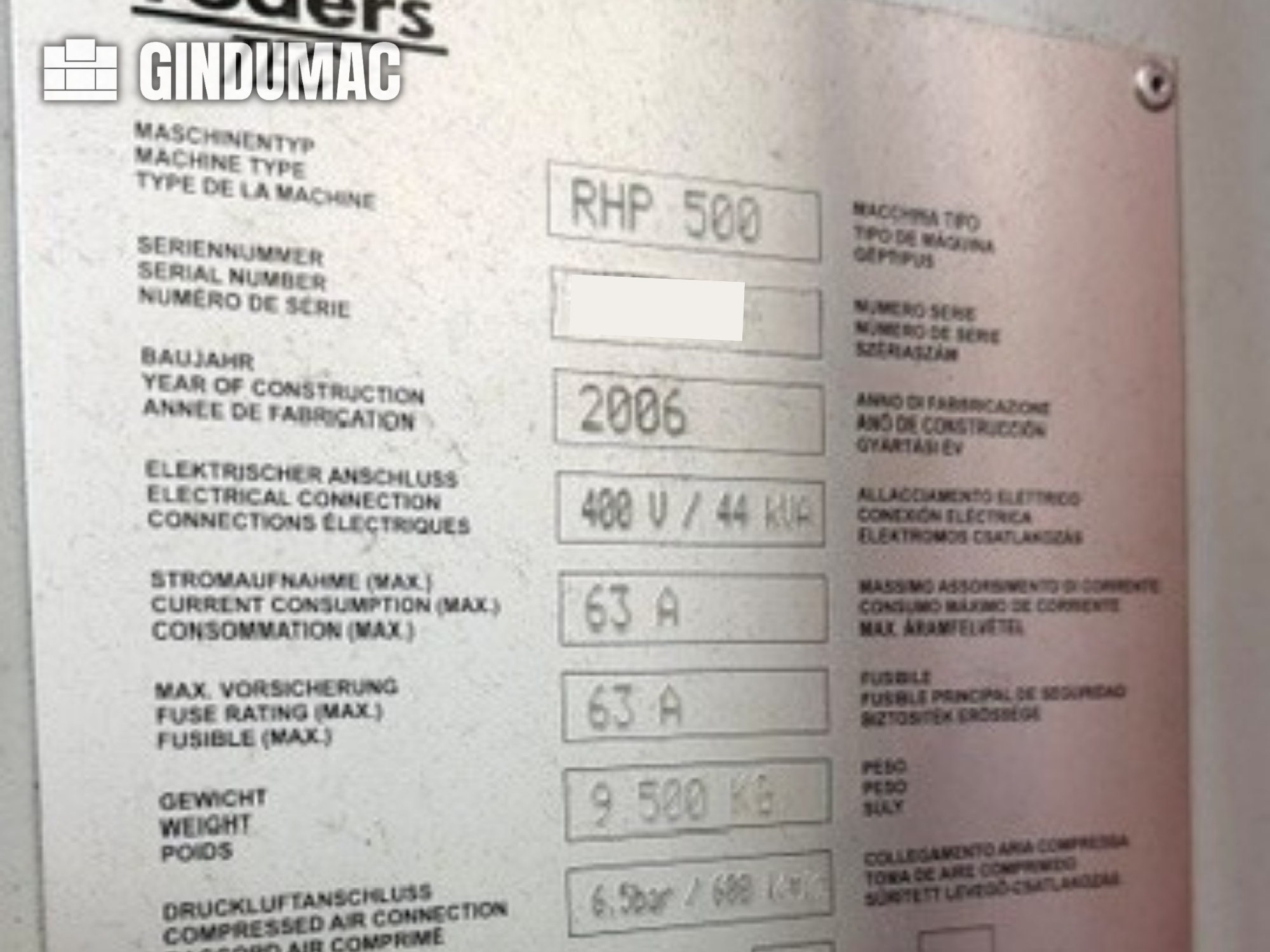

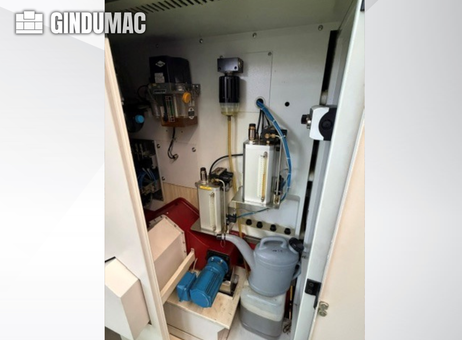

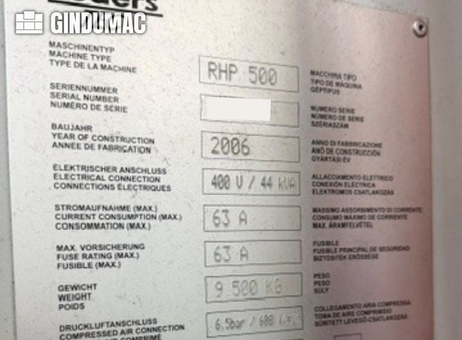

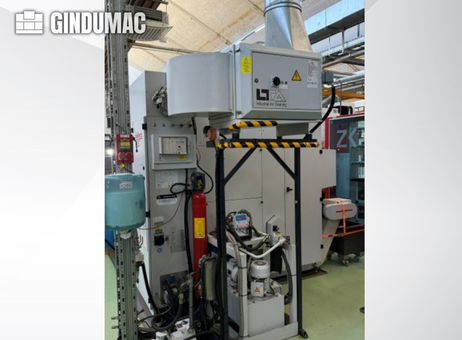

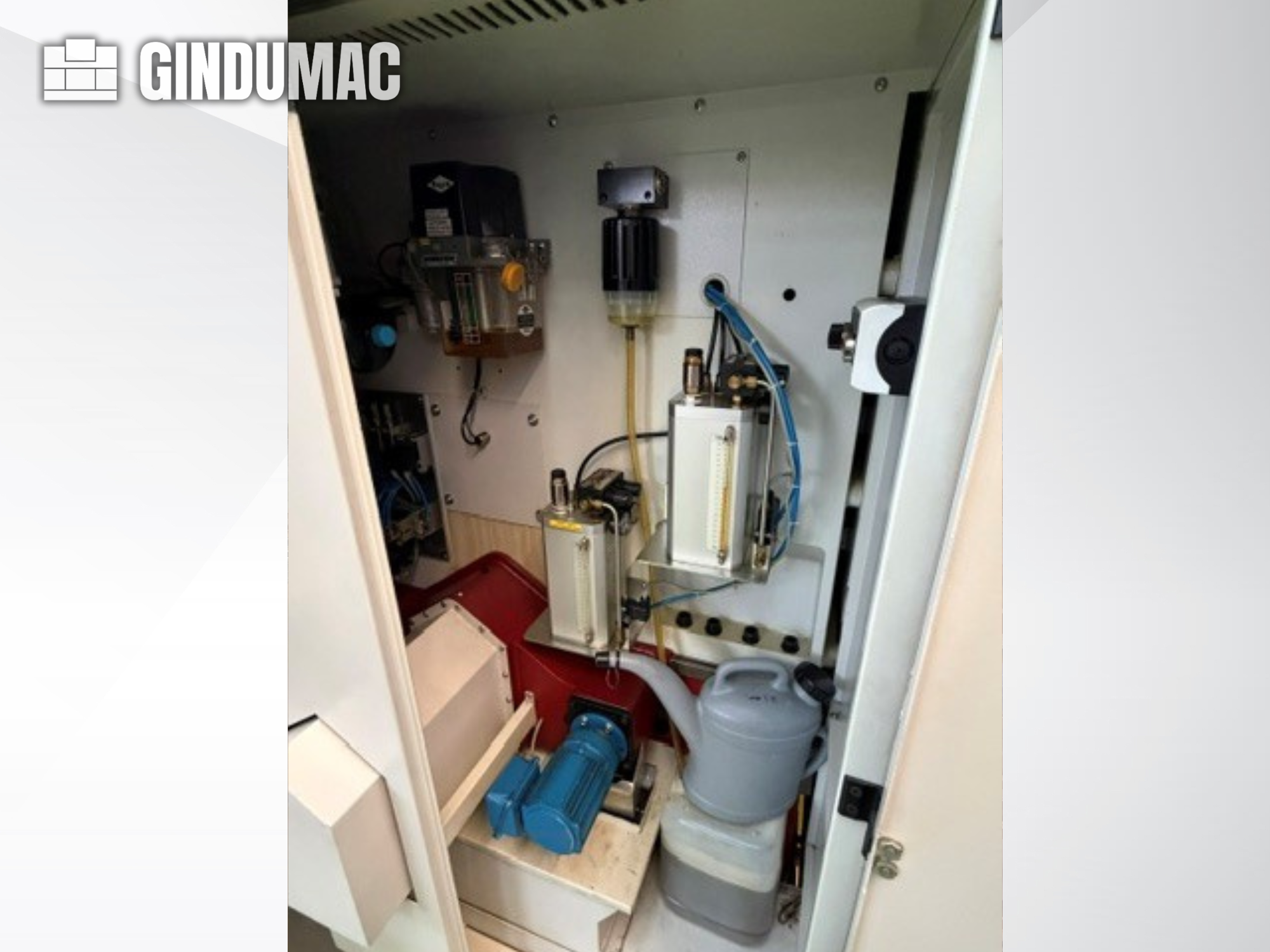

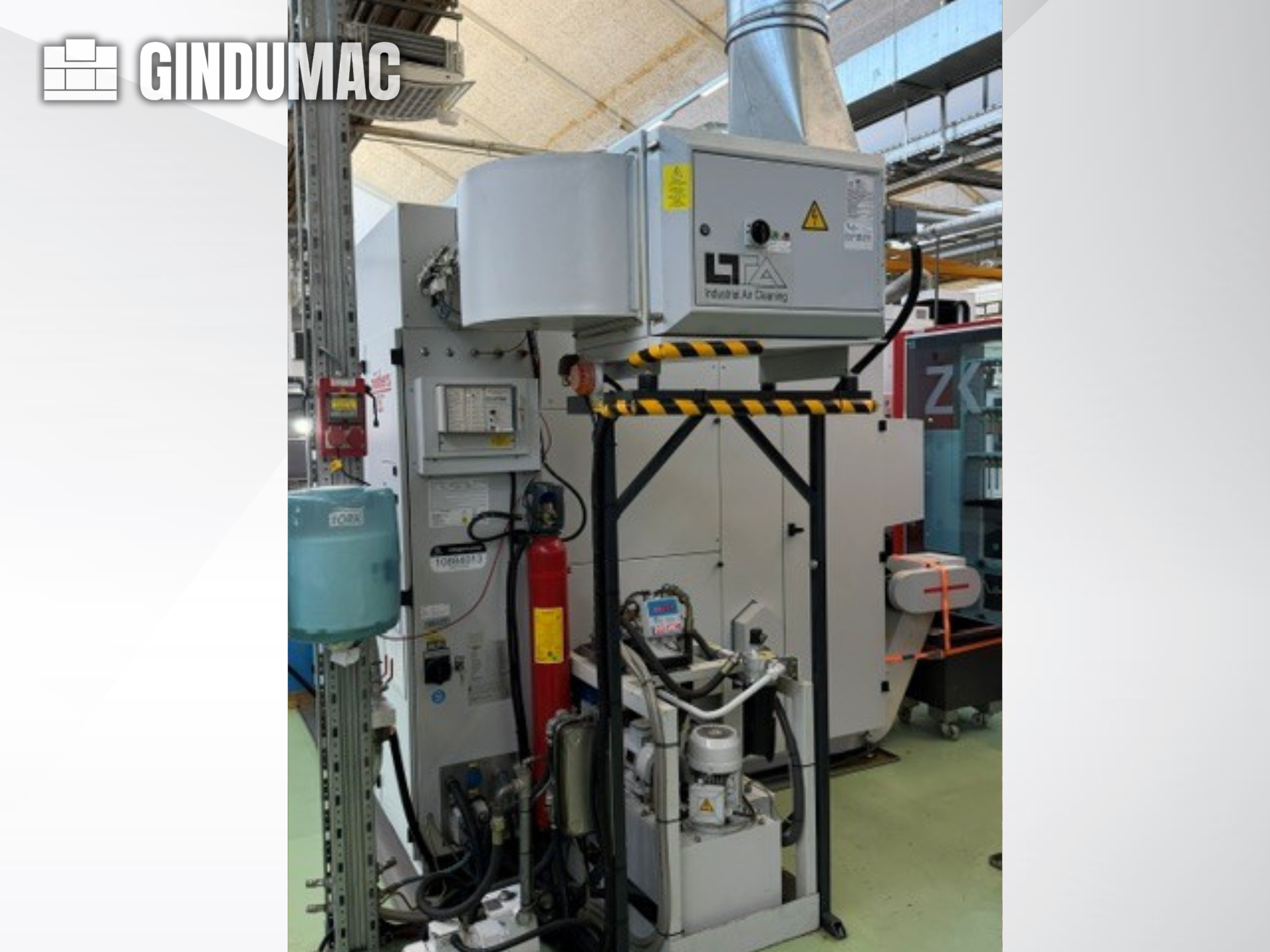

Listed equipment and features include a Renishaw OMP400 measuring probe, Heidenhain cycles, a Kraft&Bauer CO2 fire extinguishing system, an LTA industrial air-cleaning system and a Lahntechnik spindle cooling unit. A separate cooling cabinet with connected hoses and fittings is included in the described equipment. The machine is listed with a 400 V / 44 kVA electrical connection, maximum current consumption of 63 A, a maximum fuse rating of 63 A, and a compressed-air connection rated at 6.5 bar / 600 l/min. Weight is 9,500 kg. The oil filter system is not included.

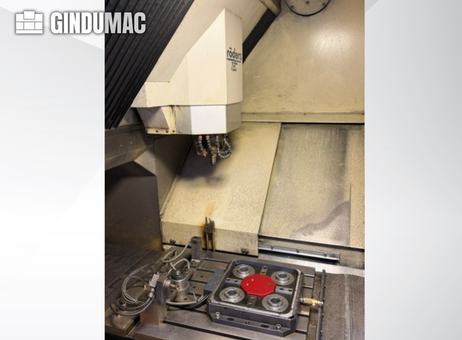

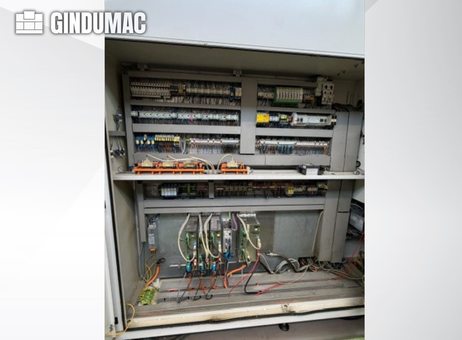

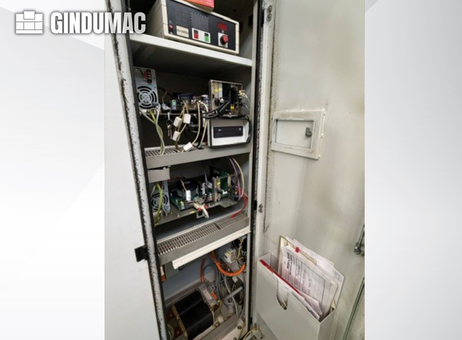

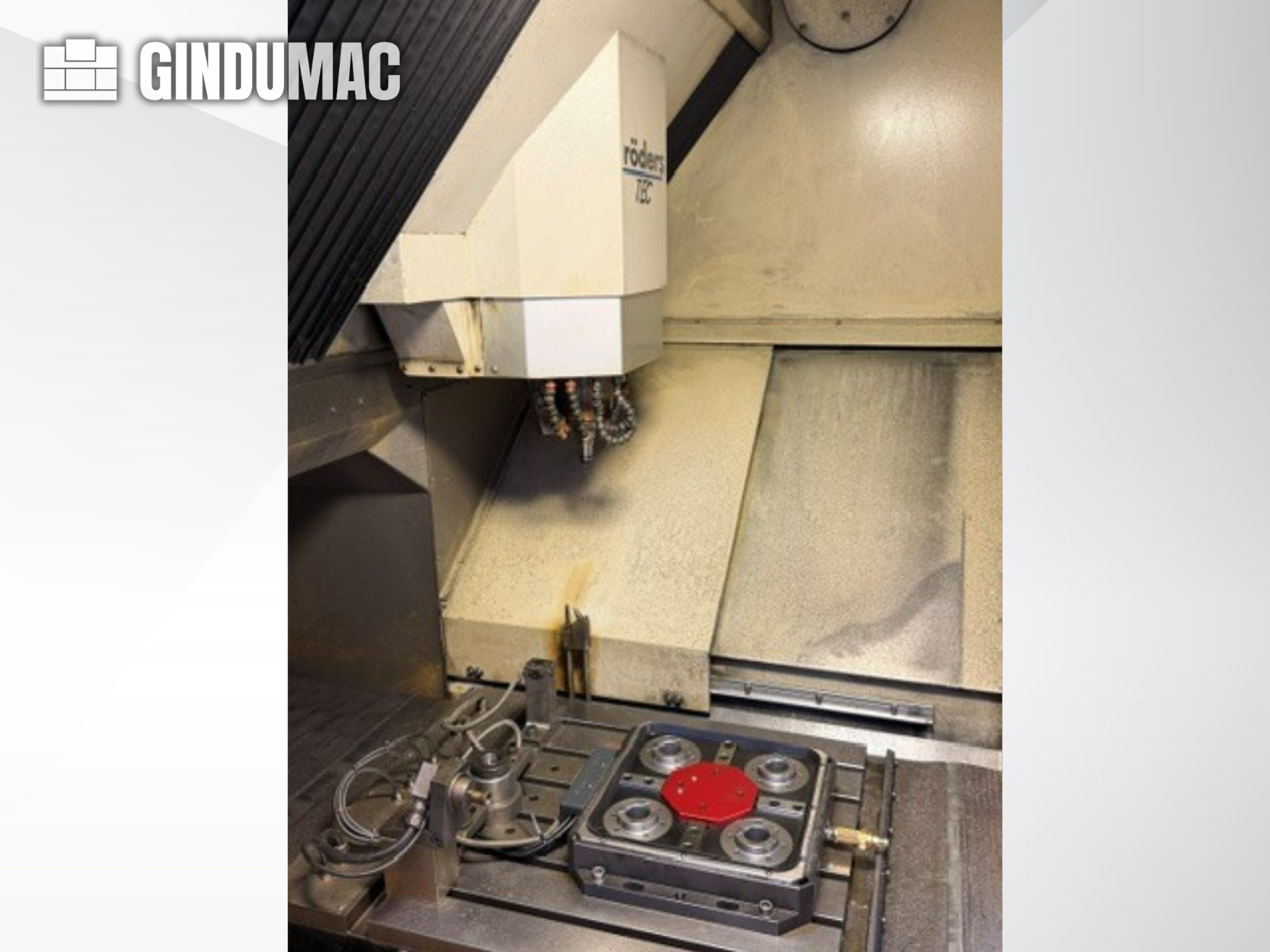

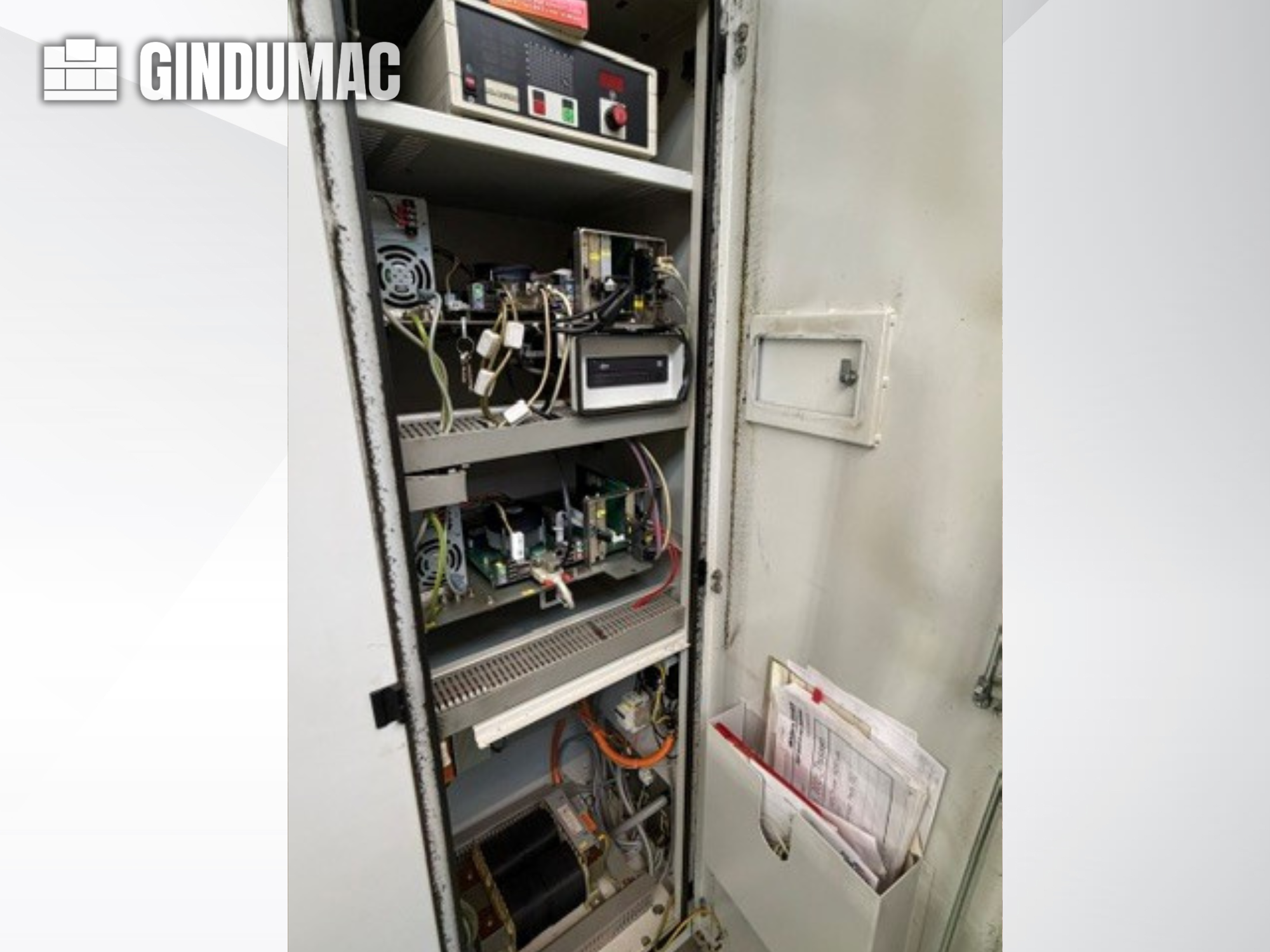

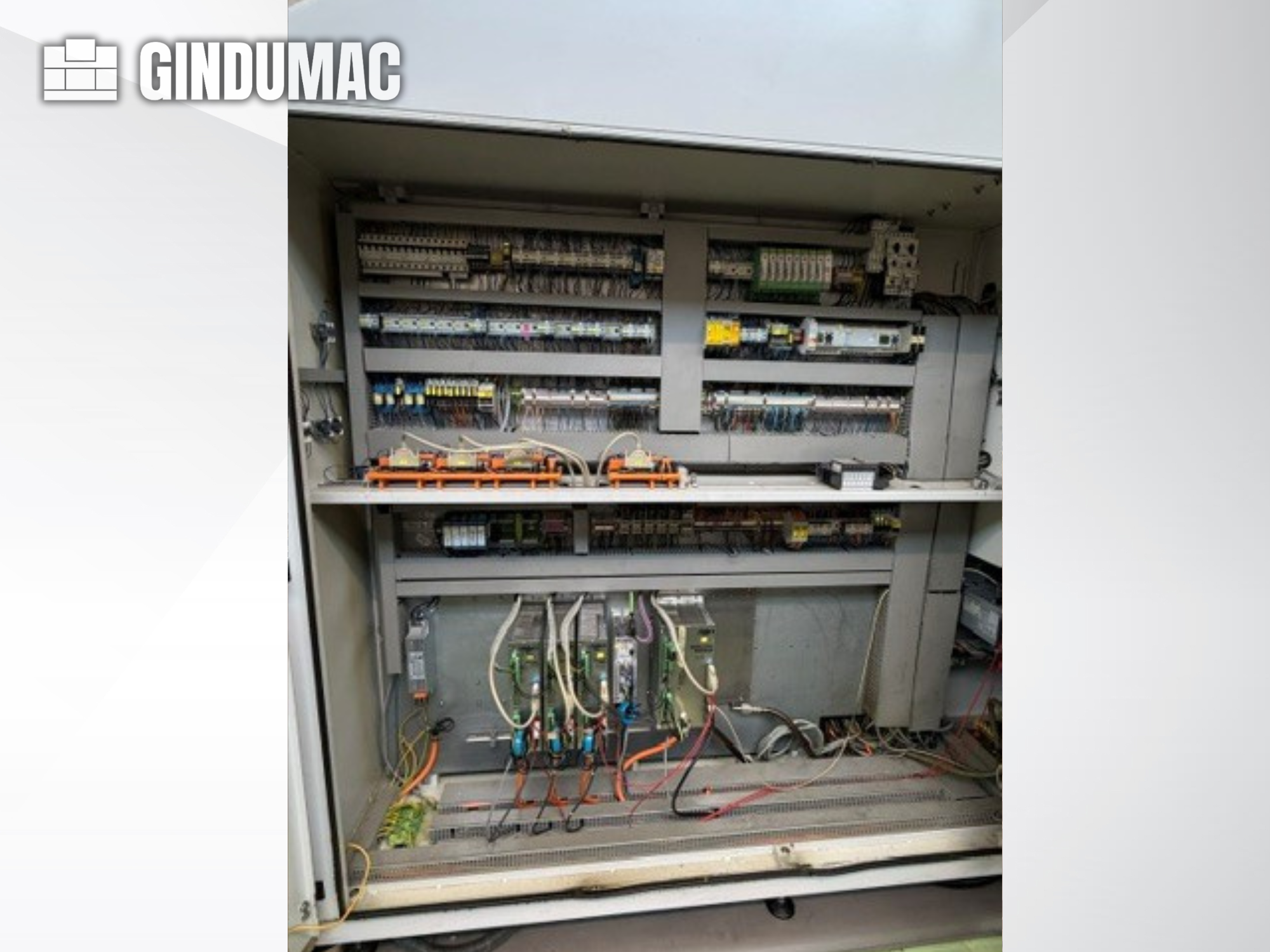

The work area has coolant nozzles beneath the spindle head and a fixture on the table. Visible surfaces inside the enclosure and the table show residue and discoloration. The electrical cabinet is open, with electronic components, wiring and cables exposed; this describes its observed state and does not establish operational condition.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
This 3-axis Röders TEC RHP 500 was manufactured in 2006. It features a high spindle speed of 42,000 rpm and a tool magazine capacity of 42 slots. The machine is equipped with hydrostatic X, Y & Z axes and includes a coordinate grinding package. If you are looking to get high-quality machining capabilities, consider the Röders TEC RHP 500 vertical machining centre we have for sale. Contact us for further details.- Measuring Probe: Renishaw OMP400
- Electrical Connection: 400 V / 44 kVA
- Current Consumption (Max): 63 A
- Max Fuse Rating: 63 A
- Compressed Air Connection: 6.5 bar / 600 l/min
- Weight: 9,500 kg
- Hydrostatic X, Y & Z axes, coordinate grinding package, Heidenhain cycles, Kraft&Bauer CO2 fire extinguishing system, LTA Industrial Air Cleaning system, Lahntechnik spindle cooling unit
- Without oil filter system
Machine Weight: 9500 kg
Number of Axes: 3
Spindle Speed: 42000 RPM
Taper Size: HSK 40
X-axis Travel: 500 mm
Y-axis Travel: 450 mm
Z-axis Travel: 300 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
