Contact us to receive an offer.
| Manufacturer | Rizzolio |
|---|---|
| Model | RLC1 |
| Year | |
| Location | Germany
|
| Category | Capping machines - cappers - crimping machines |
| Type of caps | crown caps |
| Max container Ø | 29 mm |
| Length x width x height | 410.0 × 410.0 × 1960.0 |
| Weight | 80 kg |
| worked hours | |
| hours under power | |
| state | as-is, where-is |
| At local norms | --------- |
| status | |
| Datasheet | Rizzolio RLC1 |
| Last availability date | 11/04/2026 |
| Product id | P260126181 |
| Language |
щанцоване Rizzolio RLC1
Vysekávací stroj Rizzolio RLC1
Rizzolio RLC1 Udstanser
Semi-Automatic Crown Corker
Κόφτης Rizzolio RLC1
Semi-Automatic Crown Corker - Rizzolio
Troqueladora Rizzolio RLC1
Presse de découpe Rizzolio RLC1
Izrezivač Rizzolio RLC1
Rizzolio RLC1 Vágószerszám
Fustellatrice Rizzolio RLC1
Štampas Rizzolio RLC1
Rizzolio RLC1 Stansmachine
Maszyna sztancująca Rizzolio RLC1
Cortador Rizzolio RLC1
Decupator Rizzolio RLC1
Rizzolio RLC1 Высекальная машина
Die-cutter Rizzolio RLC1
Rizzolio RLC1 Skärare
Kesim Rizzolio RLC1
|
The Rizzolio RLC1 is a semi-automatic vertical capping machine designed primarily for applying crown caps to glass bottles. It is suitable for crown caps with diameters of 26 mm or 29 mm, and an additional capping unit is provided if both sizes are required. The machine features a closure head made of hardened steel, ensuring wear resistance over time during the capping process. A stainless steel rail guides the crown caps into position, specifically shaped to accommodate 304 stainless steel crown caps. This rail holds a small number of caps, which must be manually loaded.
The capping process is initiated by pressing two buttons simultaneously, in compliance with EC safety standards. Once a bottle is positioned on the holder, the capping unit descends to apply the cap and then automatically returns to its starting position. The machine has a maximum container diameter capacity of 29 mm for the caps and can accommodate bottles up to 220 mm in diameter and 500 mm in height.

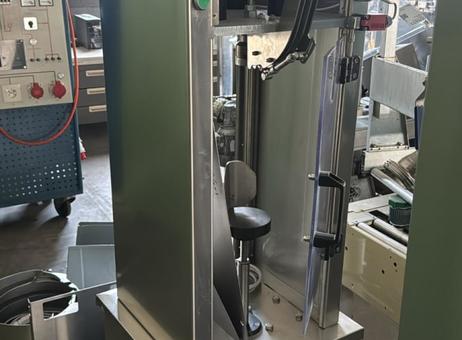

Constructed primarily from stainless steel, the RLC1 measures 410 mm in length, 410 mm in width, and 1960 mm in height, with an approximate weight of 80 kg. It includes a protective enclosure with a door featuring a handle and latch for safety and ease of access. Visible components include a black knob or handle on a vertical rod inside the machine, which may serve for height adjustment or operational control, and a green push button located on the side panel for machine operation. A pneumatic or hydraulic cylinder is also visible at the base inside the machine, likely part of the capping mechanism.

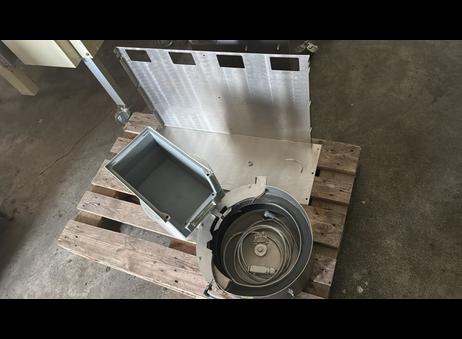

Additional parts such as a circular metal bowl with attached cables and a rectangular metal chute or hopper are included, currently disassembled and placed on a wooden pallet. These parts appear clean and undamaged. A flat metal panel with cutouts and mounting holes, possibly a machine cover or guard, is also present.
Overall, the Rizzolio RLC1 offers a robust and compact solution for semi-automatic capping of glass bottles with crown caps, combining stainless steel construction with essential safety features and operational components.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The RLC1 semi-automatic capping machine is suitable for packaging glass bottles with 26 or 29 mm crown caps.
The capping unit can be used on crown caps with a diameter of 26 or 29 mm.
If both diameters are required, an additional capping unit is supplied.
The closure head of the crown caps is made of hardened steel and is wear-resistant even over time.
The rail guides the crown caps into the correct position. The specific shape of the rail is designed specifically for the 304 stainless steel crown caps. It holds a small number of crown caps, which can be inserted manually.
The closing unit pulls the crown caps out of the rail and inserts them into the closing cone.
In accordance with EC standards, the closing process starts when two buttons are pressed simultaneously.
After positioning the bottle on the holder, the capping process begins, the capping unit descends onto the bottle and caps the bottle cap, and the capping unit automatically returns.
Dimensions: L 0.41 m H 1.96 m W 0.41 m
Weight approx. 80 kg
Weight with automatic funnel: 140 kg
Maximum bottle diameter 220 mm Usable height max. 500 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2018 |
| Offers online | 141 |
| Last activity | Oct. 29, 2026 |
The RLC1 semi-automatic capping machine is suitable for packaging glass bottles with 26 or 29 mm crown caps.
The capping unit can be used on crown caps with a diameter of 26 or 29 mm.
If both diameters are required, an additional capping unit is supplied.
The closure head of the crown caps is made of hardened steel and is wear-resistant even over time.
The rail guides the crown caps into the correct position. The specific shape of the rail is designed specifically for the 304 stainless steel crown caps. It holds a small number of crown caps, which can be inserted manually.
The closing unit pulls the crown caps out of the rail and inserts them into the closing cone.
In accordance with EC standards, the closing process starts when two buttons are pressed simultaneously.
After positioning the bottle on the holder, the capping process begins, the capping unit descends onto the bottle and caps the bottle cap, and the capping unit automatically returns.
Dimensions: L 0.41 m H 1.96 m W 0.41 m
Weight approx. 80 kg
Weight with automatic funnel: 140 kg
Maximum bottle diameter 220 mm Usable height max. 500 mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
