| Manufacturer | RIERGE |
|---|---|
| Model | SJN-5020 EXCEL |
| Year | 2015 |
| Location | Spain
|

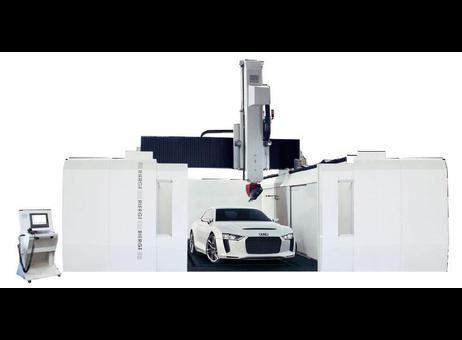

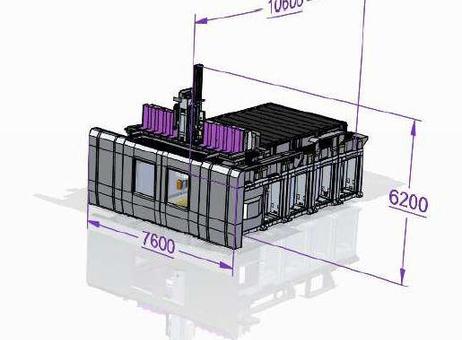

The RIERGE SJN-5020 EXCEL is a large portal/gantry milling machine manufactured in 2015, designed for heavy-duty machining tasks. It features a spacious working area with travel dimensions of 5,875 mm on the X axis, 3,170 mm on the Y axis, and 2,000 mm on the Z axis, allowing for the machining of large and complex components. The machine's overall dimensions are 10,600 mm in length, 7,600 mm in width, and 6,200 mm in height.

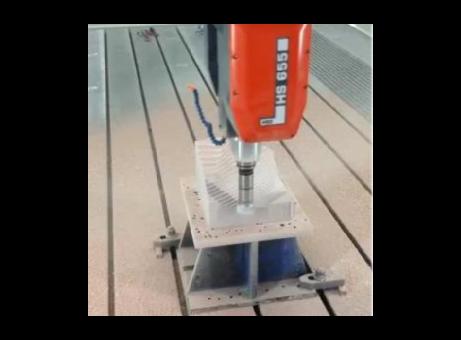

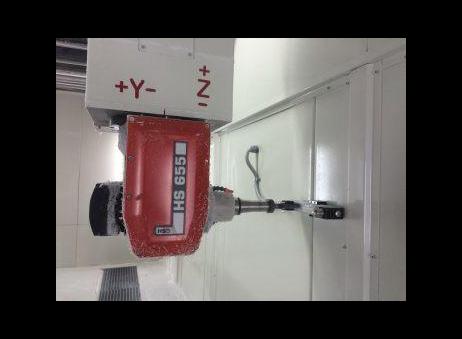

The milling machine is equipped with a vertical spindle head mounted on the gantry structure, with a maximum spindle speed of 24,000 rpm. The spindle uses an HSK-63f tool holder interface, providing high precision and rigidity. The spindle head is housed in a red casing labeled 'HS 655' and is mounted vertically with axis markings for accurate positioning.
The table measures 2,500 mm by 7,000 mm and is designed to support a maximum load of 15,000 kg, suitable for heavy and large workpieces. The table surface includes T-slots for secure clamping. The machine is capable of automatic 5-axis head turning, enhancing its versatility for complex machining operations.

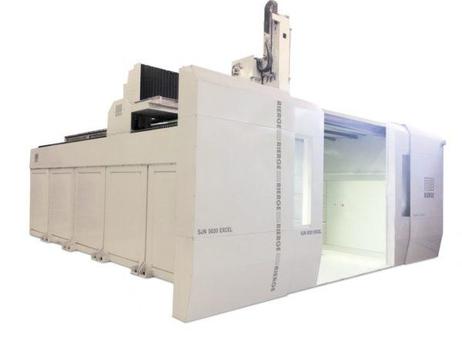

This CNC milling machine includes a tool changer capable of holding up to 30 tools, facilitating efficient machining with minimal manual intervention. The machine is housed within a closed enclosure with sliding door access, painted in a light color, mostly white or beige, which helps maintain a clean working environment.

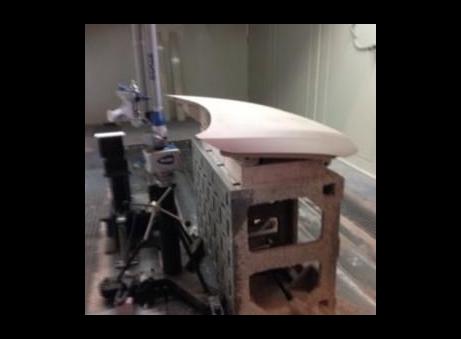

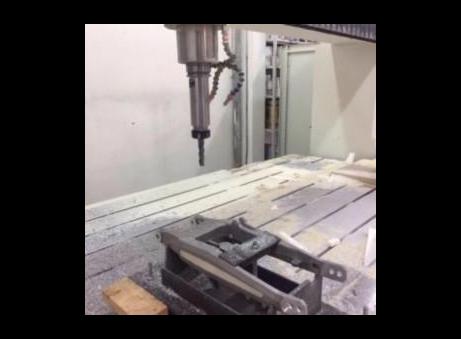

Additional features visible include a control panel mounted on a separate stand to the left of the machine, providing convenient operation and monitoring. The work area shows evidence of active machining, with fixtures, clamped workpieces, cutting fluid or coolant nozzles, and some machining debris present, indicating the machine is set up for production use. A measuring or probing device is also positioned near the workpiece, supporting precision machining tasks.
Overall, the RIERGE SJN-5020 EXCEL is a robust, versatile portal milling machine suitable for large-scale and precision machining applications, combining a large working envelope with advanced CNC capabilities and a well-equipped work area.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
X, Y, Z Mm 5,875 X 3,170 X 2,000
Cone Hsk-63f
Spindle Rpm Rpm 24,000
Head Turn Automatic 5 Axes
Table Dimensions Mm 2,500 X 7,000
Max Weight Admitted Kg 15,000
Tool Changer Up To 30 U.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
