Contact us to receive an offer.
| Manufacturer | Rayneri |
|---|---|
| Model | Trimix TXR 50 |
| Year | 1997 |
| Location | United Kingdom
|
| Category | Mixers - Liquid Mixers / Homogenizers |
| Volume capacity | 75 L |
| Mixing speed | 1500 rpm |
| Homogenizer | Yes |
| S/ steel type | 316 Grade |
| Length x width x height | 1230.0 × 860.0 × 2834.0 |
| Weight | 980 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 01/10/2026 |
| Product id | P61027102 |
| Language |
Rayneri Trimix TXR 50
Kapalinový mixér Rayneri Trimix TXR 50
Rayneri Trimix TXR 50
Rayneri Trimix TXR 50 Mischer für Flüssigkeiten
Rayneri Trimix TXR 50
Rayneri Trimix TXR 50 Liquid mixer
Mezcladora de líquido Rayneri Trimix TXR 50
Mélangeur liquide Rayneri Trimix TXR 50
Rayneri Trimix TXR 50
Rayneri Trimix TXR 50
Mescolatore per liquidi Rayneri Trimix TXR 50
Rayneri Trimix TXR 50
Rayneri Trimix TXR 50
Mieszalnik do cieczy / kremów Rayneri Trimix TXR 50
Rayneri Trimix TXR 50
Rayneri Trimix TXR 50
Rayneri Trimix TXR 50 Миксер для жидкости
Rayneri Trimix TXR 50
Rayneri Trimix TXR 50
Likit blender Rayneri Trimix TXR 50
|

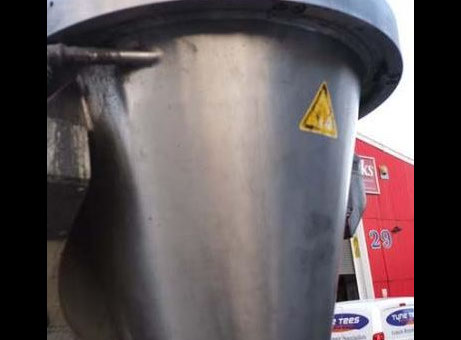

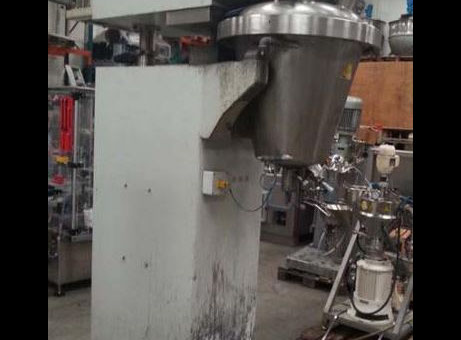

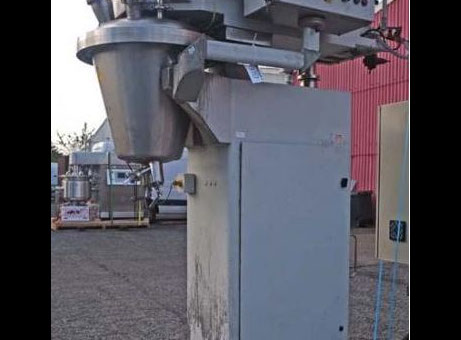

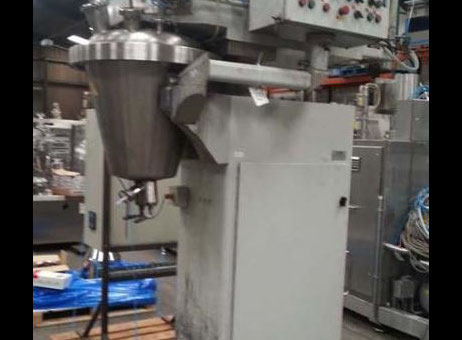

The Rayneri Trimix TXR 50 is a vertical industrial conical process and mixing vessel designed for handling liquid, semi-viscous, and paste-type viscous products. Constructed from 316-grade stainless steel, this machine offers a gross volume capacity of approximately 75 liters, with a nominal working capacity ranging between 50 and 60 liters. It is vacuum rated, enabling deaeration of the product during the mixing cycle to improve product quality.

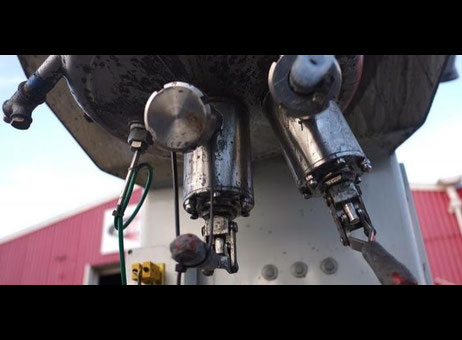

This mixer features multiple mixing elements, including a full-profile anchor-style scraped surface agitator powered by a 0.75 kW motor with a speed range of 6 to 29 rpm, central zone contra-rotating paddle blades also powered by a 0.75 kW motor with speeds from 20 to 103 rpm, and a central homogenizer motor delivering 0.75 kW at 1500 rpm for intensive mixing and homogenization.
The machine is equipped with a hydraulic system that facilitates raising and lowering of the vessel as well as discharge functions, enhancing operational convenience. The overall dimensions of the equipment are approximately 1230 mm in length, 860 mm in width, and 2834 mm in height, with an additional 600 mm height allowance for the raise function. The total weight of the unit is around 980 kg.

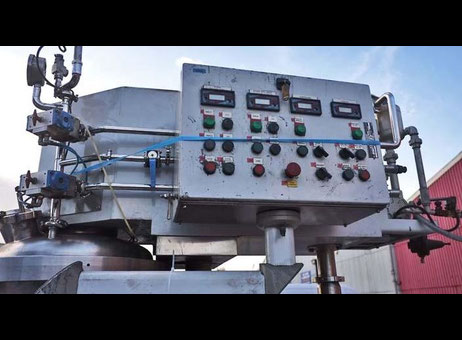

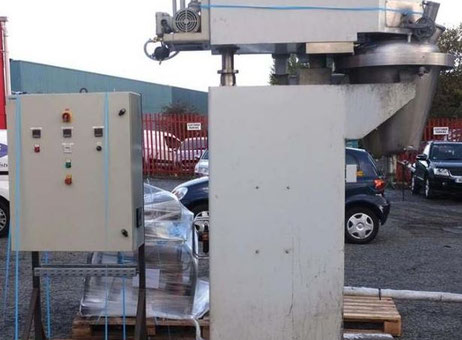

The mixer includes a control panel located on top, featuring multiple buttons, switches, and meters for operational control. A pressure gauge is mounted on the machine to monitor internal conditions. The stainless steel mixing bowl is fitted with various metal valves and piping connections to support processing requirements.
The machine shows signs of use, with visible dirt, grime, and wear marks particularly on the lower base and around metal fittings. Despite these cosmetic conditions, the structural components such as the stainless steel mixing bowl, control panel, and hydraulic system appear intact. The equipment is supplied as manufactured in 1997 by Rayneri, model Trimix TXR 50.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
RAYNERI ”TRIMIX TXR 50” conical process/mixing vessel for liquid, semi viscous and paste type viscous products, constructed in 316 grade stainless steel, supplied new in 1997. Vessel gross volume approx 75 litres, nominal working capacity 50-60 litres. The vessel is vacuum rated for deaeration of the product during the mixing cycle. The mixing elements are(A) full profile anchor style scraped surface 0.75kw, speed range 6-29 rpm; Central zone contra rotating paddle blades, 0.75kw,speed range 20-103 rpm, central homogeniser, 0.75kw, speed range1,500 rpm. The machine has a hydraulic system for raise/lower vessel and discharge functions. Approx overall dimensions are 1230 x 860 x 2834mm high (+600mm raise function). Weight: 980kg.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2013 |
| Offers online | 77 |
| Last activity | Oct. 30, 2026 |
RAYNERI ”TRIMIX TXR 50” conical process/mixing vessel for liquid, semi viscous and paste type viscous products, constructed in 316 grade stainless steel, supplied new in 1997. Vessel gross volume approx 75 litres, nominal working capacity 50-60 litres. The vessel is vacuum rated for deaeration of the product during the mixing cycle. The mixing elements are(A) full profile anchor style scraped surface 0.75kw, speed range 6-29 rpm; Central zone contra rotating paddle blades, 0.75kw,speed range 20-103 rpm, central homogeniser, 0.75kw, speed range1,500 rpm. The machine has a hydraulic system for raise/lower vessel and discharge functions. Approx overall dimensions are 1230 x 860 x 2834mm high (+600mm raise function). Weight: 980kg.
