Price on request
Make an offer| Power in tons | 315 T |
| Table length | 1600 mm |
| Table width | 1100 mm |
| Ram stroke | 100 mm |
| Nbr of strokes/min | 180 |
| ------------------- | |
| Length x width x height | 4900.0 × 1900.0 × 4900.0 |
| Weight | 55000 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 07/04/2026 |

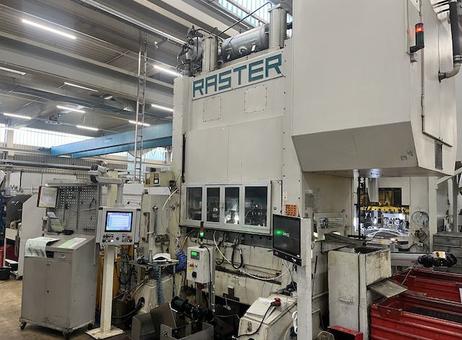

The RASTER ZEULENRODA HR 315 / 1600 - NL / RK is a robust mechanical press designed for high-capacity metal forming applications. It offers a press capacity of 315 tons (approximately 615 kN) and features an adjustable ram stroke ranging from 30 to 100 mm, with a slide adjustment of 100 mm. The shut height, measured with the stroke down and adjustment up, is 370 mm, allowing accommodation of various tooling requirements.
The machine is equipped with a spacious working area, including a table and slide surface measuring 1600 x 1100 mm, and a table hole sized 600 x 180 mm, suitable for handling large workpieces. It operates at a variable speed between 15 and 180 strokes per minute, providing flexibility to match production needs. The table height over the floor is 1200 mm, facilitating ergonomic operation.
Dimensions of the press are 4900 mm in length, 1900 mm in width, and 4900 mm in height, with an approximate weight of 55,000 kg. The required power input is 170 kW. Manufactured in 1997, the press was upgraded in 2015 to comply with CE standards and converted to a SIEMENS S7 control system, while the conveyor system retains a SIEMENS S5 control.
Additional equipment includes die lifters integrated into the table and a comprehensive automation feeding unit by KEMMERICH, which consists of a decoiler, levelling machine, roll feeder, and coil loading car. The machine setup indicates automated or semi-automated operation, supported by visible components such as multiple control panels with screens and buttons, safety light indicators, protective fencing, and an operator platform with safety railing.

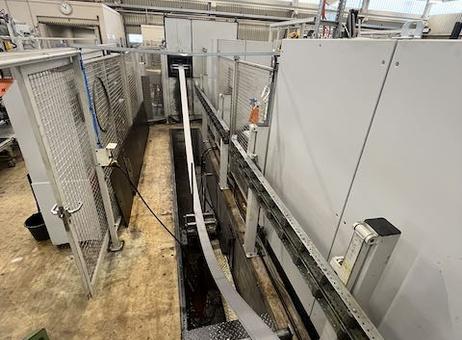

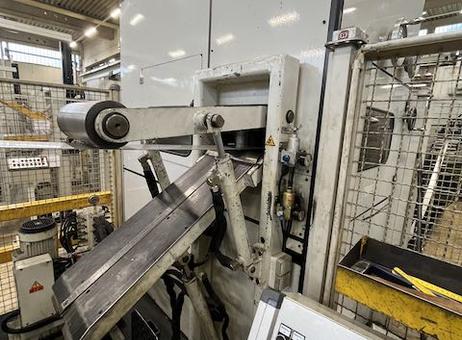

The press is connected with multiple electrical cables and hydraulic or pneumatic lines, and metal coils are fed into the machine through rollers. A long conveyor system with multiple rollers and safety fencing facilitates material handling. An exit chute or output conveyor is present for processed parts. The machine and surrounding area appear clean and well-maintained, with surfaces showing signs of use but appearing functional. This combination of features makes the RASTER ZEULENRODA HR 315 / 1600 - NL / RK a reliable and efficient choice for demanding industrial metalworking tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Press capacity 315 ton
Ram stroke adjustable 30 - 100 mm
Slide adjustment 100 mm
Shut height (stroke down, adjustment up) 370 mm
Table surface area 1600 x 1100 mm
Slide area 1600 x 1100 mm
Hole in table 600 x 180 mm
Number of strokes 15 - 180 s.p.m.
Table height over floor 1200 mm
Required power 170 kW
Height over floor approx. 4900 mm
Dimensions L x W x H 4900 x 1900 x 4900 mm
Weight of machine approx. 55 ton
Serial number
Construction year 1997
Standard features
The press was converted to CE standard in 2015.

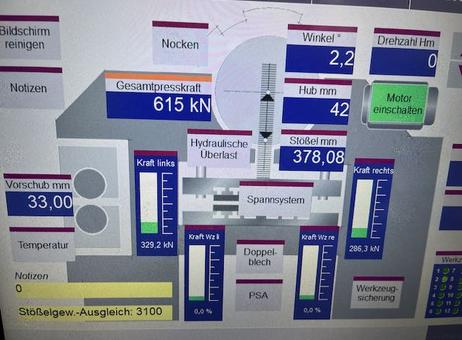

The press was converted to a SIEMENS S7 control system.
The conveyor system still has a SIEMENS S5 control system.
Additional equipment
Die lifters in the table
Automation

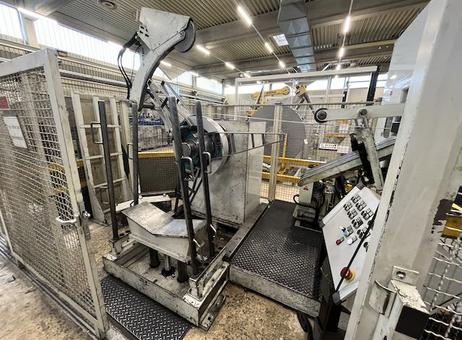

Feeding unit KEMMERICH consisting of
Decoiler
levelling machine

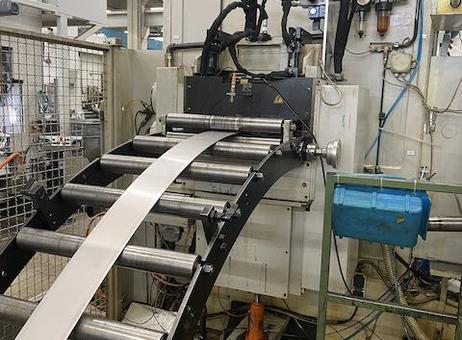

roll feeder
Coil loading car
this extra information is standard for this model. Please always double-check the details during a visit
The RASTER ZEULENRODA HR 315 / 1600 - NL / RK mechanical press is a robust and versatile machine, ideal for high-capacity metalworking applications. With a press capacity of 315 tons, it delivers substantial force for various forming processes. The ram stroke is adjustable from 30 to 100 mm, while the slide adjustment is 100 mm, allowing for precise customization according to the specific requirements of each job. The shut height, with the stroke down and adjustment up, is 370 mm.
The machine features a spacious table and slide area, both measuring 1600 x 1100 mm, with a hole in the table of 600 x 180 mm, facilitating large workpieces. It operates at speeds ranging from 15 to 180 strokes per minute, offering flexibility for different production rates. The table height over the floor is 1200 mm, ensuring comfortable accessibility for operators. The press requires a power input of 170 kW and stands approximately 4900 mm tall, with dimensions of 4900 x 1900 x 4900 mm. It has a substantial weight of around 55 tons.
Built in 1997, this press was upgraded to meet CE standards in 2015 and converted to a SIEMENS S7 control system, enhancing its operational efficiency and safety. The conveyor system retains a SIEMENS S5 control system. Additional equipment includes die lifters in the table and a comprehensive automation setup with a KEMMERICH feeding unit, which includes a decoiler, levelling machine, roll feeder, and coil loading car. These features make the RASTER ZEULENRODA HR 315 / 1600 - NL / RK mechanical press a highly reliable and efficient choice for demanding industrial applications.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
When was this RASTER ZEULENRODA HR 315 / 1600 - NL / RK manufactured?
This RASTER ZEULENRODA HR 315 / 1600 - NL / RK mechanical press was manufactured in 1997.
When was the control system of the machine last renewed?
This mechanical press has a control system that was completely renewed about 2 years ago, featuring a SIEMENS S7 control.
Is the machine still in production?
The machine is currently still in production.
What type of equipment is this?
This equipment is a metal construction press.
What is the operating speed of this press?
This press operates at a speed of 80 strokes per minute.
What is the capacity of this press?
This press has a capacity of 100 tons.
What is the working width of this press?
This press has a working width of 400 mm.
What material thickness can this press handle?
This press can handle a material thickness of 3 mm.
What is the stroke length of this press?
This press has a stroke length of 130 mm.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2007 |
| Offers online | 25 |
| Last activity | April 9, 2026 |
Press capacity 315 ton
Ram stroke adjustable 30 - 100 mm
Slide adjustment 100 mm
Shut height (stroke down, adjustment up) 370 mm
Table surface area 1600 x 1100 mm
Slide area 1600 x 1100 mm
Hole in table 600 x 180 mm
Number of strokes 15 - 180 s.p.m.
Table height over floor 1200 mm
Required power 170 kW
Height over floor approx. 4900 mm
Dimensions L x W x H 4900 x 1900 x 4900 mm
Weight of machine approx. 55 ton
Serial number
Construction year 1997
Standard features
The press was converted to CE standard in 2015.
The press was converted to a SIEMENS S7 control system.
The conveyor system still has a SIEMENS S5 control system.
Additional equipment
Die lifters in the table
Automation
Feeding unit KEMMERICH consisting of
Decoiler
levelling machine
roll feeder
Coil loading car
this extra information is standard for this model. Please always double-check the details during a visit
The RASTER ZEULENRODA HR 315 / 1600 - NL / RK mechanical press is a robust and versatile machine, ideal for high-capacity metalworking applications. With a press capacity of 315 tons, it delivers substantial force for various forming processes. The ram stroke is adjustable from 30 to 100 mm, while the slide adjustment is 100 mm, allowing for precise customization according to the specific requirements of each job. The shut height, with the stroke down and adjustment up, is 370 mm.
The machine features a spacious table and slide area, both measuring 1600 x 1100 mm, with a hole in the table of 600 x 180 mm, facilitating large workpieces. It operates at speeds ranging from 15 to 180 strokes per minute, offering flexibility for different production rates. The table height over the floor is 1200 mm, ensuring comfortable accessibility for operators. The press requires a power input of 170 kW and stands approximately 4900 mm tall, with dimensions of 4900 x 1900 x 4900 mm. It has a substantial weight of around 55 tons.
Built in 1997, this press was upgraded to meet CE standards in 2015 and converted to a SIEMENS S7 control system, enhancing its operational efficiency and safety. The conveyor system retains a SIEMENS S5 control system. Additional equipment includes die lifters in the table and a comprehensive automation setup with a KEMMERICH feeding unit, which includes a decoiler, levelling machine, roll feeder, and coil loading car. These features make the RASTER ZEULENRODA HR 315 / 1600 - NL / RK mechanical press a highly reliable and efficient choice for demanding industrial applications.
Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
When was this RASTER ZEULENRODA HR 315 / 1600 - NL / RK manufactured?
This RASTER ZEULENRODA HR 315 / 1600 - NL / RK mechanical press was manufactured in 1997.
When was the control system of the machine last renewed?
This mechanical press has a control system that was completely renewed about 2 years ago, featuring a SIEMENS S7 control.
Is the machine still in production?
The machine is currently still in production.
What type of equipment is this?
This equipment is a metal construction press.
What is the operating speed of this press?
This press operates at a speed of 80 strokes per minute.
What is the capacity of this press?
This press has a capacity of 100 tons.
What is the working width of this press?
This press has a working width of 400 mm.
What material thickness can this press handle?
This press can handle a material thickness of 3 mm.
What is the stroke length of this press?
This press has a stroke length of 130 mm.
The following questions and answers are generated using artificial intelligence based on the product information available. They are provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Power in tons | 315 T |
| Table length | 1600 mm |
| Table width | 1100 mm |
| Ram stroke | 100 mm |
| Nbr of strokes/min | 180 |
| ------------------- | |
| Length x width x height | 4900.0 × 1900.0 × 4900.0 |
| Weight | 55000 kg |
| worked hours | |
| hours under power | |
| state | good |
| At local norms | --------- |
| status | |
| Last availability date | 07/04/2026 |
The RASTER ZEULENRODA HR 315 / 1600 - NL / RK is a robust mechanical press designed for high-capacity metal forming applications. It offers a press capacity of 315 tons (approximately 615 kN) and features an adjustable ram stroke ranging from 30 to 100 mm, with a slide adjustment of 100 mm. The shut height, measured with the stroke down and adjustment up, is 370 mm, allowing accommodation of various tooling requirements.
The machine is equipped with a spacious working area, including a table and slide surface measuring 1600 x 1100 mm, and a table hole sized 600 x 180 mm, suitable for handling large workpieces. It operates at a variable speed between 15 and 180 strokes per minute, providing flexibility to match production needs. The table height over the floor is 1200 mm, facilitating ergonomic operation.
Dimensions of the press are 4900 mm in length, 1900 mm in width, and 4900 mm in height, with an approximate weight of 55,000 kg. The required power input is 170 kW. Manufactured in 1997, the press was upgraded in 2015 to comply with CE standards and converted to a SIEMENS S7 control system, while the conveyor system retains a SIEMENS S5 control.
Additional equipment includes die lifters integrated into the table and a comprehensive automation feeding unit by KEMMERICH, which consists of a decoiler, levelling machine, roll feeder, and coil loading car. The machine setup indicates automated or semi-automated operation, supported by visible components such as multiple control panels with screens and buttons, safety light indicators, protective fencing, and an operator platform with safety railing.
The press is connected with multiple electrical cables and hydraulic or pneumatic lines, and metal coils are fed into the machine through rollers. A long conveyor system with multiple rollers and safety fencing facilitates material handling. An exit chute or output conveyor is present for processed parts. The machine and surrounding area appear clean and well-maintained, with surfaces showing signs of use but appearing functional. This combination of features makes the RASTER ZEULENRODA HR 315 / 1600 - NL / RK a reliable and efficient choice for demanding industrial metalworking tasks.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2007 |
| Offers online | 25 |
| Last activity | April 9, 2026 |
