Contact us to receive an offer.
| Manufacturer | Quaser |
|---|---|
| Model | MV184E |
| Year | 2011 |
| Location | United Kingdom
|

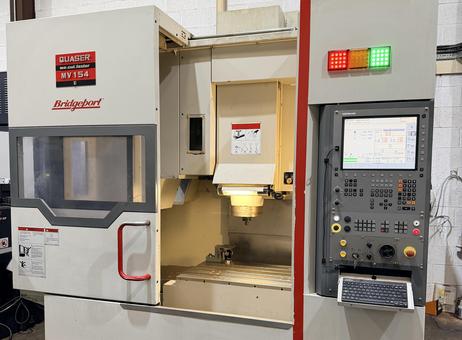

This Quaser MV184E vertical machining center, manufactured in 2011, is a robust machine designed for precision machining tasks. It features a Heidenhain TNC620 control system, providing reliable and user-friendly operation. The machine's external dimensions measure approximately 2465 mm in length, 2600 mm in width, and 3000 mm in height, with a total weight of 6400 kg.
The worktable size is 900 mm by 500 mm, supporting a maximum workpiece weight of 500 kg. The machine offers travel distances of 700 mm along the X-axis, 530 mm along the Y-axis, and 560 mm along the Z-axis. The spindle can reach speeds up to 12,000 rpm, powered by an 18.5 kW motor, suitable for a wide range of machining operations.
Tool handling is facilitated by a 30-station tool carousel, capable of accommodating tools up to 76 mm in diameter, or 125 mm with adjacent pockets empty. Maximum tool length is 280 mm, and tools can weigh up to 7 kg. Rapid feed rates are 32 m/min for X and Y axes and 24 m/min for the Z axis.

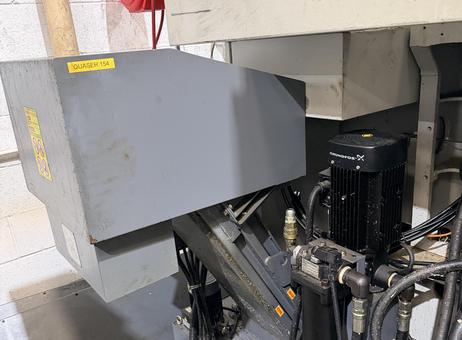

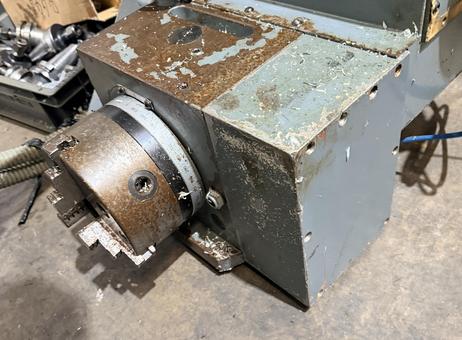

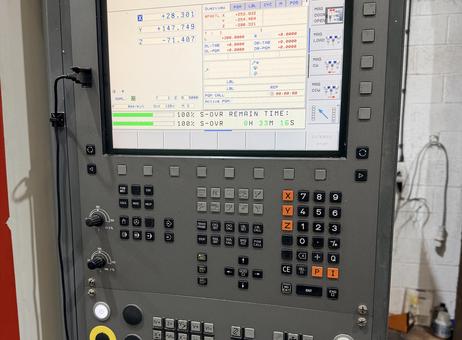

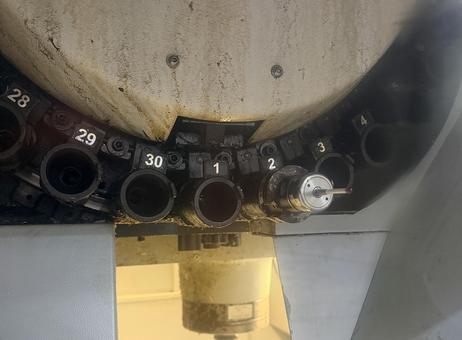

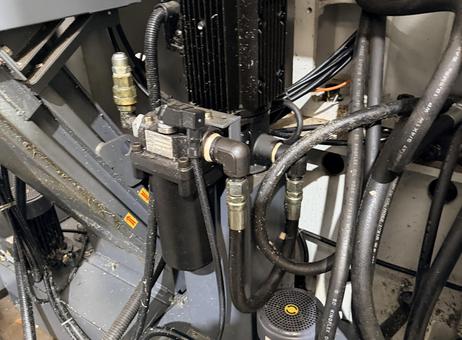

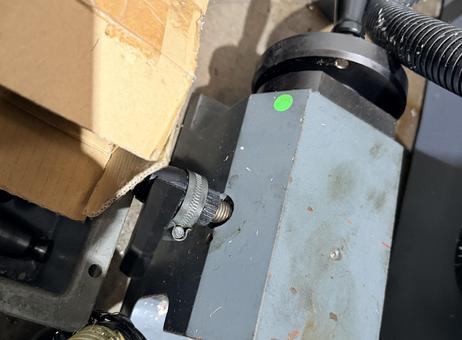

The machine includes a control panel with screen and keypad positioned on the right side for ease of use. The exterior is clean with minor signs of use, and safety warning labels are present on the door. The tool carousel shows some dirt and wear consistent with regular operation. Additional visible components include a hydraulic or coolant pump system with hoses and motor, which also shows signs of use with some dirt and oil residue. A rotary or indexing device with dial and handle is attached, exhibiting wear and usage marks. A chuck mounted on a metal base is present, showing signs of rust and wear, possibly part of a rotary axis or fixture.

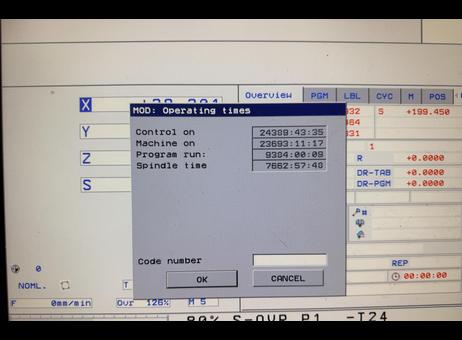

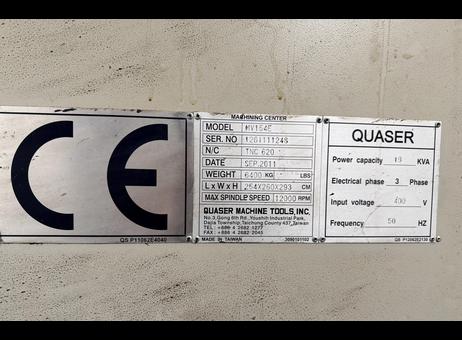

Operating time statistics displayed on the control screen indicate substantial use: control time of approximately 24,389 hours, machine time of about 23,693 hours, program run time of 9,384 hours, and spindle time nearing 7,663 hours. Electrical specifications include a power capacity of 19 KVA, 3-phase input voltage of 400 V, and frequency of 50 Hz.
This machining center is well-suited for various industrial applications requiring reliable vertical milling capabilities with a comprehensive tool handling system and precise control.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Control
Heidenhain TNC620
Machine Dimensions
2465 x 2600 x 3000mm
Machine Weight
6400kg
Maximum Tool Diameter
76mm
Maximum Tool Diameter with Empty Adjacent Pockets
125mm
Maximum Tool Length
280mm
Maximum Tool Weight
7kg
Maximum workpiece weight
500kg
Min - Max Height under Spindle
150 - 710mm
Rapid Feedrates
XYZ: 32 x 32 x 24m/minute
Spindle Motor Power
18.5kW
Spindle Speed
12000rpm
Table Size
900 x 500mm
Tool Change Capacity
30 Station
Traverses XYZ
700 x 530 x 560mm
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
