| Manufacturer | Quaser |
|---|---|
| Model | MV 204 II |
| Year | 2001 |
| Location | Germany
|

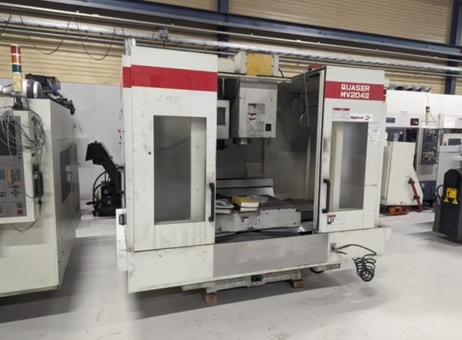

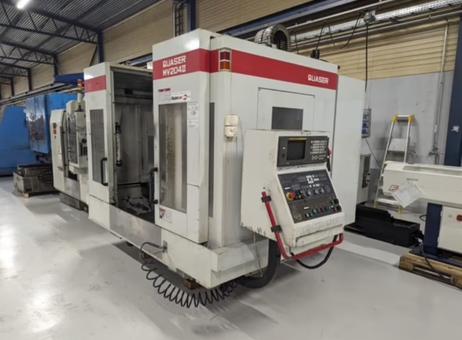

The Quaser MV 204 II is a vertical machining center designed for precision and versatility in metalworking applications. Manufactured in 2001, this machine features a robust construction with overall dimensions of 2200 mm in length, 2650 mm in width, and 2830 mm in height, and a total weight of 7500 kg.
The machine offers a substantial working envelope with X, Y, and Z travels of 1020 mm, 600 mm, and 560 mm respectively. It is equipped with a CNC control system, specifically the FANUC 18-M, which allows for precise and programmable machining operations. The tool changer is a 32-position double arm type, enabling efficient tool management and reduced downtime during machining cycles.
The spindle is powered by a 15 kW motor and can reach a maximum speed of 10,000 rpm, suitable for a wide range of machining tasks. The machine uses ISO 40 tool holders. The feed rate ranges from 1 to 20,000 mm/min, with rapid traverse speeds up to 32 m/min, facilitating fast and accurate positioning.
Additional features include an NC rotary axis with a chuck diameter of 250 mm and a center height of 160 mm, complemented by a tailstock for the rotary axis, enhancing the machine's capability to handle complex 4th axis machining. A chip conveyor is included for efficient removal of machining debris, along with high-pressure pumps to support coolant delivery.

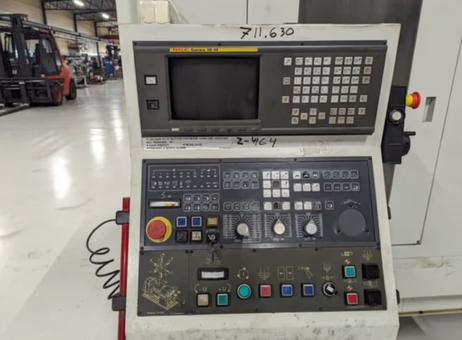

The machine is housed in a clean industrial environment and shows signs of regular maintenance. It includes a control panel with a screen and multiple buttons and knobs located on the right side, and doors with windows that allow visibility into the machining area. This setup supports operational convenience and monitoring.
Please note that all information is provided in good faith, but errors may occur. The machine is subject to prior sale, and prices are quoted net without VAT.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Vertical machining centre QUASER MV 204 II with 4th axis
Manufacturer : Quaser
Type : MV 204 II
Control : CNC control FANUC 18-M
Year of manufacture : 2001
Location : Warehouse Hultfred - Sweden
Technical data
X-travel :1020 mm
Y-travel :600 mm
Z-travel 560 mm
ATC: 32 positions double arm changer
max. spindle speed 10000 rpm
Spindle motor : max 15 kW
Tool holder : ISO 40
Feed rate 1-20000 mm/min
rapid traverse 32 m/min
Machine dimensions 2200x2650x2830 mm
weight 7500 kg
Further equipment :

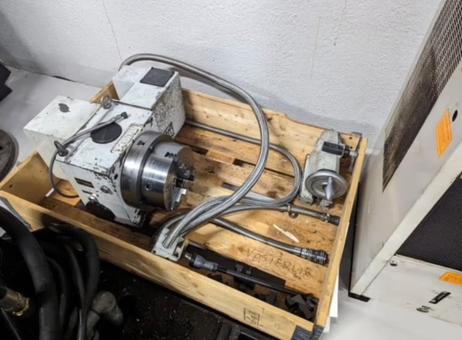

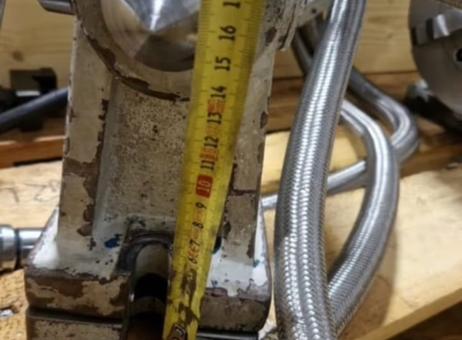

* NC rotary axis with chuck diameter 250 mm, centre height 160 mm
* Tailstock for rotary axis
* Chip conveyor

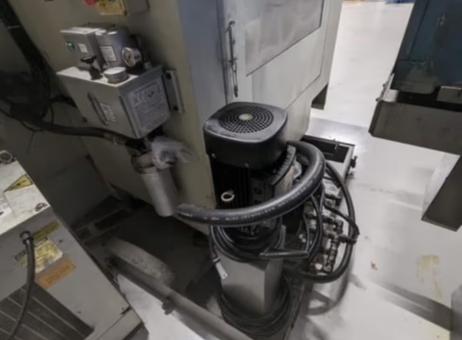

* High pressure pumps
All information is given in good faith but we reserve the right to make errors.
Subject to prior sale
All prices are net without VAT
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
