| Manufacturer | QIULIN |
|---|---|
| Model | BY624×14/20 |
| Year | |
| Location | Poland
|
Manufacturer: QIULIN
Model: BY624×14/20

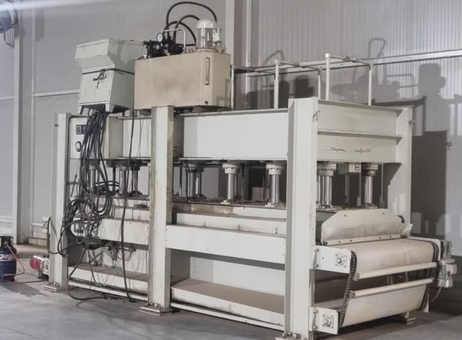

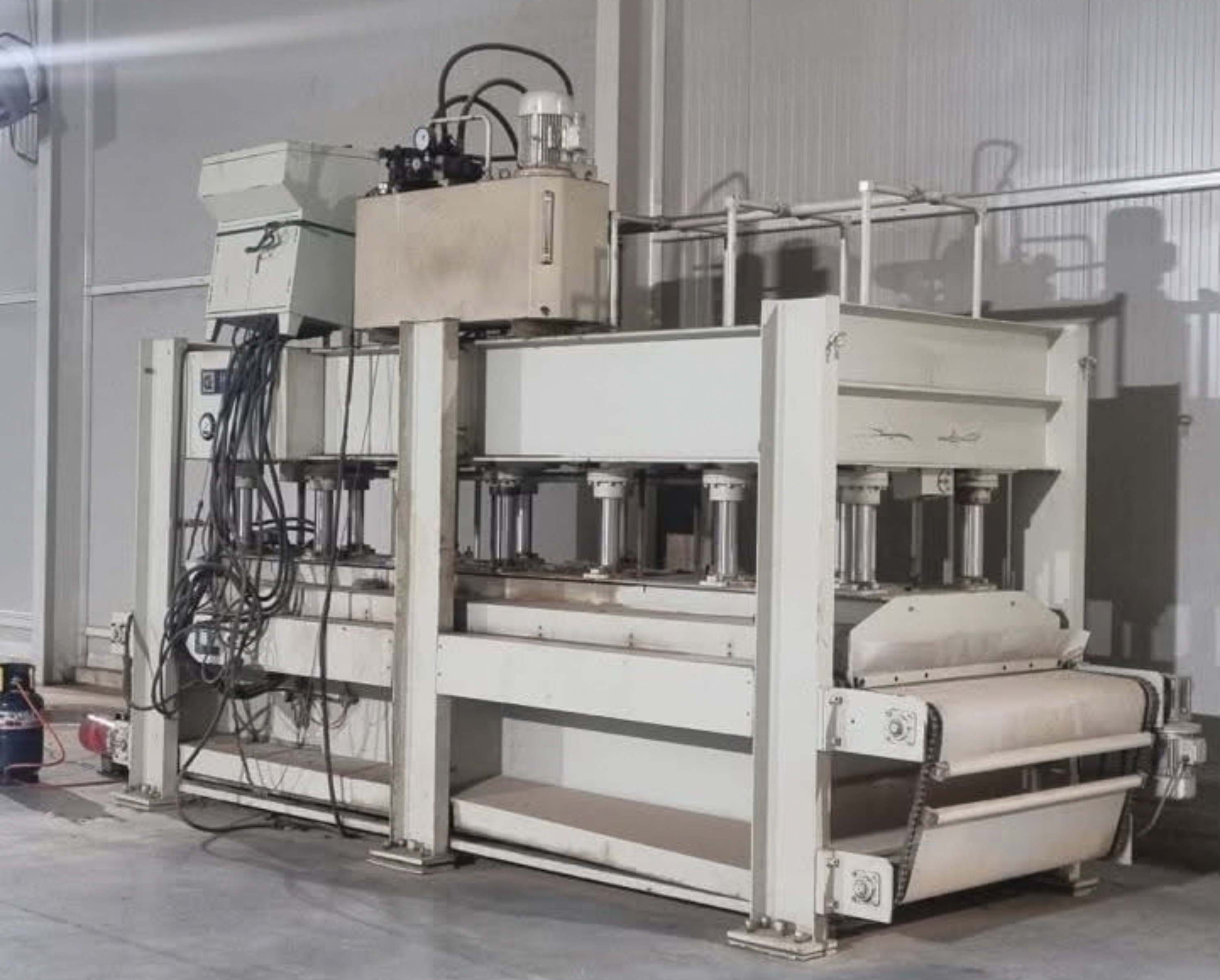

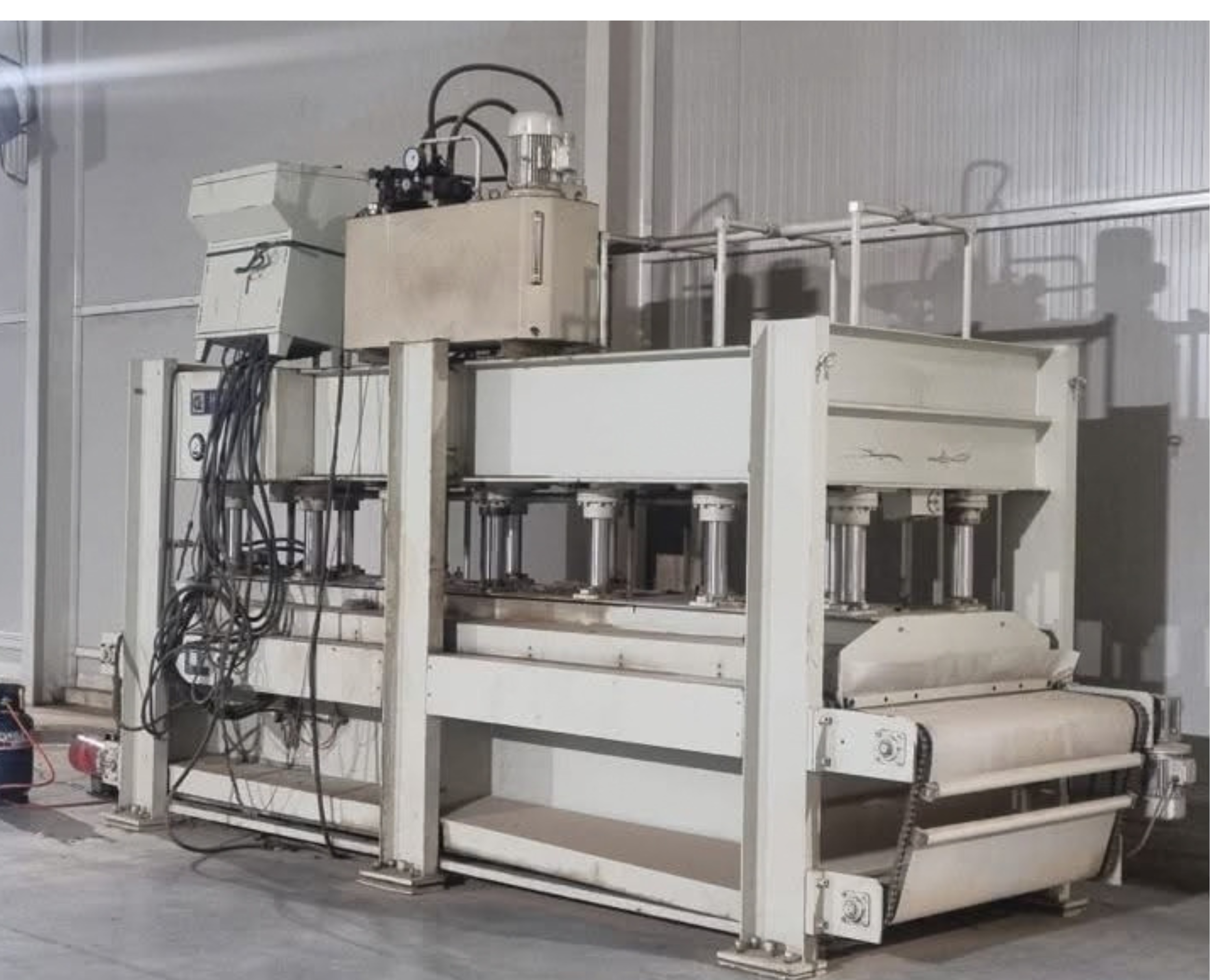

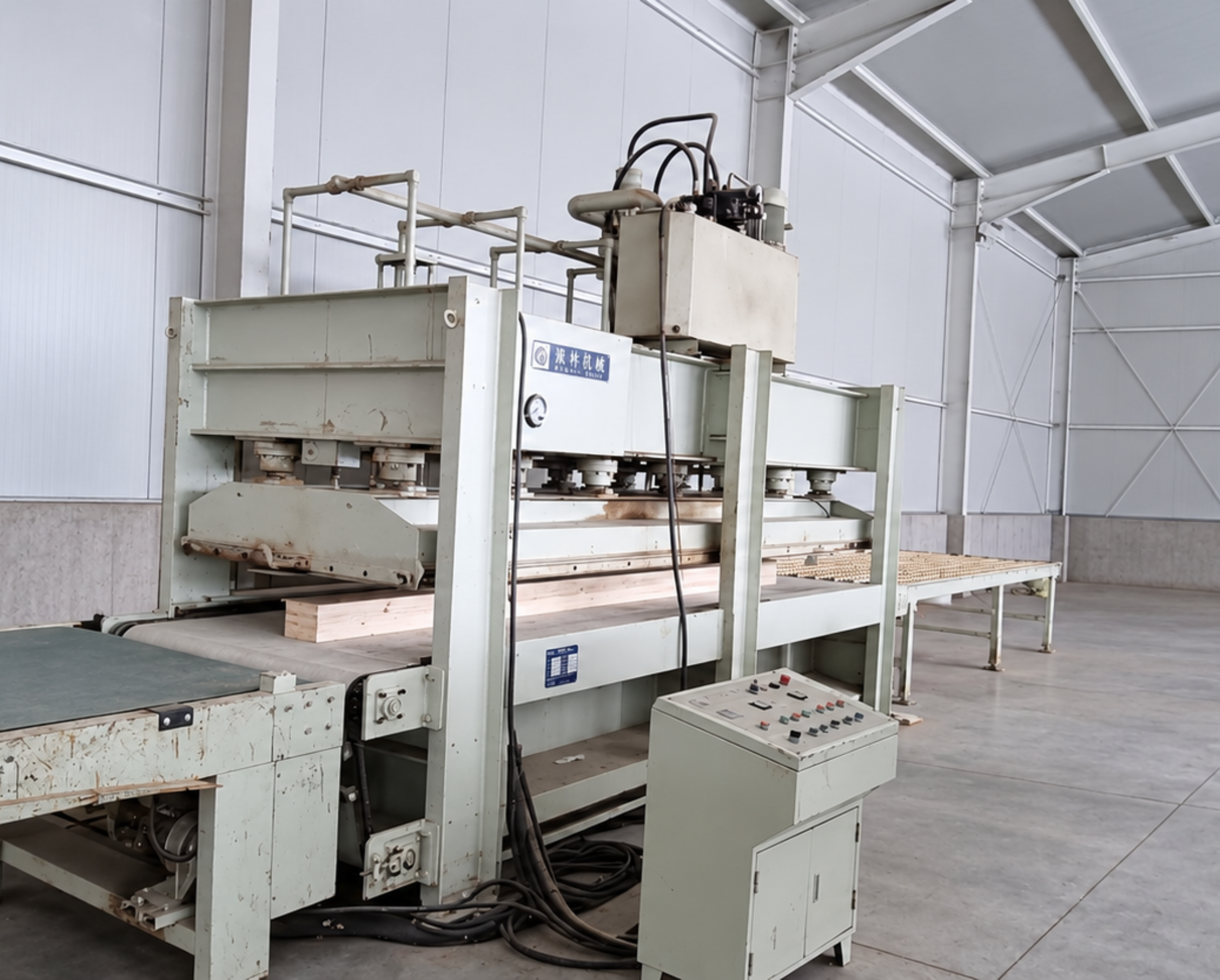

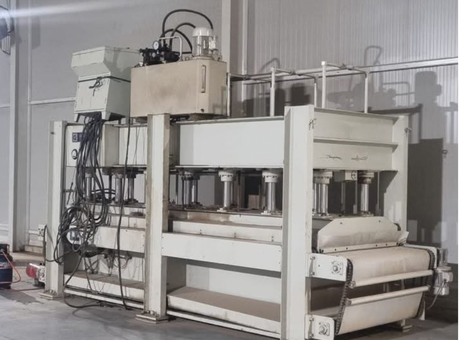

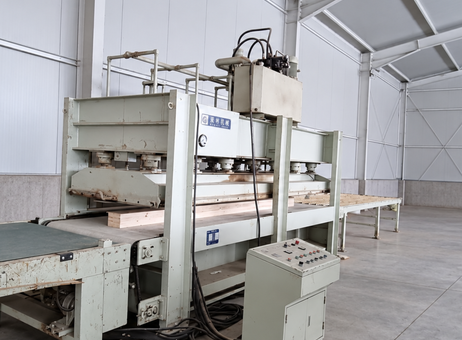

Type: Hydraulic hot press for pressing and gluing flat elements, veneering panels and production of furniture and door elements.
Overview:
This is a single‑shelf hydraulic hot press with two heated platens and separate temperature control for the upper and lower plate. Heating is electric via a thermal oil system. The machine is designed for semi‑automatic operation and features automatic plate opening.
Key technical data (from listing):
- Pressing force: 2000 kN (200 metric‑ton class)
- Number of work tables: 1
- Number of heating plates: 2
- Work plate dimensions: 4200 mm (length) × 1300 mm (width)
- Plate thickness: 52 mm
- Maximum press opening: 300 mm
- Unit pressure: 3.7 kgf/cm² (0.36 MPa)
- Operating temperature range: ambient up to 120°C
- Total installed power: 79.35 kW
- Platen closing speed: 50 mm/s
- Heating method: electric with thermal oil
- Separate temperature control for each platen
- Operation mode: semi‑automatic
Mechanical and layout data:
Overall unit dimensions listed: length 14,090 mm; width 2,600 mm; height 2,380 mm. Weight is listed at approximately 13,000 kg.
Included items and features (as listed):
- Solid frame construction
- Hydraulic cylinder assembly and hydraulic power unit
- Separate control panel
- Belt conveyor and tables for feeding and receiving material
Condition and status (as listed):
- Machine is used; described in the listing as “like new.”
- Current state listed as “under power.”
Logistics:
Transportation can be arranged for a fee (as stated in the listing).
Notes:
All information above is taken from the provided product description. No additional specifications or claims about testing, refurbishment, or warranty are provided beyond what is stated.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Manufacturer: QIULIN
Model: BY624×14/20
Country of manufacture: China
Type: Hydraulic hot press
Pressing force: 2000 kN (200 metric-ton class)
Number of work tables: 1
Number of heating plates: 2
Length of work plates: 4200 mm
Width of work plates: 1300 mm
Plate thickness: 52 mm
Maximum press opening: 300 mm
Unit pressure: 3.7 kgf/cm² (0.36 MPa)
Operating temperature: ambient to 120°C
Total installed power: 79.35 kW
Platen closing speed: 50 mm/s
Heating: Electric with thermal oil
Separate temperature control for both plates: Yes
Automatic plate opening: Yes
Operation: Semi-automatic
Equipment shown in photos: Solid frame construction; Hydraulic cylinder assembly; Hydraulic power unit; Separate control panel; Belt conveyor and table for feeding and receiving material
Dimensions (unit): Length 14,090 mm; Width 2,600 mm; Height 2,380 mm
Weight: approx. 13,000 kg
Condition: Used, like new
Current state: Under power
Transportation: Transportation can be arranged for a fee
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2024 |
| Offers online | 57 |
| Last activity | Oct. 20, 2026 |
Manufacturer: QIULIN
Model: BY624×14/20
Country of manufacture: China
Type: Hydraulic hot press
Pressing force: 2000 kN (200 metric-ton class)
Number of work tables: 1
Number of heating plates: 2
Length of work plates: 4200 mm
Width of work plates: 1300 mm
Plate thickness: 52 mm
Maximum press opening: 300 mm
Unit pressure: 3.7 kgf/cm² (0.36 MPa)
Operating temperature: ambient to 120°C
Total installed power: 79.35 kW
Platen closing speed: 50 mm/s
Heating: Electric with thermal oil
Separate temperature control for both plates: Yes
Automatic plate opening: Yes
Operation: Semi-automatic
Equipment shown in photos: Solid frame construction; Hydraulic cylinder assembly; Hydraulic power unit; Separate control panel; Belt conveyor and table for feeding and receiving material
Dimensions (unit): Length 14,090 mm; Width 2,600 mm; Height 2,380 mm
Weight: approx. 13,000 kg
Condition: Used, like new
Current state: Under power
Transportation: Transportation can be arranged for a fee
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
Manufacturer: QIULIN
Model: BY624×14/20
Type: Hydraulic hot press for pressing and gluing flat elements, veneering panels and production of furniture and door elements.
Overview:
This is a single‑shelf hydraulic hot press with two heated platens and separate temperature control for the upper and lower plate. Heating is electric via a thermal oil system. The machine is designed for semi‑automatic operation and features automatic plate opening.
Key technical data (from listing):
- Pressing force: 2000 kN (200 metric‑ton class)
- Number of work tables: 1
- Number of heating plates: 2
- Work plate dimensions: 4200 mm (length) × 1300 mm (width)
- Plate thickness: 52 mm
- Maximum press opening: 300 mm
- Unit pressure: 3.7 kgf/cm² (0.36 MPa)
- Operating temperature range: ambient up to 120°C
- Total installed power: 79.35 kW
- Platen closing speed: 50 mm/s
- Heating method: electric with thermal oil
- Separate temperature control for each platen
- Operation mode: semi‑automatic
Mechanical and layout data:
Overall unit dimensions listed: length 14,090 mm; width 2,600 mm; height 2,380 mm. Weight is listed at approximately 13,000 kg.
Included items and features (as listed):
- Solid frame construction
- Hydraulic cylinder assembly and hydraulic power unit
- Separate control panel
- Belt conveyor and tables for feeding and receiving material
Condition and status (as listed):
- Machine is used; described in the listing as “like new.”
- Current state listed as “under power.”
Logistics:
Transportation can be arranged for a fee (as stated in the listing).
Notes:
All information above is taken from the provided product description. No additional specifications or claims about testing, refurbishment, or warranty are provided beyond what is stated.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
| Client type | Machinery dealer |
| Active since | 2024 |
| Offers online | 57 |
| Last activity | Oct. 20, 2026 |
