| Manufacturer | Putsch Meniconi |
|---|---|
| Model | svp 145 plus |
| Year | 2018 |
| Location | Romania
|

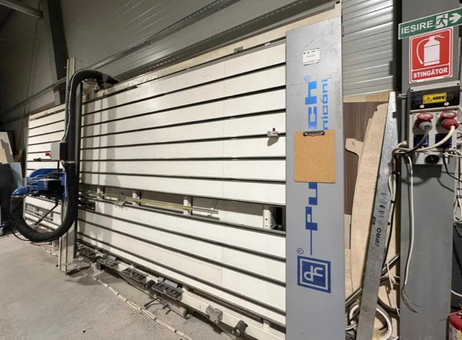

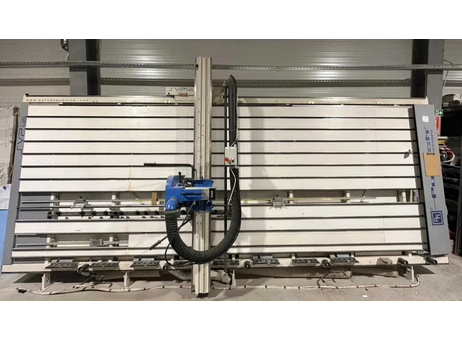

The Putsch Meniconi SVP 145 Plus is a vertical panel saw designed for precise and efficient cutting of various materials including wood, Forex, Alucobond®, Dibond®, sandwich panels, aluminum, and Plexiglas. Manufactured in 2018, this machine features a robust construction with overall dimensions of 5600 mm in length, 1500 mm in width, and 3000 mm in height, weighing approximately 500 kg.

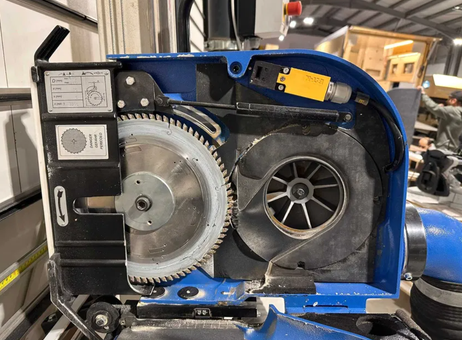

Key technical specifications include a maximum vertical cutting height of 2200 mm and a maximum cutting length of 4200 mm, allowing for versatile handling of large panels. The saw is equipped with a 250 mm diameter circular blade driven by a motor with an engine power of about 3.73 kW (approximately 5 HP), operating at a blade speed of 5300 rpm. Additionally, it includes a scoring unit with a blade diameter of 70 mm, which enhances cutting quality by minimizing material splintering.

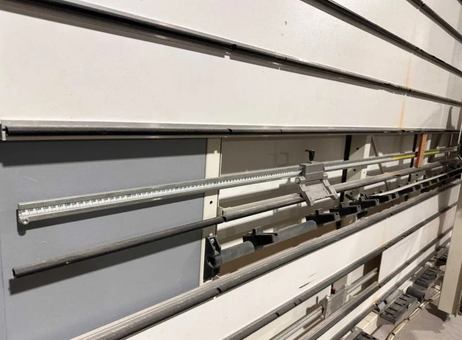

The machine's design incorporates multiple clamps and measuring rails to secure and accurately position the material during cutting. The control panel is situated on the right side of the machine, and the saw unit is mounted on a vertical rail to facilitate smooth vertical movement. A flexible black dust extraction hose is attached to the saw unit, aiding in dust management during operation.

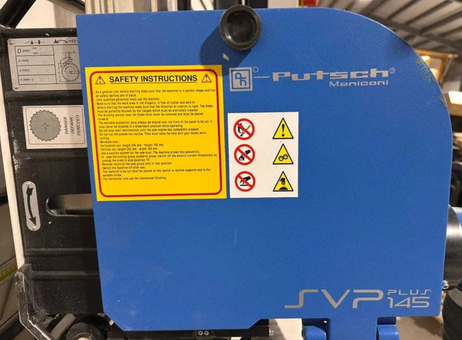

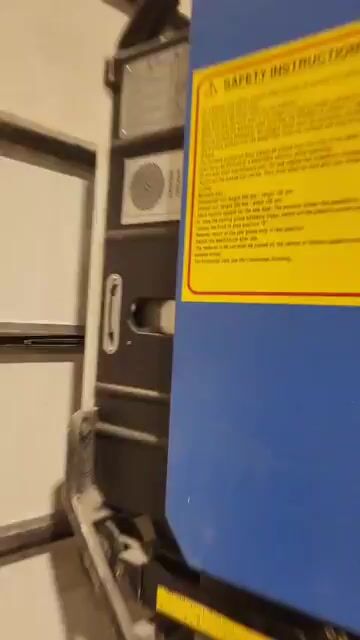

Condition-wise, the machine shows signs of use with some dirt, dust accumulation, and minor rust spots visible on the lower parts and metal components, which is typical for equipment used regularly in an industrial environment. The saw blade itself appears clean and in good condition without visible damage. Safety instructions and warning labels are clearly displayed on the blue saw unit housing, emphasizing safe operation.
This panel saw is suitable for workshops requiring precise vertical cutting capabilities with a reliable and sturdy machine. The presence of detailed measuring scales and adjustable sliding clamps further supports accurate and repeatable cuts. Overall, the Putsch Meniconi SVP 145 Plus offers a solid solution for professional panel cutting needs.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Brand: Putsch meniconi
Model: svp 145 plus
Year of production 2018
Wear - maximum 2 hours per day
Description:
It is very solid and precise and guarantees wonderful performance. Unique technical details for easy installation and cutting.
Applications: Wood - Forex - Alucobond ® - Dibond ® - Sandwich - Aluminum - Plexiglas
Technical details:
* Max. vertical cutting height mm. 2200
* Max. cut length mm. 4200
* Max. cut depth mm. 60
* Motor power 5 HP
* Blade diameter mm. 250
* Blade rpm 5300
* Diameter of scoring unit mm. 70
o Overall dimensions mm. 5600 x 1500 x 3000h
o Weight kg. 500
