Contact us to receive an offer.
| Manufacturer | PURE5™ Extraction |
|---|---|
| Model | 20L LPE Extraction System |
| Year | 2021 |
| Location | Bulgaria
|
The PURE5™ 20L LPE Extraction System, manufactured in 2021, is a stainless steel industrial cannabis extraction machine designed for efficient, safe, and high-quality processing. This system features two 10-liter extraction vessels, each capable of holding 2-4 pounds of dry material, allowing for substantial daily processing capacity. It operates at a maximum pressure of 16 bar and a maximum temperature of 60°C (140°F), with vessels constructed from polished 304 stainless steel for food-grade quality. The vessels are equipped with ASME flanges and TFE flat seals to ensure secure closures.
The system includes a horizontal solvent receiver with a maximum pressure of 10 bar and a solvent capacity of up to 32 kg. A jacketed separator/collection vessel with a 10-liter volume supports continuous or batch gravitational flow paths, operating safely up to 10 bar and 60°C. All vessels feature spring-loaded safety relief valves for pressure protection.
A heat exchanger built as a refrigeration unit uses environmentally friendly R134a refrigerant for efficient cooling and heating. The integrated chiller/receiver operates between -10°C and 50°C, with a refrigerant content capacity of 2 kg.
Electrical specifications include a 230V supply with 4 kW power consumption and a 4-way 50A outlet plug. The control system offers a fully automatic programmable logic controller (PLC) with a touchscreen interface, allowing user-programmable pressure, temperature, and time settings. Pressure transducers monitor system pressure and provide safety shutdown functions to prevent over-pressurization.
Physically, the machine measures 1420 mm in length, 780 mm in width, and 1550 mm in height, weighing approximately 550 kg. The stainless steel construction ensures durability. The unit is mounted on four red caster wheels, providing mobility within your facility.

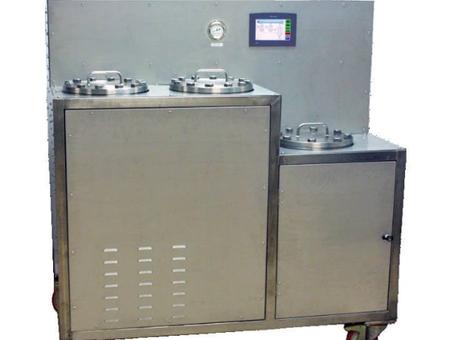

On top of the system are three circular lids—two larger ones on the left and a smaller one on the right—along with a pressure gauge above the larger lids and a touchscreen control panel on the upper right side, facilitating operational monitoring and control.
This advanced extraction system is suitable for operators seeking a compact, efficient, and precise solution for cannabis extraction processes.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
The refurbished 20L LPE Extraction System is a cutting-edge cannabis extractor that combines low cost, efficiency, safety, and product quality. Crafted from premium stainless steel, this state-of-the-art system features 2x10L extraction vessels, providing the capacity to process a substantial amount of dry material each day. Refurbished to meet the highest standards, this system is equipped with advanced safety features like spring-loaded relief valves and pressure transducers, allowing you to operate with confidence. The integrated temperature and pressure sensors offer precise control, resulting in exceptional potency and flavor profiles for strain-specific extracts.
Upgrade your extraction capabilities today with the refurbished 20L LPE Extraction System, unlocking exceptional capacity, precise control, and eco-friendly operation. With this advanced cannabis extractor, you can produce high-quality, potent extracts that will elevate your customer experience. Embrace the power of innovation and take your extraction endeavors to new heights with outstanding results.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery manufacturer |
| Active since | 2024 |
| Offers online | 6 |
| Last activity | March 21, 2026 |
The refurbished 20L LPE Extraction System is a cutting-edge cannabis extractor that combines low cost, efficiency, safety, and product quality. Crafted from premium stainless steel, this state-of-the-art system features 2x10L extraction vessels, providing the capacity to process a substantial amount of dry material each day. Refurbished to meet the highest standards, this system is equipped with advanced safety features like spring-loaded relief valves and pressure transducers, allowing you to operate with confidence. The integrated temperature and pressure sensors offer precise control, resulting in exceptional potency and flavor profiles for strain-specific extracts.
Upgrade your extraction capabilities today with the refurbished 20L LPE Extraction System, unlocking exceptional capacity, precise control, and eco-friendly operation. With this advanced cannabis extractor, you can produce high-quality, potent extracts that will elevate your customer experience. Embrace the power of innovation and take your extraction endeavors to new heights with outstanding results.
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
The PURE5™ 20L LPE Extraction System, manufactured in 2021, is a stainless steel industrial cannabis extraction machine designed for efficient, safe, and high-quality processing. This system features two 10-liter extraction vessels, each capable of holding 2-4 pounds of dry material, allowing for substantial daily processing capacity. It operates at a maximum pressure of 16 bar and a maximum temperature of 60°C (140°F), with vessels constructed from polished 304 stainless steel for food-grade quality. The vessels are equipped with ASME flanges and TFE flat seals to ensure secure closures.
The system includes a horizontal solvent receiver with a maximum pressure of 10 bar and a solvent capacity of up to 32 kg. A jacketed separator/collection vessel with a 10-liter volume supports continuous or batch gravitational flow paths, operating safely up to 10 bar and 60°C. All vessels feature spring-loaded safety relief valves for pressure protection.
A heat exchanger built as a refrigeration unit uses environmentally friendly R134a refrigerant for efficient cooling and heating. The integrated chiller/receiver operates between -10°C and 50°C, with a refrigerant content capacity of 2 kg.
Electrical specifications include a 230V supply with 4 kW power consumption and a 4-way 50A outlet plug. The control system offers a fully automatic programmable logic controller (PLC) with a touchscreen interface, allowing user-programmable pressure, temperature, and time settings. Pressure transducers monitor system pressure and provide safety shutdown functions to prevent over-pressurization.
Physically, the machine measures 1420 mm in length, 780 mm in width, and 1550 mm in height, weighing approximately 550 kg. The stainless steel construction ensures durability. The unit is mounted on four red caster wheels, providing mobility within your facility.
On top of the system are three circular lids—two larger ones on the left and a smaller one on the right—along with a pressure gauge above the larger lids and a touchscreen control panel on the upper right side, facilitating operational monitoring and control.
This advanced extraction system is suitable for operators seeking a compact, efficient, and precise solution for cannabis extraction processes.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
