Manufacturer: PROMAL
Model: PROMAL
Overview:

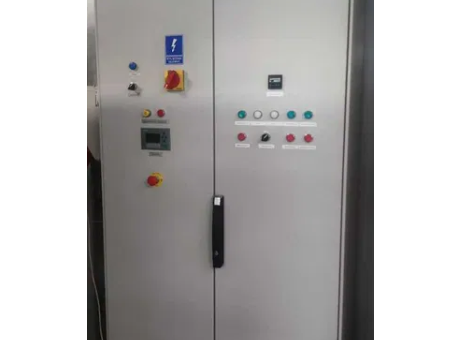

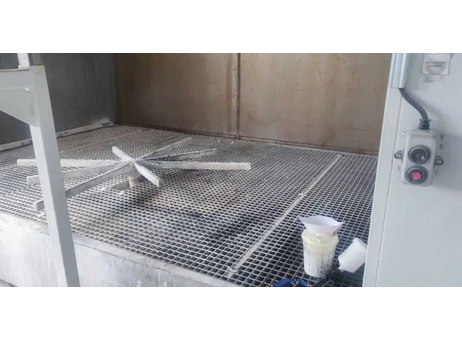

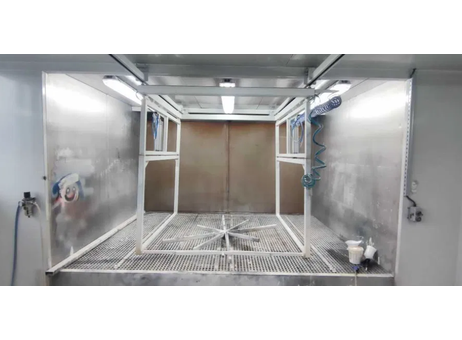

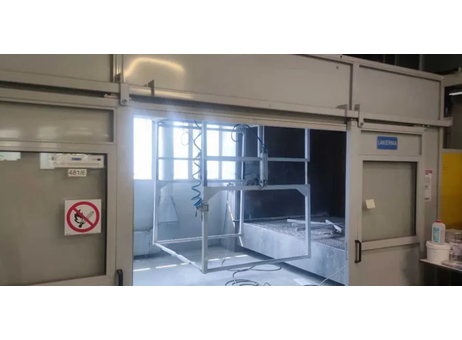

Paint booth with a water wall exhaust system suitable for single-workstation use. The booth is specified to accept parts up to 2500 x 1400 x 700 mm (L x W x H). The unit includes monitoring and measuring equipment and an electrical control panel.
Working chamber and access:

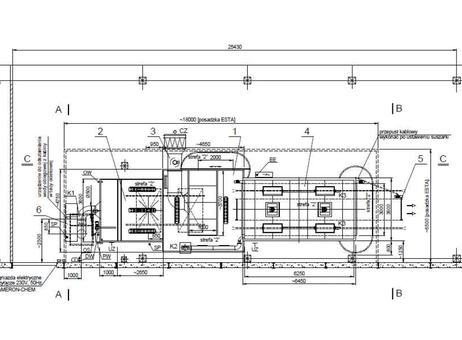

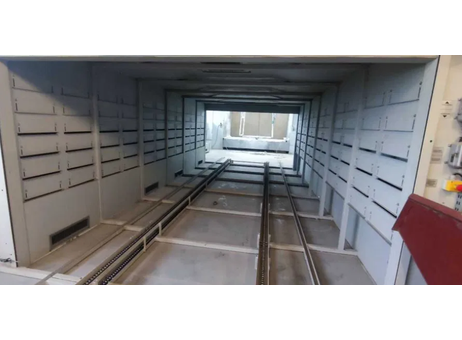

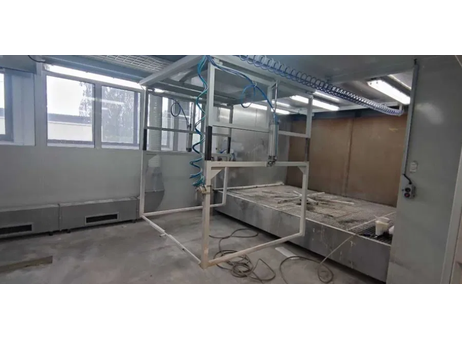

- Working chamber internal dimensions: 6250 mm (L) x 3000 mm (W) x 1750 mm (H).

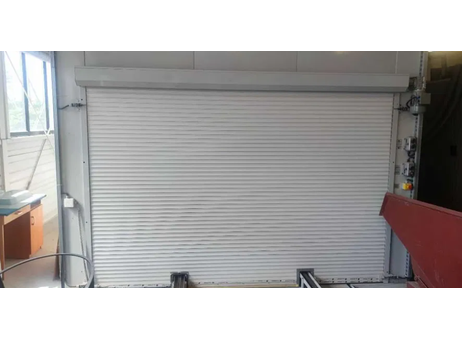

- Working chamber closure type: door.

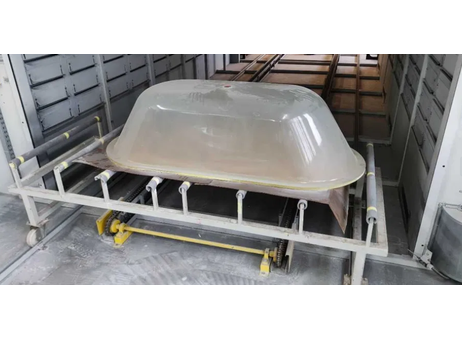

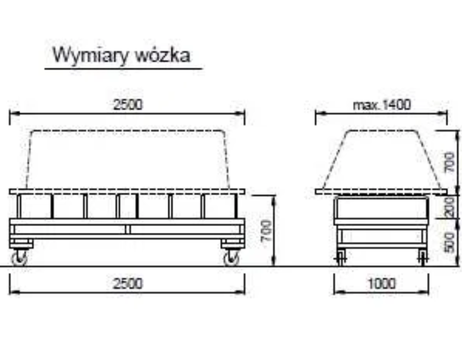

- Maximum part dimensions that can be painted: 2500 x 1400 x 700 mm (L x W x H).
Overall and footprint dimensions (as provided):
- Total (one set): 3,450 mm (L) x 3,600 mm (W) x 2,800 mm (H).
- Overall (second set): 6,450 mm (L) x 3,500 mm (W) x 2,700 mm (H).
Air handling and ventilation:
- Air extraction rate: 9,000 m³/h.
- Air supply rate: 9,000 m³/h.
- Amount of air emitted to the atmosphere: 800 m³/h.
Water and recirculation system:
- Water tank capacity: 2.5 m³.
- Water consumption: 10–20 l/h.
- Max. recirculating air temperature: 120 °C.
Drive, pump and heating configuration (as listed):
- Pump motor power: 2.2 kW.
- Electric motor power: entries list 4.0 kW and additionally 2 x 4.0 kW (see note below).
- Installed heater power: 4 x 22.8 kW.
Notes and recommendations:
- The specification contains two different listings for electric motor power (a single 4.0 kW value and a separate entry showing 2 x 4.0 kW). Please verify which configuration applies to this unit and which motors correspond to fans, blowers or other drives.
- Confirm operational status, condition, and any missing documentation or components before purchase, and request additional photos or an inspection if needed.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Paint booth with a water wall; the maximum dimensions of the parts to be painted are 2500 x 1400 x 700 mm (L x W x H).
The unit also includes monitoring and measuring equipment along with an electrical control panel.
total length [L] mm 3,450
total width [B] mm 3,600
total height [H] mm 2,800
Number of workstations: 1
Air extraction rate: 9,000 m³/h
Air supply rate: 9,000 m³/h
Electric motor power: 4.0 kW
Pump motor power: 2.2 kW
Water tank capacity m³ 2.5
Water consumption l/h 10.0–20.0
Overall length [L] mm 6,450
Overall width [B] mm 3,500
Overall height [H] mm 2,700
Working chamber length [L] mm 6250
Working chamber width [B] mm 3000
Working chamber height [H] mm 1750
Working chamber closure type --- door
Amount of air emitted to the atmosphere
m³/h 800
Electric motor power kW 2 x 4.0
Installed heater power kW 4 x 22.8
Max. recirculating air temperature ºC 120
