PM M520 Bagging machine - Vertical - Sachet machine Verified seller

You have the same machine to sell?

Add it to our catalogue for FREE

Start selling

About this seller Verified seller

Client type Reseller
Active since 2019
Offers online 22
Last activity March 20, 2021

Specifications

Output 60 /min
Bag height 390 mm
Bag width 245 mm
Max filling 800 g
-------------------
Length x width x height 1420.0 × 1200.0 × 1670.0
Weight 430 kg
Worked hours
Hours under power
State good
At local norms ---------
Status

Description

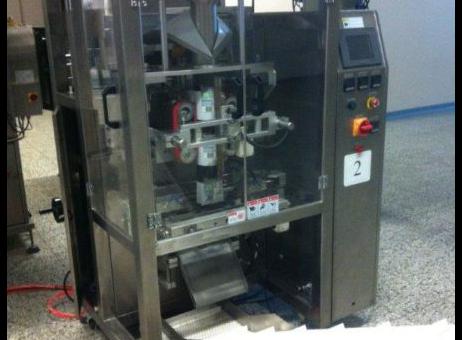

Vertical Packing Machine PM M520 (2 Sets)

Year of production: 2011
Mechanical speed: 60 packs / min.
Packing speed: 48 packs / min.
Packaging style: Pillow bag, gusseted bag (pneumatic forming)
Seam Seam: Standard Lap Seal (Left over Right)
Packaging material: PP film fed from a roll.
Type of cut: serrated
Firing Euro hangers
Printer: Hot Stamp Printer
Maximum width of a roll with foil: 520mm
Package size range: Length: 70-390mm, Width: 85-245mm
The currently existing diameters of forming tubes: Ø 69mm and Ø 97mm
Currently available pillow pack size: 108 x 160 * x 25mm (W x L x H), 152 x 165 * x 25mm (W x L x H) * Electronically adjustable
Weight: 430 kg
Device dimensions: 1420 x 1200 x 1670mm (L x W x H)
Compressed air requirement: 8.7 m3 / hr (at 5 bar)
Power: 2.6 kW
Electrical connection: 230VAC, 50 Hz, 1 Ph

UW10 multihead weigher (2 pcs for each packing machine):

Number of heads: 10
Weighing range: 10-800g
Weighing speed: 65 portion / min max
Accuracy: ± 0.5-2.0g
Single bucket capacity: 1600 ml
Resolution: 0.1 g
Power: 1.0 kW
Electrical connection: 230VAC, 50 Hz, 1 Ph
Weight: 330 kg
Dimensions: 1100 x 1050 x 1300mm (L x W x H)
Uninterrupted Power Supply (UPS)

Additional equipment (the given quantity applies to one set):

1 x Receiving conveyor with modular belt

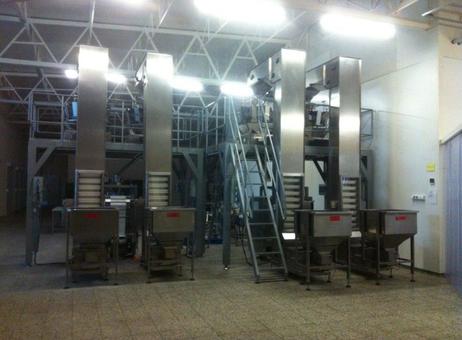

2 x Z-type bucket conveyor (Model: Z2010) with a product hopper with a capacity of 120 L and a vibrating feeder - one conveyor for each UW10 scales

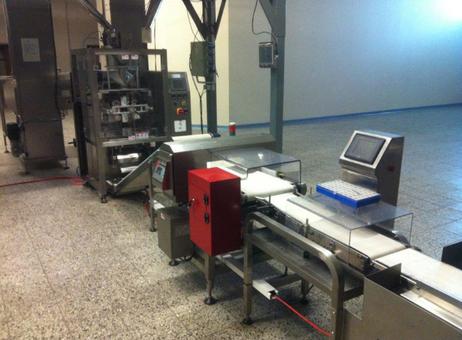

1 x Packmate MD4012 metal detector with pneumatic rejection of contaminated products into a sealed container
1 x Packmate CW50 Drive Check Scale (with product segregation)

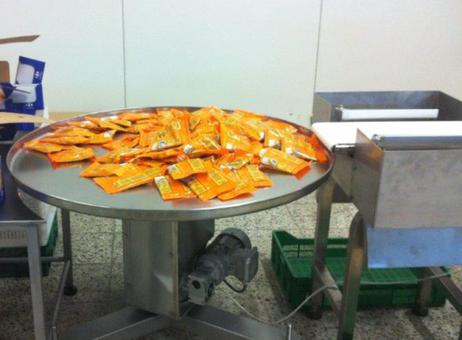

1 x manual packing table

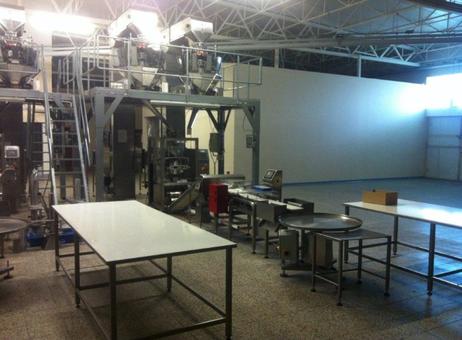

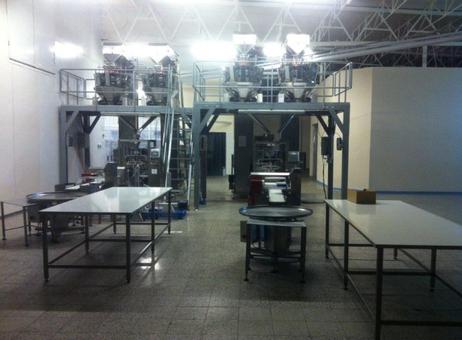

1 x Platform for 2 pcs of UW10 multi-head scales, dimensions: 3000x1800x2800mm (L x W x H)

Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. Exapro recommends to check the details with the seller before a purchase
