| Manufacturer | PLASTIC METAL |
|---|---|
| Model | Unyka 270 T.V. |
| Year | 2003 |
| Location | Italy
|
This injection moulding machine is a PLASTIC METAL Unyka 270 T.V. model manufactured in 2003. It features a clamping force of 270 tons, making it suitable for a wide range of molding applications requiring significant pressure. The machine is equipped with a screw diameter of 65 mm, which supports a shot volume of 830 cm³, enabling the processing of substantial material quantities per cycle.
The tie bar spacing measures 600 mm horizontally and 560 mm vertically, providing ample space for mold installation and operation. The machine employs a hydraulic press system with a knee-type closure mechanism, ensuring reliable clamping during the injection process. It includes one hydraulic jack and a total of four air blowers (three for the mold and one for the part), which assist in mold cooling and part ejection.
The moving platen stroke is 600 mm, allowing for flexible mold thickness accommodation ranging from 200 mm to 650 mm. Additionally, the machine is equipped with a robot interface compliant with Euromap 12 standards, facilitating automated part handling and integration into production lines.

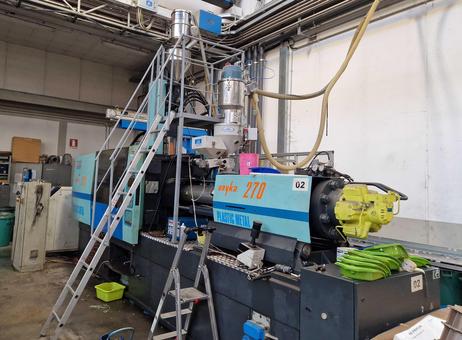

From the images, the machine has a blue and black body with clear labeling of the model name 'Unyka 270' and the manufacturer 'PLASTIC METAL'. A yellow hydraulic component is attached to the front right side, and a metal ladder and platform structure is mounted on the left side, likely for operator access and maintenance. There are also pink and blue containers positioned on top of the machine, which may be used for auxiliary materials or fluids. The machine appears to be clean and well-maintained, with no visible damage or defects.
Overall, this injection moulding machine offers robust performance characteristics and is equipped with features that support automated operation and efficient molding processes.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
Tonnage: 270
Screw Diameter Mm A: 65
Theoretical Vol A: 830
Screw Diameter Mm B: 35
Theoretical Vol B: 140
Mold Thickness Mm: 200 - 650
Moving Platen Stroke Mm: 600
Column Passage Mm: 600 x 560
Robot Interface: Euromap 12
Hydraulic Jacks N: 1
Air Blowers N: 3 P.M. and 1 P.F.
Closure: Knee
Press: Hydraulic
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
| Client type | Machinery dealer |
| Active since | 2007 |
| Offers online | 247 |
| Last activity | Oct. 30, 2026 |
Tonnage: 270
Screw Diameter Mm A: 65
Theoretical Vol A: 830
Screw Diameter Mm B: 35
Theoretical Vol B: 140
Mold Thickness Mm: 200 - 650
Moving Platen Stroke Mm: 600
Column Passage Mm: 600 x 560
Robot Interface: Euromap 12
Hydraulic Jacks N: 1
Air Blowers N: 3 P.M. and 1 P.F.
Closure: Knee
Press: Hydraulic
