Contact us to receive an offer.
| Manufacturer | PINACHO |
|---|---|
| Model | Taurus 260 |
| Year | |
| Location | Spain
|

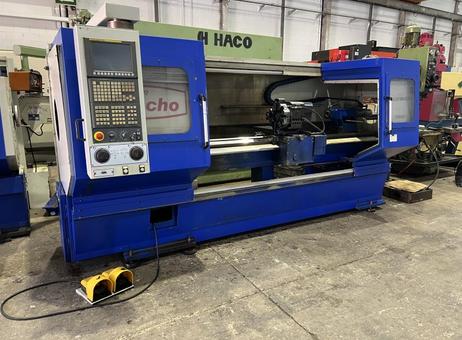

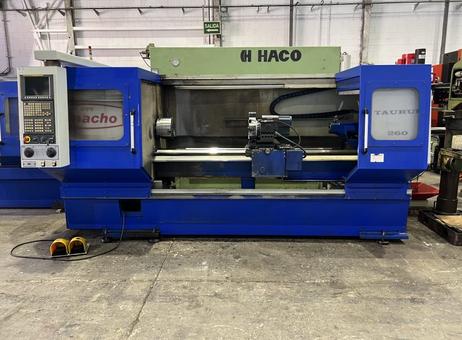

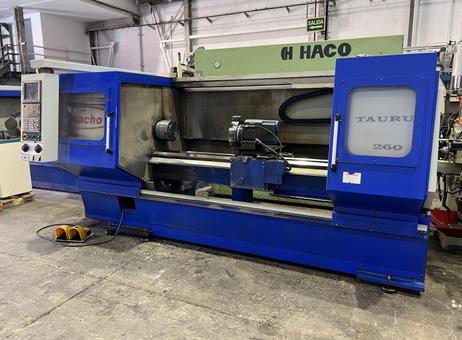

PINACHO Taurus 260 CNC Lathe — overview
This listing describes a PINACHO Taurus 260 CNC lathe equipped with a Fanuc 0i‑TC numerical control. Key machine specifications provided are: distance between centers 2000 mm, center height 260 mm, diameter over bed 530 mm, diameter over longitudinal slide 475 mm, diameter over cross slide 315 mm, bed width 350 mm, and spindle bore 75 mm. The main spindle uses a Morse taper 5 and the machine is fitted with an 8‑position automatic turret. A 3‑jaw chuck is included.
Features and capacity
- Manufacturer / model: PINACHO Taurus 260
- Control: Fanuc 0i‑TC (CNC)
- Turning capacity: center height 260 mm with maximum diameter over the bed of 530 mm
- Longitudinal capacity: distance between centers 2000 mm for longer workpieces
- Tooling: 8‑position automatic turret for multiple cutting tools
- Spindle: 75 mm bore and main spindle Morse taper 5
- Workholding: 3‑jaw chuck included
- Bed width: 350 mm; diameters over the longitudinal and cross slides are 475 mm and 315 mm respectively
Notes for prospective buyers
- The listing provides the technical specifications above; operational condition, tooling inventory beyond the 3‑jaw chuck, electrical requirements, and any additional accessories or attachments are not listed here. Buyers should verify the machine’s operational status, available tooling, control version/configuration, and any included fixtures or documentation with the seller prior to purchase.
- Confirm compatibility of the Fanuc 0i‑TC control version with your programming and CAM requirements if integration into an existing production line is planned.
If you would like, I can reformat these specifications into a short spec sheet or suggest typical inspection points to verify before purchase.
The following description has been generated using artificial intelligence based on the product information available. It is provided for guidance only and may not reflect all specifications or conditions. Please contact us if you need precise or confirmed details.
PINACHO Taurus 260 CNC Lathe
Manufacturer: PINACHO
Model: Taurus 260

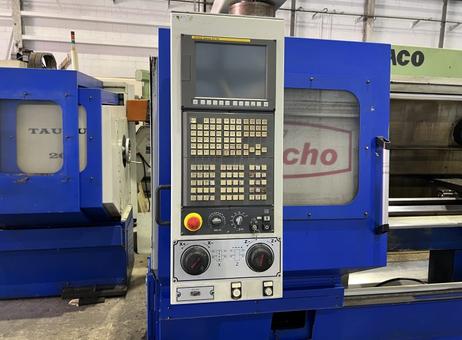

Numerical control: Fanuc 0i-TC

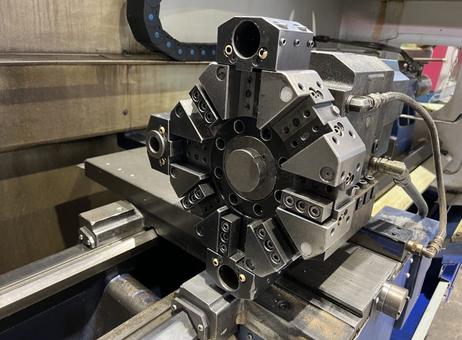

Turret: 8-position automatic turret
Distance between centers: 2000 mm
Center height: 260 mm
Diameter over bed: 530 mm
Diameter over longitudinal slide: 475 mm
Diameter over cross slide: 315 mm
Bed width: 350 mm
Spindle bore: 75 mm
Main spindle Morse taper: 5

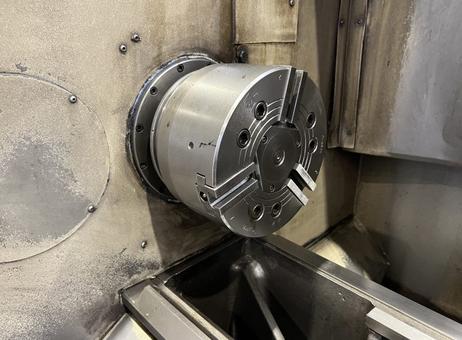

3-jaw chuck: Yes
Please note that this description may have been translated or optimized with artificial intelligence (AI) automatically. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase.
